Toyota DYNA100
1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · Europe
Discontinued model
Data version 1995-10
Heating & Air Conditioning - Compressor

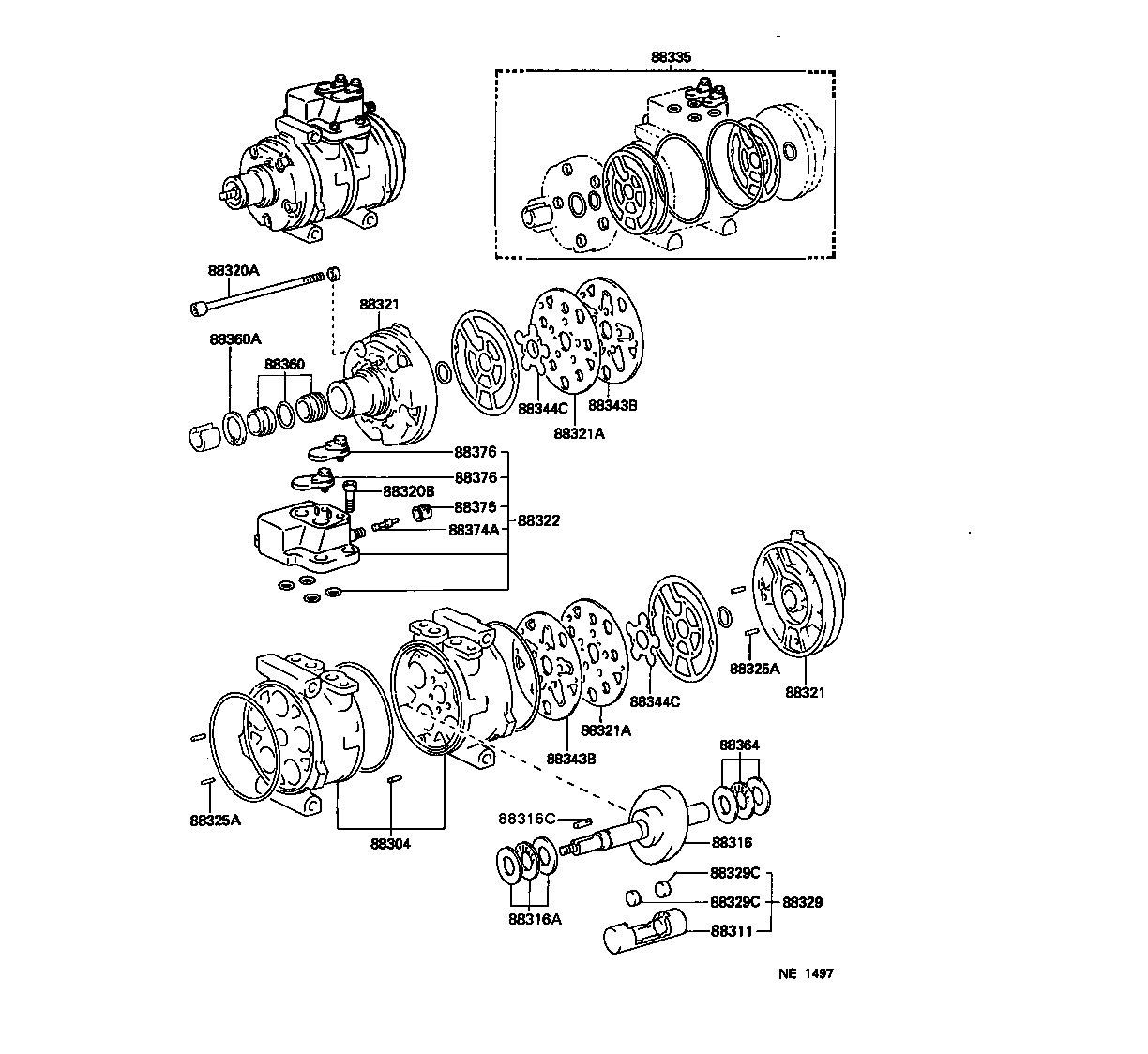

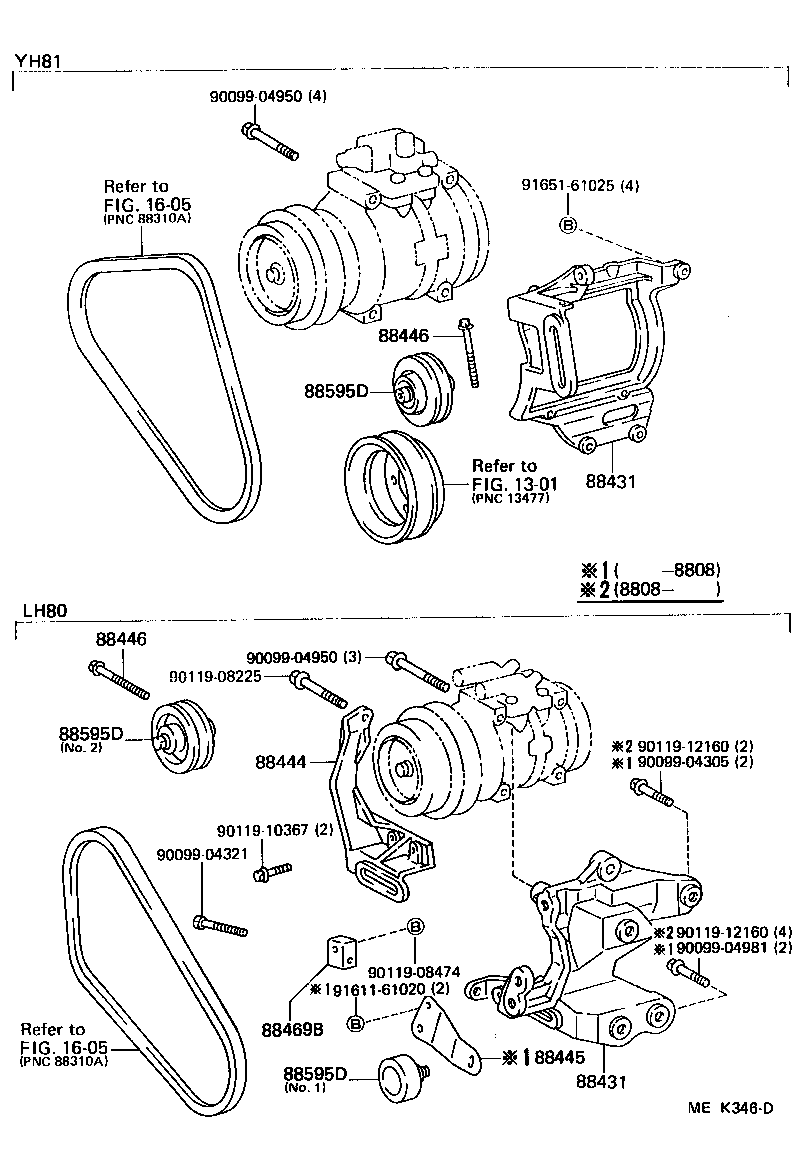

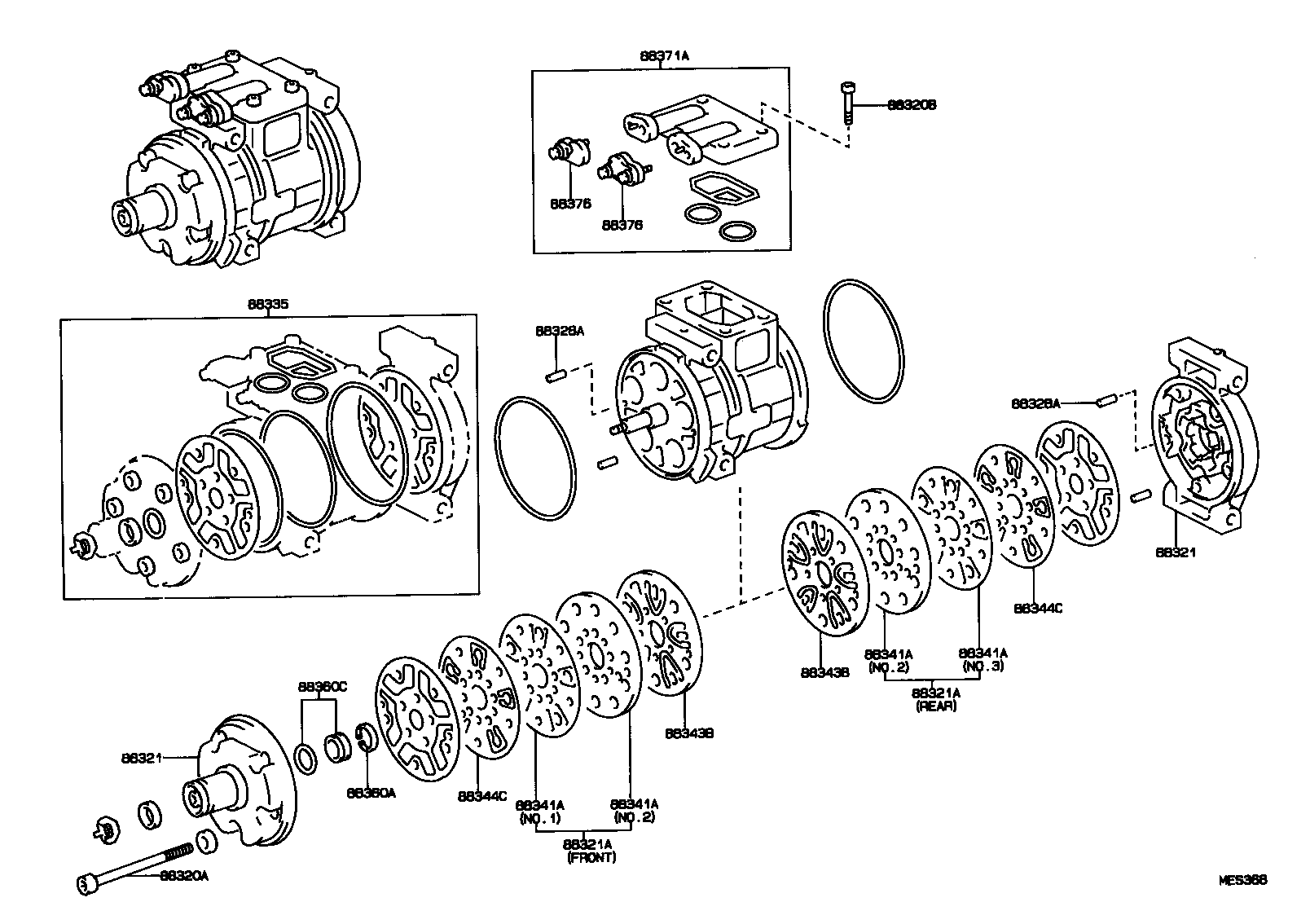

40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88301A | Bearing (FOR MAGNET CLUTCH) |
| 88301B | Ring, Snap (FOR MAGNET CLUTCH) |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88304 | Cylinder Sub-assy, Cooler Compressor |
| 88311 | Piston |
| 88316 | Crankshaft, Cooler Compressor |
| 88316A | Bearing, Compressor Crankshaft, Front |
| 88316C | Key, Compressor Crankshaft |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88320B | Bolt, Service Valve |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88322 | Valve, Cooler Compressor Suction Service |
| 88325A | Pin, Cylinder Block |
| 88328A | Pin, Compressor |
| 88329 | Piston Sub-assy, Cooler Compressor |
| 88329C | Shoe, Piston |
| 88330 | Clutch Assy, Magnet |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88341A | Valve |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360 | Seal Assy, Cooler Compressor Shaft |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88364 | Bearing, Compressor Crankshaft, Rear |
| 88371A | Valve, Suction |
| 88374A | Valve, Service |
| 88375 | Cap, Cooler Compressor Service Valve |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88445 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88469B | Collar |
| 88595D | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
