Toyota Dyna 100

1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe

Discontinued model Data version 2001-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

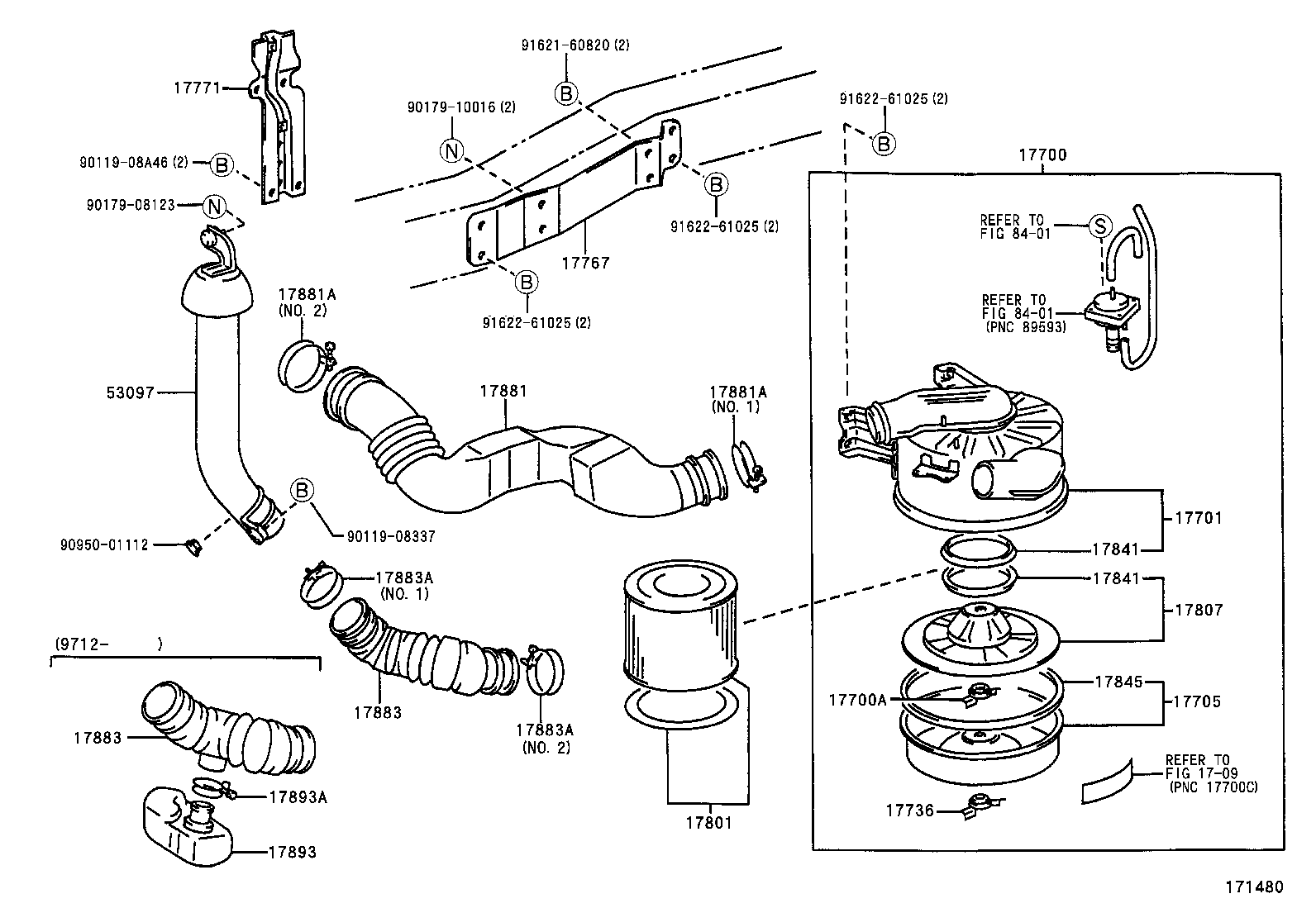

74 parts on this figure

Part number	Description	Fitment	Price
17700 — Cleaner Assy, Air
17700-54800	Cleaner Assy, Air 1995-05 → 2000-05 ended	2L LY100 LHD EUR	—
17700-54801	Cleaner Assy, Air 2000-05 → —	2L LY100 LHD EUR	—
17700-54810	Cleaner Assy, Air 1995-05 → 2000-05 ended	2L LY100 RHD EUR	—
17700-54811	Cleaner Assy, Air 2000-05 → —	2L LY100 RHD EUR	—
17700-54820	Cleaner Assy, Air 1995-05 → —	2L LY100 RHD GEN	—
17700-5B120	Cleaner Assy, Air 1997-12 → —	2L LY100 LHD GEN	—
17700-72240	Cleaner Assy, Air 1995-05 → —	2Y YY100 IV	—
17700-72250	Cleaner Assy, Air 1995-05 → —	2Y YY100 CBU	—
17710-54510 note	Cleaner Assy, Air 1995-05 → —	2L LY100 RHD IV	—
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008	Nut, Wing(FOR AIR CLEANER) 1995-05 → —	2L LY100	—
90175-08008	Nut, Wing(FOR AIR CLEANER) 1995-05 → —	2Y YY100	—
17701 — Case Sub-assy, Air Cleaner
17701-54550 note	Case Sub-assy, Air Cleaner 1995-05 → —	2L LY100 RHD IV	—
17701-54550	Case Sub-assy, Air Cleaner 1997-12 → —	2L LY100 LHD GEN	—
17705 — Cap Sub-assy, Air Cleaner
17705-54260	Cap Sub-assy, Air Cleaner 1995-05 → —	2L LY100	—
17705-54260	Cap Sub-assy, Air Cleaner 1995-05 → —	2Y YY100	—
17736 — Nut, Air Cleaner Case
90175-06003	Nut, Air Cleaner Case 1995-05 → —	2L LY100	—
90175-06003	Nut, Air Cleaner Case 1995-05 → —	2Y YY100	—
17767 — Bracket, Air Cleaner
17771-54110	Bracket, Air Cleaner 1995-05 → —	2L LY100 GEN IV	—
17771 — Bracket, Air Cleaner Inlet Duct
17771-54090	Bracket, Air Cleaner Inlet Duct 1995-05 → —	2L LY100	—
17771-54090	Bracket, Air Cleaner Inlet Duct 1995-05 → —	2Y YY100	—
17801 — Element Sub-assy, Air Cleaner Filter
17801-35030	Element Sub-assy, Air Cleaner Filter 1995-05 → —	2L LY100 GEN	—
17801-35030	Element Sub-assy, Air Cleaner Filter 1995-05 → —	2Y YY100	—
17801-54070	Element Sub-assy, Air Cleaner Filter 1995-05 → —	2L LY100 EUR	—
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-54020	Plate Sub-assy, Air Cleaner Filter Set 1995-05 → —	2L LY100	—
17807-73010	Plate Sub-assy, Air Cleaner Filter Set 1995-05 → —	2Y YY100	—
17841 — Gasket, Filter Element
17841-44030 note	Gasket, Filter Element 1995-05 → —	2Y YY100 IV	—
17841-54010 note	Gasket, Filter Element 1995-05 → —	2L LY100 RHD EUR	—
17841-54010	Gasket, Filter Element 1995-05 → —	2L LY100 GEN;2L LY100 +2	—
17841-54010	Gasket, Filter Element 1995-05 → —	2Y YY100 CBU	—
17841-54010 note	Gasket, Filter Element 1995-05 → —	2Y YY100 IV	—
17845 — Gasket, Air Cleaner Cap
17845-56020	Gasket, Air Cleaner Cap 1995-05 → —	2L LY100	—
17845-56020	Gasket, Air Cleaner Cap 1995-05 → —	2Y YY100	—
17881 — Hose, Air Cleaner, NO.1
17881-54530	Hose, Air Cleaner, NO.1 1995-05 → 1998-05 ended	2L LY100 RHD;2L LY100 +2	—
17881-54530	Hose, Air Cleaner, NO.1 1998-05 → —	2L LY100 RHD GEN	—
17881-54580 note	Hose, Air Cleaner, NO.1 1995-05 → —	2L LY100 RHD IV	—
17881-54580	Hose, Air Cleaner, NO.1 1997-12 → —	2L LY100 LHD GEN	—
17881-54620	Hose, Air Cleaner, NO.1 1998-05 → —	2L LY100 EUR	—
17881-71070	Hose, Air Cleaner, NO.1 1995-05 → —	2Y YY100	—
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10690 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	2Y YY100	—
96111-10690 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	2L LY100 RHD;2L LY100 +2	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	2Y YY100	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	2L LY100 RHD IV	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1997-12 → —	2L LY100 LHD GEN	—
96111-10830 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	2L LY100 RHD;2L LY100 +2	—
96111-10830 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	2L LY100 RHD IV	—
96111-10830 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1997-12 → —	2L LY100 LHD GEN	—
17883 — Hose, Air Cleaner, NO.3
17883-54180 note	Hose, Air Cleaner, NO.3 1995-05 → 1997-12 ended	2L LY100 GEN IV	—
17883-54190 note	Hose, Air Cleaner, NO.3 1997-12 → —	2L LY100 RHD IV	—
17883-54190	Hose, Air Cleaner, NO.3 1997-12 → —	2L LY100 LHD GEN	—
17883-73020	Hose, Air Cleaner, NO.3 1995-05 → —	2Y YY100	—
17883-73020	Hose, Air Cleaner, NO.3 1995-05 → —	2L LY100 RHD GEN	—
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
96111-10690 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	2Y YY100	—
96111-10690 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	2L LY100 RHD;2L LY100 +2	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1997-12 → —	2L LY100 RHD IV	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1997-12 → —	2L LY100 LHD GEN	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	2Y YY100	—
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	2L LY100 RHD;2L LY100 +2	—
96111-10780 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1996-11 → 1997-12 ended	2L LY100 GEN IV	—
96111-10780 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → 1996-11 ended	2L LY100 GEN IV	—
96111-10830 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1996-11 → —	2L LY100 RHD IV	—
96111-10830 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1997-12 → —	2L LY100 LHD GEN	—
17893 — Resonator, Intake Air
17805-54300	Resonator, Intake Air 1995-05 → —	2L LY100 RHD EUR	—
17805-54310	Resonator, Intake Air 1995-05 → —	2L LY100 LHD EUR	—
17893-54200	Resonator, Intake Air 1997-12 → —	2L LY100 LHD GEN	—
17893-54200 note	Resonator, Intake Air 1997-12 → —	2L LY100 RHD IV	—
17893A — Clamp, Hose
96111-10580	Clamp, Hose 1997-12 → —	2L LY100 LHD GEN	—
96111-10580 note	Clamp, Hose 1997-12 → —	2L LY100 RHD IV	—
53097 — Inlet Sub-assy
53097-25060	Inlet Sub-assy 1995-05 → —	LY100 LHD EUR	—
53097-25060 note	Inlet Sub-assy 1995-05 → —	YY100 CBU	—
53097-25070 note	Inlet Sub-assy 1995-05 → —	YY100 CBU	—
53097-25090	Inlet Sub-assy 1995-05 → —	LY100 RHD	—
53097-25090	Inlet Sub-assy 1995-05 → —	YY100 IV	—
53097-25100 note	Inlet Sub-assy 1995-05 → —	LY100 RHD IV	—
53097-25100	Inlet Sub-assy 1997-12 → —	LY100 LHD GEN	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
