Toyota Dyna 100
1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe
Discontinued model
Data version 2001-10

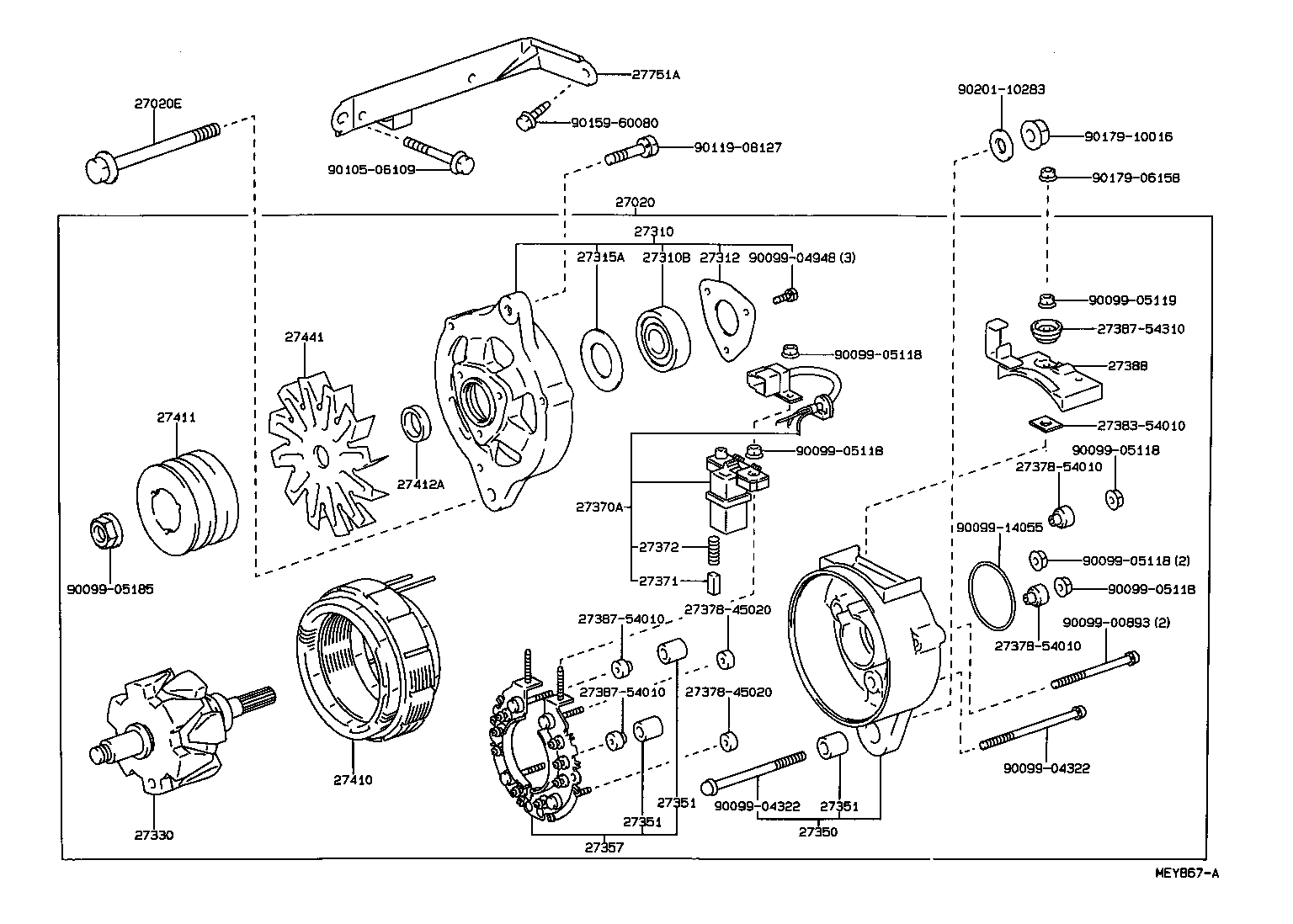

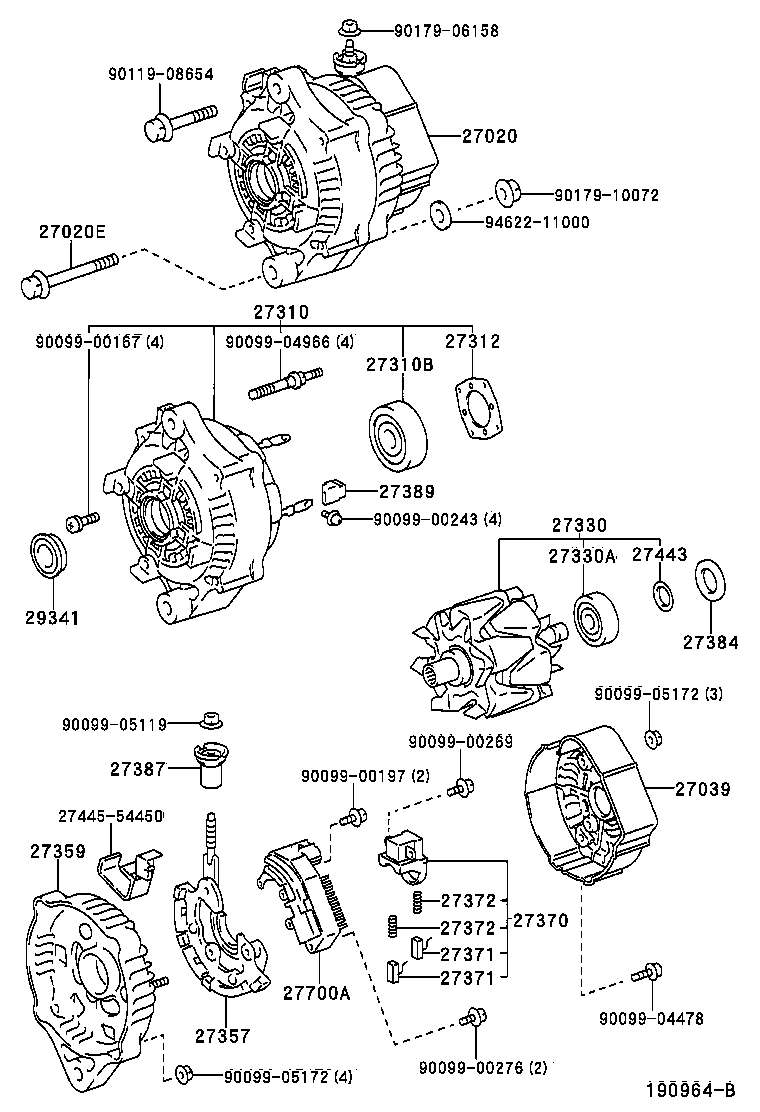

Alternator
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27312 | Plate, Retainer |
| 27315A | Cover, Alternator Felt, Inner NO.1 |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27350 | Frame Assy, Rectifier End |
| 27351 | Bush(FOR ALTERNATOR RECTIFIER END FRAME) |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27370 | Holder Assy, Alternator Brush |
| 27370A | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27384 | Washer |
| 27387 | Insulator, Terminal |
| 27388 | Cover, Alternator Brush |
| 27389 | Insulator, Terminal |
| 27410 | Stator Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27412A | Collar, Space(FOR ALTERNATOR DRIVE END FRAME) |
| 27441 | Fan, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27700A | Regulator Assy, Generator |
| 27751A | Bracket, Generator Regulator |
| 29341 | Seal, Alternator Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
