Toyota Dyna 100
1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe
Discontinued model
Data version 2001-10
Front Steering Gear & Link

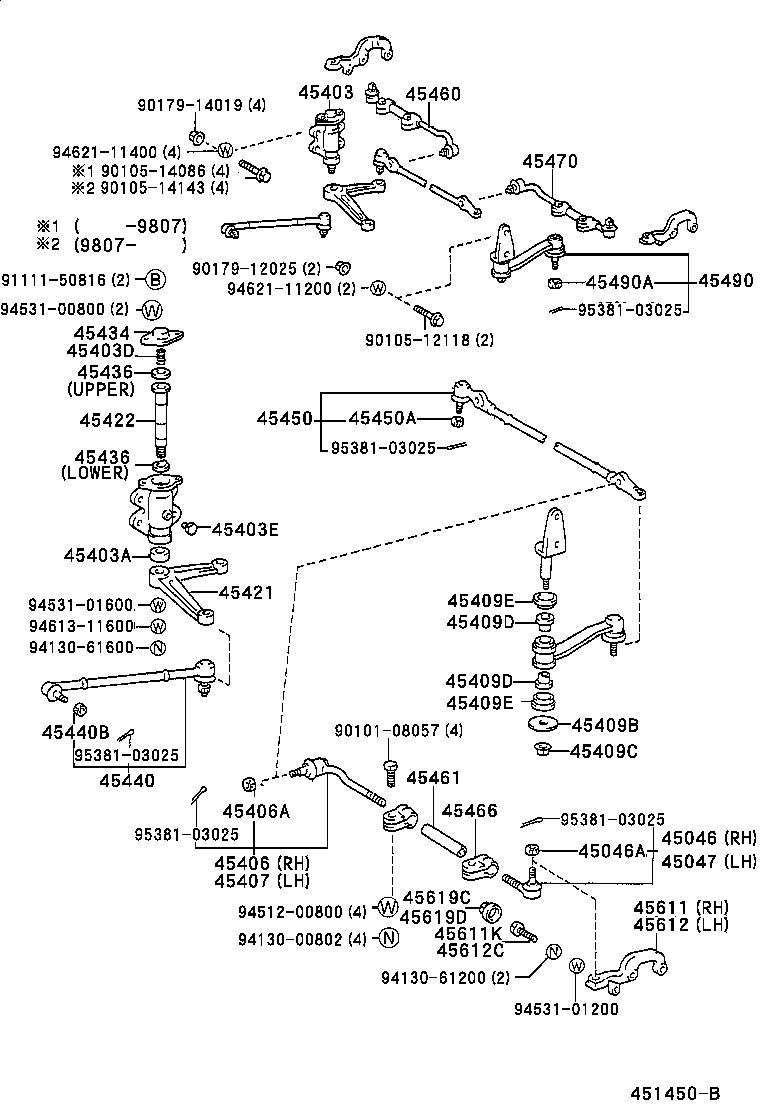

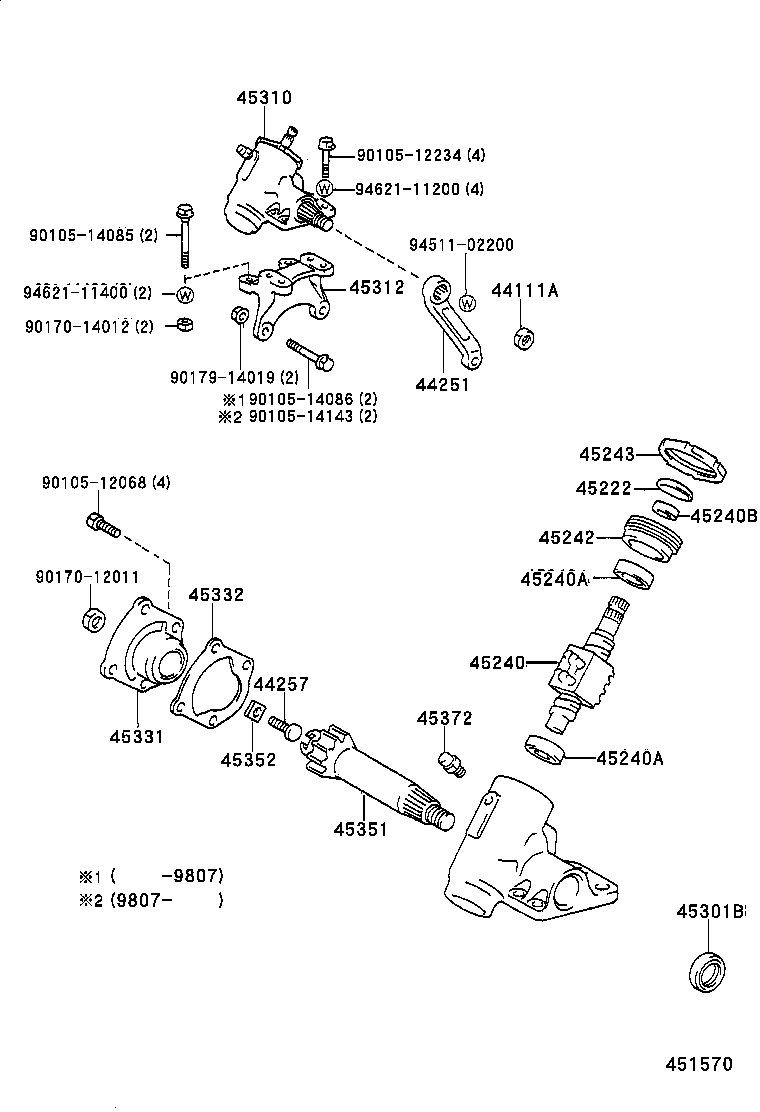

70 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04445 | Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) |
| 04455A | Gasket Kit, Power Steering Cross Shaft Overhole |
| 44105C | Seat, Union(FOR VALVE BODY HOUSING) |
| 44107 | Housing Sub-assy, Power Steering Gear |
| 44107A | Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING) |
| 44107B | Ring, O(FOR POWER STEERING GEAR HOUSING) |
| 44107C | Ring(FOR POWER STEERING GEAR HOUSING) |
| 44107D | Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING) |
| 44107E | Seal, Oil(FOR POWER STEERING GEAR HOUSING) |
| 44108 | Cover Sub-assy, Side |
| 44108A | Ring, O(FOR SIDE COVER) |
| 44110 | Gear Assy, Power Steering |
| 44111 | Shaft, Cross |
| 44111A | Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING) |
| 44114A | Ring(FOR POWER PISTON NUT) |
| 44114B | Ring, O(FOR POWER PISTON NUT) |
| 44120 | Valve Assy, W/Ball Nut |
| 44142A | Nut, Lock, NO.1 |
| 44251 | Arm, Pitman |
| 44257 | Screw, Cross Shaft Adjusting |
| 44257A | Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW) |
| 44457 | Bracket, Tube Support, NO.1 |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45222 | Cover, Steering Gear Dust |
| 45240 | Worm Assy, Steering |
| 45240A | Bearing(FOR STEERING WORM) |
| 45240B | Seal, Oil(FOR STEERING WORM) |
| 45242 | Screw, Worm Bearing Adjusting |
| 45243 | Nut, Worm Bearing Adjusting Screw Lock |
| 45301B | Seal, Oil(FOR SECTOR SHAFT) |
| 45310 | Housing Assy, Steering Gear |
| 45312 | Bracket, Steering Gear Housing |
| 45331 | Cover, Sector Shaft End |
| 45332 | Gasket, Sector Shaft End Cover |
| 45351 | Shaft, Steering Sector |
| 45352 | Washer, Sector Shaft Thrust |
| 45372 | Plug, Steering Gear Housing Oil |
| 45403 | Bracket Sub-assy, Center Arm |
| 45403A | Seal, Oil(FOR CENTER ARM BRACKET) |
| 45403D | Spring, Compression(FOR CENTER ARM SHAFT SET) |
| 45403E | Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT) |
| 45406 | Rod Sub-assy, Tie, RH |
| 45406A | Nut, Castle(FOR TIE ROD) |
| 45407 | Rod Sub-assy, Tie, LH |
| 45409B | Washer, Plate(FOR IDLER ARM RUBBER BUSH) |
| 45409C | Nut(FOR IDLER ARM SUPPORT) |
| 45409D | Bush(FOR IDLER ARM) |
| 45409E | Seal, Dust(FOR IDLER ARM SUPPORT) |
| 45421 | Arm, Steering Center |
| 45422 | Shaft, Center Arm |
| 45434 | Cap, Center Arm Bracket |
| 45436 | Seat, Center Arm Shaft |
| 45440 | Link Assy, Steering Drag |
| 45440B | Nut, Castle(FOR STEERING DRAG LINK) |
| 45450 | Rod Assy, Steering Relay |
| 45450A | Nut, Castle(FOR RELAY ROD) |
| 45460 | Rod Assy, Tie, RH |
| 45461 | Rod, Steering Tie |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45490 | Arm Assy, Steering Idler |
| 45490A | Nut, Castle(FOR IDLER ARM) |
| 45611 | Arm, Steering Knuckle, RH |
| 45611K | Bolt(FOR STEERING KNUCKLE STOPPER RH) |
| 45612 | Arm, Steering Knuckle, LH |
| 45612C | Bolt(FOR STEERING KNUCKLE STOPPER LH) |
| 45619C | Cover, Steering Knuckle Stopper, RH |
| 45619D | Cover, Steering Knuckle Stopper, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
