Toyota Dyna 100
1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe
Discontinued model
Data version 2001-10

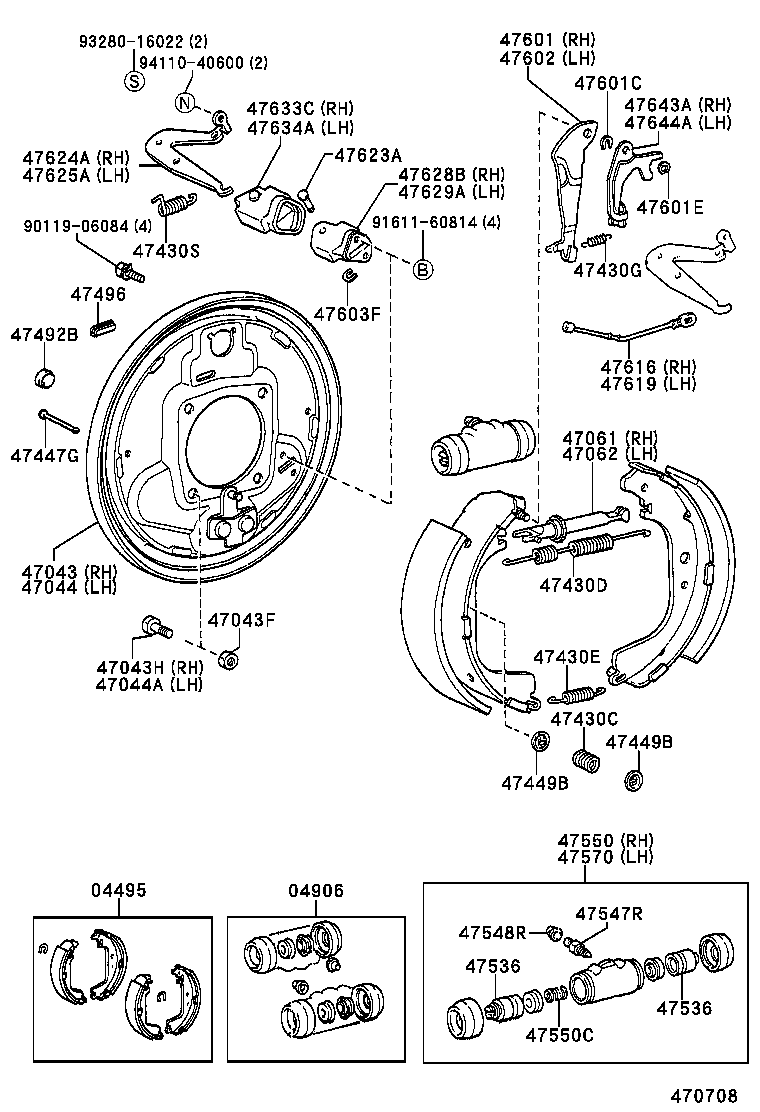

Rear Drum Brake Wheel Cylinder & Backing Plate
52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04495 | Shoe Kit, Rear Brake |
| 04906 | Cup Kit, Rear Wheel Cylinder |
| 47043 | Plate Sub-assy, Brake Backing, Rear RH |
| 47043F | Nut(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043H | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE RH) |
| 47044 | Plate Sub-assy, Brake Backing, Rear LH |
| 47044A | Bolt, NO.1(FOR REAR BRAKE BACKING PLATE LH) |
| 47061 | Strut Set, Parking Brake Shoe, RH |
| 47062 | Strut Set, Parking Brake Shoe, LH |
| 47430A | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430C | Spring(FOR REAR BRAKE SHOE HOLD DOWN) |
| 47430D | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430E | Spring, Tension(FOR REAR BRAKE SHOE RETURN) |
| 47430G | Spring, Tension(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) |
| 47430H | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 47430S | Spring, Tension(FOR PARKING BRAKE SHOE STRUT) |
| 47447G | Pin, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47449B | Cup, Shoe Hold Down Spring(FOR REAR BRAKE) |
| 47456R | Plate, Rear Brake Shoe Guide |
| 47458 | Bracket, Rear Brake Shoe Return Spring |
| 47460 | Adjuster Assy, Shoe, RH(FOR REAR BRAKE) |
| 47470 | Adjuster Assy, Shoe, LH(FOR REAR BRAKE) |
| 47492B | Plug, Shoe Inspection(FOR REAR BRAKE) |
| 47496 | Plug, Hole(FOR REAR BRAKE) |
| 47533A | Seat, Wheel Cylinder Piston Spring(FOR REAR BRAKE) |
| 47536 | Piston, Wheel Brake Cylinder(FOR REAR BRAKE) |
| 47538A | Link, Wheel Cylinder Connecting |
| 47547R | Plug, Bleeder(FOR DRUM BRAKE, REAR) |
| 47548R | Cap, Bleeder Plug(FOR DRUM BRAKE, REAR) |
| 47550 | Cylinder Assy, Rear Wheel Brake(FOR RH, FRONT OR UPPER) |
| 47550C | Spring, Compression(FOR REAR WHEEL BRAKE CYLINDER) |
| 47570 | Cylinder Assy, Rear Wheel Brake(FOR LH, FRONT OR UPPER) |
| 47601 | Lever Sub-assy, Parking Brake Shoe, RH(FOR REAR BRAKE) |
| 47601C | Washer, C(FOR REAR BRAKE) |
| 47601D | Washer, Wave(FOR REAR BRAKE) |
| 47601E | Ring, E(FOR REAR BRAKE) |
| 47602 | Lever Sub-assy, Parking Brake Shoe, LH (FOR REAR BRAKE) |
| 47603F | Washer, Type C(FOR PARKING BRAKE BELL CRANK) |
| 47607 | Cable Sub-assy, Rear Beake Automatic Adjust |
| 47613 | Strut, Parking Brake Shoe (FOR REAR BRAKE) |
| 47616 | Wire, Parking Brake, RH |
| 47619 | Wire, Parking Brake, LH |
| 47623A | Pin(FOR PARKING BRAKE BELL CRANK) |
| 47624A | Crank, Parking Brake Bell, RH |
| 47625A | Crank, Parking Brake Bell, LH |
| 47628B | Bracket, Rear Brake Bellcrank, RH |
| 47629A | Bracket, Rear Brake Bellcrank, LH |
| 47633C | Boot, Rear Brake Bellcrank, RH |
| 47634A | Boot, Rear Brake Bellcrank, LH |
| 47642A | Guide, Rear Brake Automatic Adjust Cable |
| 47643A | Lever, Rear Brake Automatic Adjust, RH |
| 47644A | Lever, Rear Brake Automatic Adjust, LH |
