Toyota Dyna 100

1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe

Discontinued model Data version 2001-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

45 part groups · 6 illustrations

Illustrations

479632 1995-05 → 1996-10

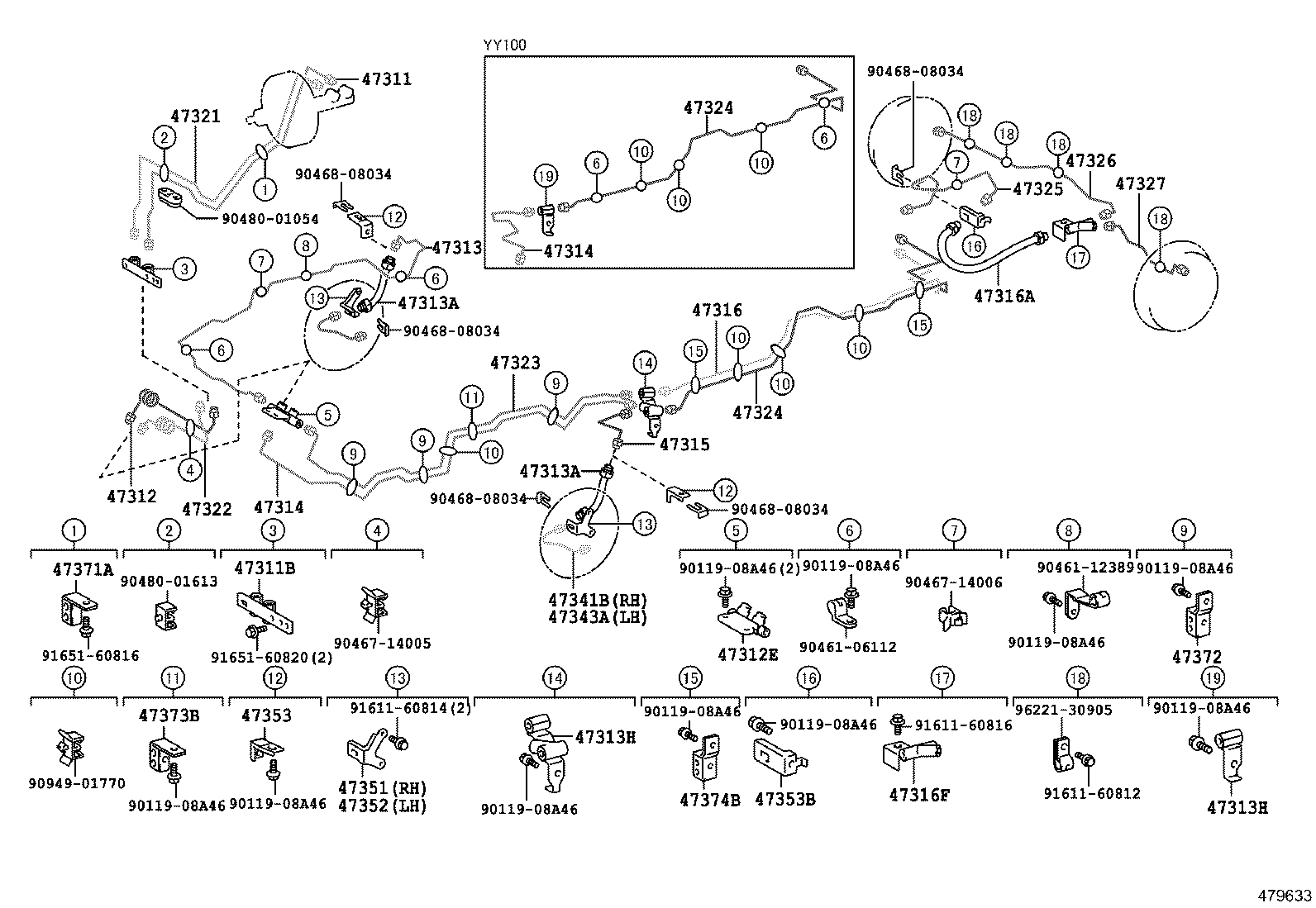

479633 1995-05 → 1999-05

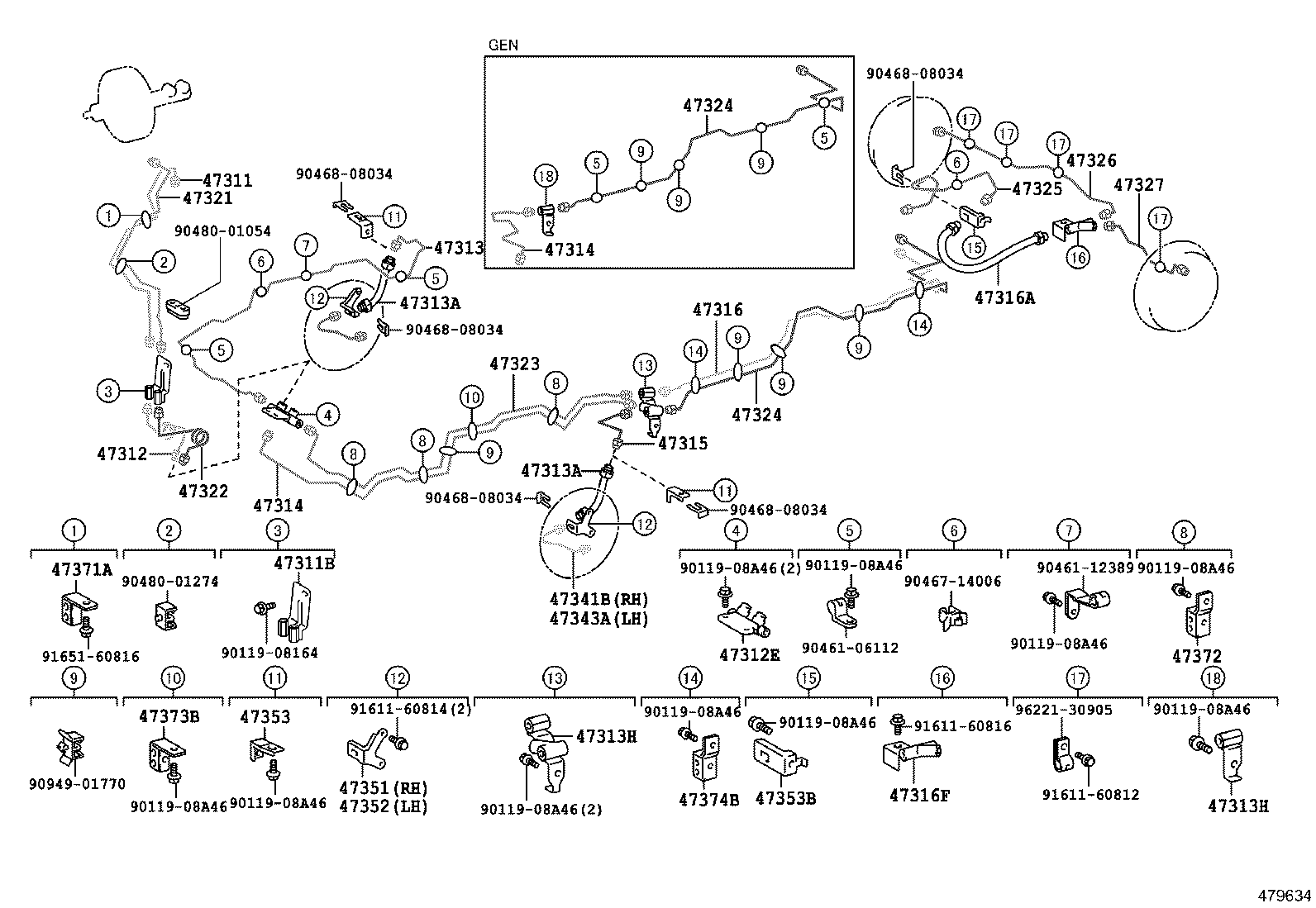

479634 1996-10 → 1999-05

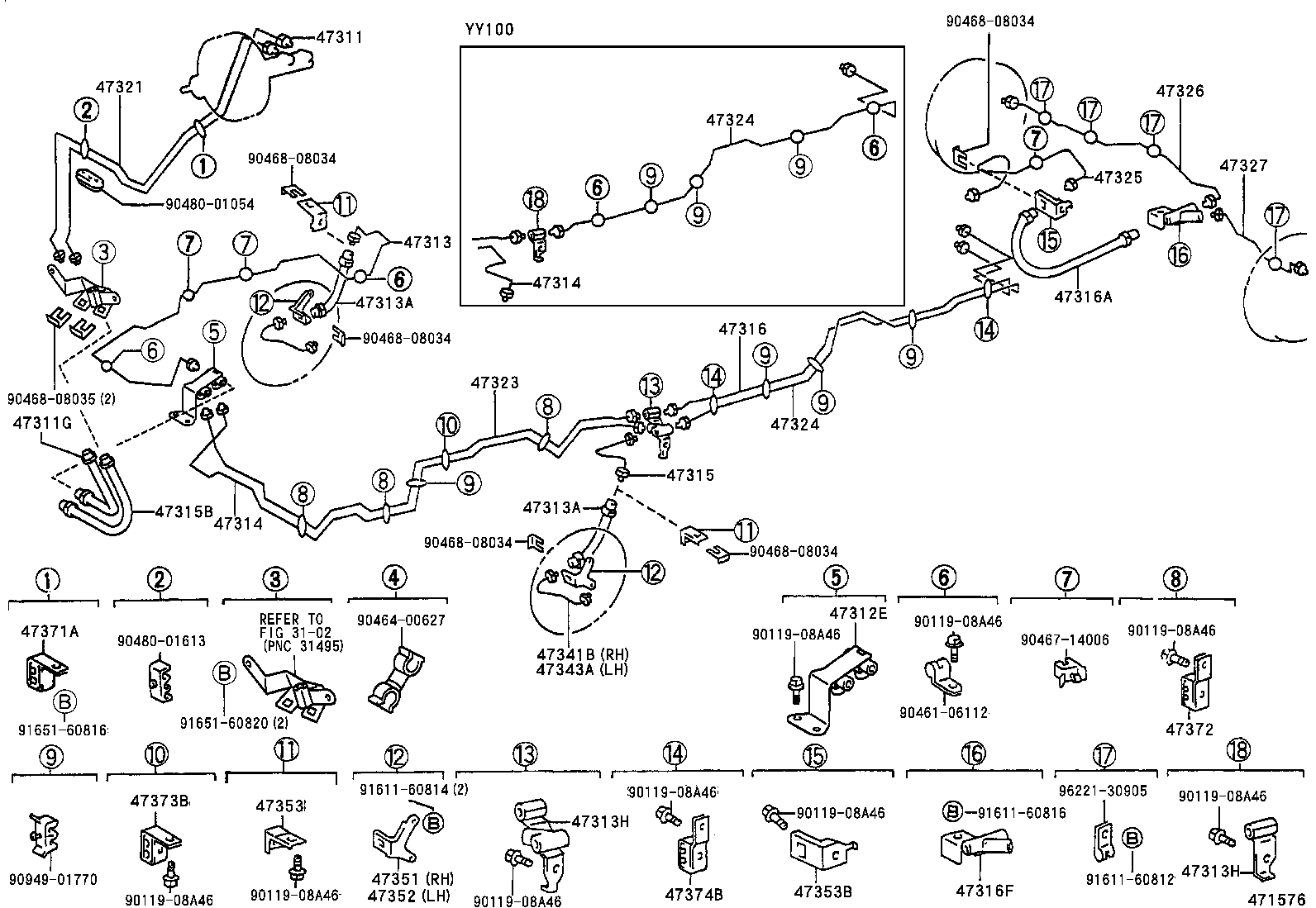

471576 1999-05 → —

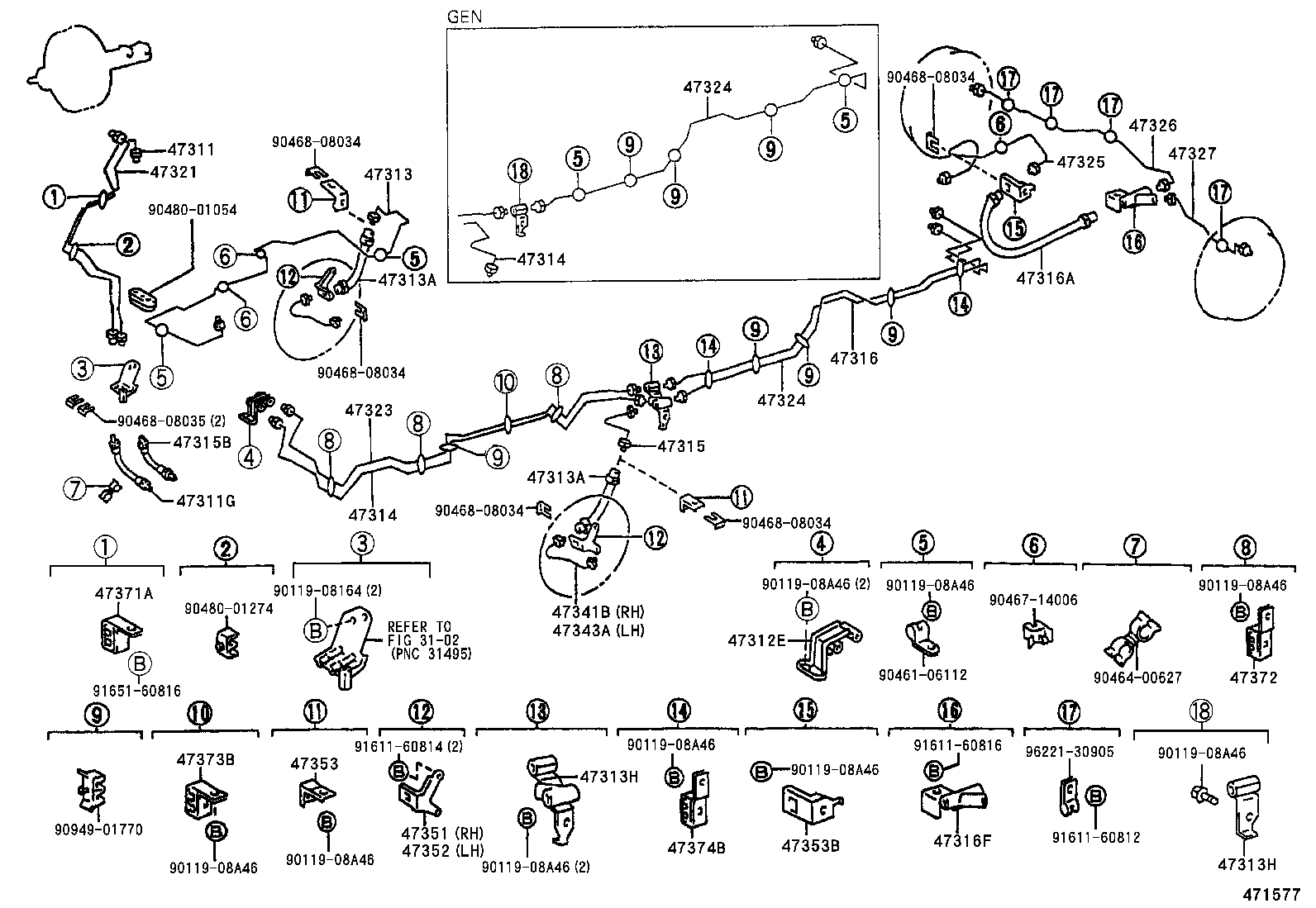

471577 1999-05 → —

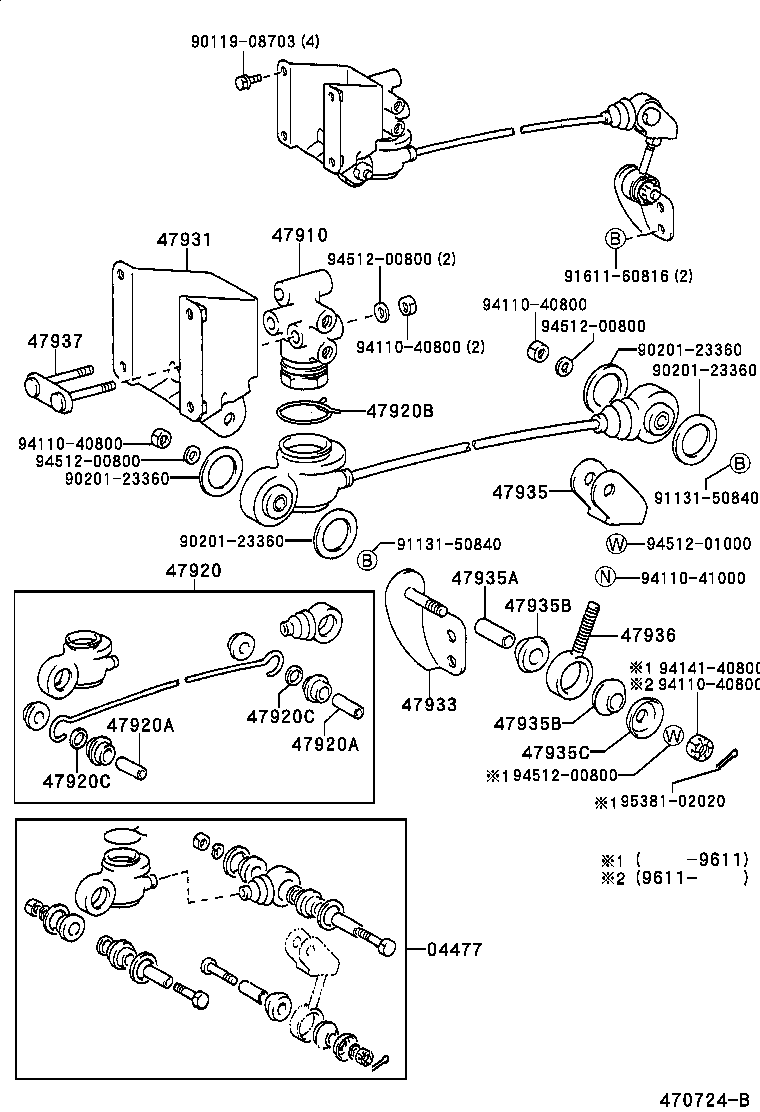

470724B 1995-05 → —

Part groups

PNC	Description
04477	Bush & Boot Kit, Load Sensing Spring
47311	Tube, Front Brake, NO.1
47311B	Way, NO.1(FOR FRONT BRAKE TUBE)
47311G	Hose, Flexible(FOR BRAKE TUBE)
47312	Tube, Front Brake, NO.2
47312E	Way, NO.2(FOR FRONT BRAKE TUBE)
47313	Tube, Front Brake, NO.3
47313A	Hose, Flexible, NO.1(FOR FRONT)
47313H	Way, NO.3(FOR FRONT BRAKE TUBE)
47314	Tube, Front Brake, NO.4
47315	Tube, Front Brake, NO.5
47315B	Hose, Flexible(FOR BRAKE TUBE)
47316	Tube, Front Brake, NO.6
47316A	Hose, Flexible(FOR REAR BRAKE TUBE)
47316F	Way, 3(FOR REAR BRAKE TUBE)
47321	Tube, Rear Brake, NO.1
47322	Tube, Rear Brake, NO.2
47323	Tube, Rear Brake, NO.3
47324	Tube, Rear Brake, NO.4
47325	Tube, Rear Brake, NO.5
47326	Tube, Rear Brake, NO.6
47327	Tube, Rear Brake, NO.7
47341B	Tube, Wheel Cylinder, Front RH NO.1
47343A	Tube, Wheel Cylinder, Front LH NO.1
47351	Bracket, Flexible Hose(FOR FRONT RH)
47352	Bracket, Flexible Hose(FOR FRONT LH)
47353	Bracket, Flexible Hose(FOR REAR)
47353B	Bracket, Flexible Hose, NO.3
47371A	Clamp, Brake Tube, NO.1
47372	Clamp, Brake Tube, NO.2
47373B	Clamp, Brake Tube, NO.3
47374B	Clamp, Brake Tube, NO.4
47910	Valve Assy, Load Sensing Proportioning
47920	Spring Assy, Load Sensing
47920A	Collar(FOR LOAD SENSING SPRING)
47920B	Clip(FOR LOAD SENSING VALVE BOOT)
47920C	Washer(FOR LOAD SENSING SPRING)
47931	Bracket, Load Sensing Valve
47933	Bracket, Load Sensing Shackle, NO.1
47935	Shackle, Load Sensing Spring, NO.1
47935A	Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B	Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C	Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936	Shackle, Load Sensing Spring, NO.2
47937	Plate, Load Sensing Valve Set

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
