Toyota Dyna 100
1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe
Discontinued model
Data version 2001-10

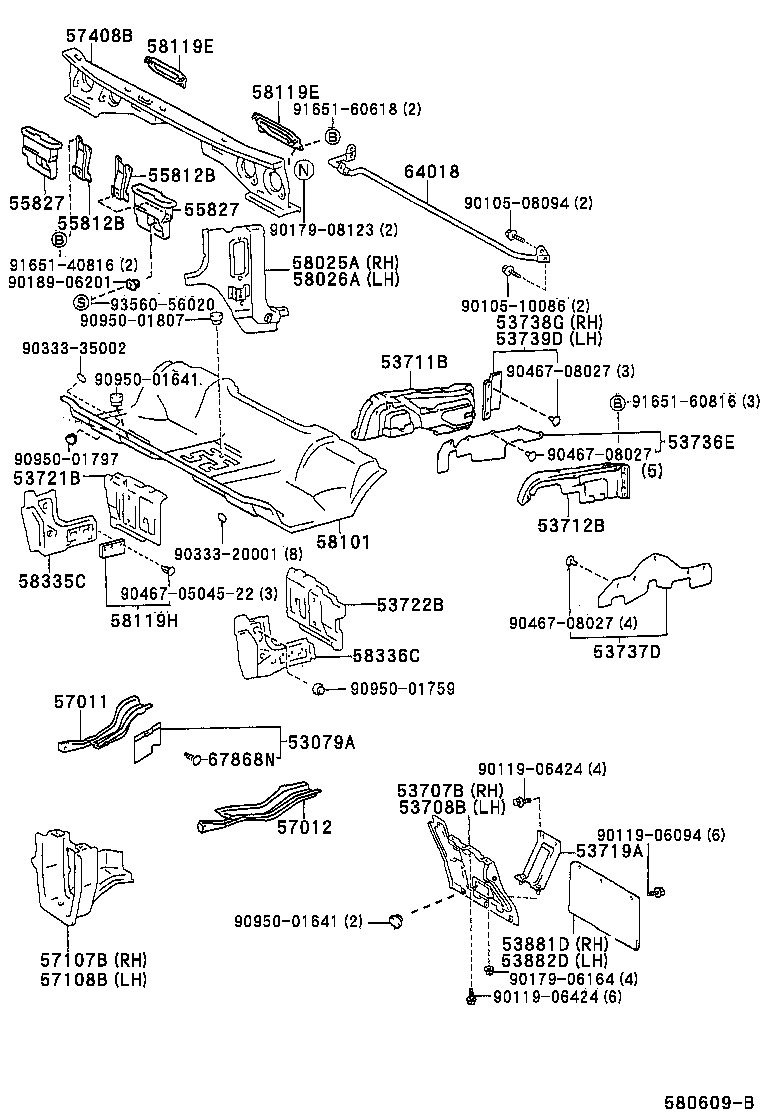

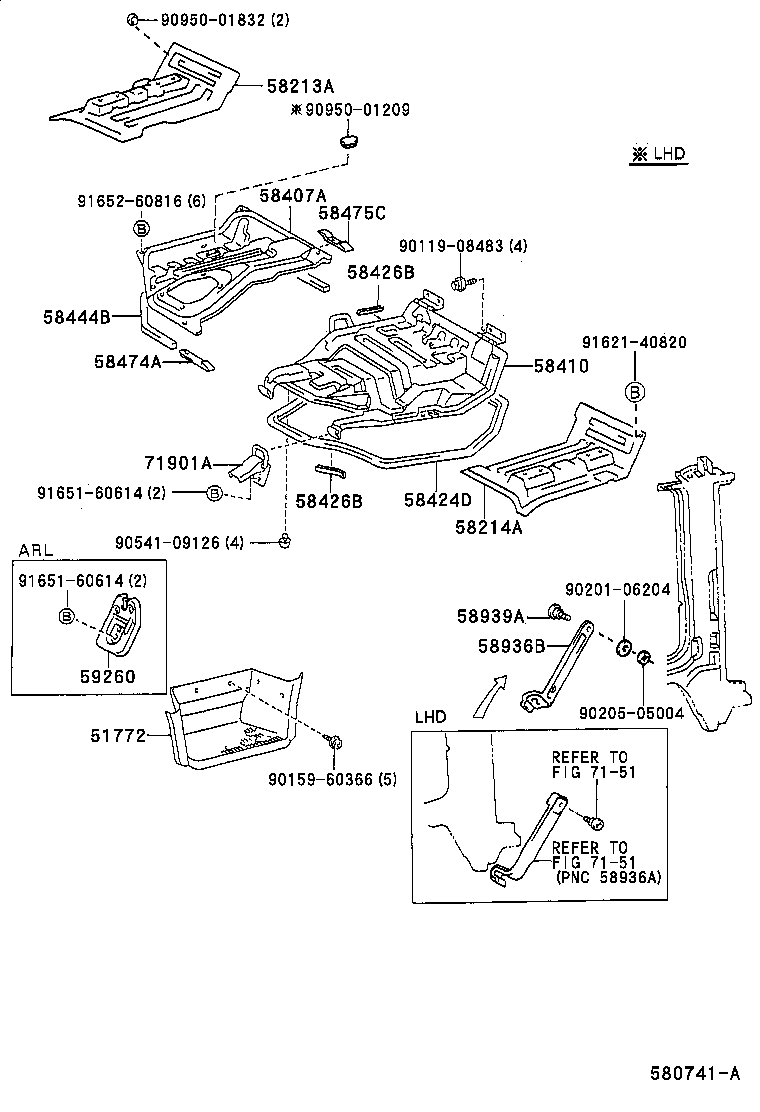

Front Floor Panel & Front Floor Member
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51772 | Plate, Step |
| 53079A | Seal Sub-assy, Front Fender Apron, Lower |
| 53707B | Apron Sub-assy, Fender Side, RH |
| 53708B | Apron Sub-assy, Fender Side, LH |
| 53711B | Apron, Front Fender, Front RH |
| 53712B | Apron, Front Fender, Front LH |
| 53719A | Brace, Fender Apron |
| 53721B | Apron Sub-assy, Fender Side, RH |
| 53722B | Apron Sub-assy, Fender Side, LH |
| 53736E | Seal, Front Fender Apron, RH |
| 53737D | Seal, Front Fender Apron, LH |
| 53738G | Seal, Front Fender Apron, Rear RH |
| 53739D | Seal, Front Fender Apron TO Frame, Rear |
| 53764B | Bracket, Air Cleaner Inlet, NO.3 |
| 53881D | Mudguard, Front RH |
| 53882D | Mudguard, Front LH |
| 53887C | Plate, Front Mudguard |
| 55812B | Bracket, Ventilator Duct |
| 55827 | Duct, Ventilator Air Guide |
| 57011 | Member Sub-assy, Floor, RH |
| 57012 | Menber Sub-assy |
| 57107B | Bracket Sub-assy, Cab Front Mounting, RH |
| 57108B | Bracket Sub-assy, Cab Front Mounting, LH |
| 57408B | Member Sub-assy, Front Floor Cross |
| 58025A | Panel Sub-assy, Floor Side Rail, FR RH |
| 58026A | Panel Sub-assy, Floor Side Rail, FR LH |
| 58101 | Pan Sub-assy, Front Floor |
| 58119E | Cover, Front Floor Side, Front |
| 58119H | Cover, Front Floor Side, Front |
| 58213A | Panel, Seat Floor, RH |
| 58214A | Panel, Seat Floor, LH |
| 58335C | Plate, Floor Side, Front RH |
| 58336C | Plate, Floor Side, Front LH |
| 58407A | Cover Sub-assy, Engine Service Hole Sub |
| 58410 | Cover, Engine Service Hole |
| 58424D | Packing, Engine Cover |
| 58426B | Protector, Engine Sub Cover |
| 58444B | Packing, Engine Sub Cover |
| 58474A | Packing, Engine Sub Cover, NO.2 |
| 58475C | Packing, Engin Sub Cover, NO.3 |
| 58936B | Band, Engine Service Hole Cover Support |
| 58939A | Screw, Engine Service Hole Cover Support Band |
| 59260 | Lock Assy, Engine Cover |
| 64018 | Bar Sub-assy, Body |
| 67868N | Clip, Door Weatherstrip, RH |
| 71901A | Catch Sub-assy, Center Seat Cushion, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
