Toyota Dyna 100
1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe
Discontinued model
Data version 2001-10

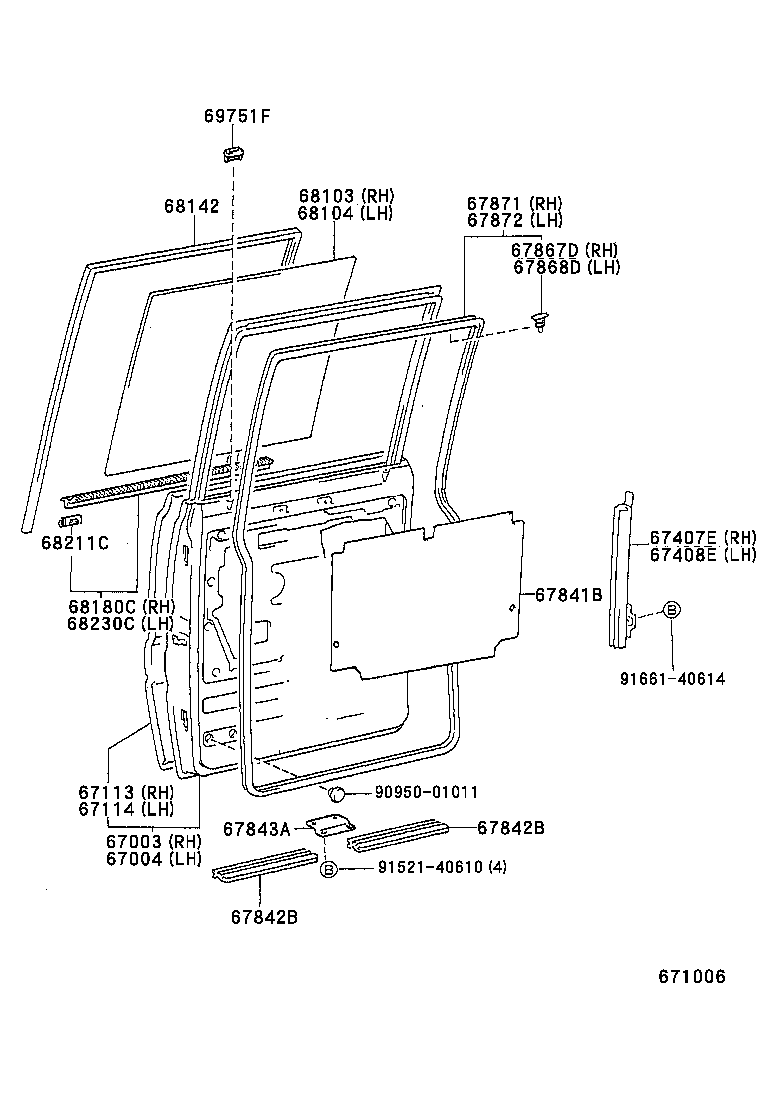

Rear Door Panel & Glass
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67841B | Cover, Rear Door Service Hole |
| 67842B | Cover, Rear Door Service Hole, Lower |
| 67843A | Cover, Rear Door Service Hole, NO.2 |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142 | Run, Rear Door Glass |
| 68180C | Weatherstrip Assy, Rear Door Glass, Outer RH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68190A | Clip(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) |
| 68211C | Clip(FOR REAR DOOR GLASS WEATHERSTRIP) |
| 68230C | Weatherstrip Assy, Rear Door Glass, Outer LH |
| 69751F | Holder, Rear Door Lock Control Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
