Toyota Dyna 100

1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe

Discontinued model Data version 2001-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

11 part groups · 5 illustrations

Illustrations

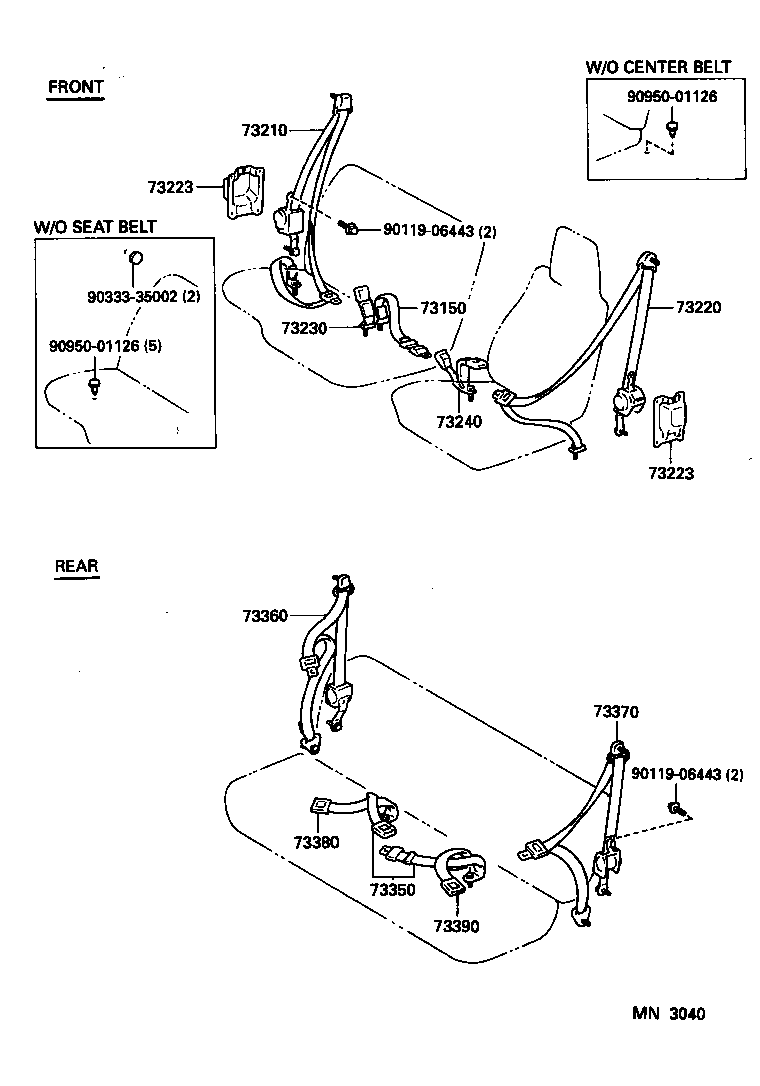

Figure MN3037 MN3037 1995-05 → — Figure MN3038 MN3038 1995-05 → — Figure MN3039 MN3039 1995-05 → — Figure MN3040 MN3040 1995-05 → — Figure MN3041 MN3041 1995-05 → —

Part groups

PNCDescription
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
