Toyota Dyna 100

1995-05 → 2001-08 · chassis LY100,YY100 · catalogue 691260 · Europe

Discontinued model Data version 2001-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 2 illustrations

Illustrations

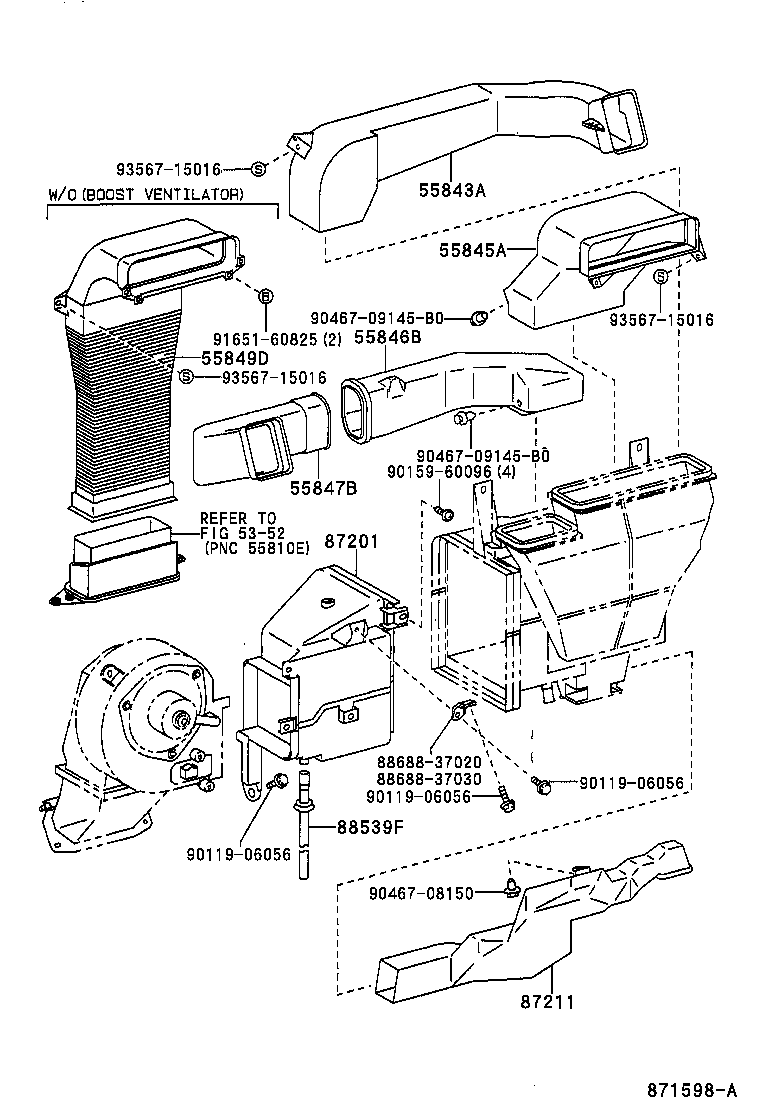

Figure 872291 872291 1995-05 → — Figure 871598A 871598A 1995-05 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55849D Duct, Heater TO Register, NO.7
55905A Knob, Heater Control
55906 Cable Sub-assy, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
88539F Hose, Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
