Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 8 illustrations

Illustrations

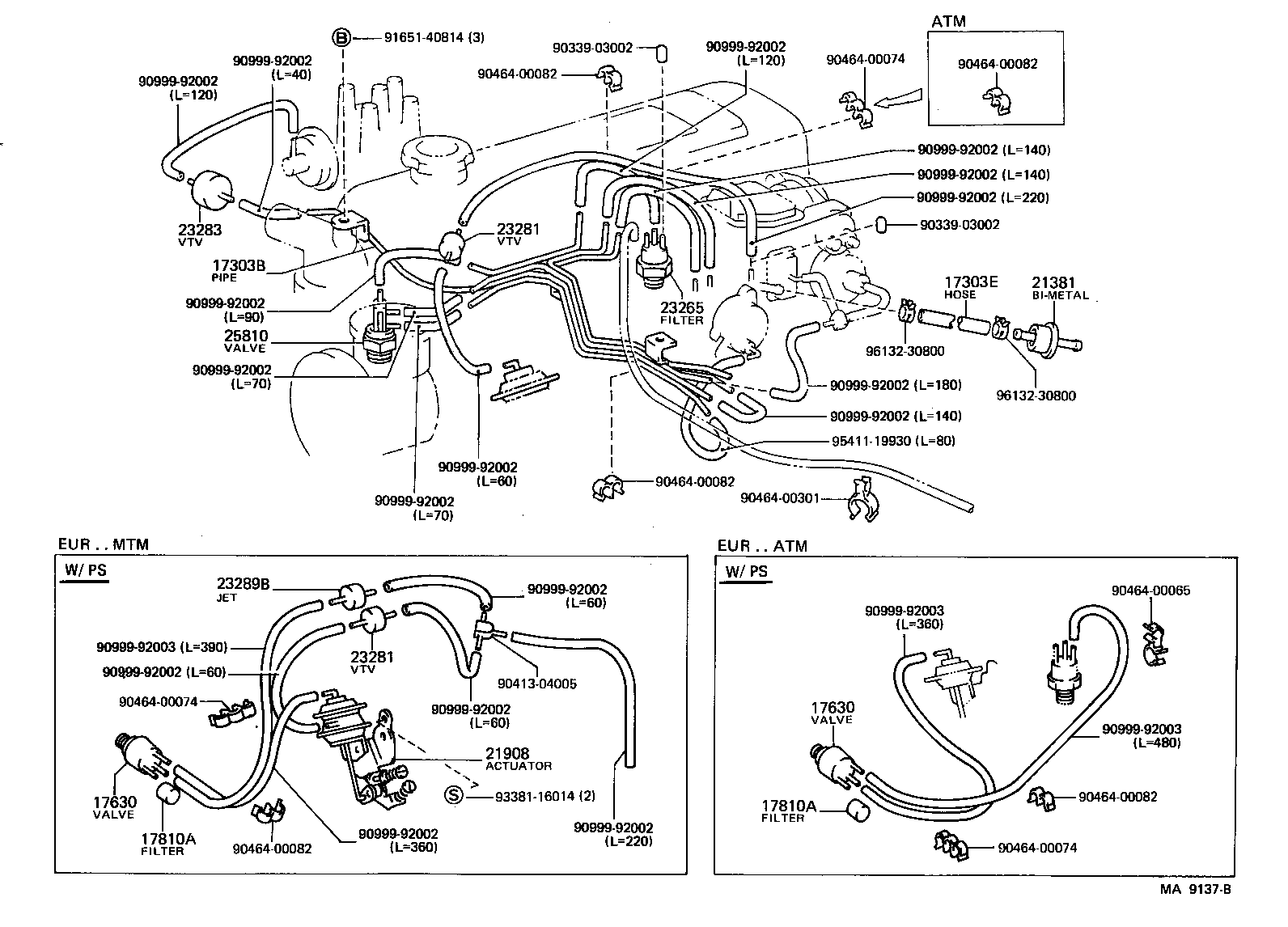

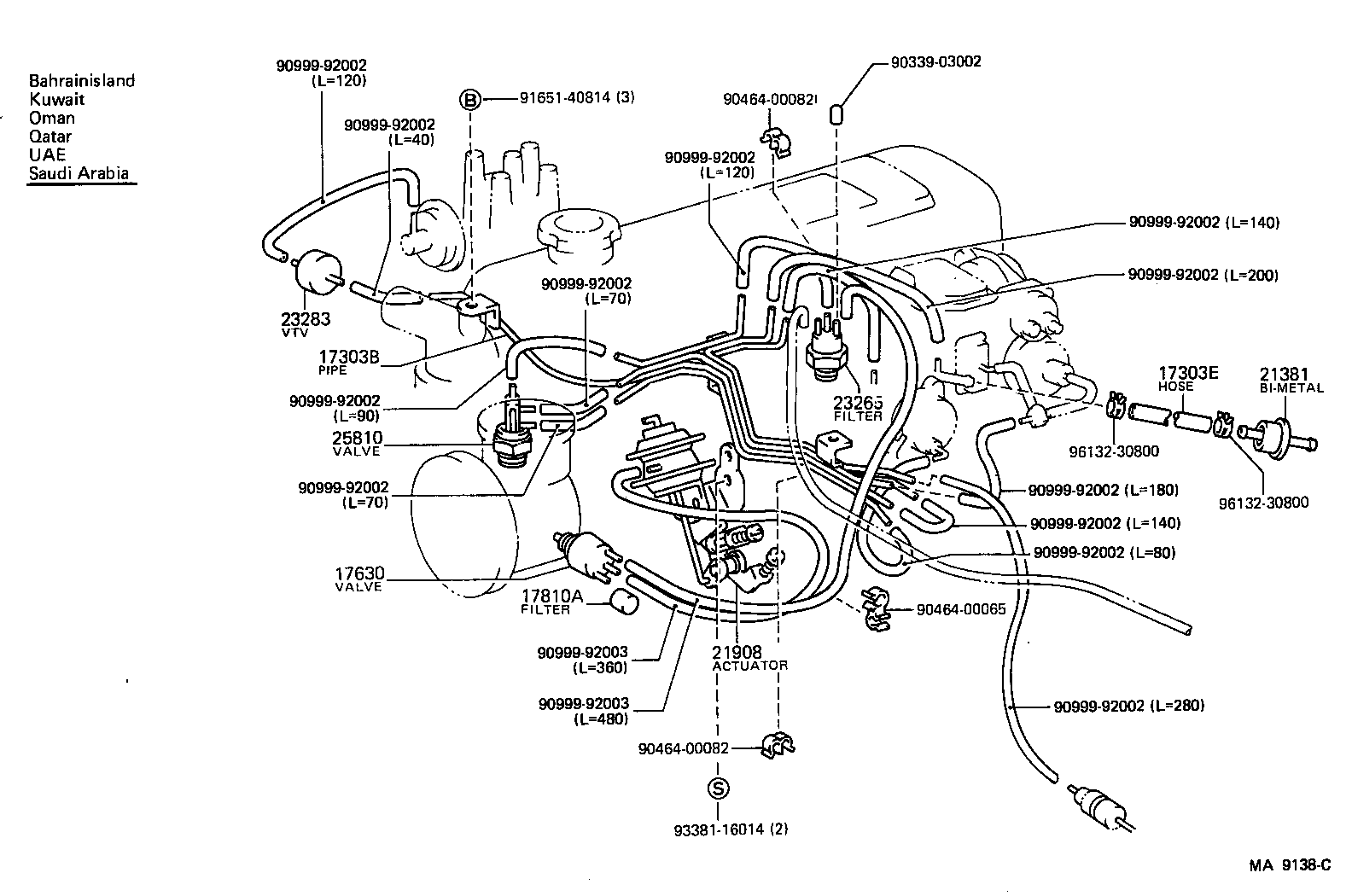

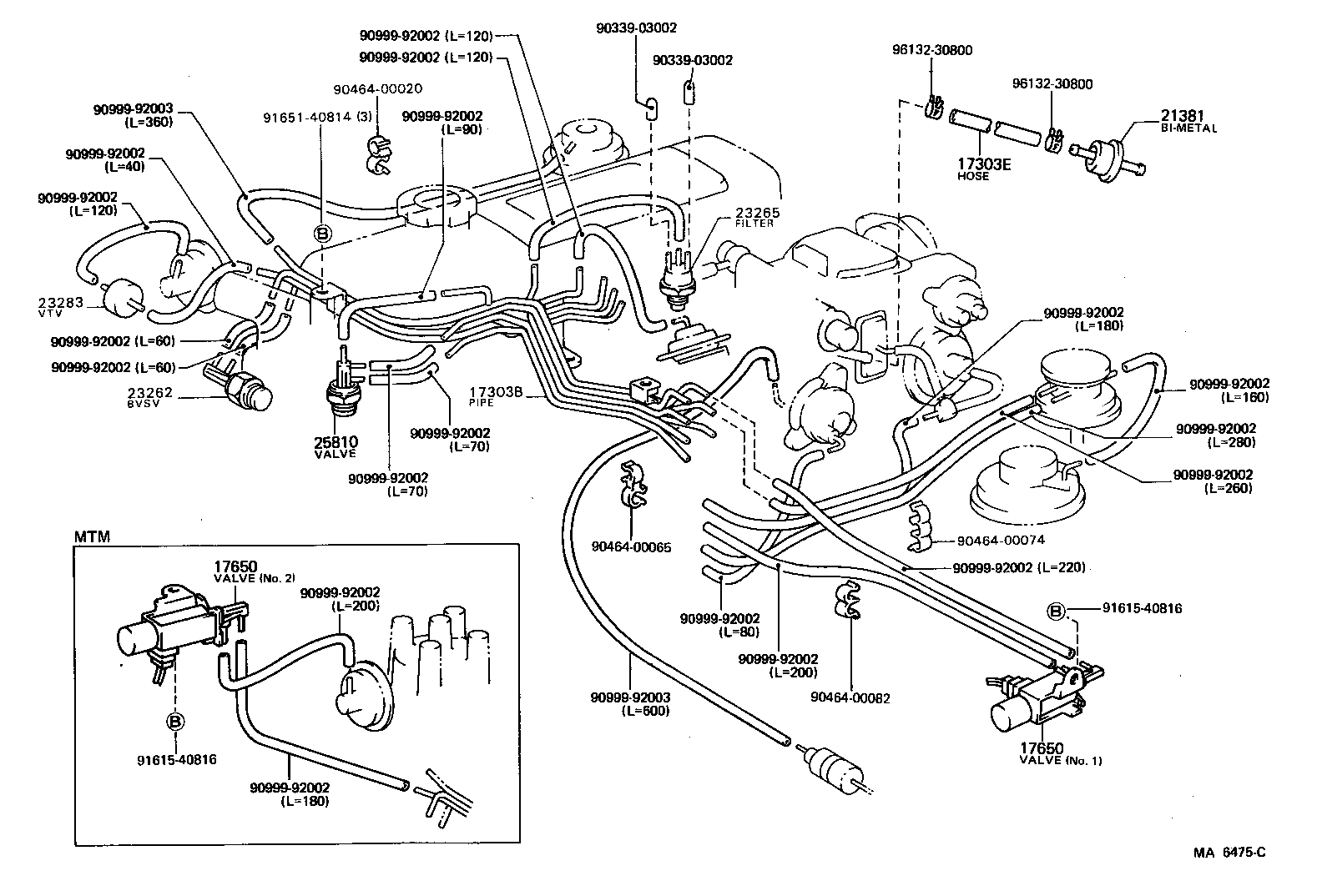

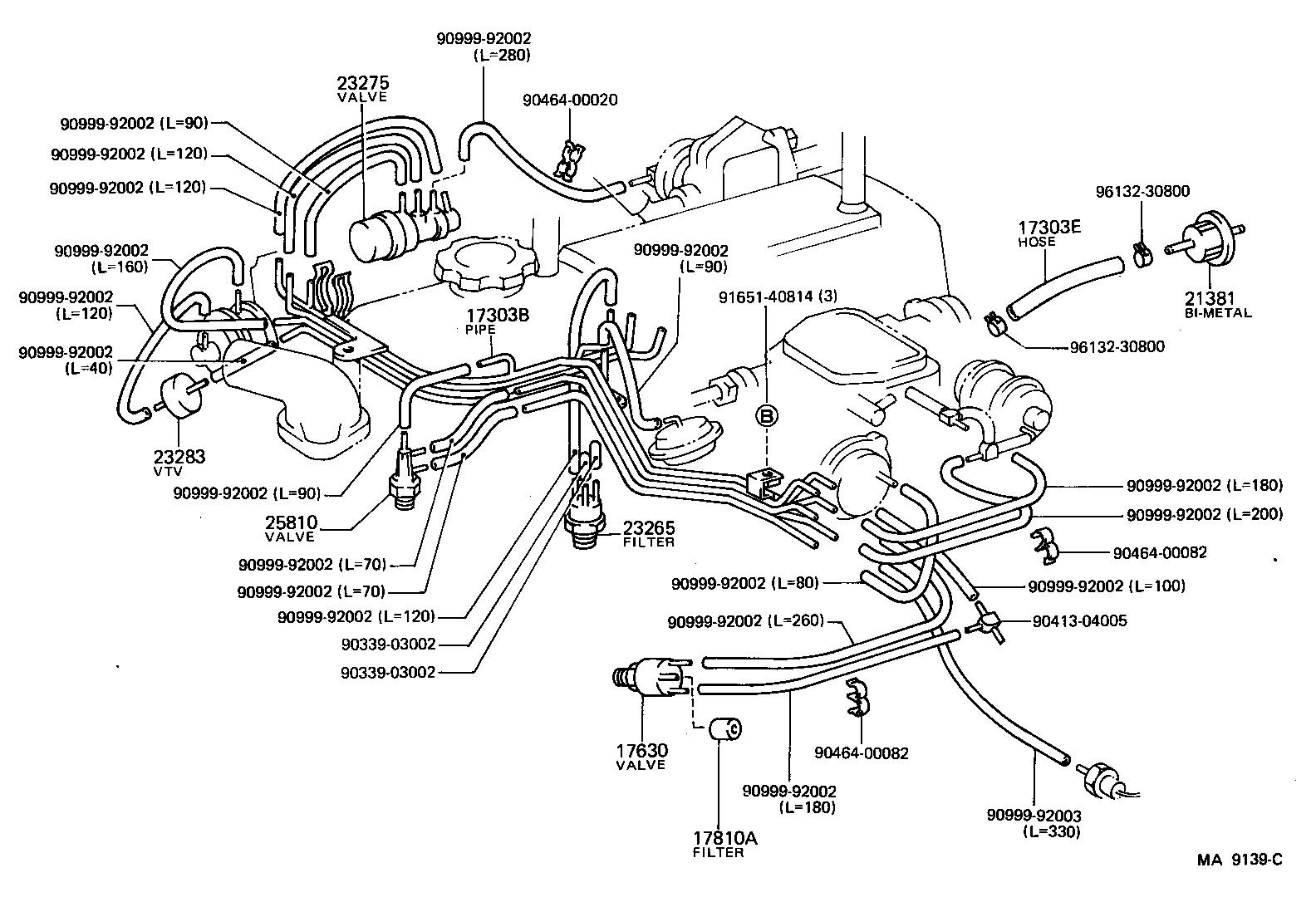

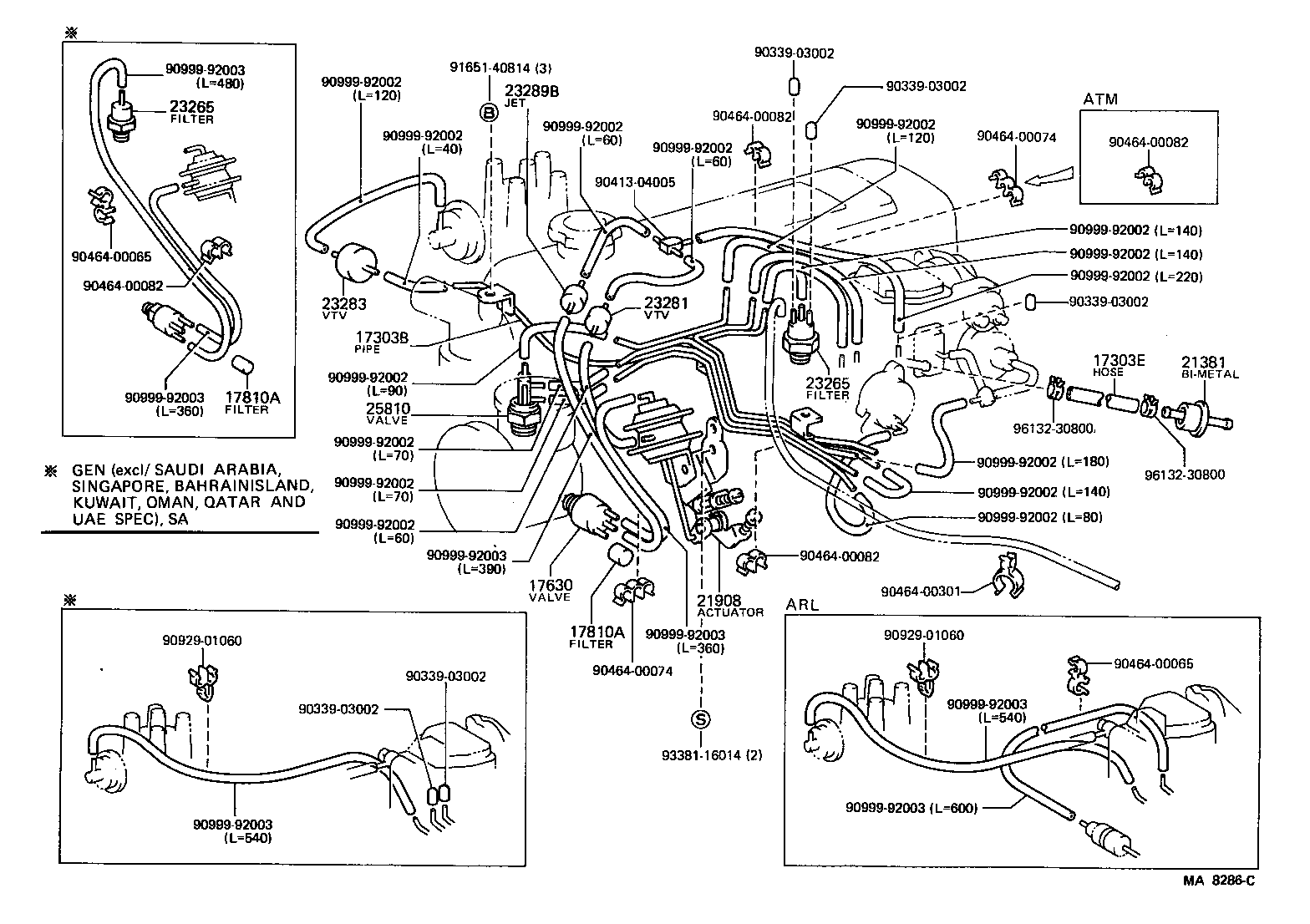

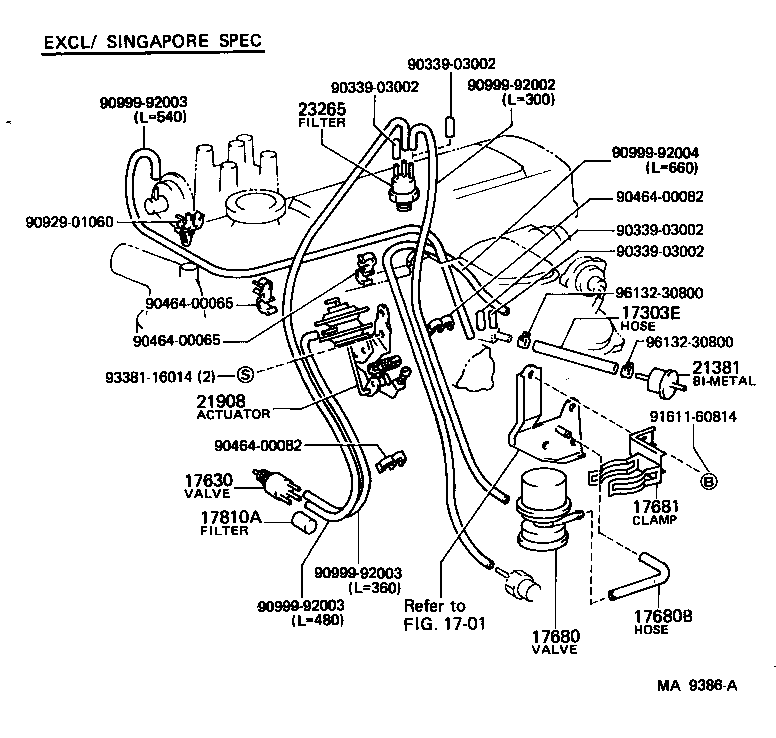

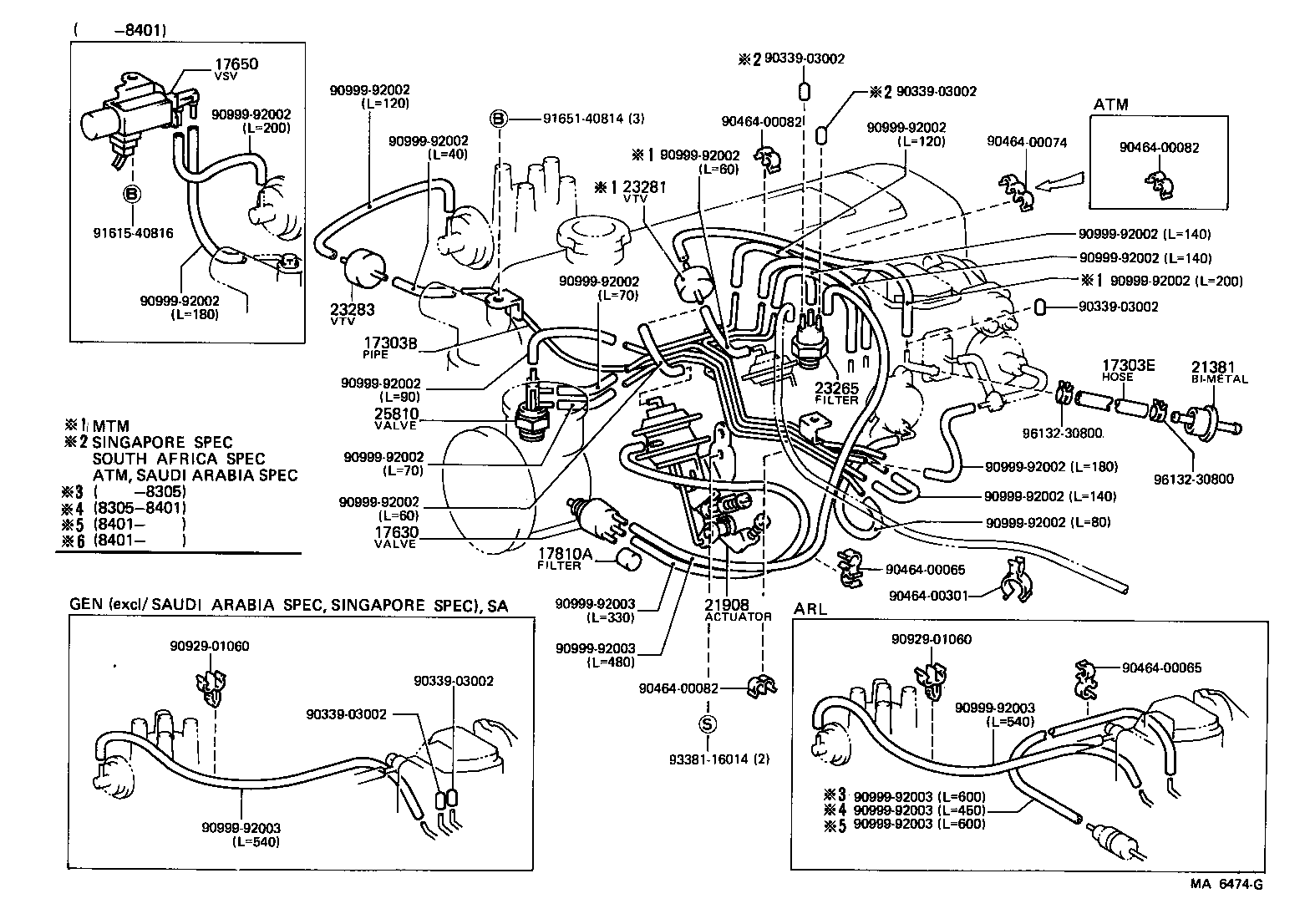

Figure MA9504B MA9504B 1982-12 → — Figure MA6474G MA6474G 1982-12 → 1985-08 Figure MA8286C MA8286C 1985-08 → 1986-08 Figure MA6475C MA6475C 1982-12 → 1984-01 Figure MA9137B MA9137B 1986-08 → — Figure MA9386A MA9386A 1986-08 → — Figure MA9138C MA9138C 1986-08 → — Figure MA9139C MA9139C 1986-12 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17681 Bracket, Mixture Control Valve
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23289B Jet, NO.3
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
