Toyota Hiace Van,Commuter
1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe
Discontinued model
Data version 1988-12

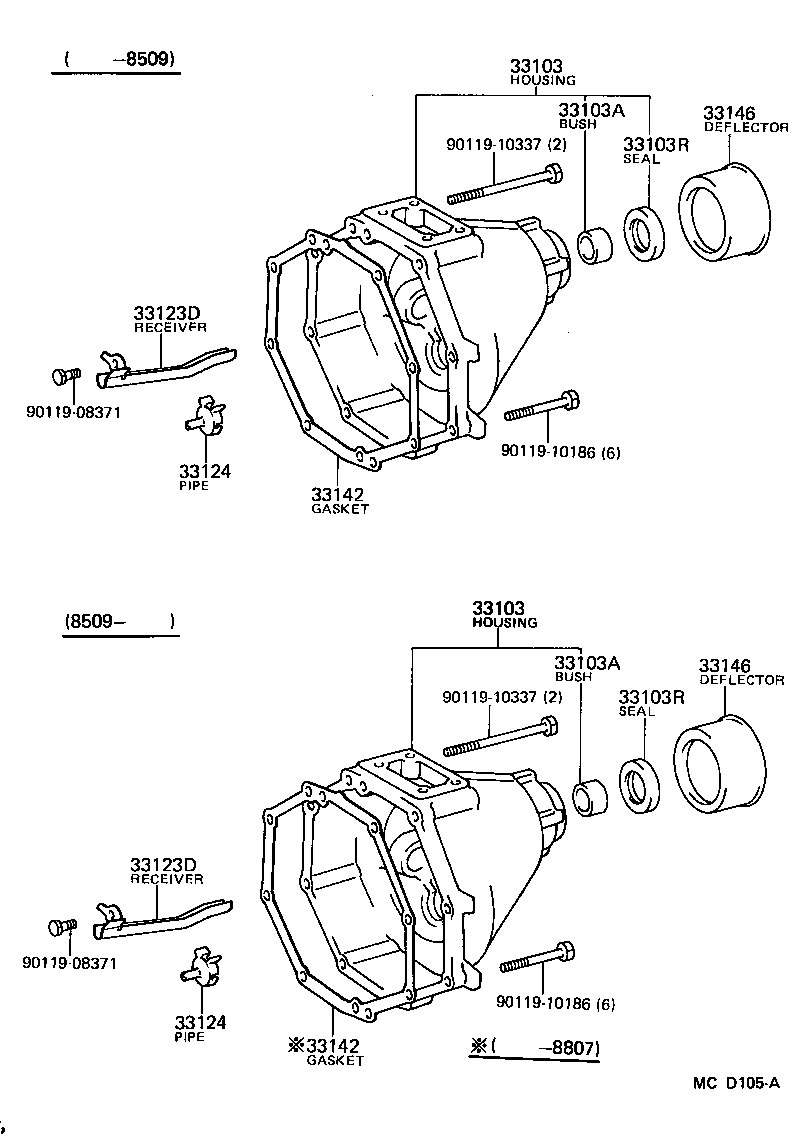

Extension Housing (MTM)
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103 | Housing Sub-assy, Extension(MTM) |
| 33103A | Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103R | Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33123D | Receiver, Case Cover Oil(MTM) |
| 33124 | Pipe, Oil Receiver(MTM) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
| 36117E | Seal, Oil(FOR TRANSFER ADAPTER) |
| 36117H | Adapter Sub-assy, Transfer |
| 36117J | Pin, Straight |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
