Toyota Hiace Van,Commuter
1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe
Discontinued model
Data version 1988-12

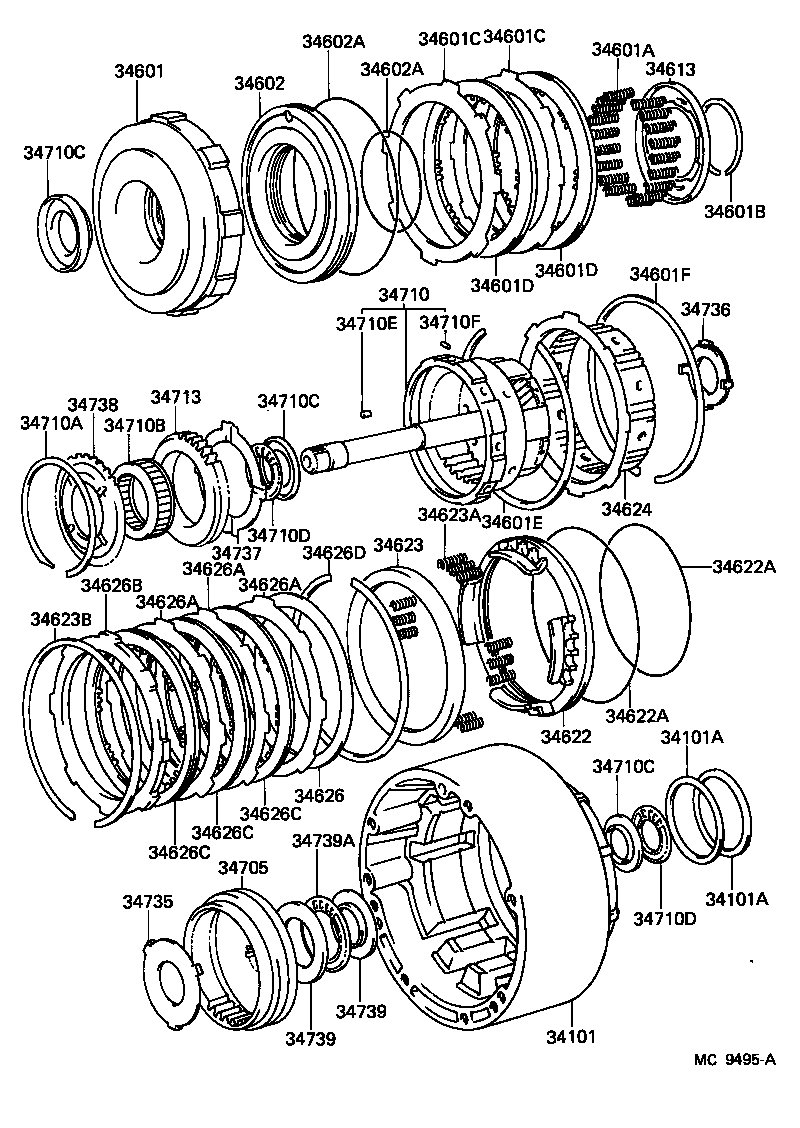

Overdrive Gear (ATM)
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 34101 | Case Sub-assy, Overdrive |
| 34101A | Ring, Oil Seal (FOR OVERDRIVE CASE) |
| 34601 | Drum Sub-assy, Overdrive Direct Clutch |
| 34601A | Spring, Compression (FOR OVERDRIVE DIRECT CLUTCH) |
| 34601B | Ring, Shaft Snap (FOR OVERDRIVE DIRECT CLUTCH) |
| 34601C | Plate, Clutch (FOR OVERDRIVE) |
| 34601D | Disc, Clutch (FOR OVERDRIVE) |
| 34601E | Ring, Hole Snap, NO.1 (FOR OVERDRIVE) |
| 34601F | Ring, Hole Snap, NO.2 (FOR OVERDRIVE) |
| 34602 | Piston Sub-assy, Overdrive Direct Clutch |
| 34602A | Ring, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) |
| 34613 | Seat, Overdrive Direct Clutch Return Spring |
| 34622 | Piston, Overdrive Brake |
| 34622A | Ring, O (FOR OVERDRIVE BRAKE PISTON) |
| 34623 | Seat, Overdrive Brake Return Spring |
| 34623A | Spring, Compression (FOR OVERDRIVE BRAKE RETURN SPRING SEAT) |
| 34623B | Ring, Hole Snap (FOR OVERDRIVE BRAKE RETURN SPRING SEAT) |
| 34624 | Hub, Overdrive Brake |
| 34626 | Plate, Overdrive Brake Cushion |
| 34626A | Plate, Clutch (FOR OVERDRIVE) |
| 34626B | Flange, Rear Clutch (FOR OVERDRIVE) |
| 34626C | Disc, Clutch (FOR OVERDRIVE) |
| 34626D | Ring, Hole Snap (FOR OVERDRIVE) |
| 34705 | Gear Sub-assy, Overdrive Planetary Ring |
| 34710 | Gear Assy, Overdrive Planetary |
| 34710A | Ring, Hole Snap(FOR OVERDRIVE PLANETARY GEAR) |
| 34710B | Clutch, 1Way, NO.1(FOR OVERDRIVE) |
| 34710C | Race, Thrust Bearing(FOR OVERDRIVE PLANETARY GEAR) |
| 34710D | Bearing, Thrust Needle Roller(FOR OVERDRIVE PLANETARY GEAR) |
| 34710E | Plug, Straight(FOR OVERDRIVE PLANETARY GEAR) |
| 34710F | Pin, Straight(FOR OVERDRIVE PLANETARY GEAR) |
| 34713 | Race, 1 Way Clutch Outer (FOR OVERDRIVE) |
| 34735 | Washer, Overdrive Planetary Gear Thrust, NO.1 |
| 34736 | Washer, Overdrive Planetary Gear Thrust, NO.2 |
| 34737 | Washer, Overdrive Planetary Gear Thrust, NO.3 |
| 34738 | Washer, Overdrive Planetary Gear Thrust, NO.4 |
| 34739 | Race, Thrust Bearing(FOR OVERDRIVE) |
| 34739A | Bearing, Thrust Needle Roller(FOR OVERDRIVE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
