Toyota Hiace Van,Commuter
1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe
Discontinued model
Data version 1988-12

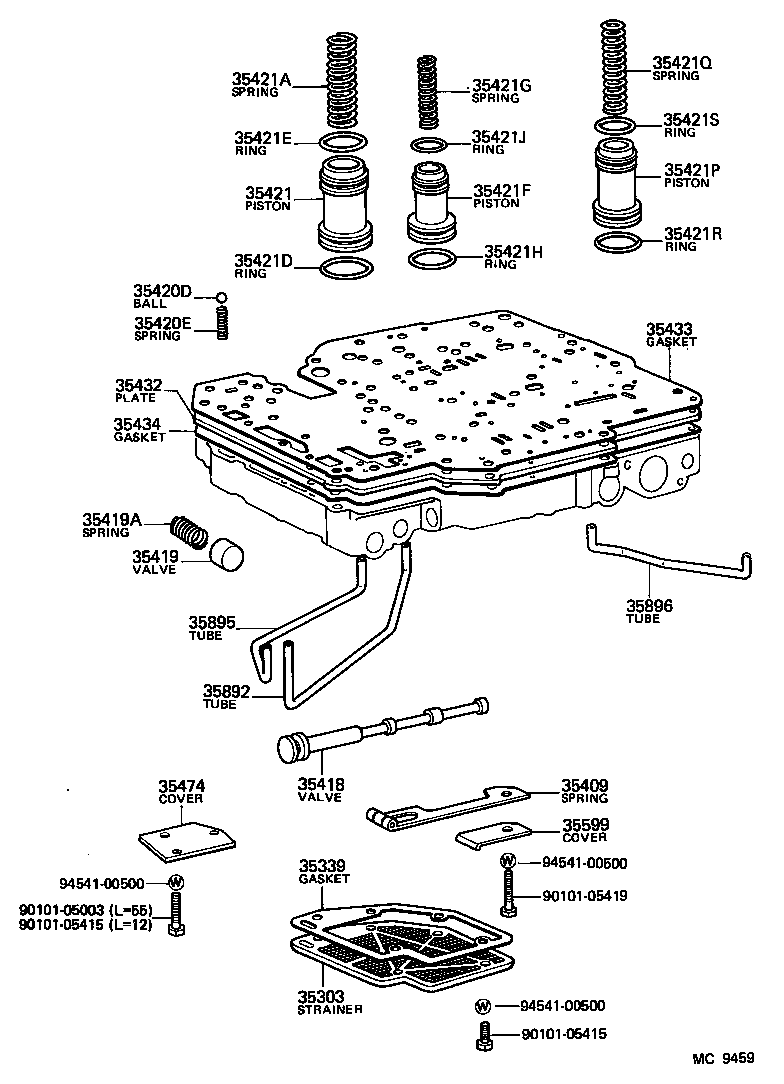

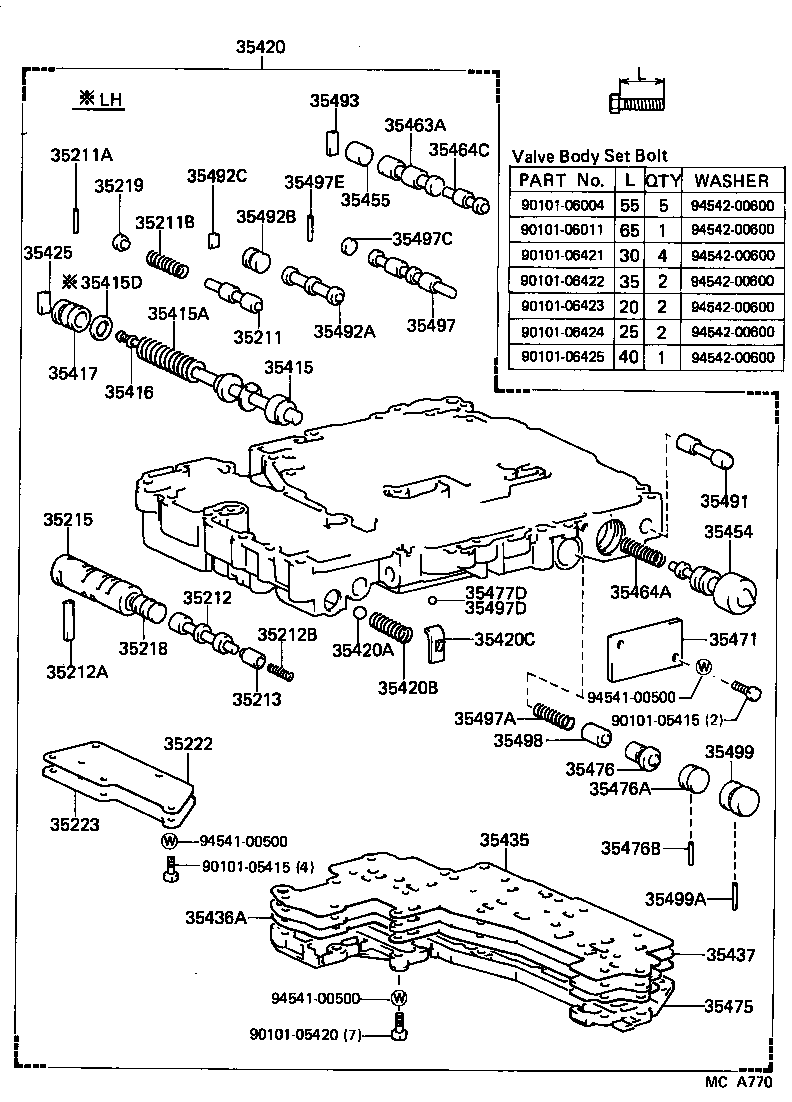

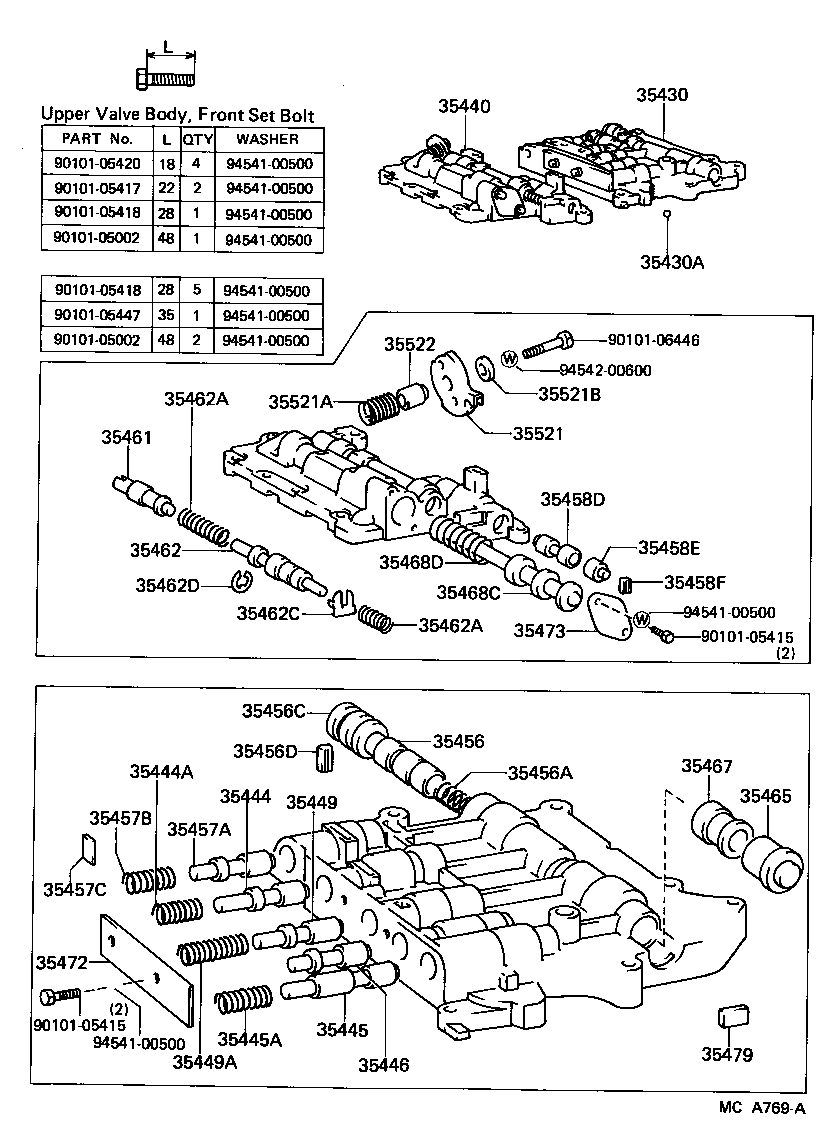

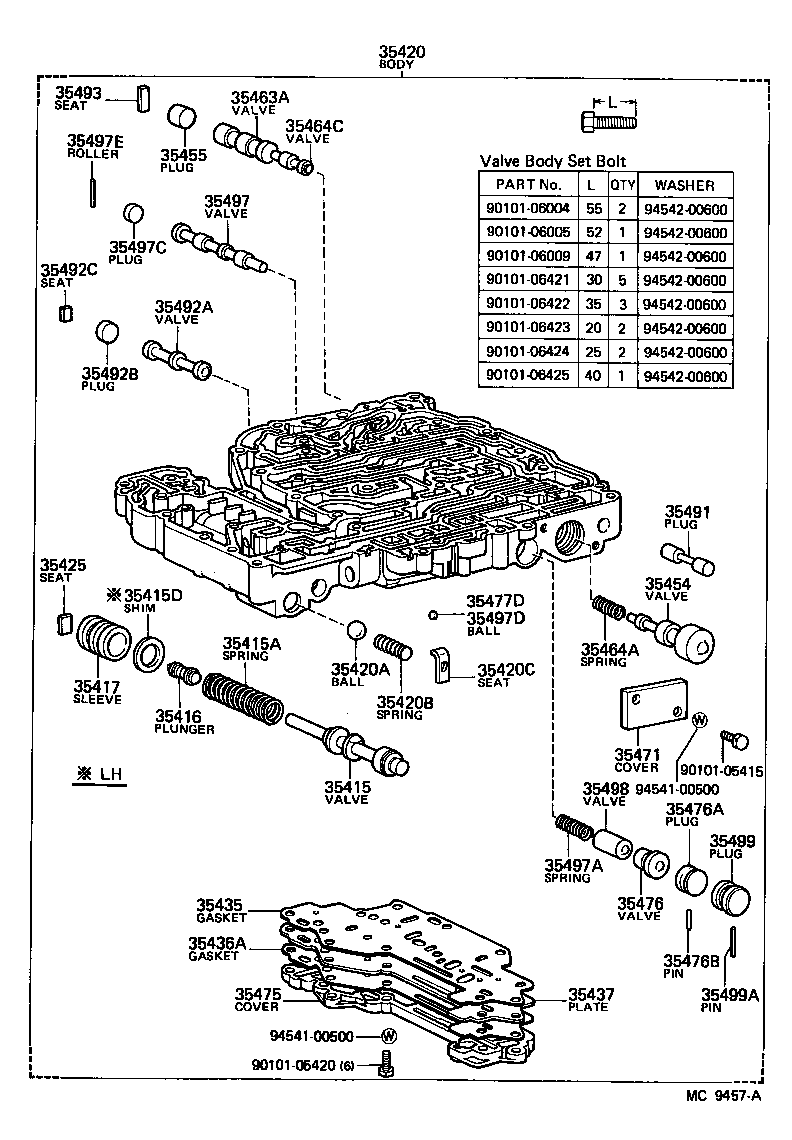

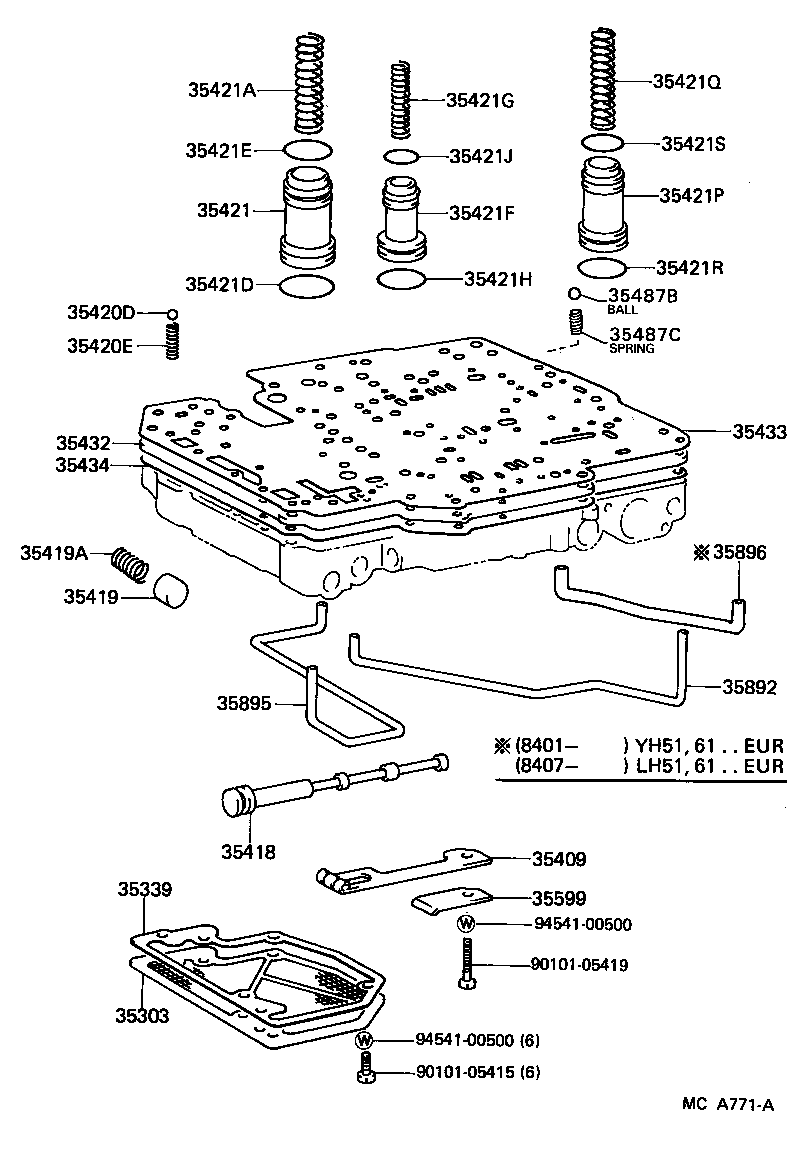

Valve Body & Oil Strainer (ATM)
117 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 35211 | Valve, Lock UP Signal |
| 35211A | Pin, Straight (FOR LOCK UP SIGNAL VALVE) |
| 35211B | Spring, Compression (FOR LOCK UP SIGNAL VALVE) |
| 35212 | Valve, Lock UP Relay |
| 35212A | Seat, Plug (FOR LOCK UP RELAY VALVE) |
| 35212B | Spring, Compression (FOR LOCK UP RELAY VALVE) |
| 35213 | Valve, Lock UP Relay Control |
| 35215 | Sleeve, Lock UP Relay Valve |
| 35218 | Plug, Lock UP Relay Valve |
| 35219 | Plug, Lock UP Signal Valve |
| 35222 | Plate, Lock UP Relay Valve Body |
| 35223 | Gasket, Lock UP Relay Valve Body |
| 35303 | Strainer Sub-assy, Oil |
| 35339 | Gasket, Oil Strainer |
| 35409 | Spring Sub-assy, Manual Detent |
| 35415 | Valve, Pressure Regulator |
| 35415A | Spring, Compression (FOR PRESSURE REGULATOR VALVE) |
| 35415D | Shim (FOR PRESSURE REGULATOR VALVE) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417 | Sleeve, Pressure Regulator Valve |
| 35418 | Valve, Manual |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420 | Body Assy, Lower Valve |
| 35420A | Ball (FOR PRESSURE RELIEF) |
| 35420B | Spring (FOR PRESSURE RELIEF) |
| 35420C | Seat (FOR PRESSURE RELIEF) |
| 35420D | Ball (FOR LOWER VALVE BODY) |
| 35420E | Spring (FOR LOWER VALVE BODY) |
| 35421 | Piston, Accumulator, NO.1 |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421D | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421E | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421F | Piston, Accumulator, NO.2 |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421H | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421J | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421P | Piston, Accumulator, NO.3 |
| 35421Q | Spring, Compression (FOR ACCUMULATOR PISTON NO.3) |
| 35421R | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35421S | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35425 | Seat, Pressure Regulator Valve Sleeve |
| 35430 | Body Assy, Rear Upper Valve |
| 35430A | Ball (FOR REAR UPPER VALVE BODY) |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35434 | Gasket, Valve Body, NO.2 |
| 35435 | Gasket, Valve Body Plate, NO.3 |
| 35436A | Gasket, Valve Body Plate, NO.4 |
| 35437 | Plate, 3-4 Shift Valve Separator |
| 35440 | Body Assy, Front Upper Valve |
| 35440A | Ball (FOR FRONT UPPER VALVE BODY) |
| 35444 | Valve, Intermediate Modulator |
| 35444A | Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE) |
| 35445 | Valve, Low Modulator |
| 35445A | Spring, Compression (FOR LOW MODULATOR VALVE) |
| 35446 | Valve, Governor Modulator |
| 35446A | Spring, Compression (FOR GOVERNOR MODULATOR VALVE) |
| 35449 | Valve, Sequence |
| 35449A | Spring, Compression (FOR SEQUENCE VALVE) |
| 35454 | Valve, Low Coast Shift |
| 35455 | Plug, 1-2 Shift Valve Low |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456C | Plug (FOR 2-3 SHIFT VALVE) |
| 35456D | Seat (FOR 2-3 SHIFT VALVE) |
| 35457A | Valve, Detent Regulator |
| 35457B | Spring, Compression (FOR DETENT REGULATOR VALVE) |
| 35457C | Seat (FOR DETENT REGULATOR VALVE) |
| 35458D | Valve, Cut Back |
| 35458E | Plug (FOR CUT BACK VALVE) |
| 35458F | Seat (FOR CUT BACK VALVE) |
| 35461 | Plug, Down Shift |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462C | Stopper, Valve Vibrating |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35463A | Valve, 1-2 Shift, Lower |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35464C | Valve, 1-2 Shift, Upper |
| 35465 | Plug, Intermediate Shift Valve |
| 35467 | Valve, Intermediate Shift |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35471 | Cover, Valve Body, NO.1 |
| 35472 | Cover, Valve Body, NO.2 |
| 35473 | Cover, Transmission Valve Body |
| 35474 | Cover, Valve Body, NO.4 |
| 35475 | Cover, Valve Body, NO.5 |
| 35476 | Valve, 3RD Coast Shift |
| 35476A | Plug, Straight (FOR 3RD COAST SHIFT) |
| 35476B | Pin, Locating (FOR 3RD COAST SHIFT) |
| 35477D | Ball, Check (FOR OVERDRIVE CLUTCH EXHAUST VALVE) |
| 35479 | Seat, Intermediate Shift Valve |
| 35487B | Ball, Check, NO.4 |
| 35487C | Spring, Compression (FOR CHECK BALL) |
| 35491 | Plug, Reverse Brake |
| 35492A | Valve, Manual Down Timing |
| 35492B | Plug (FOR MANUAL DOWN TIMING VALVE) |
| 35492C | Seat, Valve (FOR MANUAL DOWN TIMING VALVE) |
| 35493 | Seat, Shift Valve Spring |
| 35497 | Valve, 3-4 Shift |
| 35497A | Spring, Compression (FOR 3-4 SHIFT VALVE) |
| 35497C | Plug (FOR 3-4 SHIFT VALVE) |
| 35497D | Ball, Check (FOR 3-4 SHIFT VALVE) |
| 35497E | Roller, Needle (FOR 3-4 SHIFT VALVE) |
| 35498 | Valve, 3-4 Coast Shift |
| 35499 | Plug, 3-4 Shift Valve |
| 35499A | Pin, Straight (FOR 3-4 SHIFT VALVE) |
| 35521 | Cam, Throttle Valve |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35522 | Pin, Throttle Valve Cam |
| 35599 | Cover, Manual Detent Spring |
| 35892 | Tube, Overdrive Brake |
| 35895 | Tube, Front Clutch Apply |
| 35896 | Tube, Overdrive Switch Apply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
