Oil Cooler & Tube (ATM)

18 part groups · 3 illustrations

Illustrations

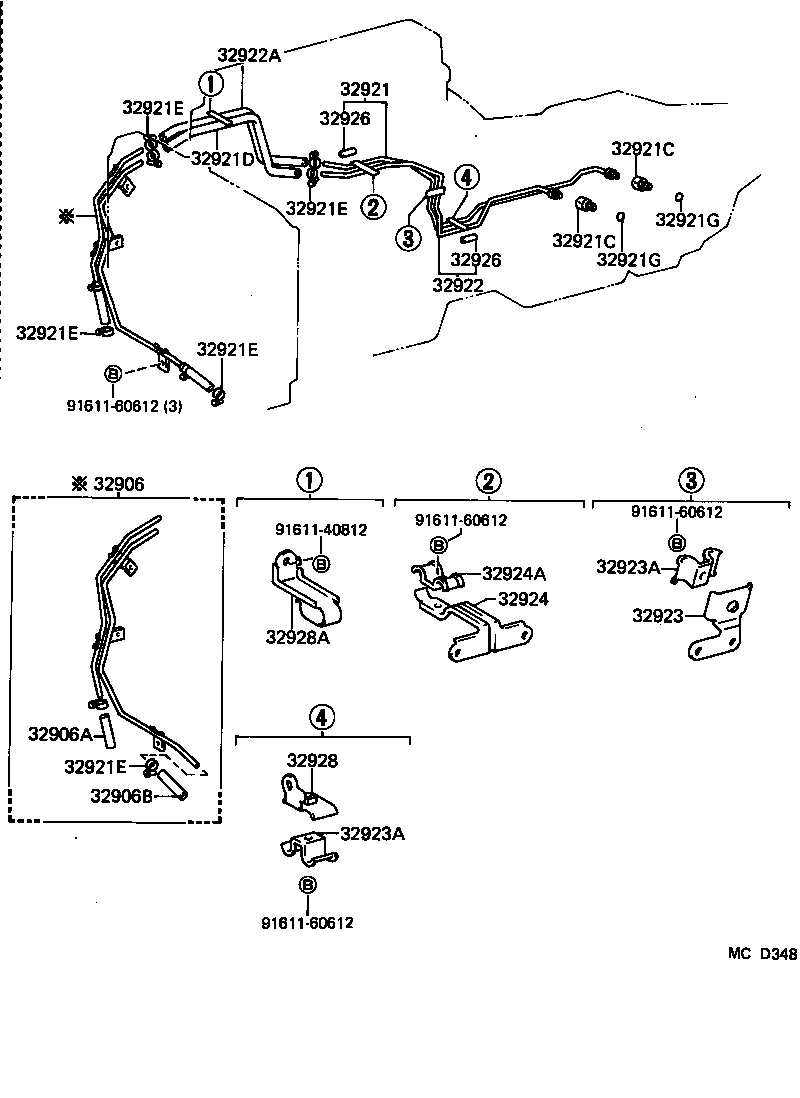

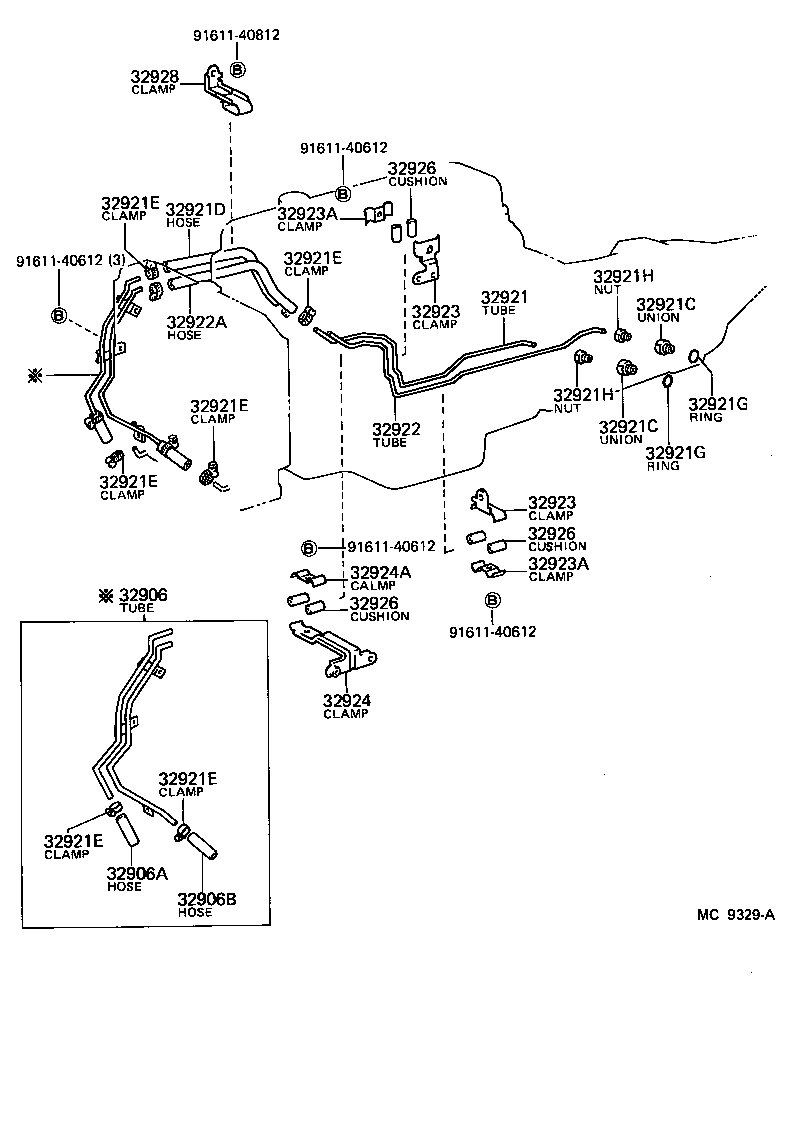

Figure MC9328B MC9328B 1982-12 → — Figure MC9329A MC9329A 1982-12 → 1985-08 Figure MCD348 MCD348 1985-08 → —

Part groups

PNCDescription
32906 Tube Sub-assy, Oil Cooler
32906A Hose, Oil Cooler Tube(FOR INLET)
32906B Hose, Oil Cooler Tube(FOR OUTLET)
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921E Clamp, Hose(FOR OIL COOLER)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921H Nut, Flare(FOR OIL COOLER TUBE)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
