Toyota Hiace Van,Commuter
1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe
Discontinued model
Data version 1988-12

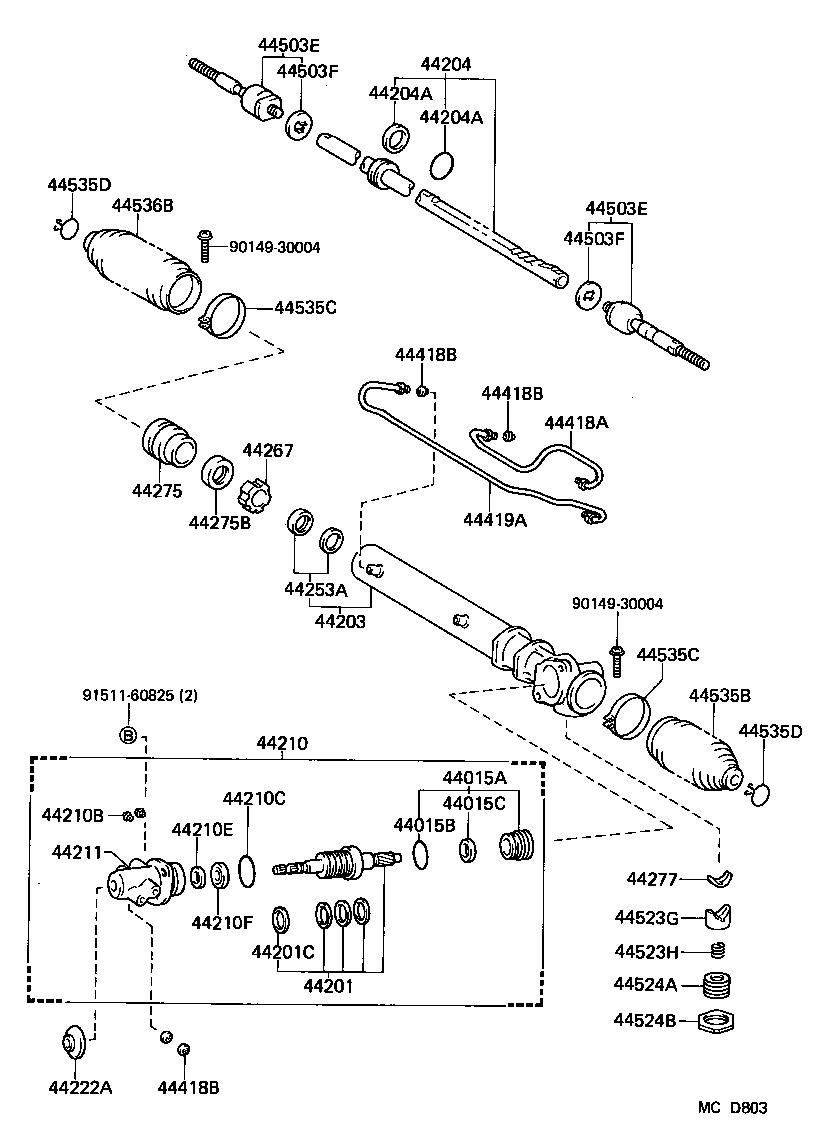

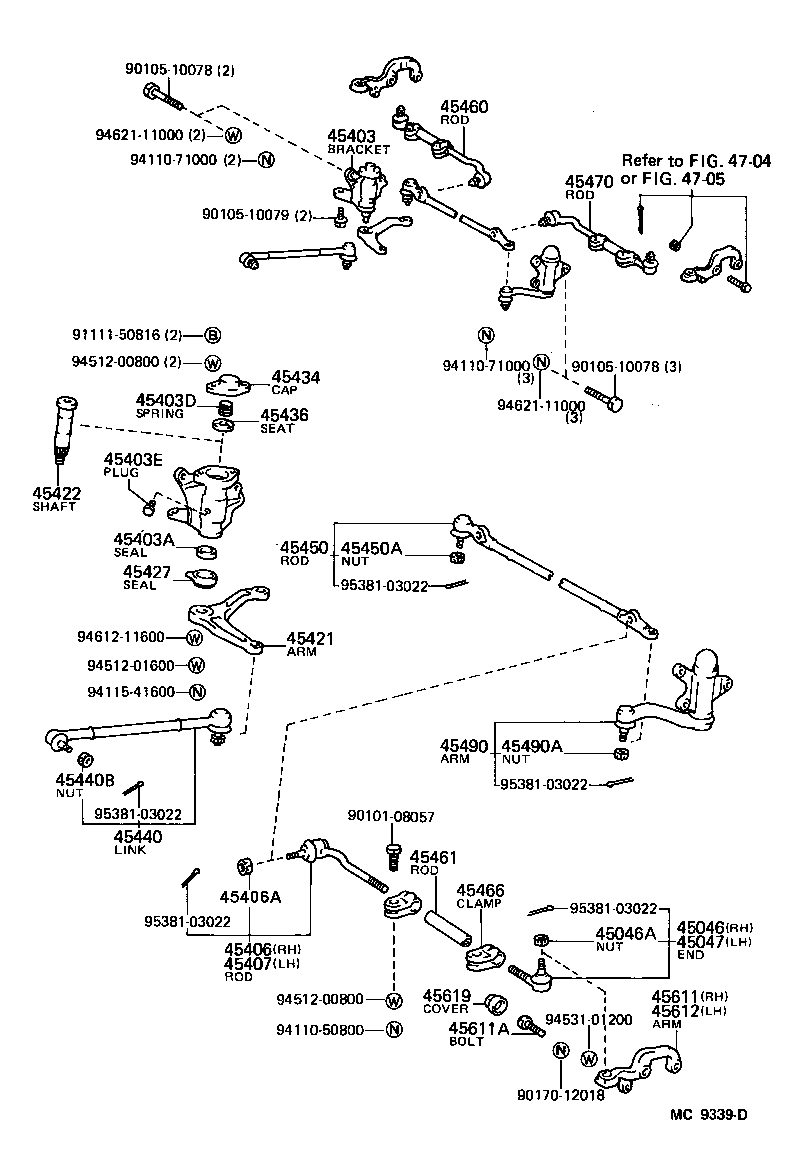

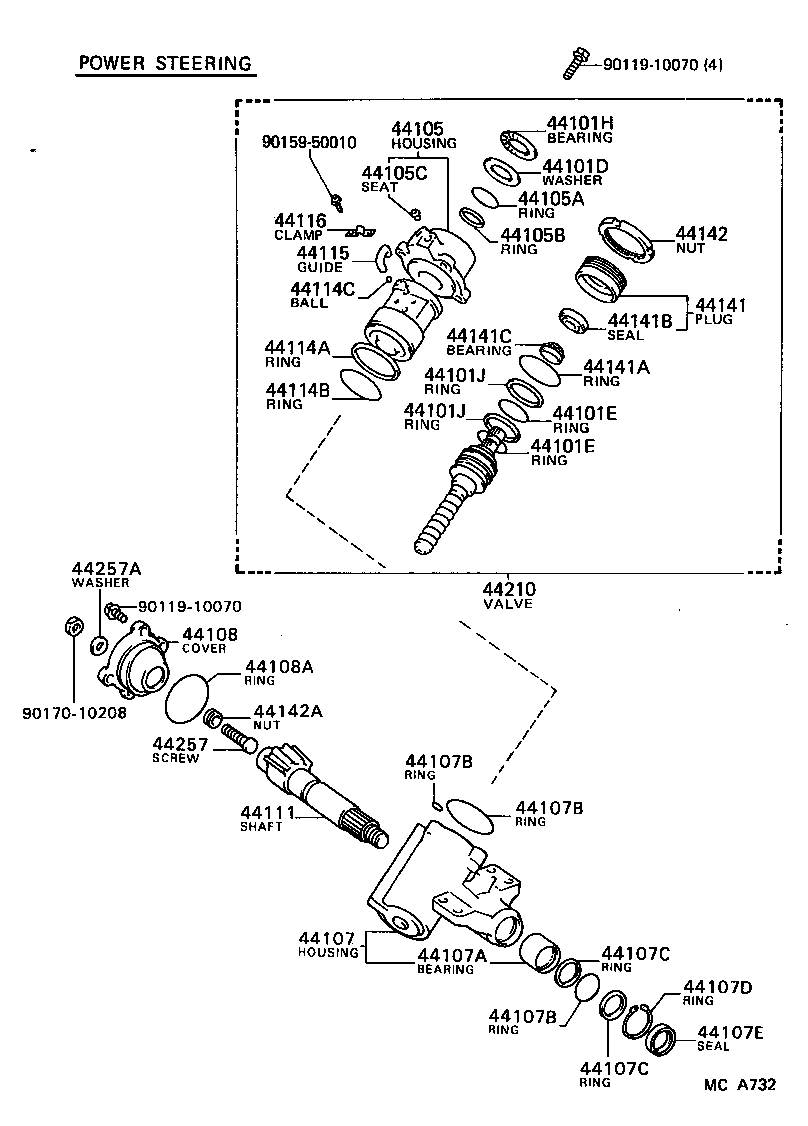

Front Steering Gear & Link
120 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04044 | Warm Kit, Power Steering |
| 04445 | Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) |
| 04455 | Gasket Kit, Power Steering Control Valve Overhole |
| 04455A | Gasket Kit, Power Steering Cross Shaft Overhole |
| 44015A | Nut Sub-assy, Bearing Guide |
| 44015B | Ring, O(FOR BEARING GUIDE NUT) |
| 44015C | Seal, Oil(FOR BEARING GUIDE NUT) |
| 44101D | Washer, Plate(FOR STEERING WORM) |
| 44101E | Ring, O(FOR STEERING WORM) |
| 44101H | Bearing, Thrust Needle Roller(FOR STEERING WORM) |
| 44101J | Ring(FOR STEERING WORM) |
| 44105 | Housing Sub-assy, Valve |
| 44105A | Ring, O(FOR VALVE HOUSING) |
| 44105B | Ring(FOR VALVE HOUSING) |
| 44105C | Seat, Union(FOR VALVE BODY HOUSING) |
| 44107 | Housing Sub-assy, Power Steering Gear |
| 44107A | Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING) |
| 44107B | Ring, O(FOR POWER STEERING GEAR HOUSING) |
| 44107C | Ring(FOR POWER STEERING GEAR HOUSING) |
| 44107D | Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING) |
| 44107E | Seal, Oil(FOR POWER STEERING GEAR HOUSING) |
| 44108 | Cover Sub-assy, Side |
| 44108A | Ring, O(FOR SIDE COVER) |
| 44110 | Gear Assy, Power Steering |
| 44111 | Shaft, Cross |
| 44111A | Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING) |
| 44114A | Ring(FOR POWER PISTON NUT) |
| 44114B | Ring, O(FOR POWER PISTON NUT) |
| 44114C | Ball(FOR POWER PISTON NUT) |
| 44115 | Guide, Ball |
| 44116 | Clamp, Ball Guide |
| 44141 | Plug, Adjuster |
| 44141A | Ring, O(FOR ADJUSTER PLUG) |
| 44141B | Seal, Oil(FOR ADJUSTER PLUG) |
| 44141C | Bearing(FOR ADJUSTER PLUG) |
| 44142 | Nut, Lock |
| 44142A | Nut, Lock, NO.1 |
| 44201 | Valve Sub-assy, Power Steering Control |
| 44201C | Ring(FOR POWER STEERING CONTROL VALVE) |
| 44203 | Housing Sub-assy, Power Steering Rack |
| 44204 | Rack Sub-assy, Power Steering |
| 44204A | Ring(FOR RACK STEERING PISTON) |
| 44210 | Valve Assy, Power Steering Control |
| 44210B | Seat, Union(FOR POWER STEERING CONTROL VALVE) |
| 44210C | Ring, O(FOR POWER STEERING CONTROL VALVE) |
| 44210E | Seal, Oil(FOR POWER STEERING CONTROL VALVE) |
| 44210F | Bearing(FOR POWER STEERING CONTROL VALVE) |
| 44211 | Housing, Control Valve |
| 44222A | Cover, Dust(FOR POWER STEERING GEAR) |
| 44250 | Gear Assy, Power Steering(FOR RACK & PINION) |
| 44251 | Arm, Pitman |
| 44253A | Seal, Oil(FOR POWER STEERING RACK HOUSING) |
| 44257 | Screw, Cross Shaft Adjusting |
| 44257A | Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW) |
| 44267 | Guide, Rack End |
| 44275 | Stopper, Cylinder End |
| 44275B | Seal, Oil(FOR CYLINDER END STOPPER) |
| 44277 | Seat, Rack Guide |
| 44418A | Tube, Steering Right Turn Pressure |
| 44418B | Seat, Union(FOR STEERING TURN PRESSURE TUBE) |
| 44419A | Tube, Steering Left Turn Pressure |
| 44503E | End Sub-assy, Steering Rack(FOR POWER STEERING) |
| 44503F | Washer, Claw(FOR POWER STEERING RACK END) |
| 44523G | Guide, Rack(FOR POWER STEERING) |
| 44523H | Spring(FOR POWER STEERING RACK GUIDE) |
| 44524A | Cap, Rack Guide Spring(FOR POWER STEERING) |
| 44524B | Nut(FOR POWER STEERING RACK GUIDE CAP) |
| 44535B | Boot, Steering Rack NO.1(FOR POWER STEERING) |
| 44535C | Clamp(FOR POWER STEERING RACK BOOT) |
| 44535D | Clip(FOR POWER STEERING RACK BOOT) |
| 44536B | Boot, Steering Rack NO.2(FOR POWER STEERING) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45222 | Cover, Steering Gear Dust |
| 45240 | Worm Assy, Steering |
| 45240A | Bearing(FOR STEERING WORM) |
| 45240B | Seal, Oil(FOR STEERING WORM) |
| 45242 | Screw, Worm Bearing Adjusting |
| 45243 | Nut, Worm Bearing Adjusting Screw Lock |
| 45301 | Housing Sub-assy, Steering Gear |
| 45301B | Seal, Oil(FOR SECTOR SHAFT) |
| 45310 | Housing Assy, Steering Gear |
| 45331 | Cover, Sector Shaft End |
| 45332 | Gasket, Sector Shaft End Cover |
| 45351A | Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING) |
| 45352 | Washer, Sector Shaft Thrust |
| 45357 | Screw, Sector Shaft Adjusting |
| 45372 | Plug, Steering Gear Housing Oil |
| 45401 | Arm Sub-assy, Pitman |
| 45403 | Bracket Sub-assy, Center Arm |
| 45403A | Seal, Oil(FOR CENTER ARM BRACKET) |
| 45403D | Spring, Compression(FOR CENTER ARM SHAFT SET) |
| 45403E | Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT) |
| 45406 | Rod Sub-assy, Tie, RH |
| 45406A | Nut, Castle(FOR TIE ROD) |
| 45407 | Rod Sub-assy, Tie, LH |
| 45421 | Arm, Steering Center |
| 45422 | Shaft, Center Arm |
| 45427 | Seal, Center Arm Dust, Lower |
| 45434 | Cap, Center Arm Bracket |
| 45436 | Seat, Center Arm Shaft |
| 45440 | Link Assy, Steering Drag |
| 45440B | Nut, Castle(FOR STEERING DRAG LINK) |
| 45450 | Rod Assy, Steering Relay |
| 45450A | Nut, Castle(FOR RELAY ROD) |
| 45460 | Rod Assy, Tie, RH |
| 45461 | Rod, Steering Tie |
| 45466 | Clamp, Tie Rod End |
| 45470 | Rod Assy, Tie, LH |
| 45490 | Arm Assy, Steering Idler |
| 45490A | Nut, Castle(FOR IDLER ARM) |
| 45514 | Bracket, Steering Rack Housing, NO.1 |
| 45515 | Bracket, Steering Rack Housing, NO.2 |
| 45516 | Grommet, Steering Rack Housing, NO.1 |
| 45517 | Grommet, Steering Rack Housing, NO.2 |
| 45611 | Arm, Steering Knuckle, RH |
| 45611A | Bolt, Knuckle Stopper |
| 45612 | Arm, Steering Knuckle, LH |
| 45619 | Cover, Knuckle Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
