Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

16 part groups · 2 illustrations

Illustrations

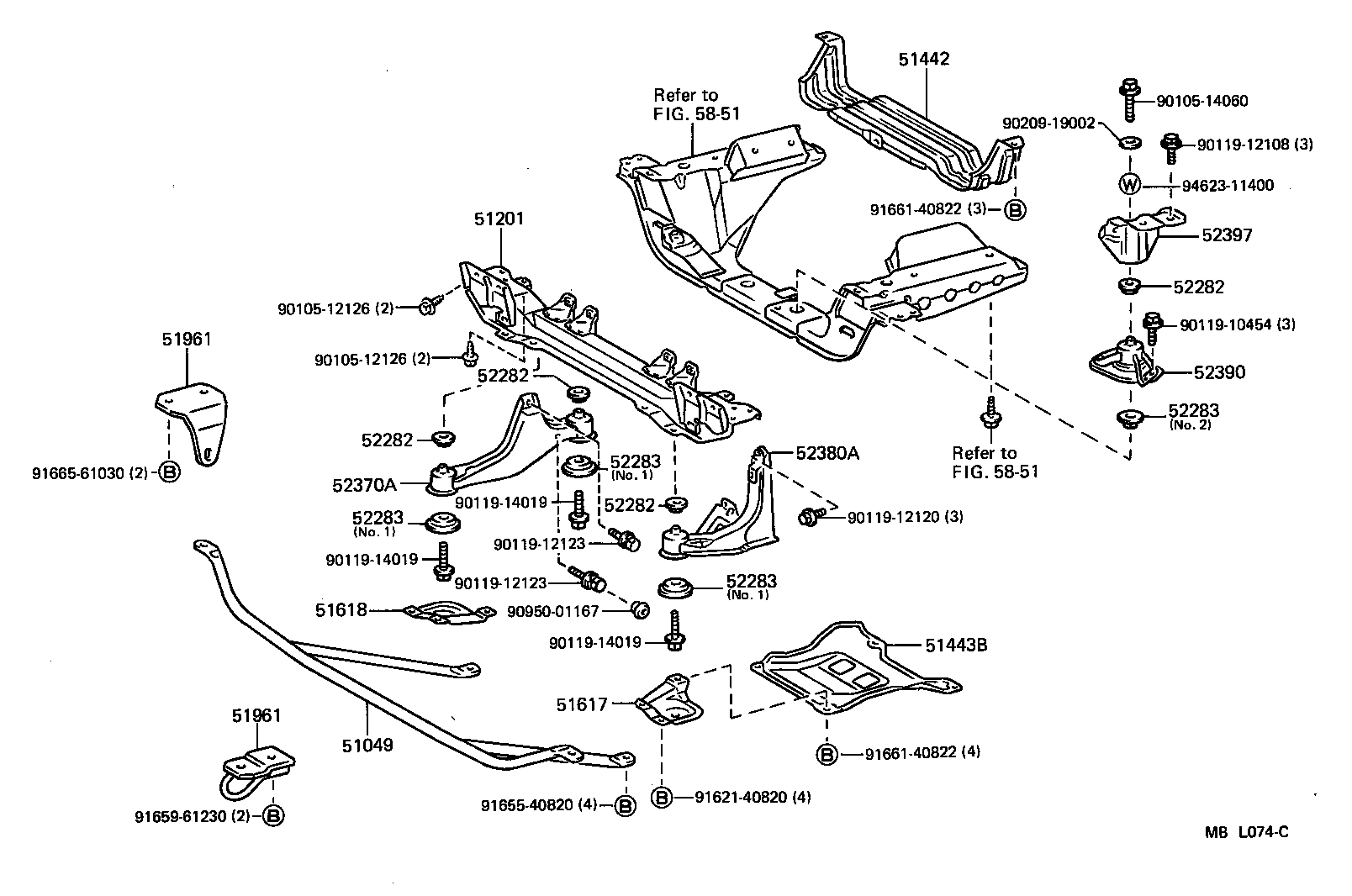

Figure MBE773C MBE773C 1982-12 → — Figure MBL074C MBL074C 1986-08 → —

Part groups

PNCDescription
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51215 Reinforcement, Front Suspension Crossmember
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51617 Guard, Front Differential Support, RH
51618 Guard, Front Differential Support, LH
51961 Hook, NO.1
51962 Hook, NO.2
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
52397 Bracket, Front Differential Rear Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
