Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 5 illustrations

Illustrations

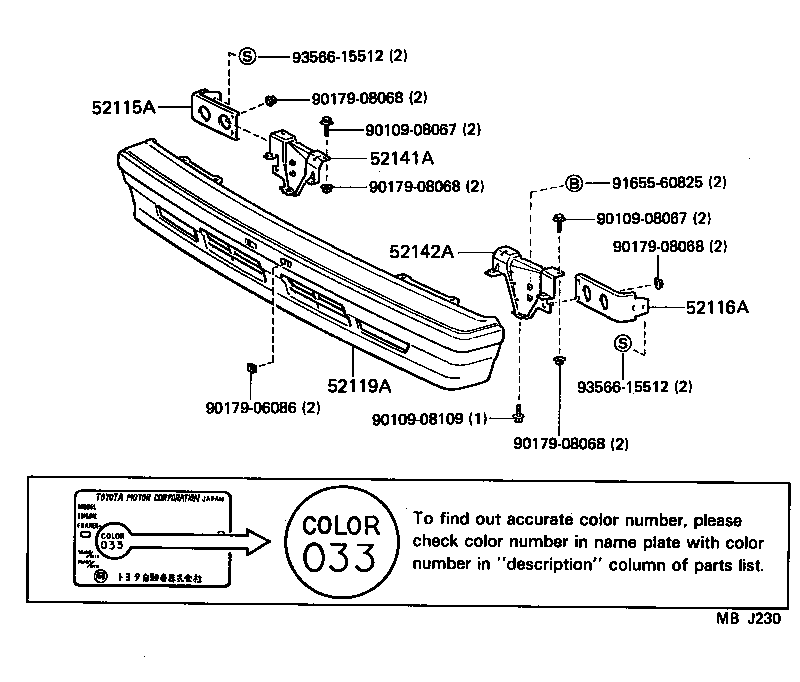

Figure MBE774B MBE774B 1982-12 → 1985-08 Figure MBE774B MBE774B 1985-08 → 1986-08 Figure MBE774B MBE774B 1986-08 → — Figure MBJ230 MBJ230 1985-08 → 1986-08 Figure MBJ230 MBJ230 1986-08 → —

Part groups

PNCDescription
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52141A Arm, Front Bumper, Upper RH
52142A Arm, Front Bumper, Upper LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
