Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Ventilator

10 part groups · 2 illustrations

Illustrations

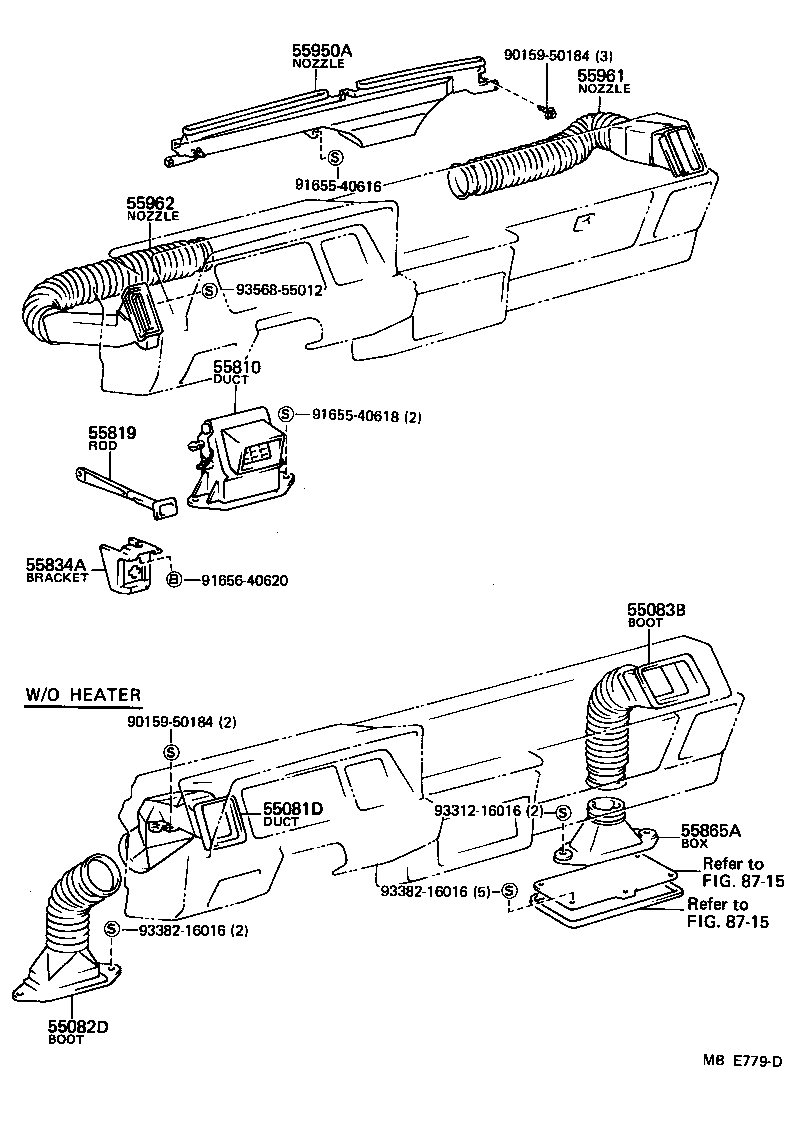

Figure MBE711D MBE711D 1982-12 → — Figure MBE779D MBE779D 1982-12 → —

Part groups

PNCDescription
55081D Duct Sub-assy, Cowl TO Register, NO.1
55082D Boot Sub-assy, Side Vent Duct, NO.1
55083B Boot Sub-assy, Side Vent Duct, NO.2
55810 Duct Assy, Side Ventilator, RH
55819 Rod, Side Ventilator Control
55834A Bracket, Foot Ventilator Control Rod
55865A Box, Instrument Ventilator
55950A Nozzle Assy, Defroster
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
