Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12

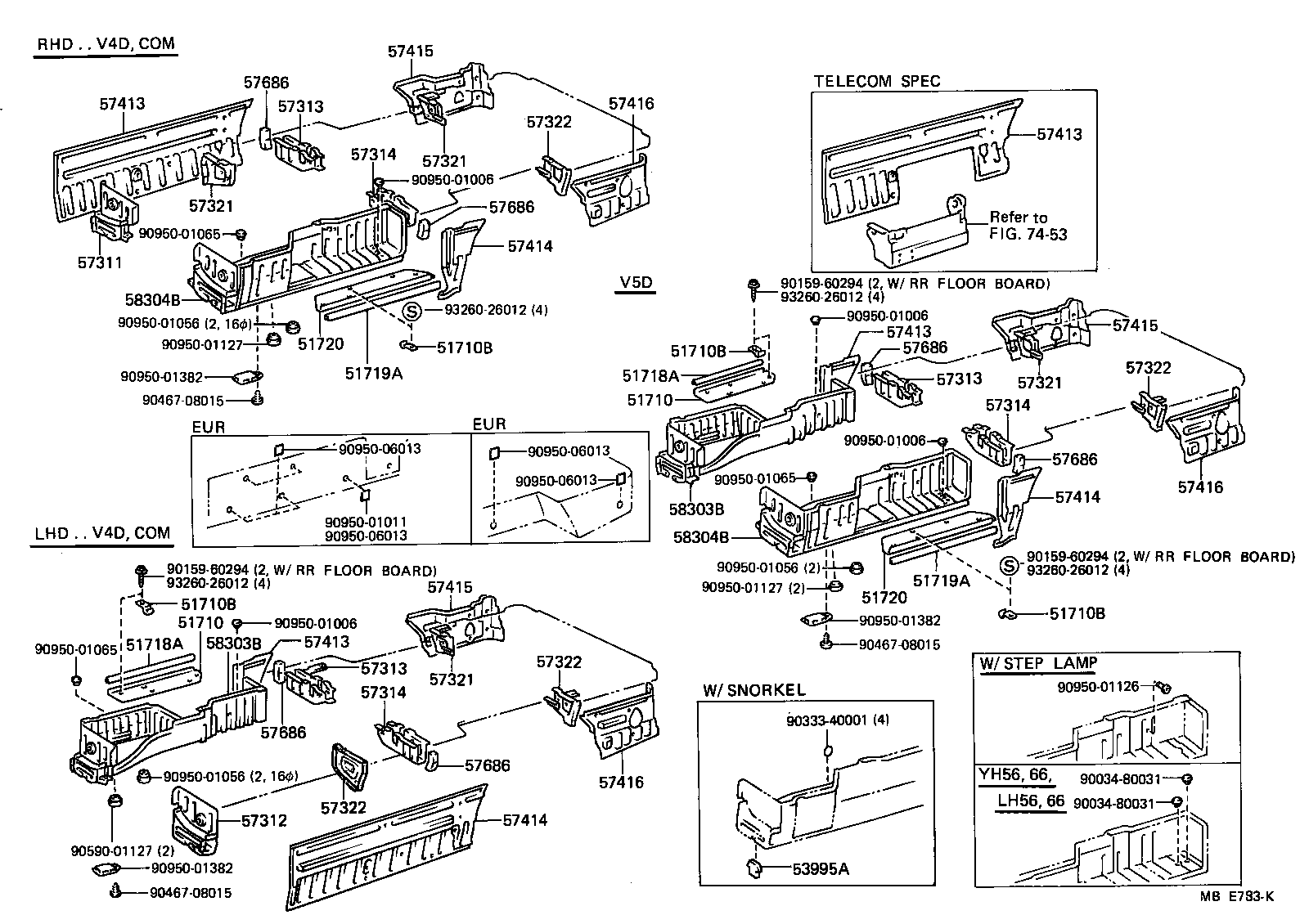

Rear Floor Panel & Rear Floor Member

42 part groups · 2 illustrations

PNC	Description
51569A	Guard, Propeller Shaft
51710	Cover Assy, Side Door Step Plate, RH
51710B	Clamp, Side Door Step Opening
51718A	Protector, Step Cover, RH
51719A	Protector, Step Cover, LH
51720	Cover Assy, Side Door Step Plate, LH
53995A	Plug, Air Cleaner Inlet
57078	Member Sub-assy, Rear Floor Rear Cross, Outer
57079	Member Sub-assy, Rear Floor Rear Cross, Inner
57311	Outrigger, NO.1 RH
57312	Outrigger, NO.1 LH
57313	Outrigger, NO.2 RH
57314	Outrigger, NO.2 LH
57321	Outrigger, NO.4 RH
57322	Outrigger, NO.4 LH
57361	Cover, Outrigger Hole
57362	Packing, Outrigger Hole Cover
57413	Rail, Floor Side, Center RH
57414	Rail, Floor Side, Center LH
57415	Rail, Floor Side, Rear RH
57416	Rail, Floor Side, Rear LH
57419A	Plate, Rear Seat Lock
57685	Dust Proof, Rear Floor Crossmember
57686	Dust Proof, Outrigger
58021	Panel Sub-assy, Header
58207C	Cover Sub-assy, Transmission Service Hole
58209B	Cover Sub-assy, Battery Service Hole
58303B	Step Sub-assy, Rear Floor, RH
58304B	Step Sub-assy, Rear Floor, LH
58309F	Balancer Sub-assy, Rear Floor
58311	Pan, Rear Floor
58444A	Packing, Battery Service Hole Cover
58445C	Pad, Battery Service Hole Cover
58451B	Cover, Air Cleaner Service Hole
58457D	Packing, Air Cleaner Service Hole Cover
58465	Packing, Transmission Service Hole Cover, NO.1
58466E	Silencer, Transmission Service Hole Cover, NO.1
58466F	Silencer, Transmission Service Hole Cover, NO.2
58471A	Silencer, Header Panel
58605	Retainer Sub-assy, Rear Seat, NO.1
58689A	Weight, Rear Floor
66311	Hook, Rope

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
