Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

2 part groups · 3 illustrations

Illustrations

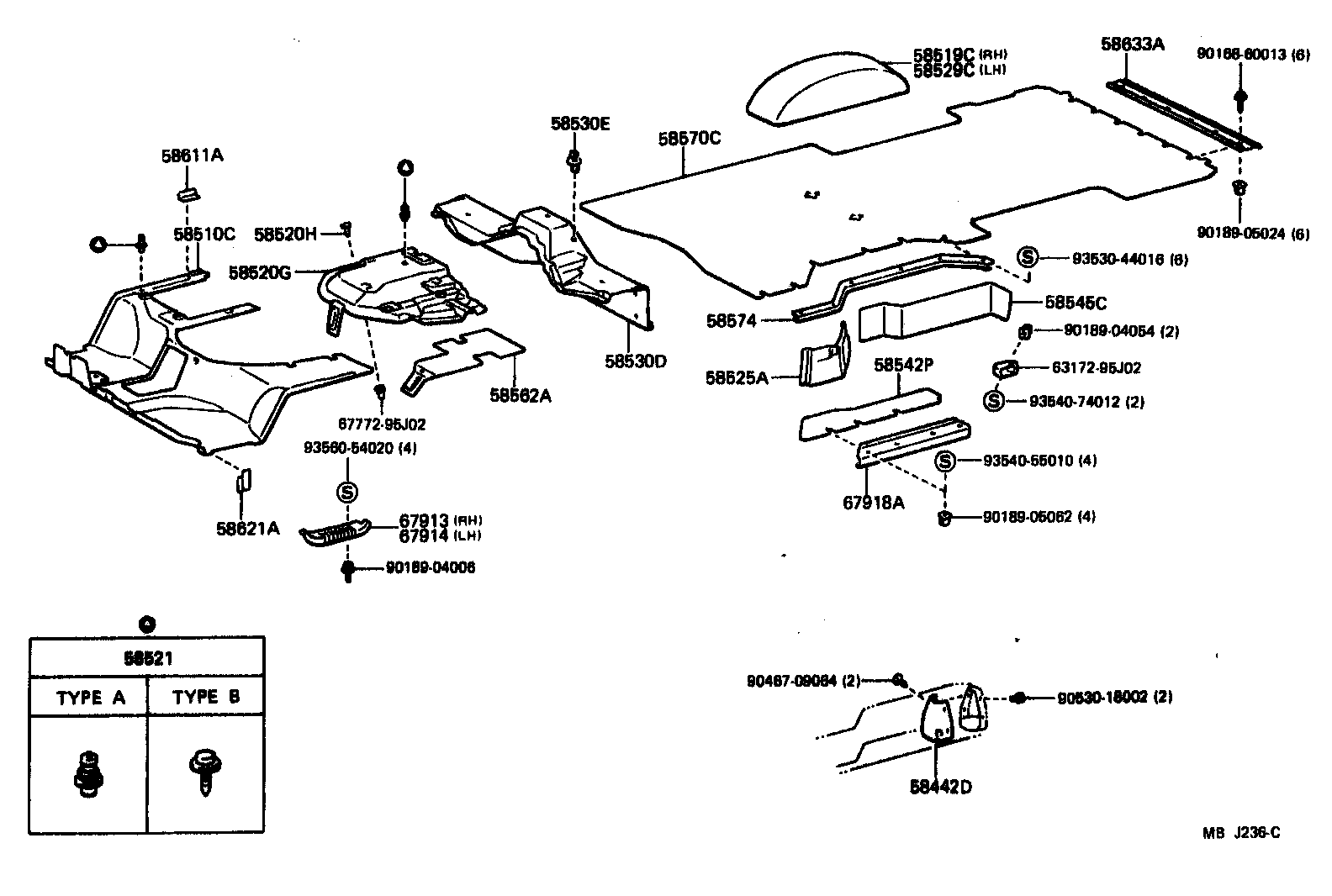

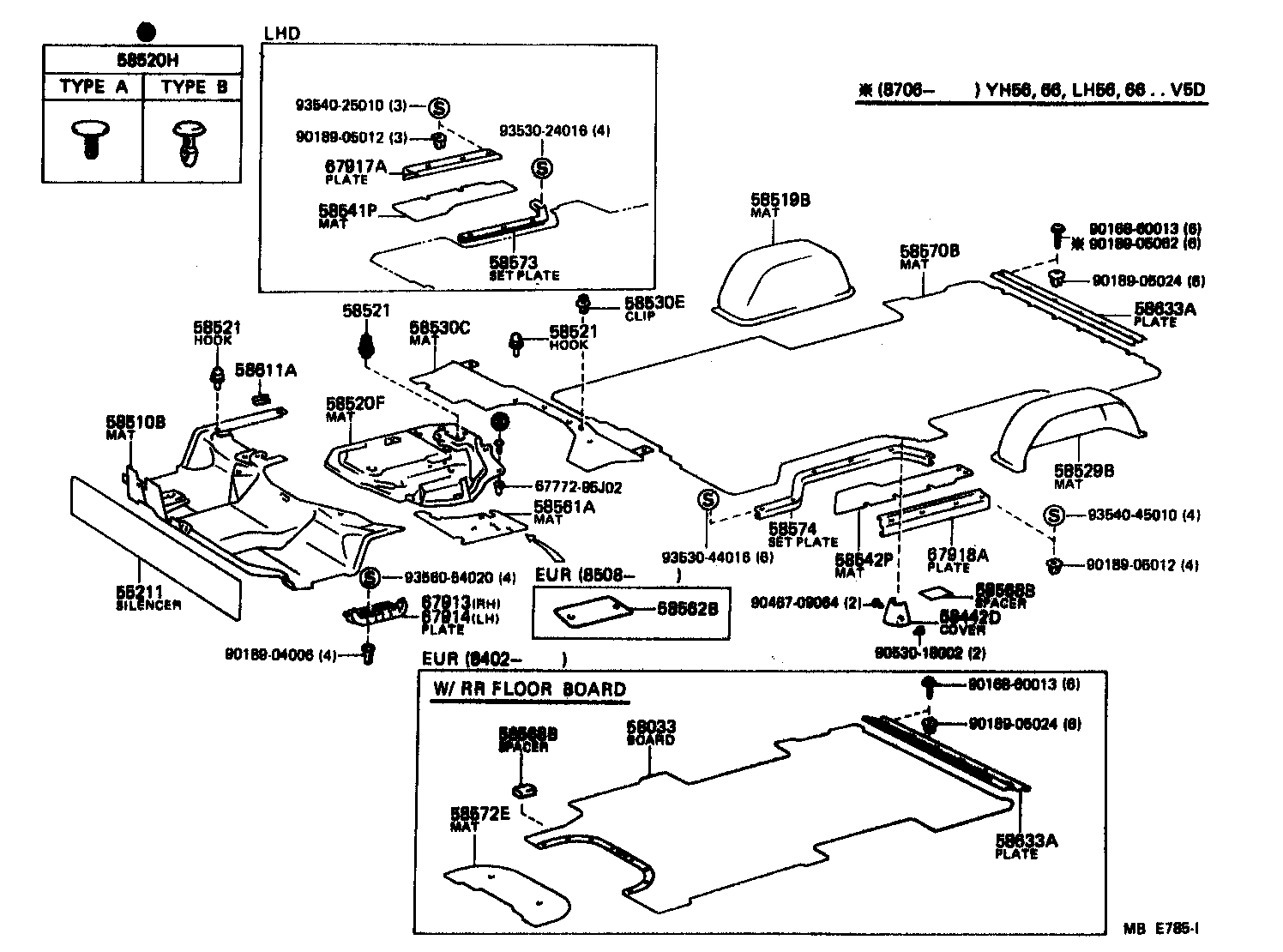

Figure MBE784B MBE784B 1982-12 → — Figure MBE785I MBE785I 1982-12 → — Figure MBJ236C MBJ236C 1985-08 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
