Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

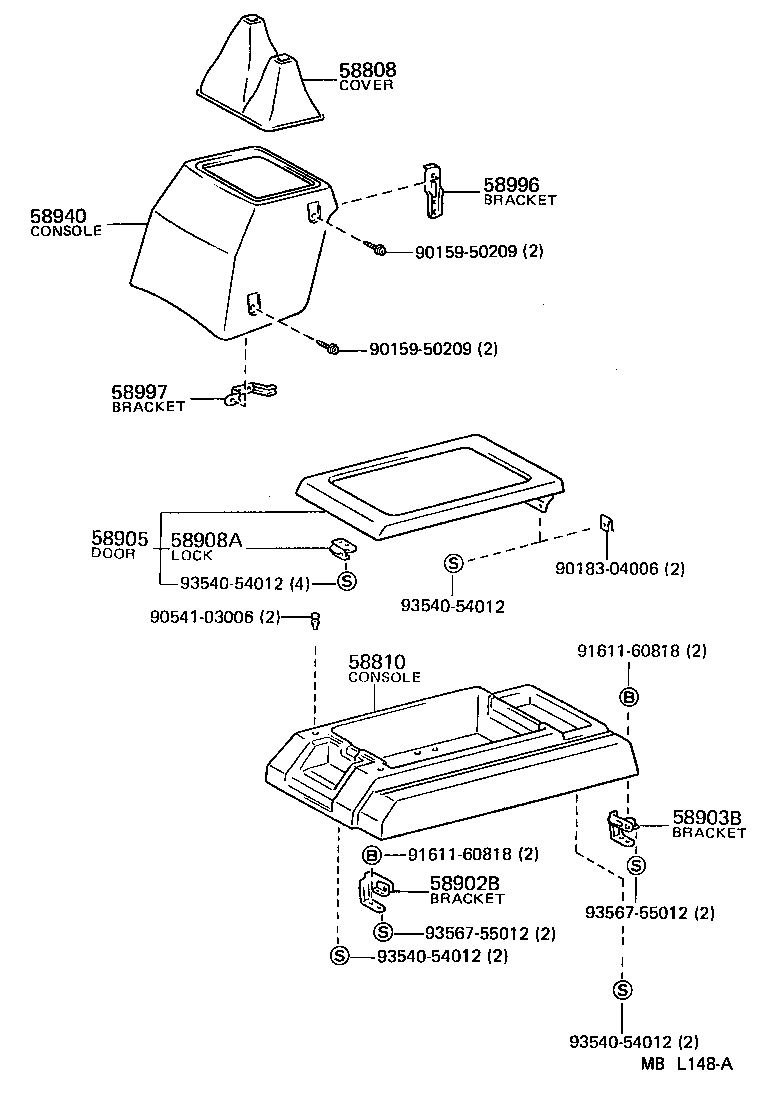

Figure MBJ238D MBJ238D 1985-08 → — Figure MBL148A MBL148A 1986-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58843 Bezel, Shifting Hole
58856A Holder, Console Box
58871 Cushion, Console Box
58902B Bracket Sub-assy, Console Box Hinge, NO.1
58903B Bracket Sub-assy, Console Box Hinge, NO.2
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58918 Spring, Console Box Stopper
58919B Plate, Console Box
58940 Console Assy, Rear
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
