Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

45 part groups · 7 illustrations

Illustrations

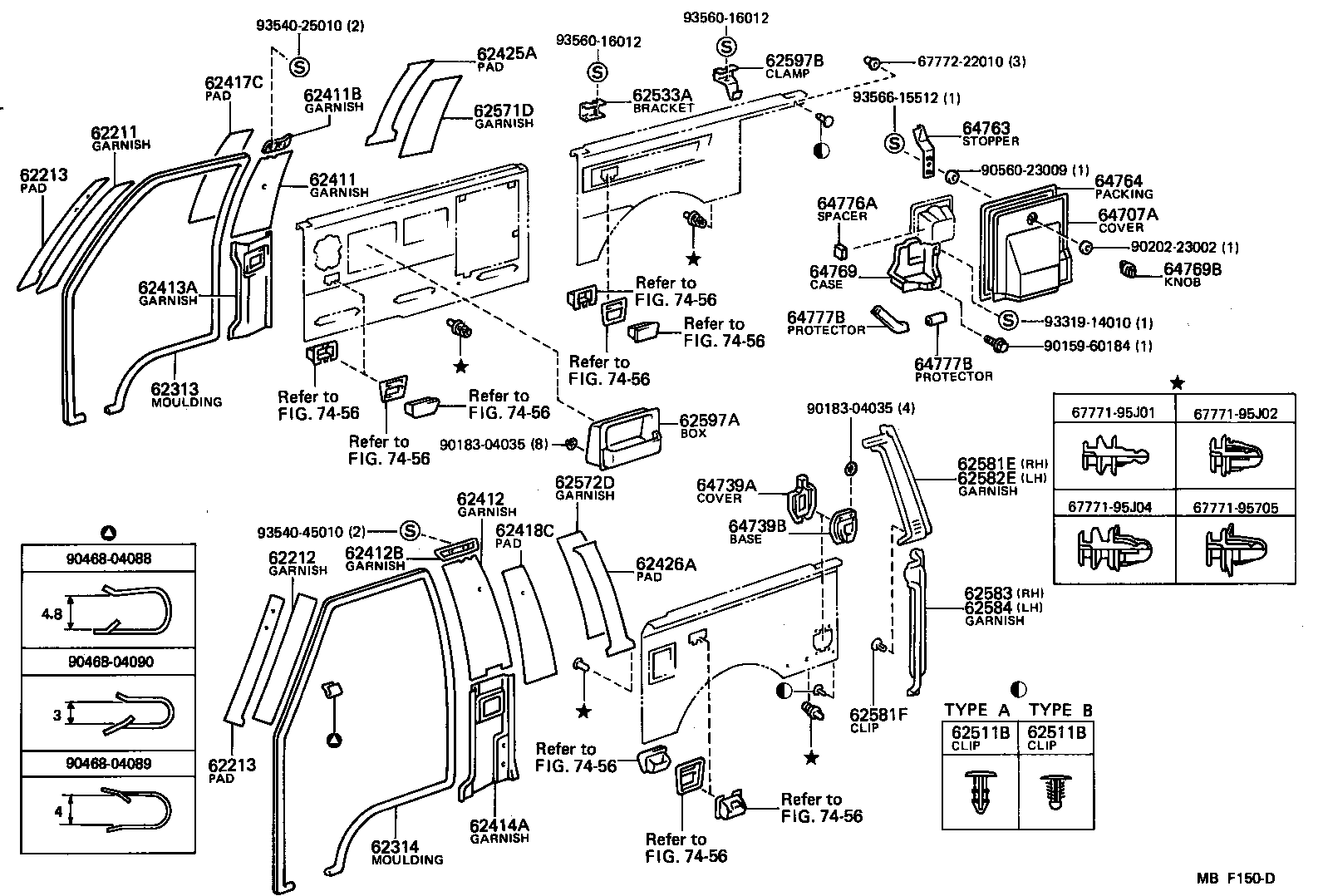

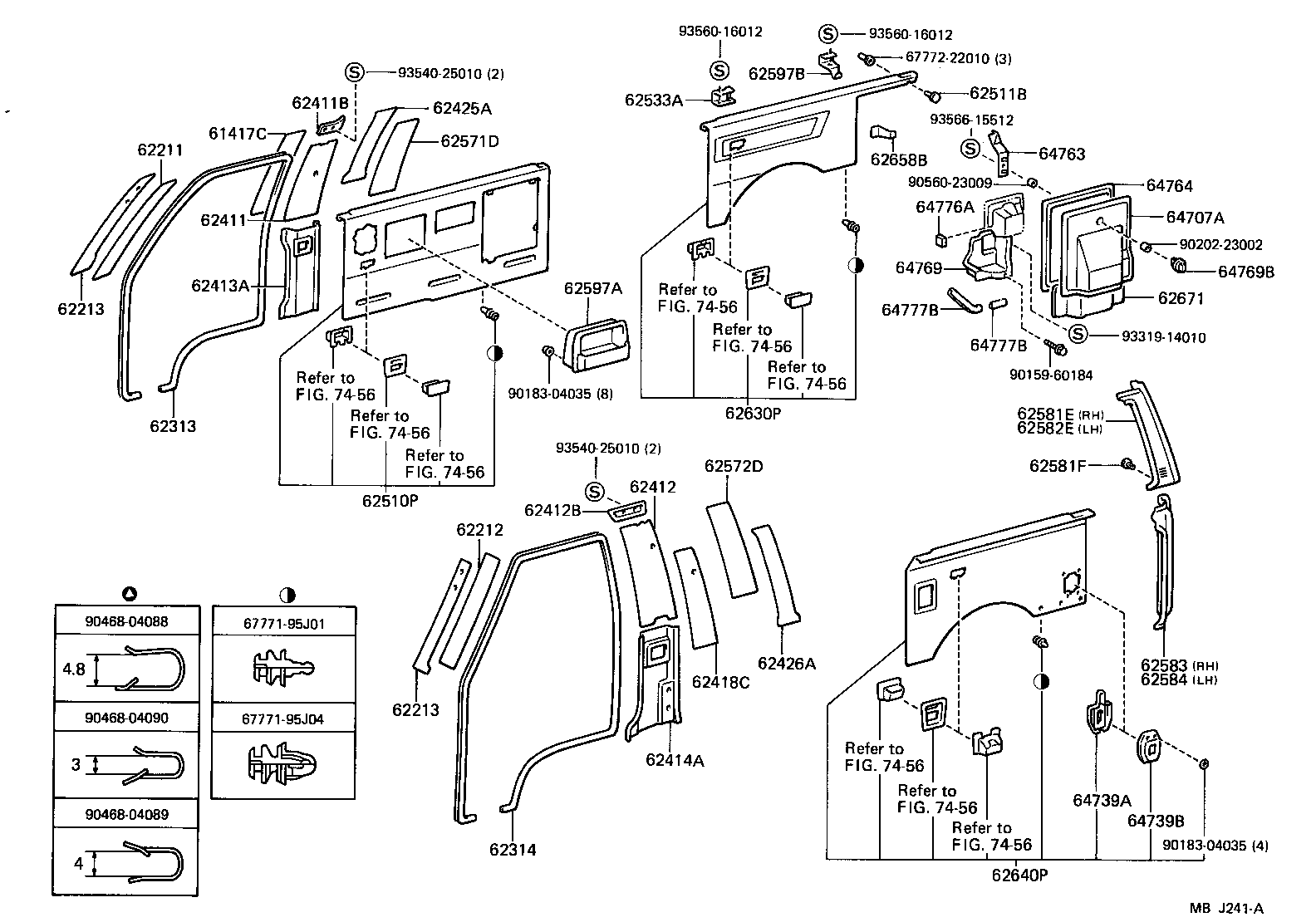

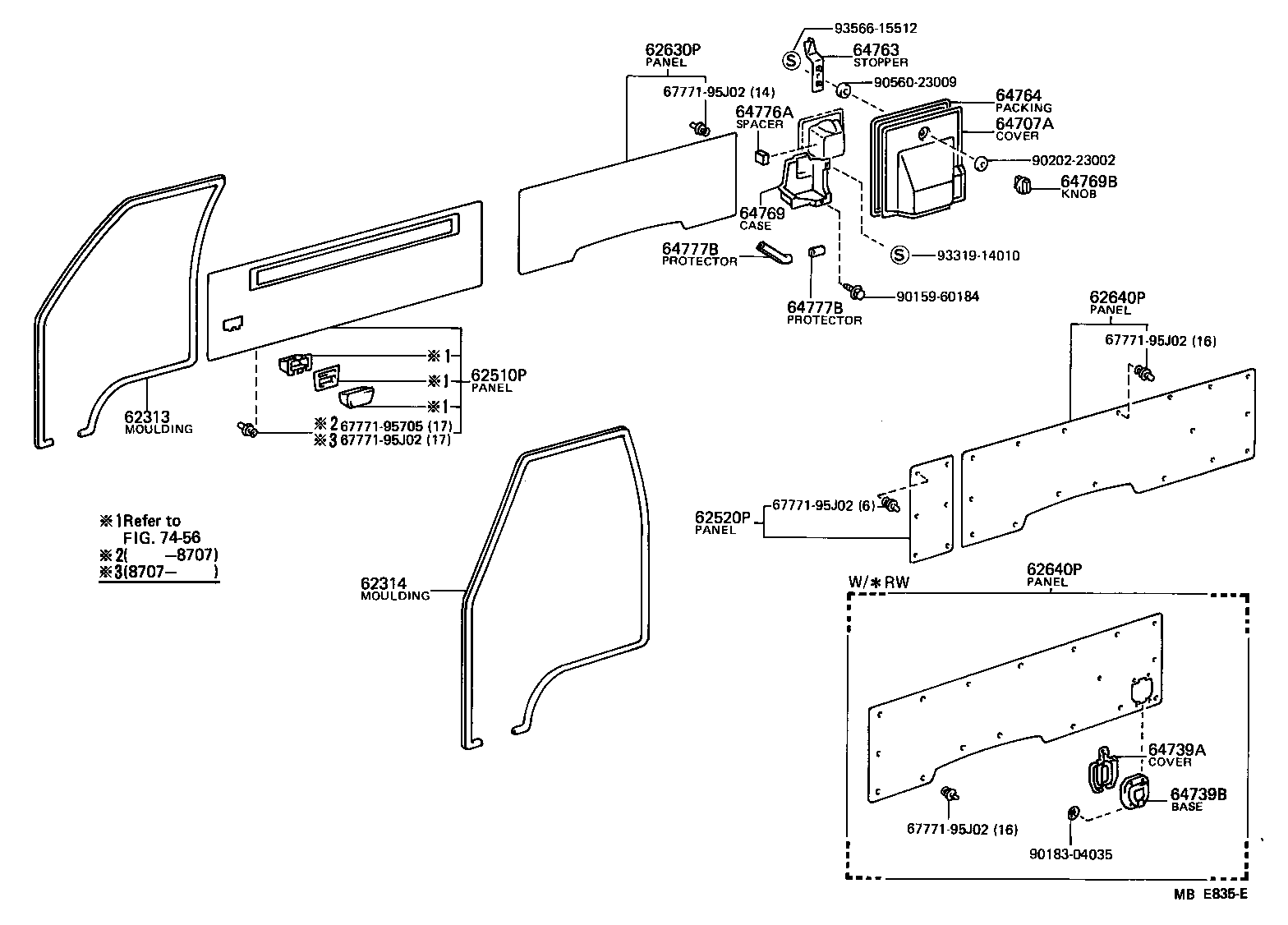

Figure MBE793H MBE793H 1982-12 → 1984-01 Figure MBE793H MBE793H 1984-01 → — Figure MBF150D MBF150D 1983-06 → 1984-01 Figure MBF150D MBF150D 1984-01 → 1986-08 Figure MBF150D MBF150D 1986-08 → — Figure MBJ241A MBJ241A 1985-08 → — Figure MBE835E MBE835E 1982-12 → —

Part groups

PNCDescription
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62213 Pad, Front Pillar Garnish
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62313 Moulding, Front Door Opening Trim, RH
62314 Moulding, Front Door Opening Trim, LH
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62417C Pad, Center Pillar, RH
62418C Pad, Center Pillar, LH
62425A Pad, Quarter Lock Pillar, RH
62426A Pad, Quarter Lock Pillar, LH
62510P Panel Assy, Quarter Trim, Front RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62520P Panel Assy, Quarter Trim, Front LH
62533A Bracket, Quarter Trim Clamp
62571D Garnish, Quarter Lock Pillar, RH
62572D Garnish, Quarter Lock Pillar, LH
62581E Garnish, Quarter Pillar, RH
62581F Clip (FOR QUARTER PILLAR GARNISH)
62582E Garnish, Quarter Pillar, LH
62583 Garnish, Quarter Pillar, Lower RH
62584 Garnish, Quarter Pillar, Lower LH
62588A Cover, Side Heater, Lower
62590B Board Assy, Side Heater Cover, LH
62597A Box, Side Trim
62597B Clamp, Quarter Trim
62630P Panel Assy, Quarter Trim, Rear RH
62640P Panel Assy, Quarter Trim, Rear LH
62658B Leather, Quarter Trim Rear, RH
62671 Board Sub-assy, Quarter Trim, Lower
64707A Cover Sub-assy, Quarter Trim Tool
64739A Cover, Deck Trim Rear Washer
64739B Base, Rear Washer Tank, Service Hole Cover
64763 Stopper, Tool Cover
64764 Packing, Tool Cover
64769 Case Sub-assy, Tool Bag
64769B Knob, Tool Cover
64776A Spacer, Tool Bag Case
64777B Protector, Quarter, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
