Seat & Seat Track

183 part groups · 13 illustrations

Illustrations

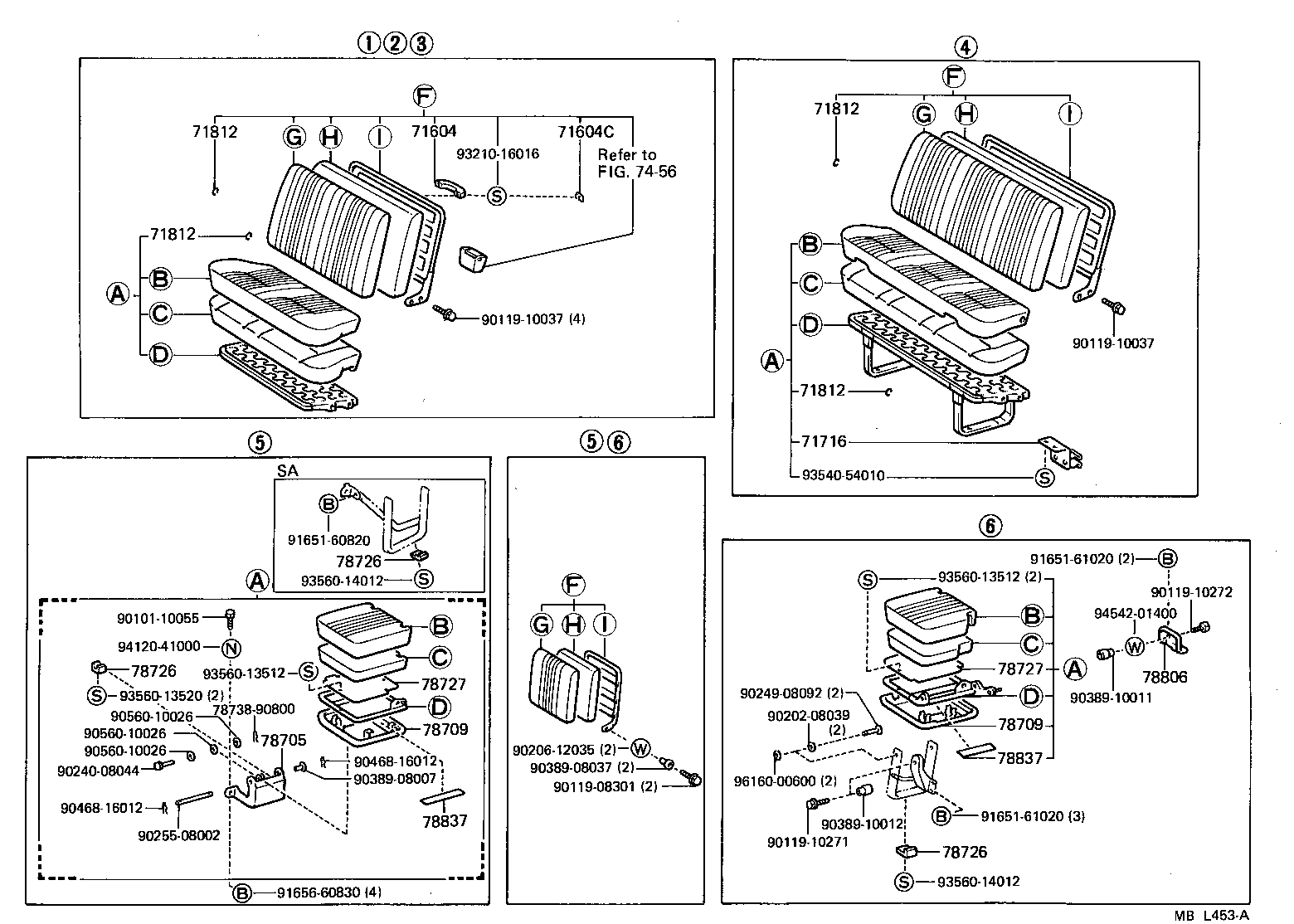

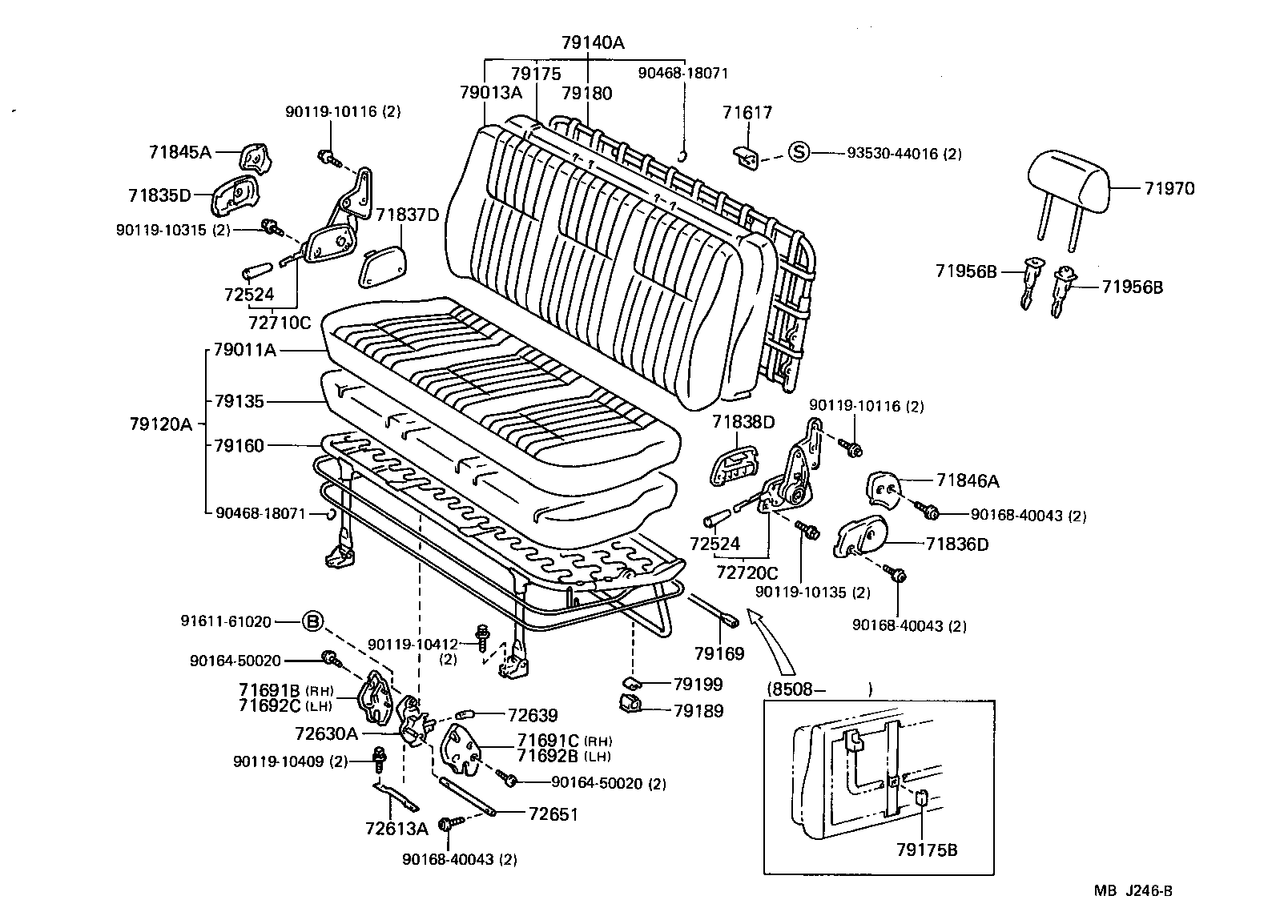

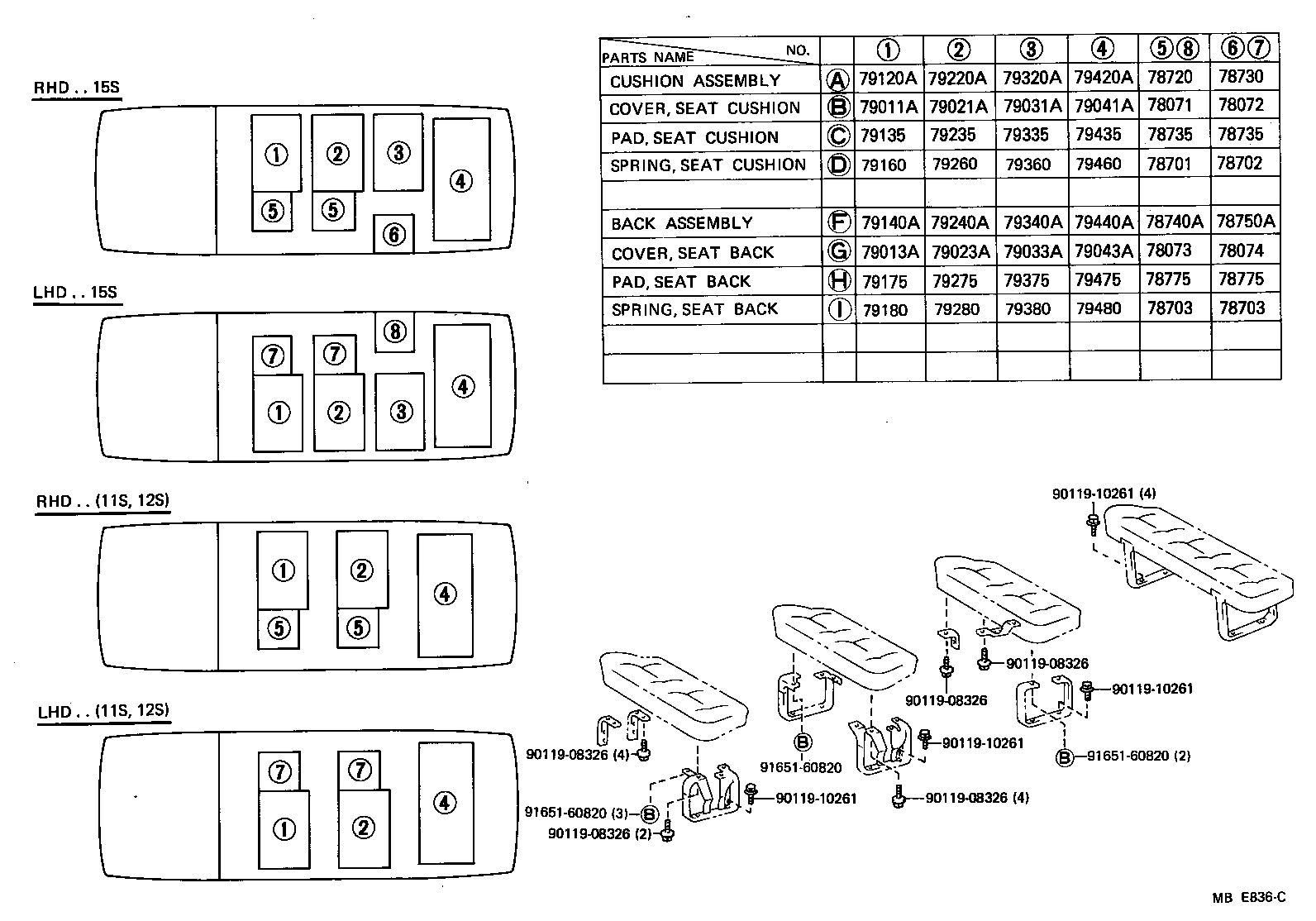

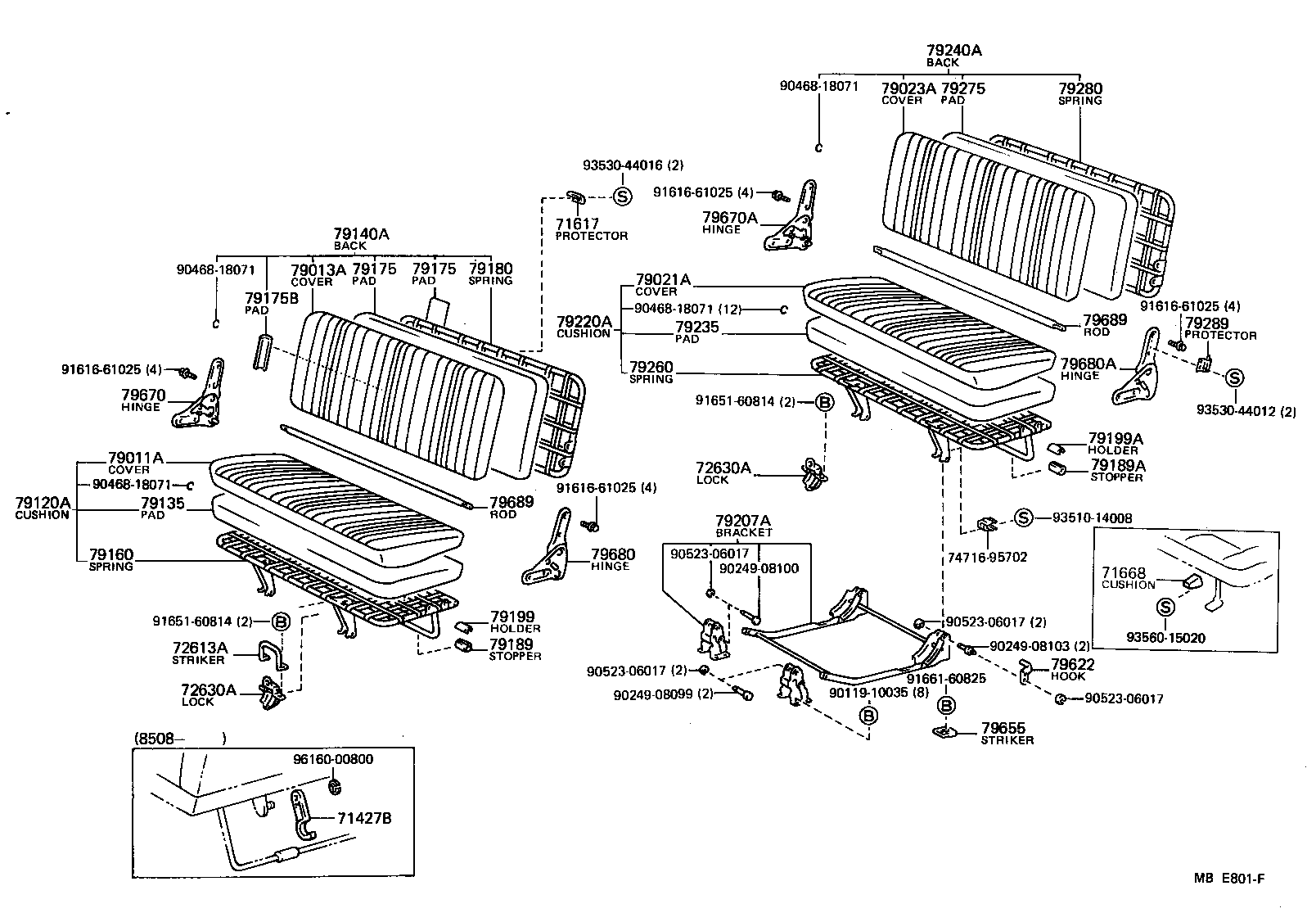

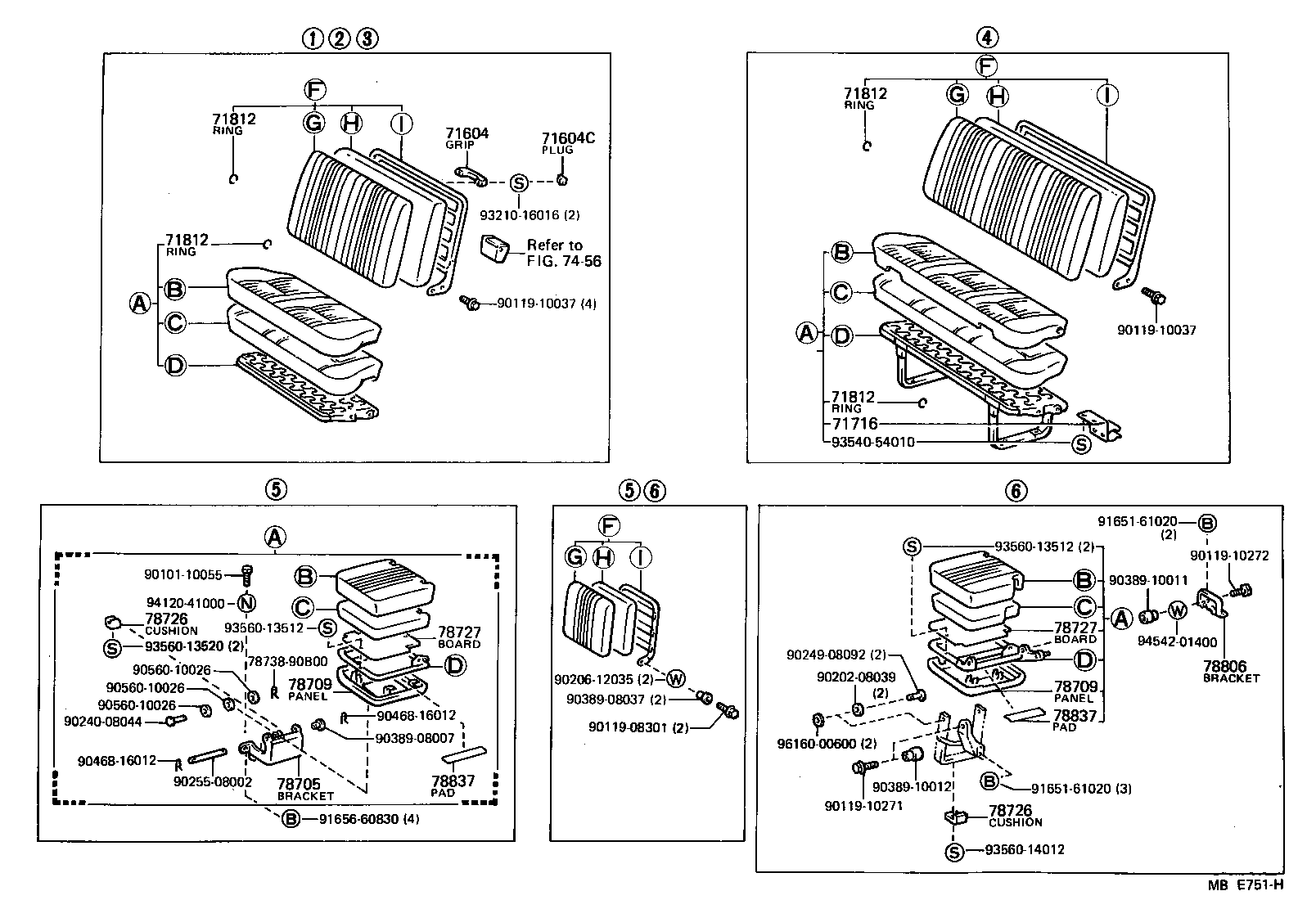

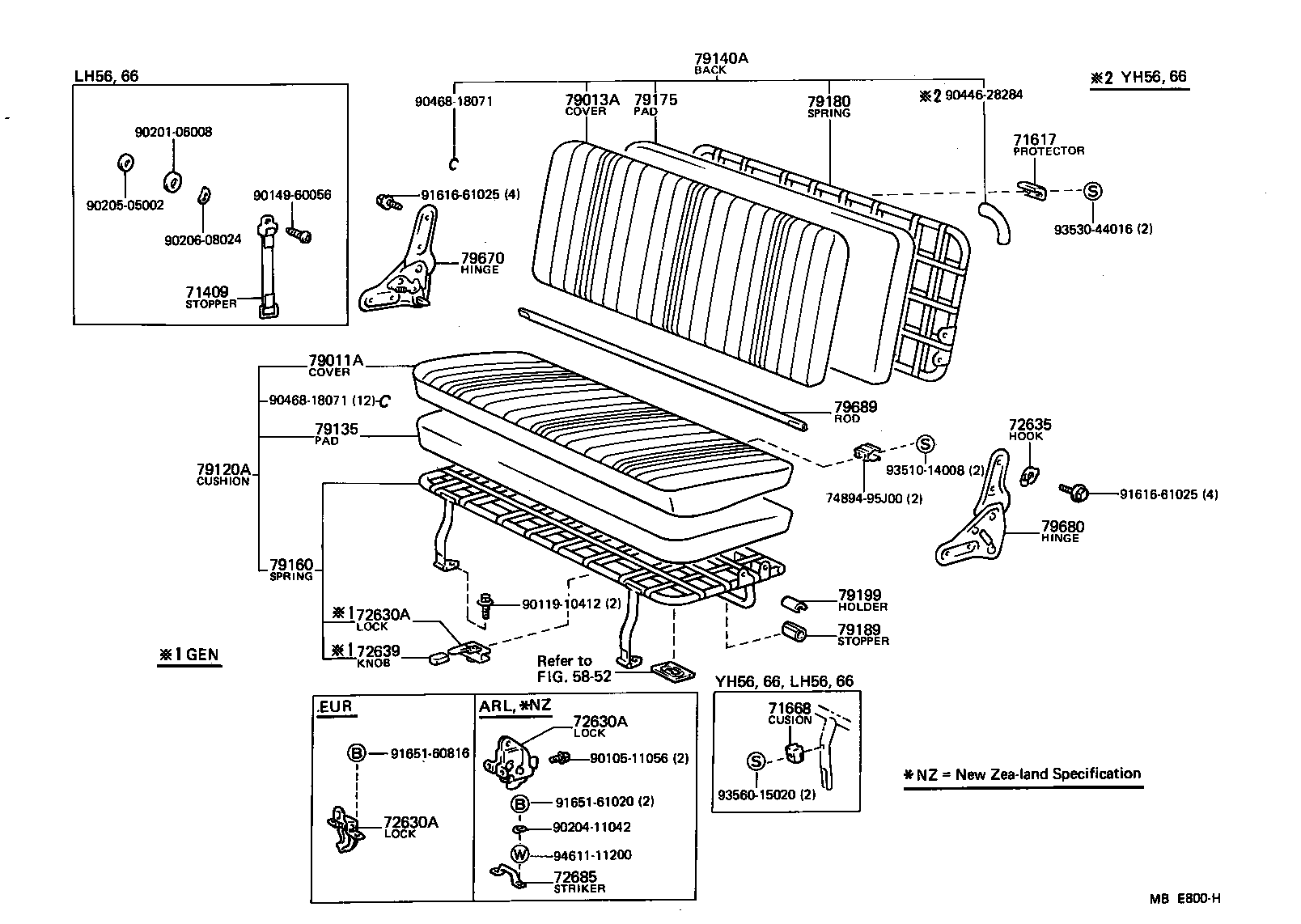

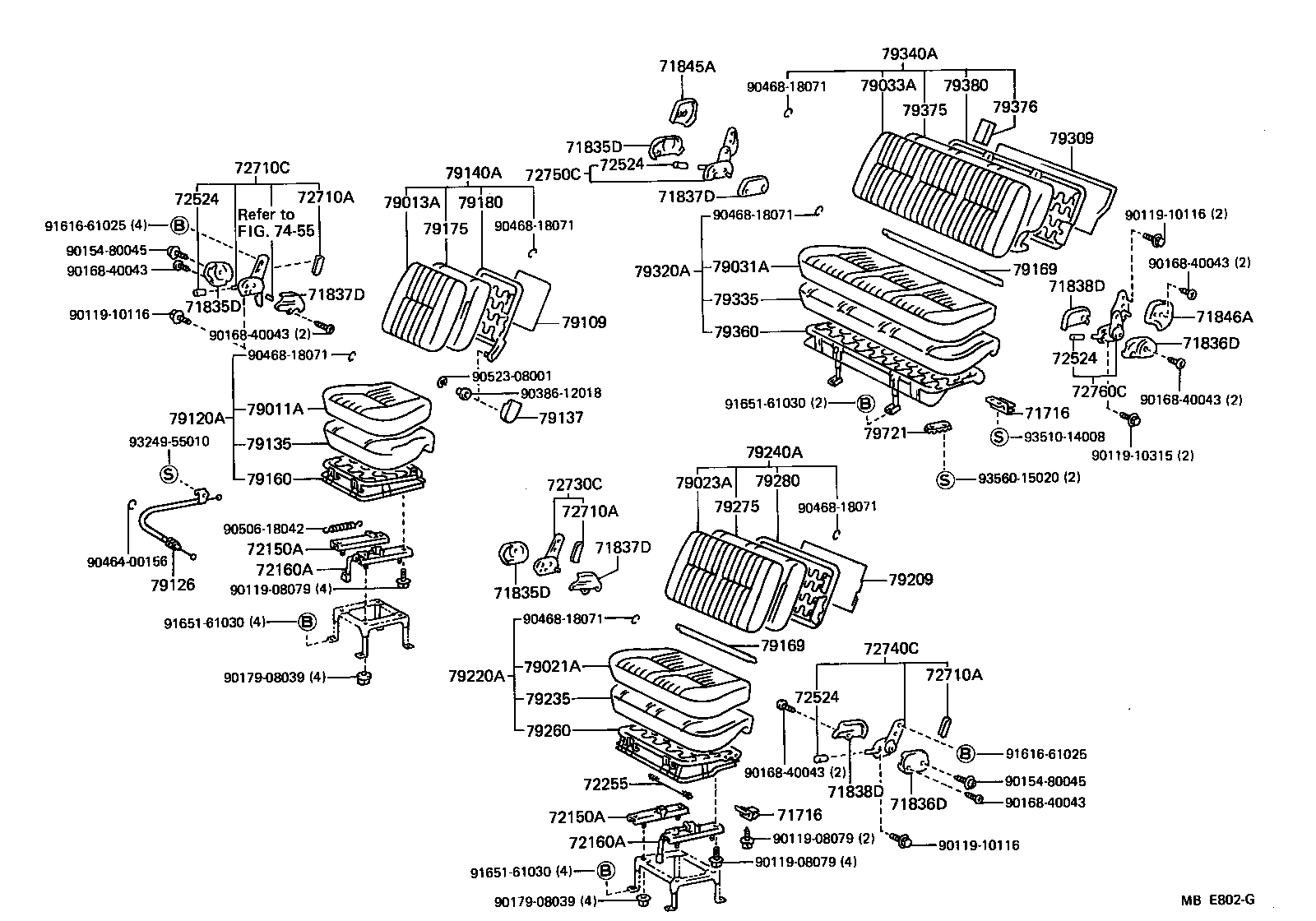

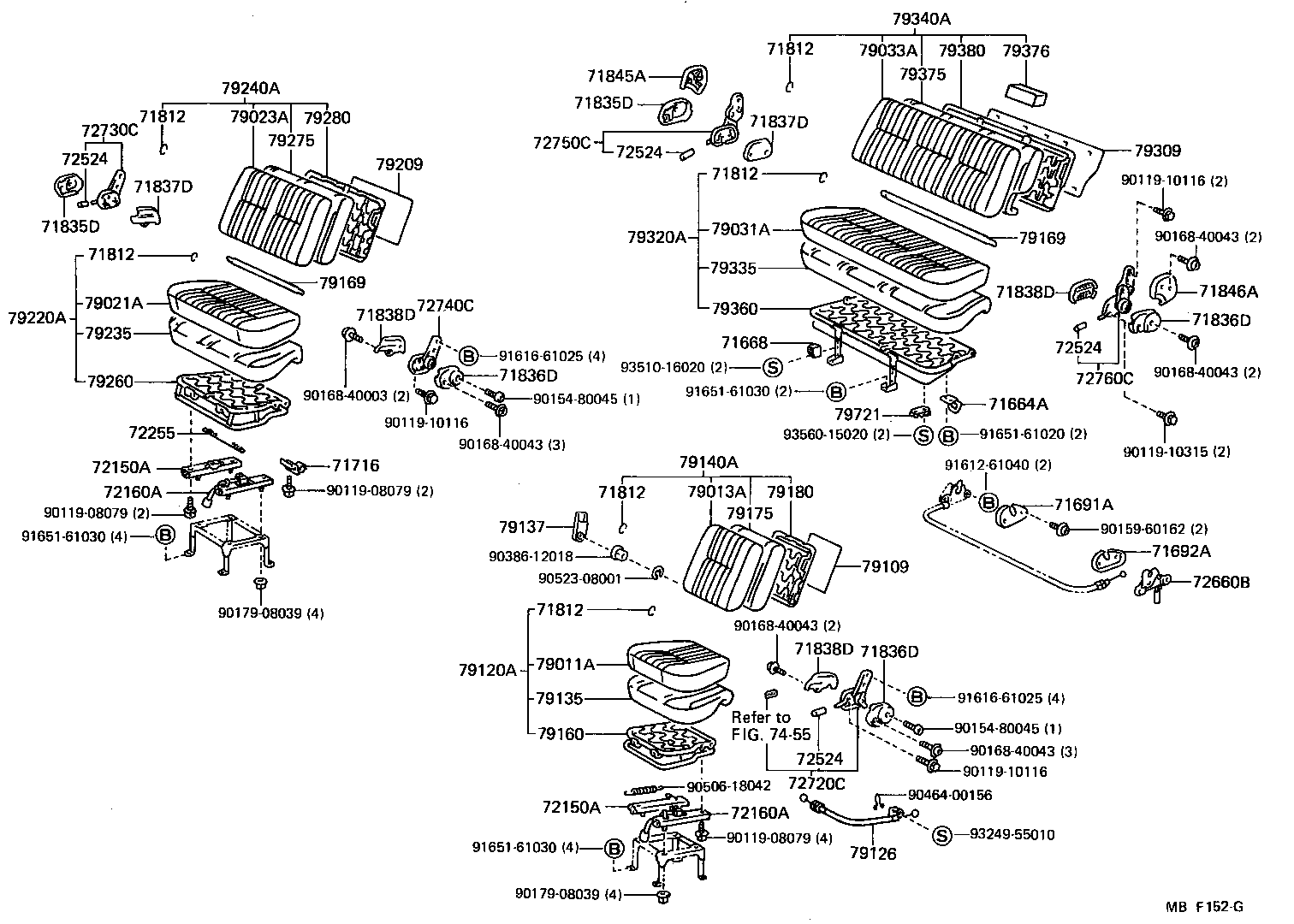

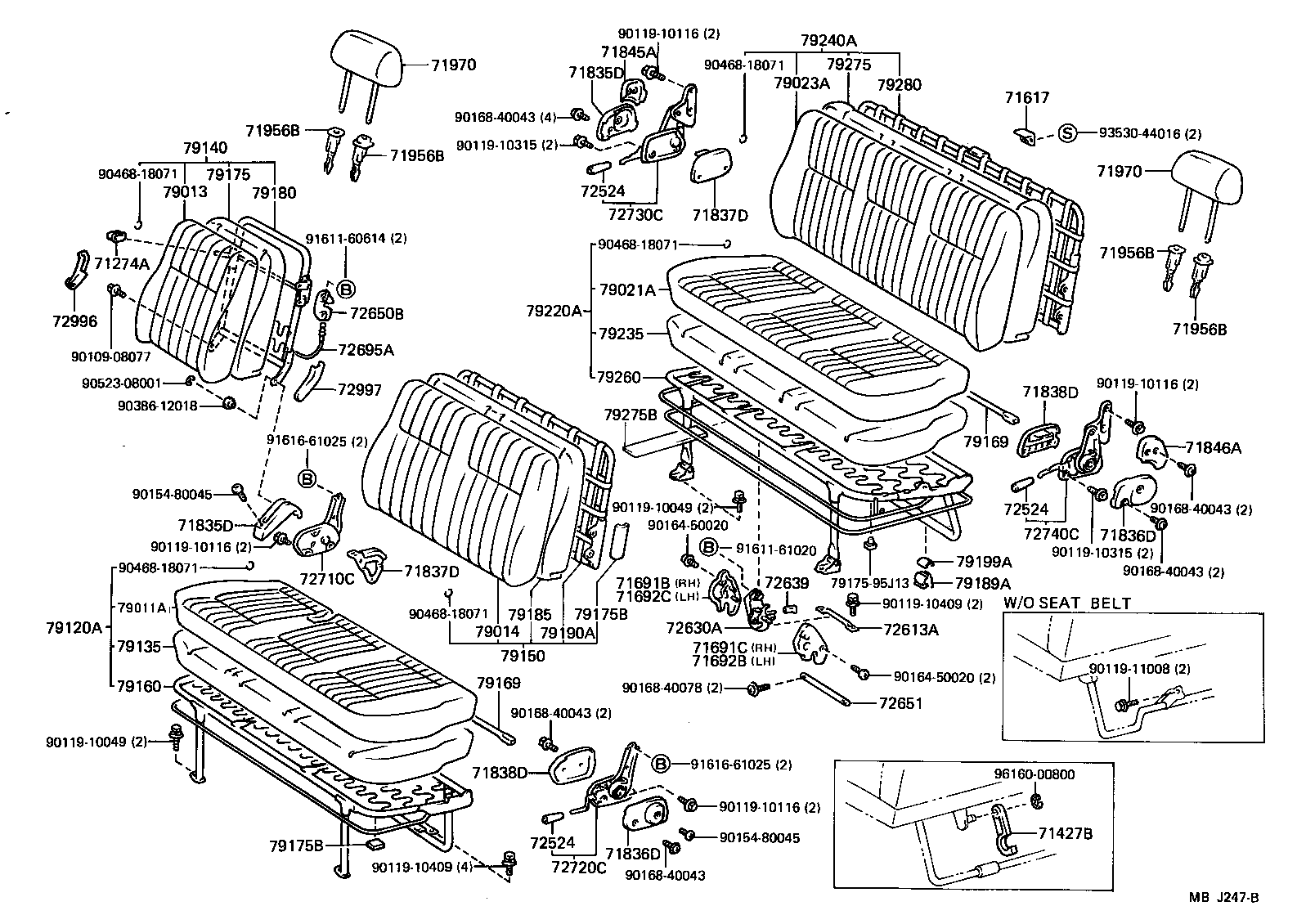

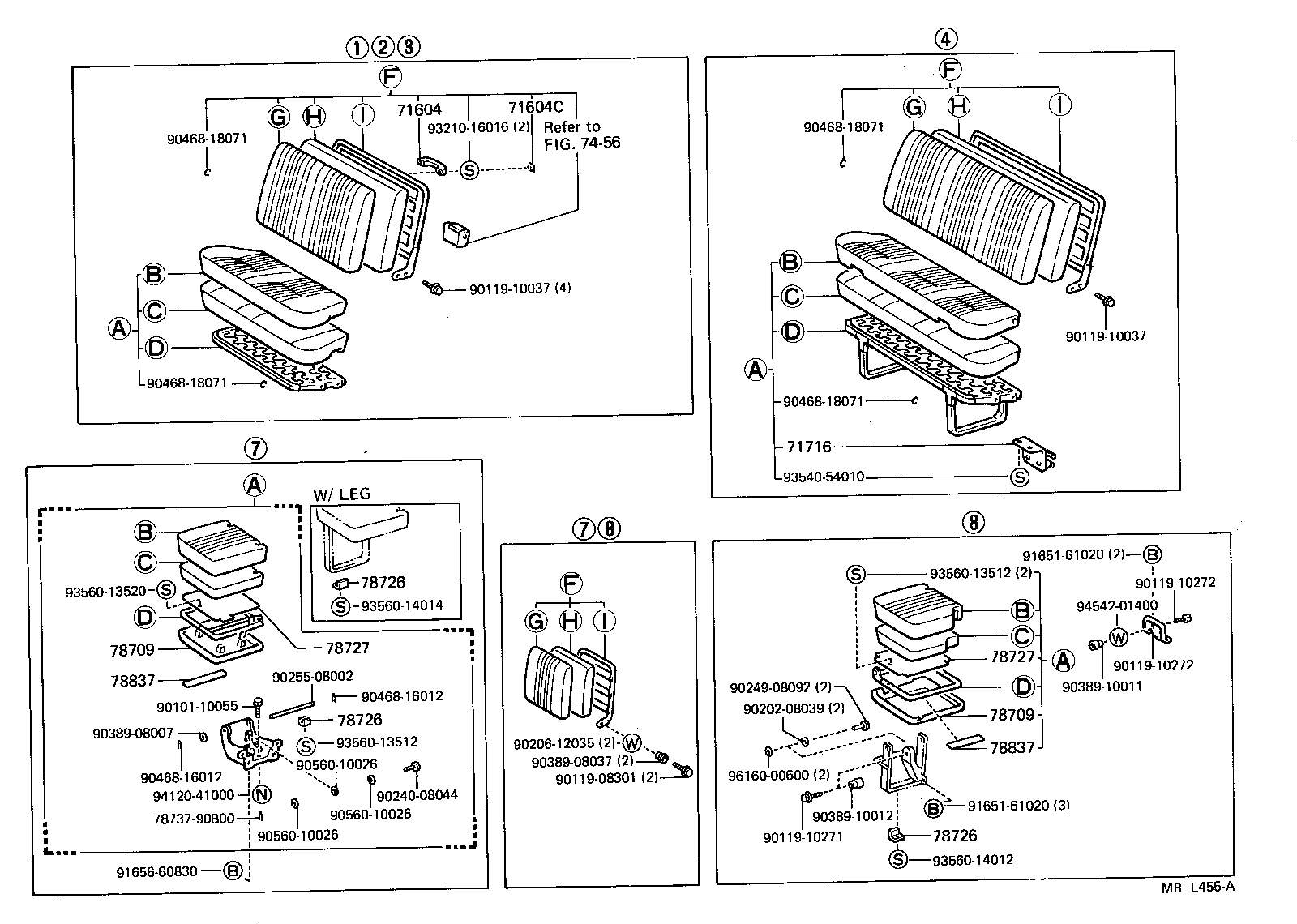

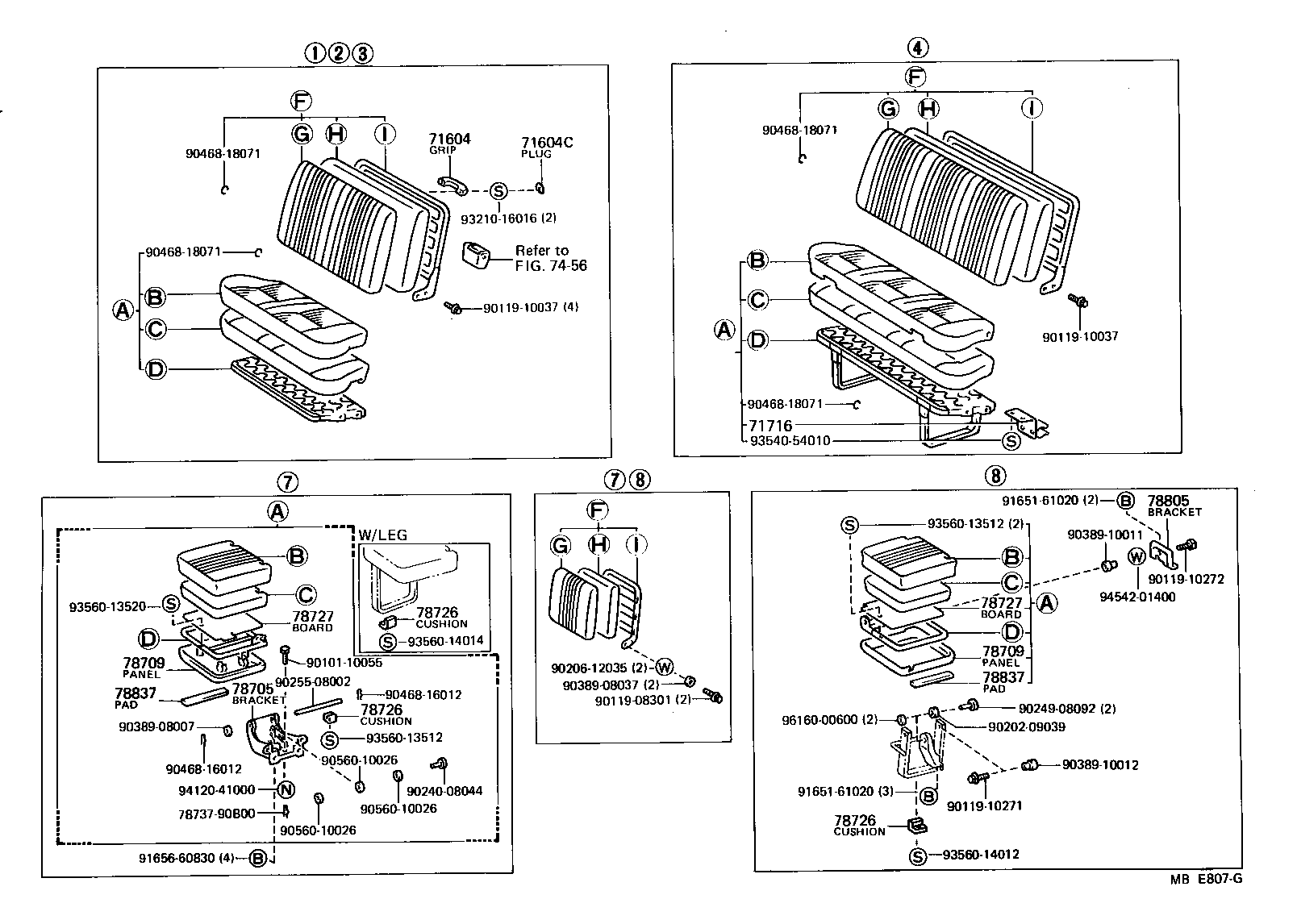

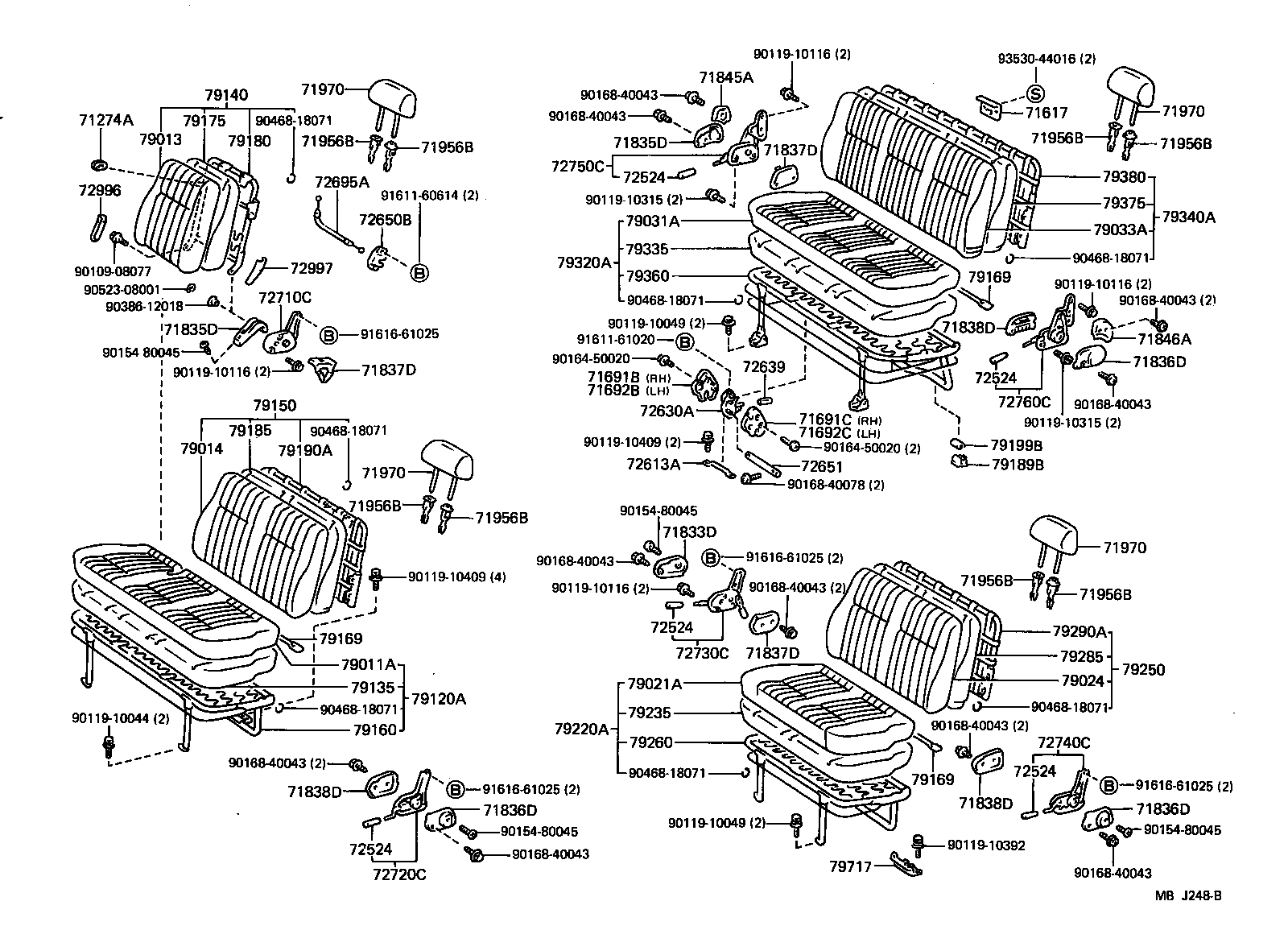

Figure MBE799J MBE799J 1982-12 → — Figure MBE800H MBE800H 1982-12 → 1985-08 Figure MBJ246B MBJ246B 1985-08 → — Figure MBE801F MBE801F 1985-08 → — Figure MBE802G MBE802G 1982-12 → 1985-08 Figure MBJ247B MBJ247B 1985-08 → — Figure MBJ248B MBJ248B 1985-08 → — Figure MBF152G MBF152G 1982-12 → — Figure MBE836C MBE836C 1982-12 → — Figure MBE751H MBE751H 1982-12 → 1986-05 Figure MBL453A MBL453A 1986-05 → — Figure MBE807G MBE807G 1982-12 → 1986-05 Figure MBL455A MBL455A 1986-05 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71031S Cover Sub-assy, Center Seat Cushion
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71181 Support, Front Seatback, RH
71274 Knob, Front Seat Hinge
71274A Knob, Rear Seat Hinge
71280A Hinge Assy, Front Seatback, LH
71301S Frame Sub-assy, Center Seat Cushion
71305S Frame Sub-assy, Center Seatback
71310S Cushion Assy, Front Seat, Center
71318 Pad, Center Seat Cushion
71350S Back Assy, Front Seat, Center
71358 Pad, Center Seatback
71361 Bracket, Front Seat Set, NO.1
71363 Bracket, Front Seat Set, NO.3
71364 Bracket, Front Seat Set, NO.4
71366 Bracket, Front Seat Set, NO.6
71391 Cover, Center Seat Cushion Bracket, RH
71392 Cover, Center Seat Cushion Bracket, LH
71409 Stopper Sub-assy, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71427B Hook, Rear Seatback Stop
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71604 Grip Sub-assy, Assist(FOR SEATBACK)
71604C Plug, Hole(FOR ASSIST GRIP)
71617 Protector, Rear Seatback
71664A Striker, Rear NO.3 Seat
71668 Cushion, Rear NO.3 Seat
71691A Cover, Rear NO.3 Seat Lock, RH
71691B Cover, Rear Seat Lock, Outer RH
71691C Cover, Rear Seat Lock, Inner RH
71692A Cover, Rear NO.3 Seat Lock, LH
71692B Cover, Rear Seat Lock, Outer LH
71692C Cover, Rear Seat Lock, Inner LH
71716 Spring, Jack Handle Support
71811C Cover, Reclining Adjuster, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812C Cover, Reclining Adjuster, LH
71815A Cover, Front Seat Cushion Hinge, RH
71816A Cover, Front Seat Cushion Hinge, LH
71832C Cover, Front LH Seat Hinge
71833D Cover Rear Seat Reclining, RH
71835D Cover, Rear Seat Reclining, Lower RH
71836D Cover, Rear Seat Reclining, Lower LH
71837D Cover, Rear Seat Reclining, Inner RH
71838D Cover, Rear Seat Reclining, Inner LH
71845A Cover, Rear Seat Reclining, Upper RH
71846A Cover, Rear Seat Reclining, Upper LH
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
71975A Washer, Plate
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130S Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72140S Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
72150A Track Assy, Rear Seat, RH
72160A Track Assy, Rear Seat, LH
72255 Cable, Rear Seat Track Lever
72301B Cover, Seat Track
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72613A Striker, Front Seat Lock
72630A Lock Assy, Rear NO.1 Seat
72635 Hook, Rear Seatback Lock
72639 Knob, Rear Seat Lock
72650B Lock Assy, Rear NO.3 Seat, RH
72651 Rod, Rear Seatback Lock
72660B Lock Assy, Rear NO.3 Seat, LH
72685 Striker, Rear NO.1 Seat Lock
72695A Cable, Rear Seat Lock Control
72710A Protector, Rear Seat Reclining Adjuster
72710C Adjuster Assy, NO.1 Seat Reclining, RH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72996 Cover, Rear Seatback, RH
72997 Cover, Rear Seatback, LH
78071 Cover Sub-assy, Sub Seat Cushion, RH
78072 Cover Sub-assy, Sub Seat Cushion, LH
78073 Cover Sub-assy, Sub Seatback, RH
78074 Cover Sub-assy, Sub Seatback, LH
78701 Frame Sub-assy, Sub Seat Cushion, RH
78702 Frame Sub-assy, Sub Seat Cushion, LH
78703 Frame Sub-assy, Sub Seatback
78705 Bracket Sub-assy, Sub Seat Cushion
78709 Panel Sub-assy, Sub Seat Cushion
78720 Cushion Assy, Sub Seat, RH
78726 Cushion, Sub Seat Cushion Frame
78727 Board, Sub Seat Cushion
78730 Cushion Assy, Sub Seat, LH
78735 Pad, Sub Seat Cushion
78740A Back Assy, Sub Seat, RH
78750A Back Assy, Sub Seat, LH
78775 Pad, Sub Seatback
78805 Bracket Sub-assy, Sub Seat Cushion, Rear RH
78806 Bracket Sub-assy, Sub Seat Cushion, Rear LH
78837 Pad, Sub Seat Cushion Safety
79011A Cover Sub-assy, NO.1 Seat Cushion
79013 Cover Sub-assy, NO.1 Seatback, RH
79013A Cover Sub-assy, NO.1 Seatback
79014 Cover Sub-assy, NO.1 Seatback, LH
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79024 Cover Sub-assy, NO.2 Seatback, LH
79031A Cover Sub-assy, NO.3 Seat Cushion
79033A Cover Sub-assy, NO.3 Seatback
79041A Cover Sub-assy, NO.4 Seat Cushion
79043A Cover Sub-assy, NO.4 Seatback
79109 Board Sub-assy, NO.1 Seatback
79120A Cushion Assy, NO.1 Seat
79126 Cable, NO.1 Seat Lock
79135 Pad, NO.1 Seat Cushion
79137 Cover, NO.1 Seat Hinge
79140 Back Assy, NO.1 Seat, RH
79140A Back Assy, NO.1 Seat
79150 Back Assy, NO.1 Seat, LH
79160 Spring Assy, NO.1 Seat Cushion
79169 Rod, Rear Seat Hinge Connector
79175 Pad, NO.1 Seatback
79175B Pad, NO.1 Seatback, A
79180 Spring Assy, NO.1 Seatback
79185 Pad, NO.1 Seatback, LH
79189 Stopper, NO.1 Seat Leg
79189A Stopper, NO.2 Seat Leg
79189B Stopper, NO.3 Seat Leg
79190A Spring Assy, NO.1 Seatback, LH
79199 Holder, NO.1 Seat Leg Stopper
79199A Holder, NO.2 Seat Leg Stopper
79199B Holder, NO.3 Seat Leg Stopper
79207A Bracket Sub-assy, NO.2 Seat Leg
79209 Board Sub-assy, NO.2 Seatback
79220A Cushion Assy, NO.2 Seat
79235 Pad, NO.2 Seat Cushion
79240A Back Assy, NO.2 Seat
79250 Back Assy, NO.2 Seat, LH
79260 Spring Assy, NO.2 Seat Cushion
79275 Pad, NO.2 Seatback
79275B Pad, NO.2 Seatback, A
79280 Spring Assy, NO.2 Seatback
79285 Pad, NO.2 Seatback, LH
79289 Protector, NO.2 Seatback
79290A Spring Assy, NO.2 Seatback, LH
79309 Board Sub-assy, NO.3 Seatback
79320A Cushion Assy, NO.3 Seat
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79360 Spring Assy, NO.3 Seat Cushion
79375 Pad, NO.3 Seatback
79376 Pad, NO.3 Seatback Side
79380 Spring Assy, NO.3 Seatback
79420A Cushion Assy, NO.4 Seat
79435 Pad, NO.4 Seat Cushion
79440A Back Assy, NO.4 Seat
79460 Spring Assy, NO.4 Seat Cushion
79475 Pad, NO.4 Seatback
79480 Spring Assy, NO.4 Seatback
79622 Hook, NO.2 Seat Stop
79655 Striker, NO.2 Seat Leg
79670 Hinge Assy, NO.1 Seat, RH
79670A Hinge Assy, NO.2 Seat, RH
79680 Hinge Assy, NO.1 Seat, LH
79680A Hinge Assy, NO.2 Seat, LH
79689 Rod, Rear Seat Hinge Connector
79717 Bracket, NO.3 Seat Anchor
79721 Stopper, NO.3 Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
