Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

27 part groups · 4 illustrations

Illustrations

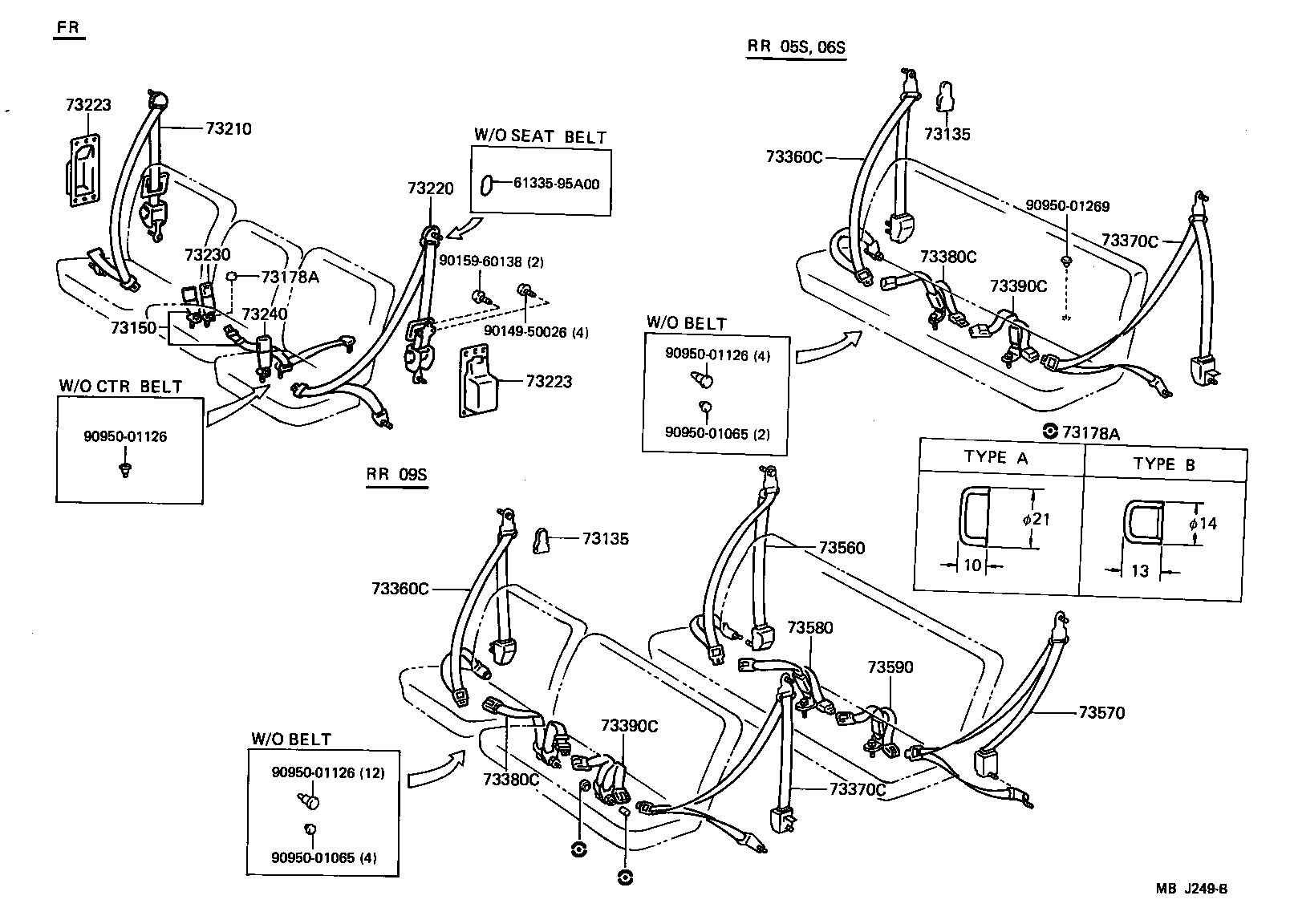

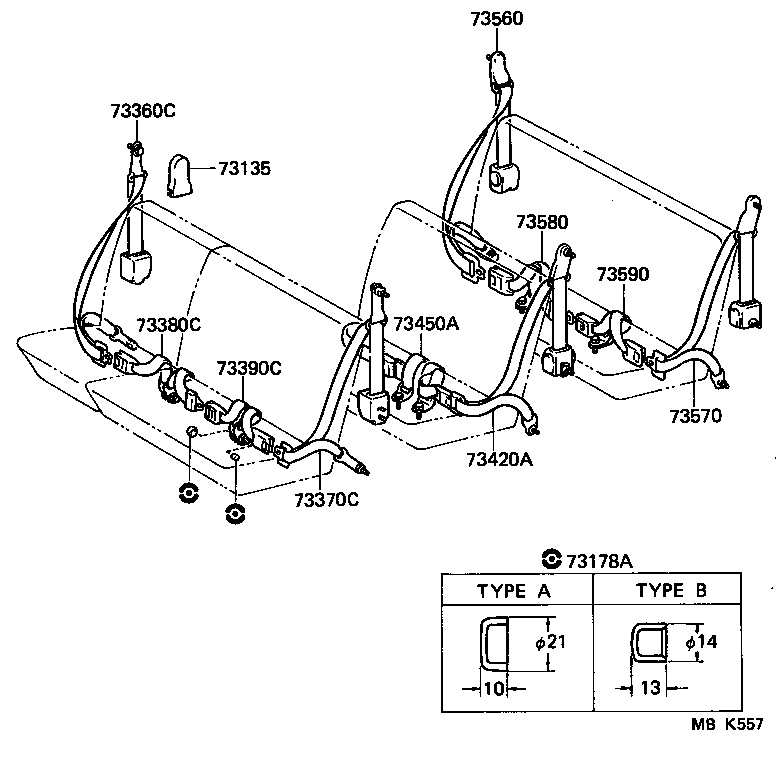

Figure MBE804C MBE804C 1982-12 → 1985-08 Figure MBJ249B MBJ249B 1985-08 → — Figure MBK557 MBK557 1985-10 → — Figure MBL563 MBL563 1987-02 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73330E Belt Assy, Rear NO.1 Seat Lap Type, RH
73340E Belt Assy, Rear NO.1 Seat Lap Type, LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73410A Belt Assy, NO.2 Seat 3 Point Type, RH
73420A Belt Assy, NO.2 Seat 3 Point Type, LH
73450A Belt Assy, NO.2 Seat Lap Type, Center
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
