Toyota Hiace Van,Commuter
1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe
Discontinued model
Data version 1988-12

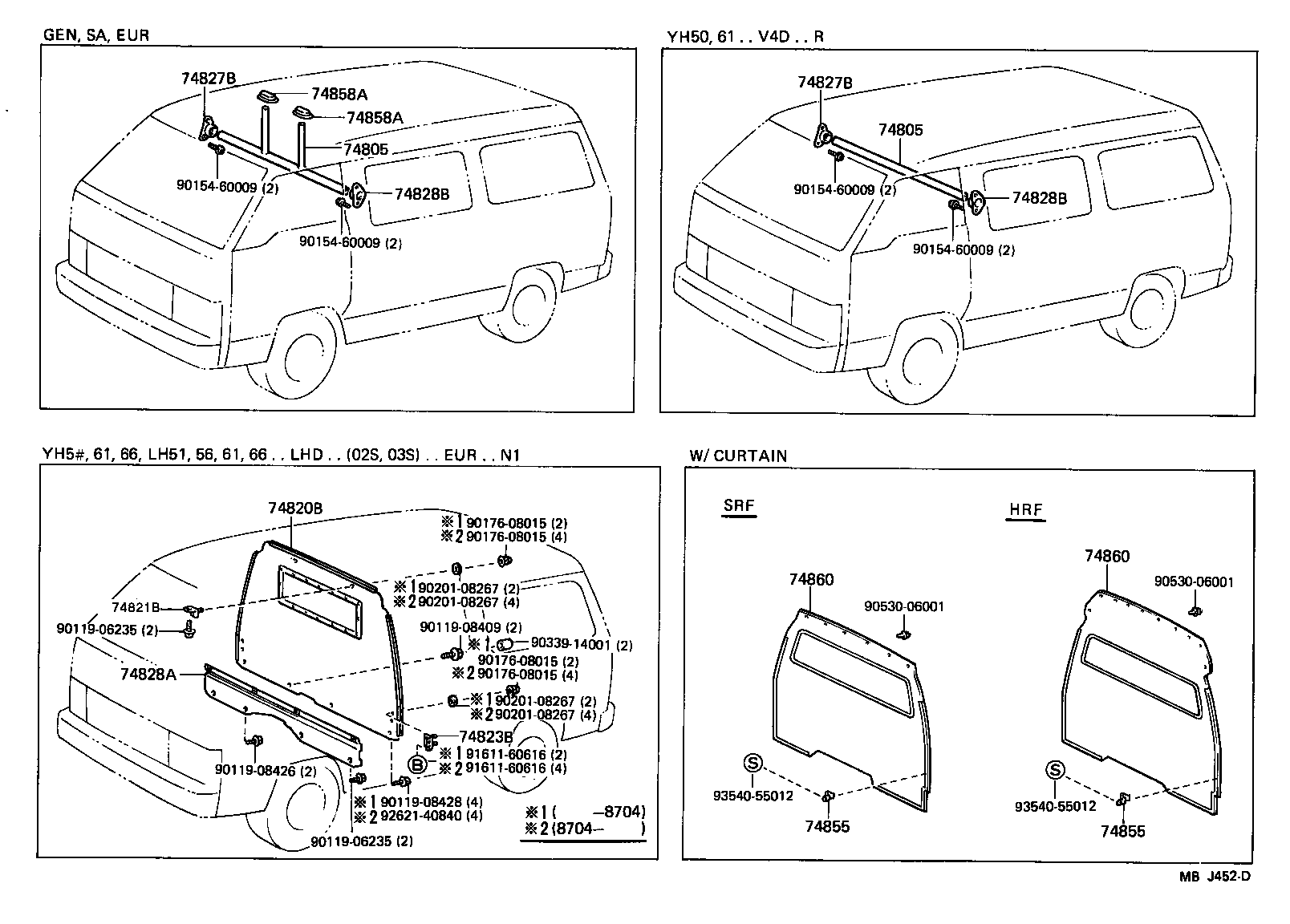

Separator & Separator Curtain
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74805 | Separator Sub-assy |
| 74805A | Grommet (FOR SEPARATOR) |
| 74820B | Board Assy, Separator |
| 74821B | Bracket, Separator Board, Upr |
| 74822C | Bracket, Separator Board, Side |
| 74823B | Bracket, Separator Board Side, Lower |
| 74826A | Window, Separator |
| 74827B | Bracket, Separator Bar, RH |
| 74828A | Extension, Separator Board |
| 74828B | Bracket, Separator Bar, LH |
| 74855 | Plate, Separator Curtain Set |
| 74858A | Bracket, Separator Bar, Upper |
| 74860 | Curtain Assy, Separate |
| 74862C | Bracket, Separator Bar, NO.2 |
| 74863C | Bracket, Separator Bar, NO.3 |
| 74864C | Bracket, Separator Bar, NO.4 |
| 74865C | Bracket, Separator Bar, NO.5 |
| 74869A | Protector, Separator Bar |
| 74878B | Bracket, Separator Bar, Lower RH |
| 74879B | Bracket, Separator Bar, Lower LH |
| 74881B | Bar, Separator, NO.1 |
| 74882B | Bar, Separator, NO.2 |
| 74885B | Bar, Separator, NO.5 |
| 74891B | Protector, Separator Board, NO.1 |
| 74892B | Protector, Separator Board, NO.2 |
| 74893B | Protector, Separator Board, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
