Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

16 part groups · 2 illustrations

Illustrations

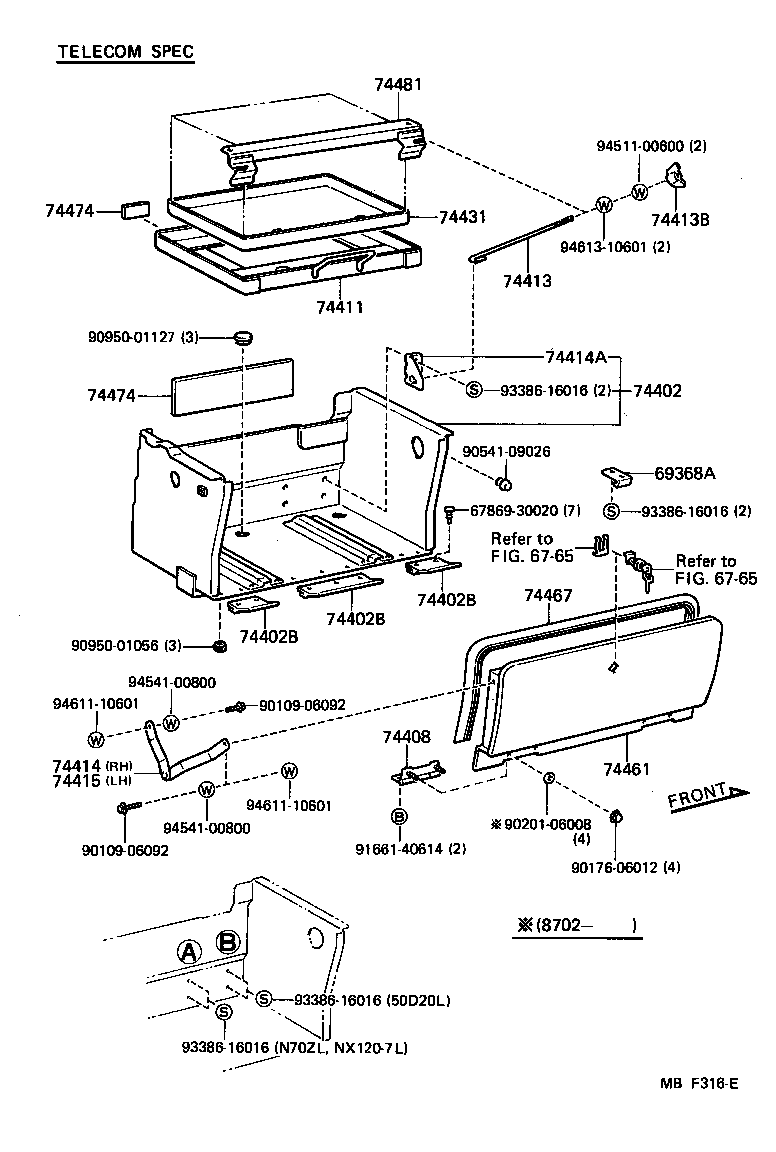

Figure MBJ251B MBJ251B 1982-12 → — Figure MBF316E MBF316E 1983-03 → —

Part groups

PNCDescription
69368A Striker, Battery Service Opening Lid Lock, Rear
74402 Box Sub-assy, Battery
74402B Packing, Battery Box
74406 Belt Sub-assy, Battery
74408 Clamp Sub-assy, Battery Cover
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74413B Nut, Wing (FOR BATTERY CLAMP BOLT)
74414 Bracket, Battery, FR
74414A Bracket, Battery, NO.1
74415 Bracket, Battery, Rear
74431 Tray, Battery
74461 Cover, Battery
74467 Seal, Battery Cover
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
