Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

4 part groups · 2 illustrations

Illustrations

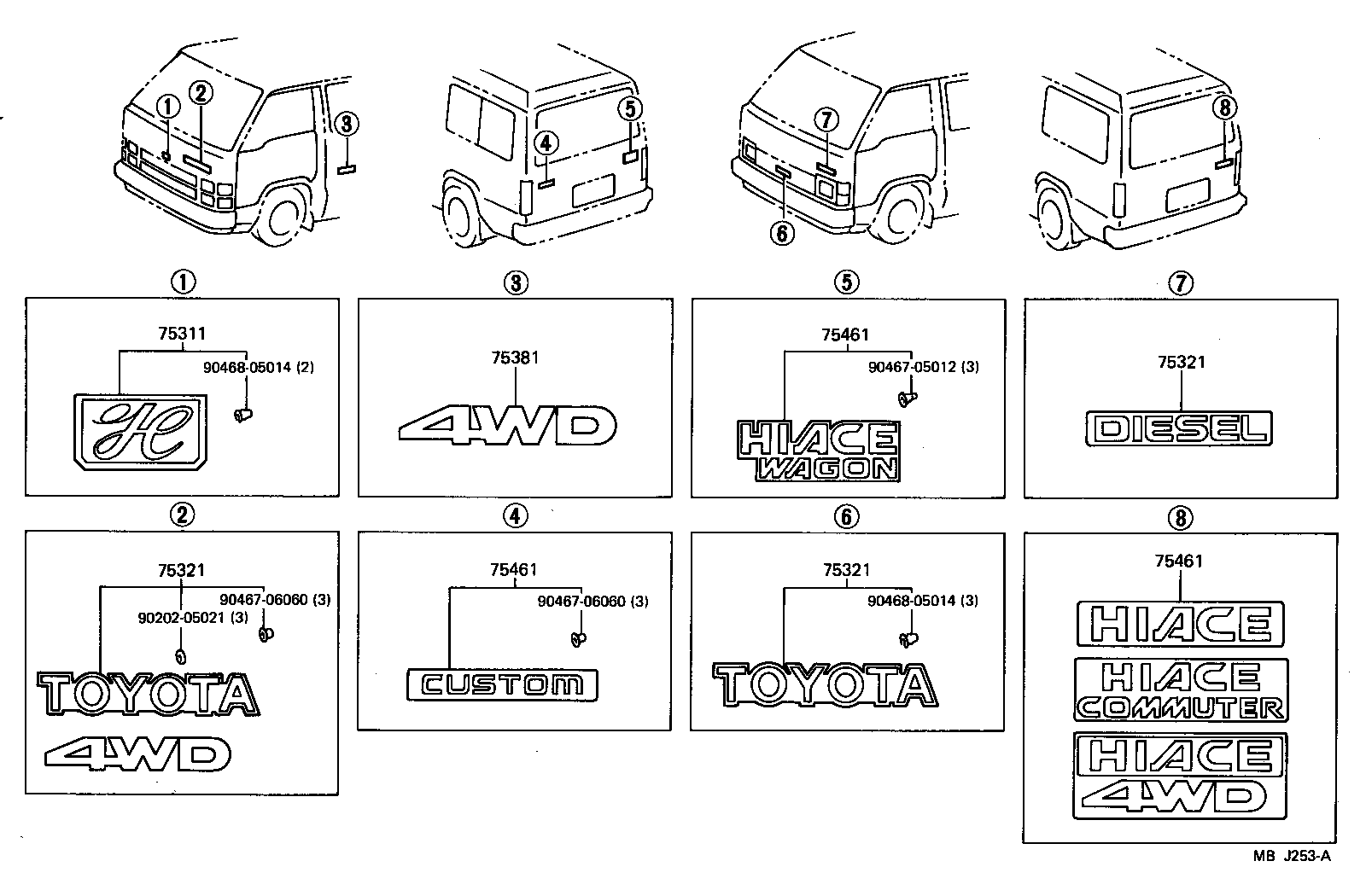

Figure MBE811C MBE811C 1982-12 → 1985-08 Figure MBJ253A MBJ253A 1985-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75381 Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75461 Plate, Rear Name, NO.2 (MODEL MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
