Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

12 part groups · 3 illustrations

Illustrations

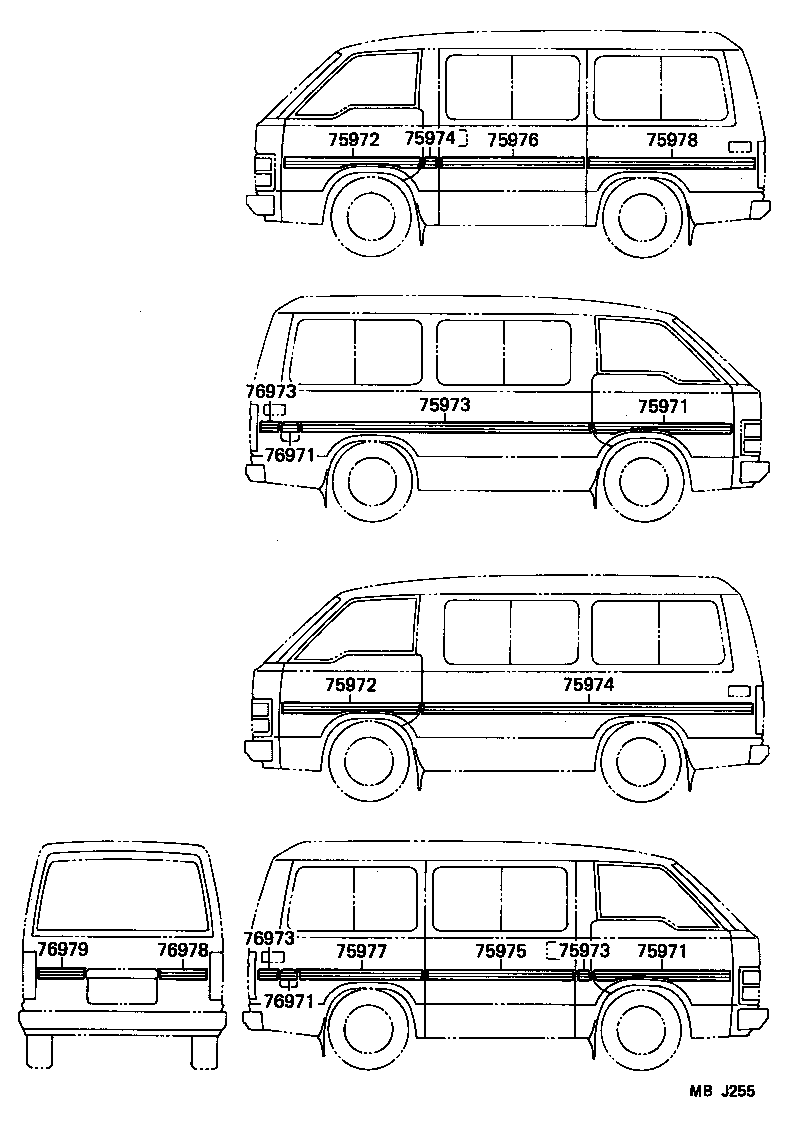

Figure MBG523A MBG523A 1984-04 → 1985-08 Figure MBG523A MBG523A 1985-08 → — Figure MBJ255 MBJ255 1985-08 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
76971 Stripe, Side, RH NO.5
76973 Stripe, Side, RH NO.6
76978 Stripe, Rear Body Back, RH
76979 Stripe, Rear Body Back, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
