Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

17 part groups · 5 illustrations

Illustrations

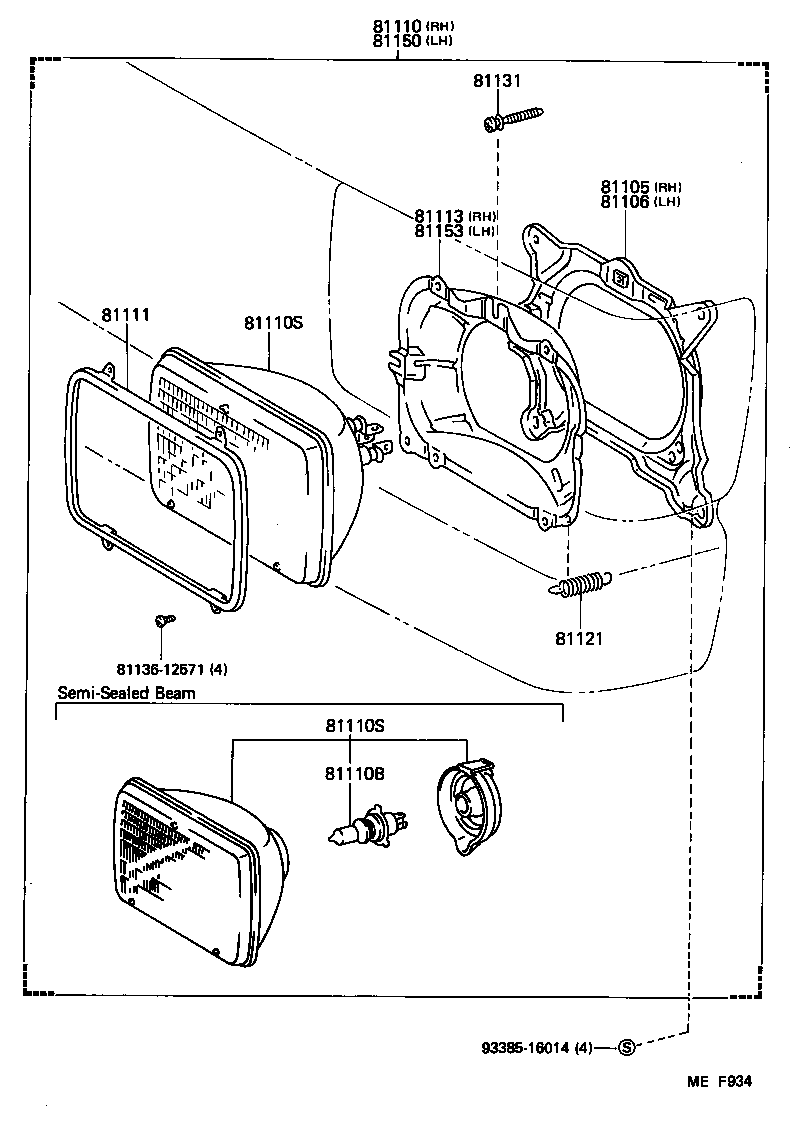

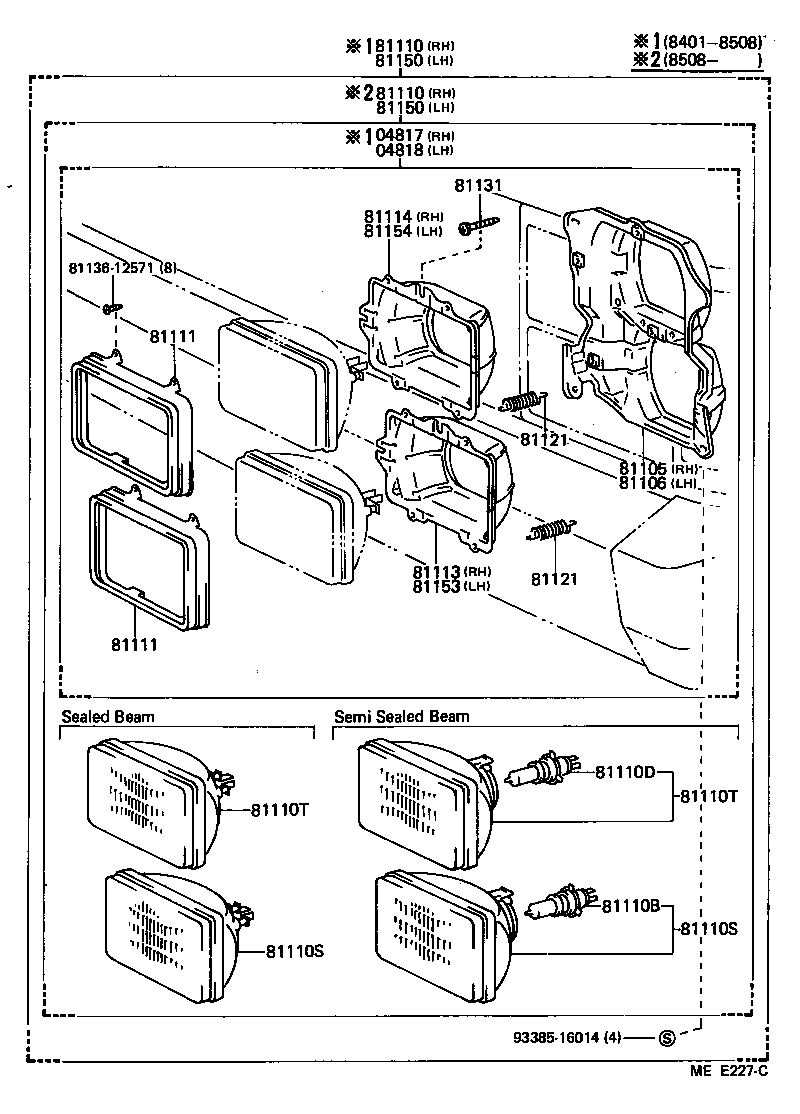

Figure MEC656C MEC656C 1982-12 → 1984-01 Figure MEC656C MEC656C 1984-01 → 1985-08 Figure MEF934 MEF934 1985-08 → — Figure MEE227C MEE227C 1984-01 → 1985-08 Figure MEE227C MEE227C 1985-08 → —

Part groups

PNCDescription
04817 Headlamp Kit, W/O Sealed Beam, RH
04818 Headlamp Kit, W/O Sealed Beam, LH
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
