Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 6 illustrations

Illustrations

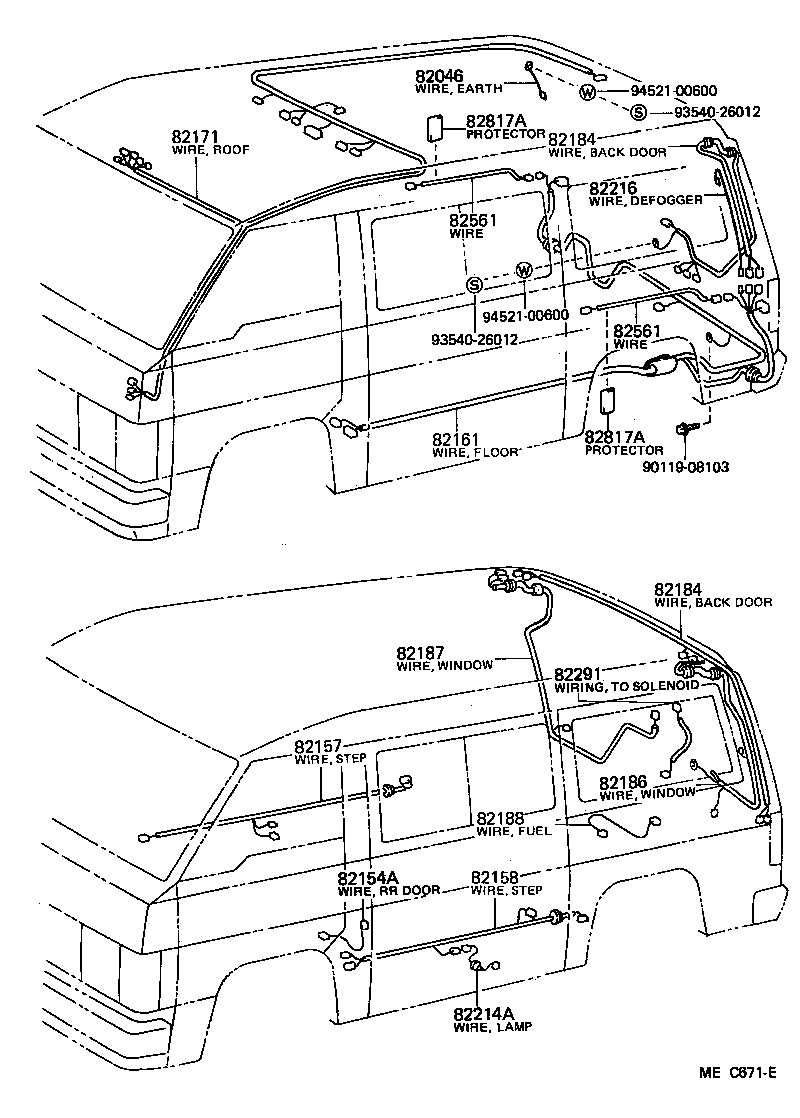

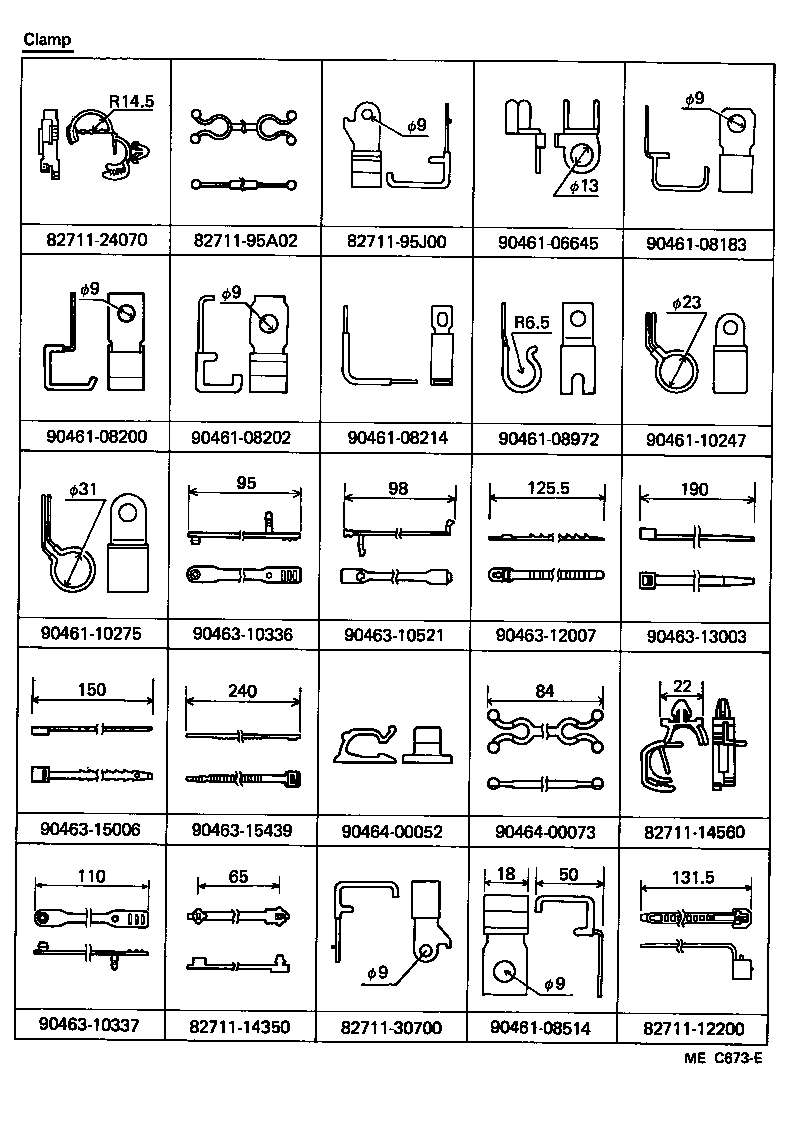

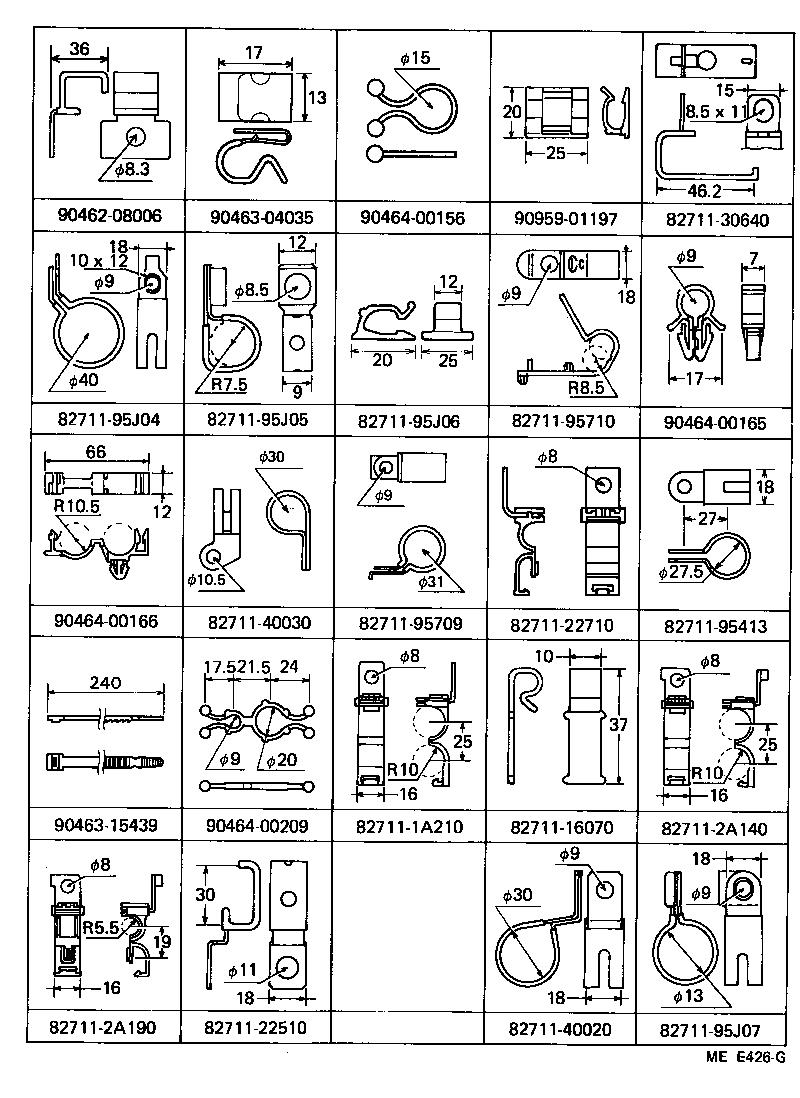

Figure MEC670I MEC670I 1982-12 → — Figure MEC671E MEC671E 1982-12 → — Figure MEK606 MEK606 1982-12 → — Figure MEC672B MEC672B 1982-12 → — Figure MEC673E MEC673E 1982-12 → — Figure MEE426G MEE426G 1982-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82154A Wire, Rear Door, LH
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188 Wire, Fuel Tank
82210C Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82291 Wiring, TO Solenoid
82345 Diode
82561 Wire, Rear Speaker
82721 Bracket, Wiring Harness, NO.1
82721A Bracket, Wiring Harness, NO.2
82817A Protector, Wiring Harness, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
