Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

22 part groups · 6 illustrations

Illustrations

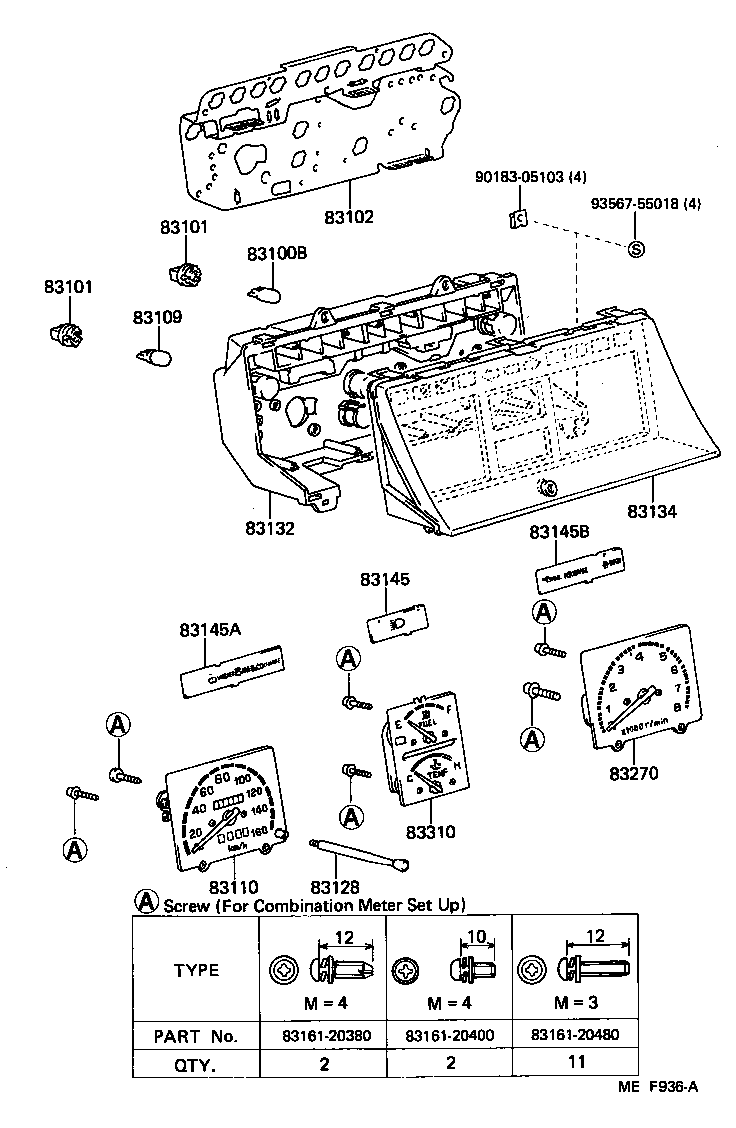

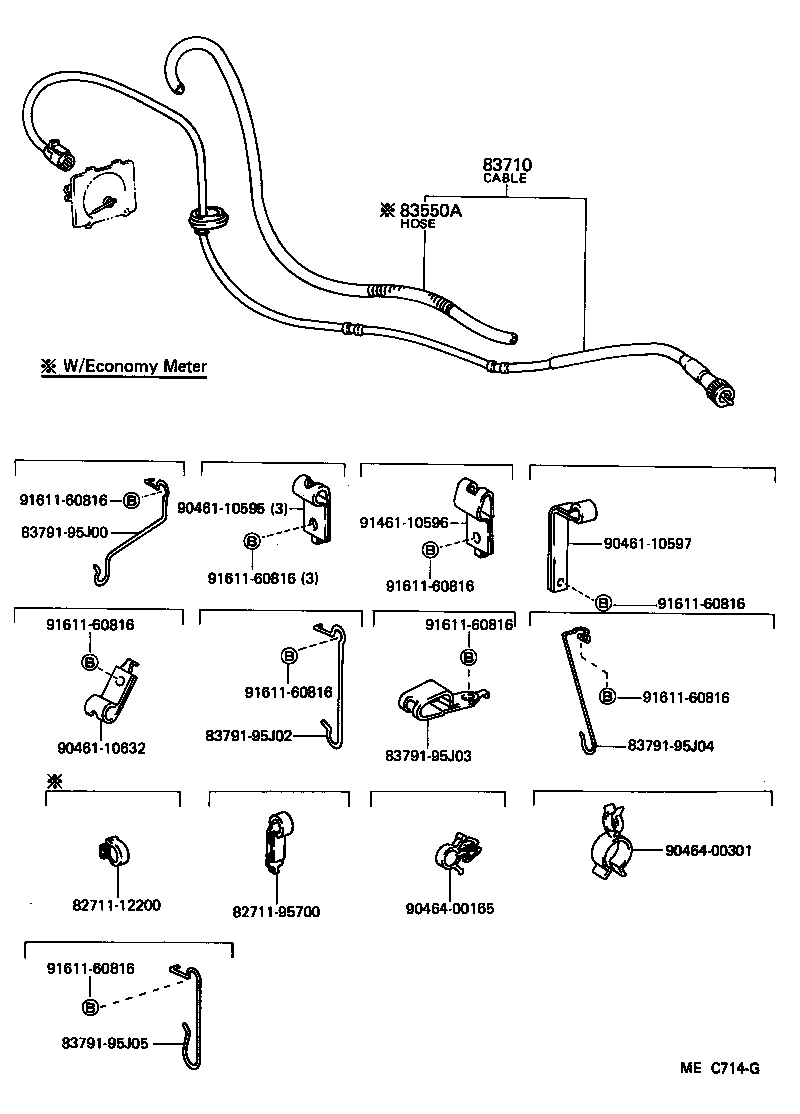

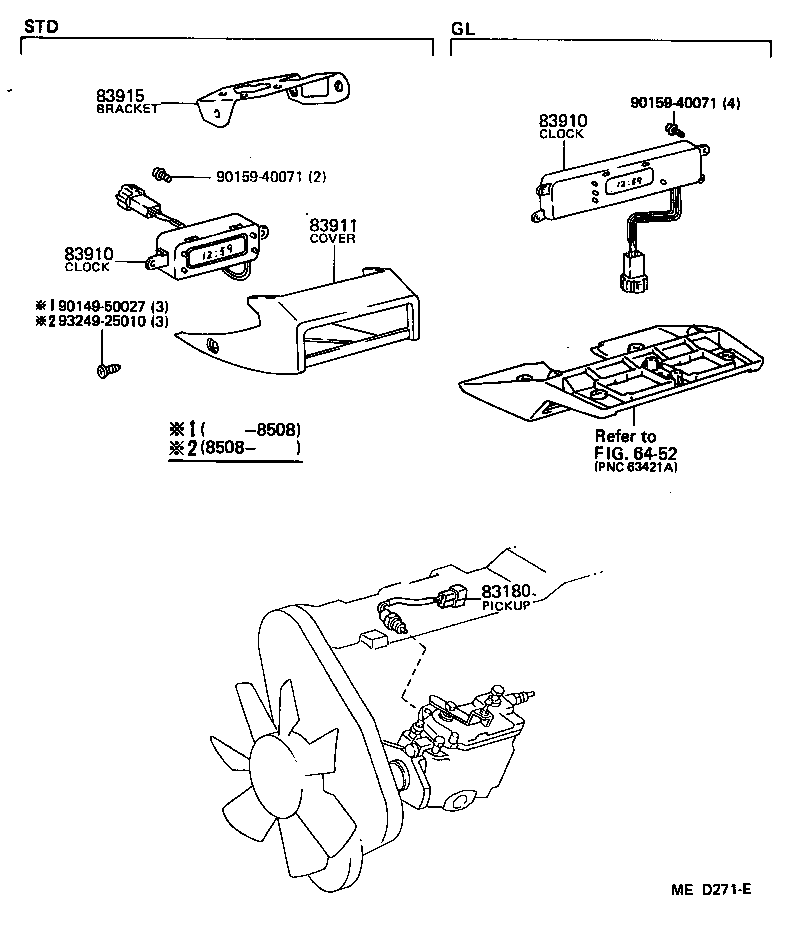

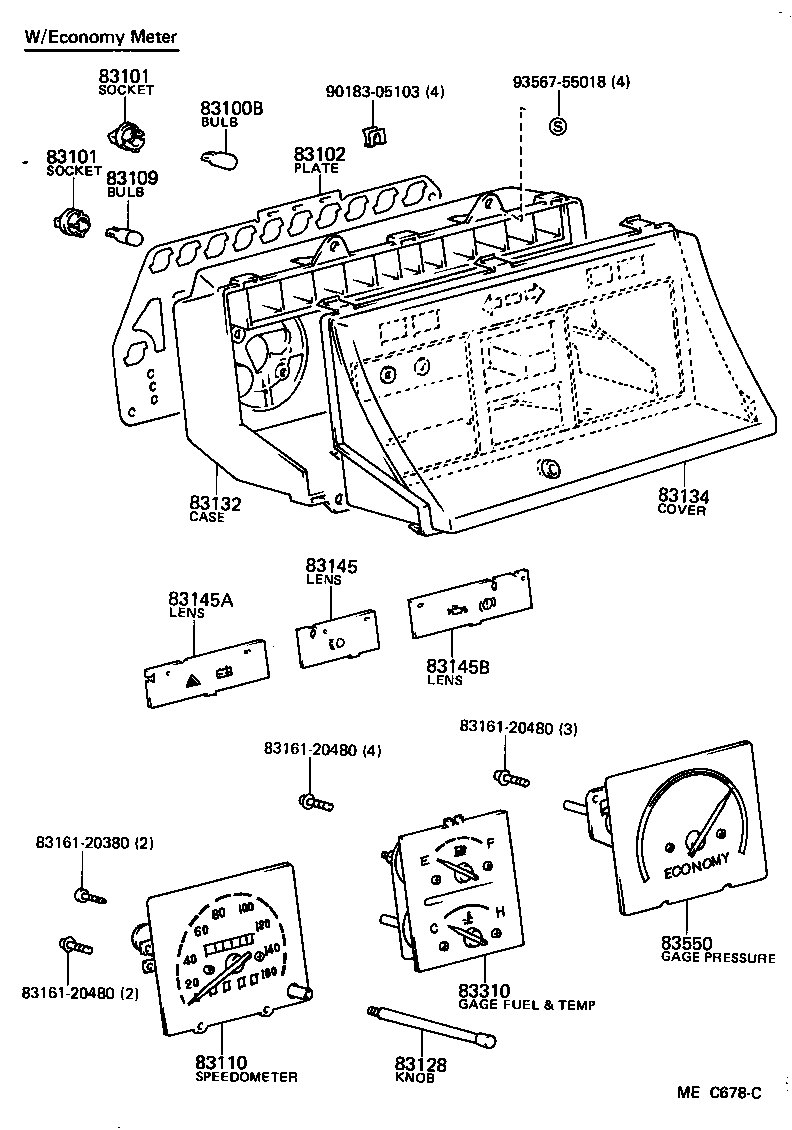

Figure MEC677F MEC677F 1982-12 → 1985-08 Figure MEC677F MEC677F 1985-08 → — Figure MEF936A MEF936A 1985-08 → — Figure MEC678C MEC678C 1982-12 → — Figure MEC714G MEC714G 1982-12 → — Figure MED271E MED271E 1982-12 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83109 Bulb, Combination Meter, NO.2
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83145B Lens, Meter, NO.3
83145C Lens, Meter, NO.4
83145D Lens, Meter, NO.5
83180 Detector Assy, Revolution
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83550 Gage Assy, ED Monitor
83550A Hose, ED Monitor Gage
83710 Cable Assy, Speedometer Drive, NO.1
83910 Clock Assy
83911 Cover, Clock
83915 Bracket, Clock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
