Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

34 part groups · 9 illustrations

Illustrations

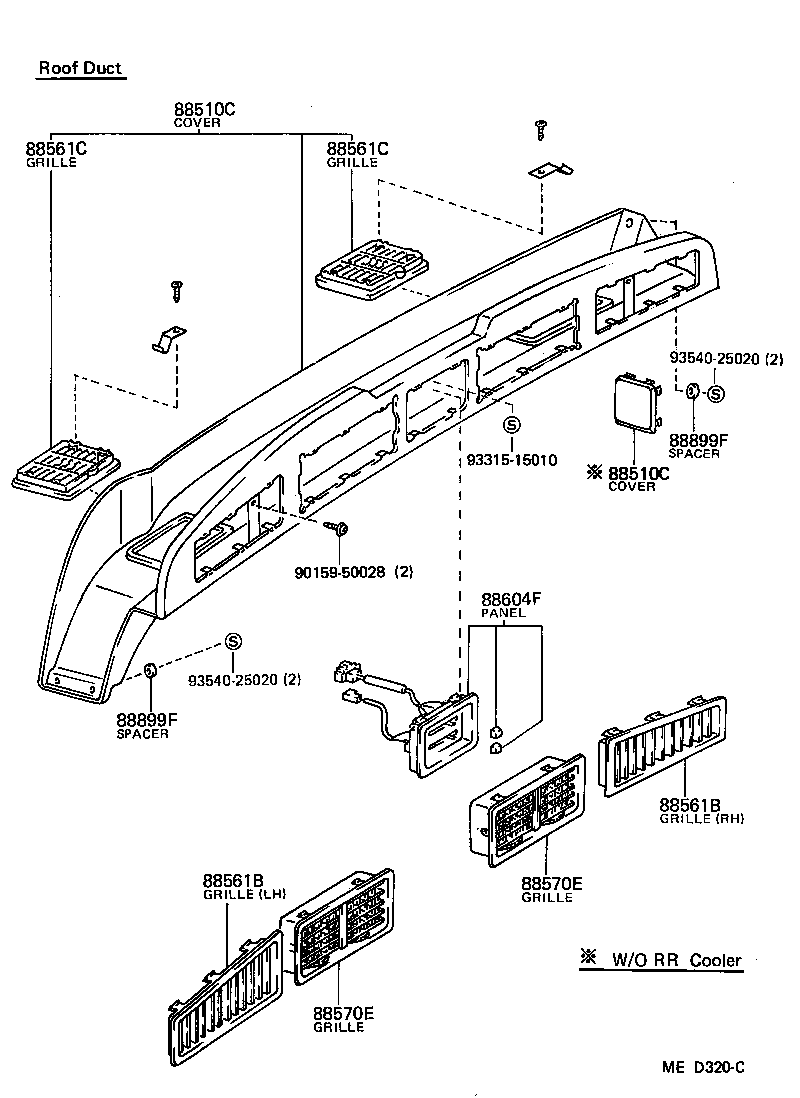

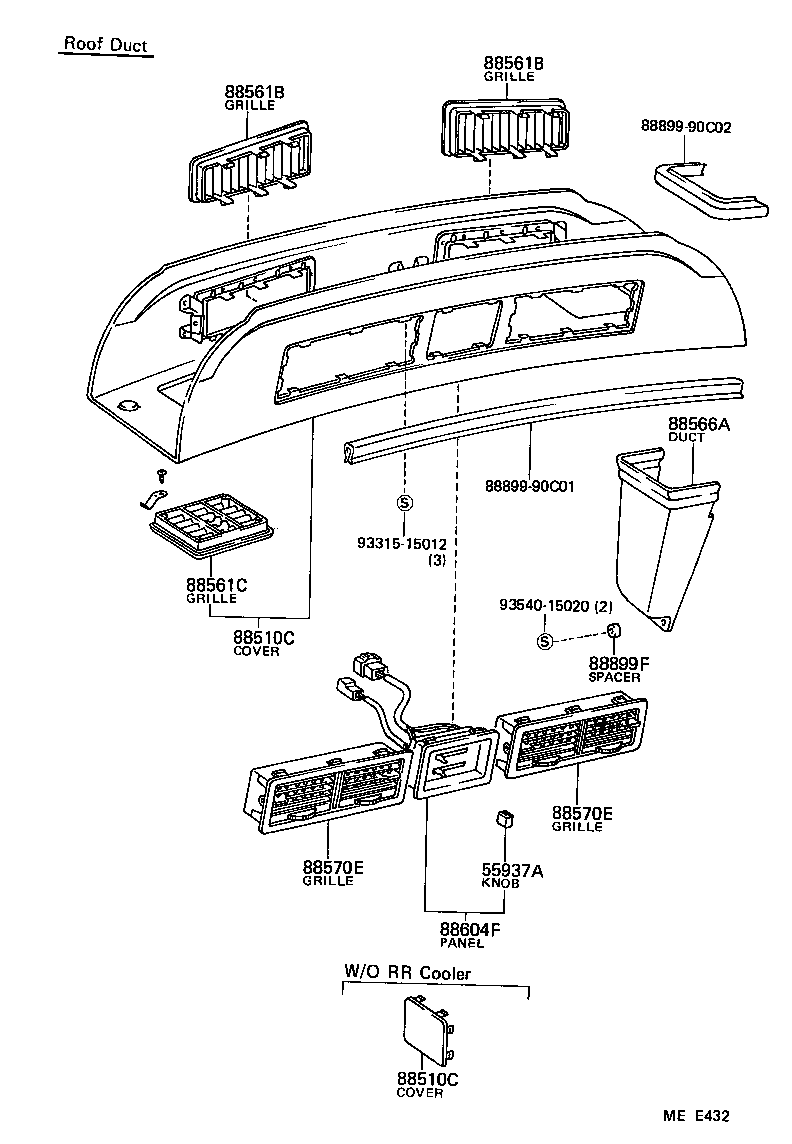

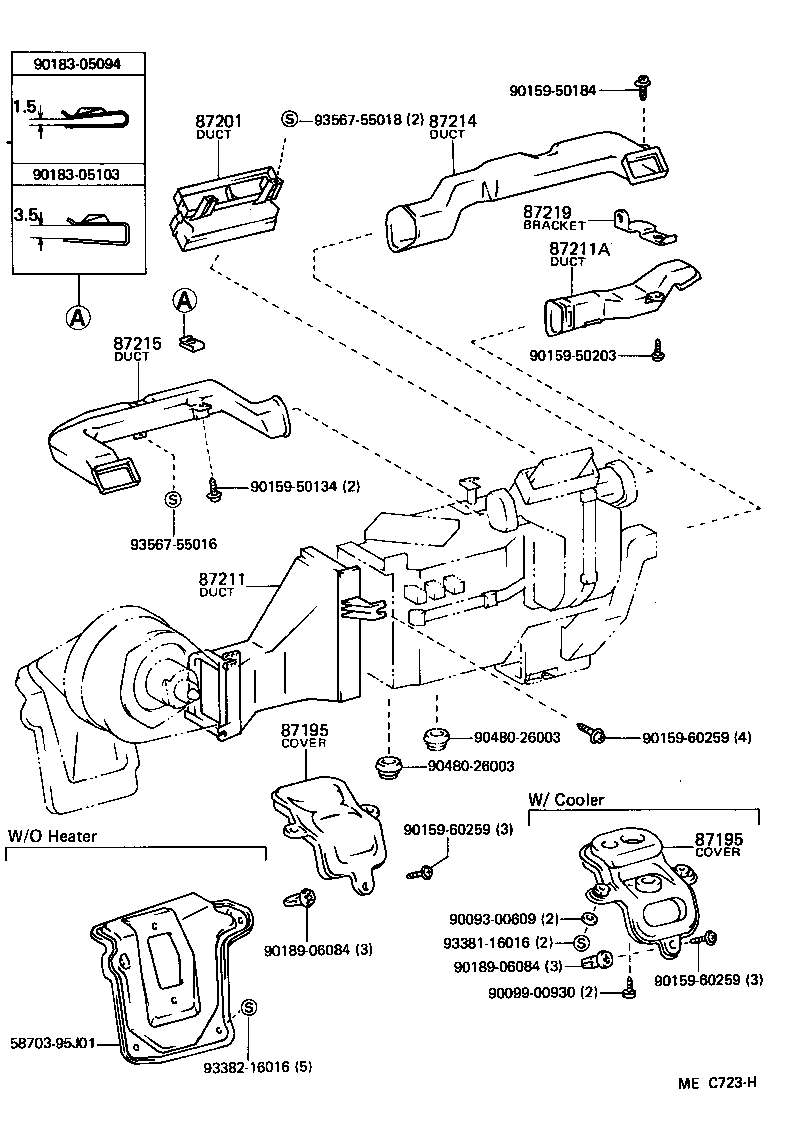

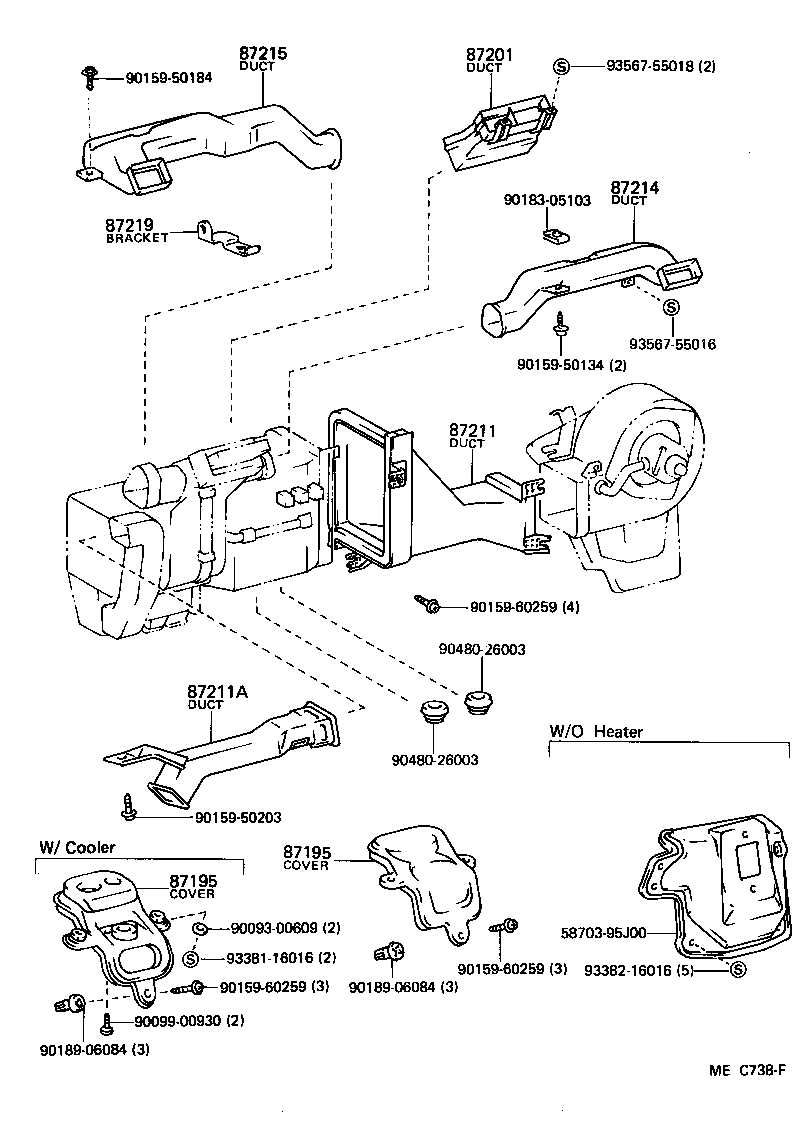

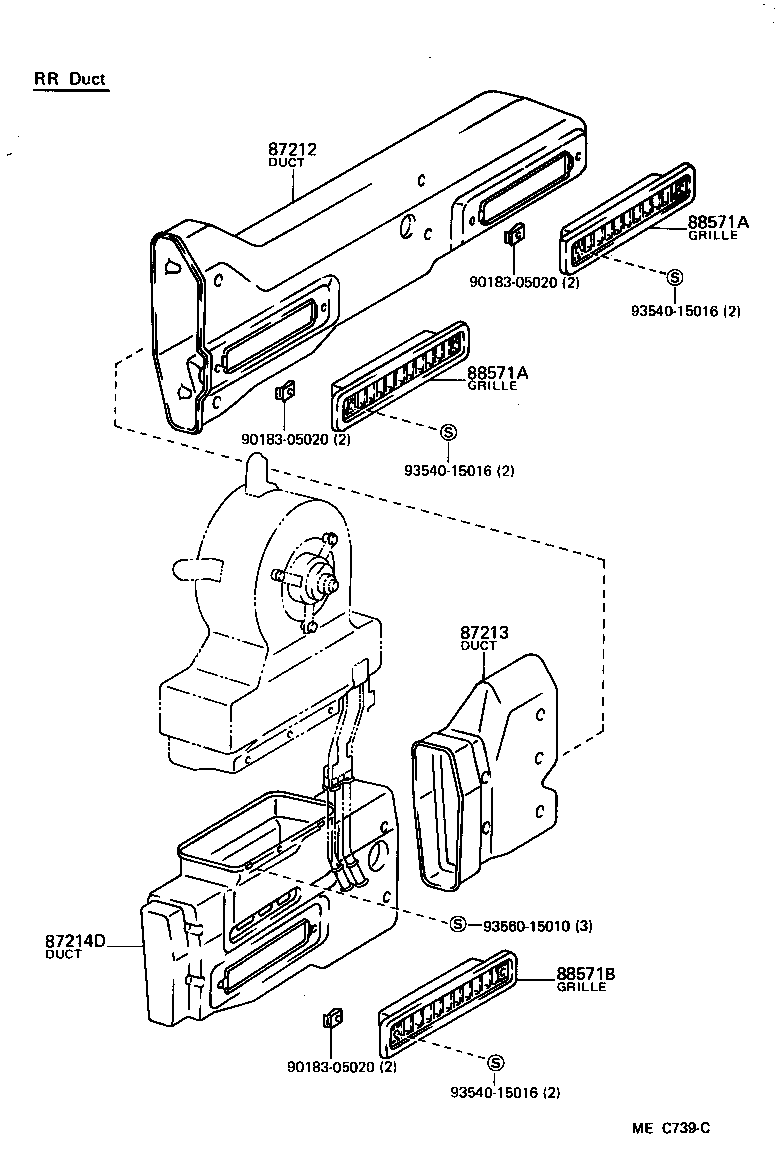

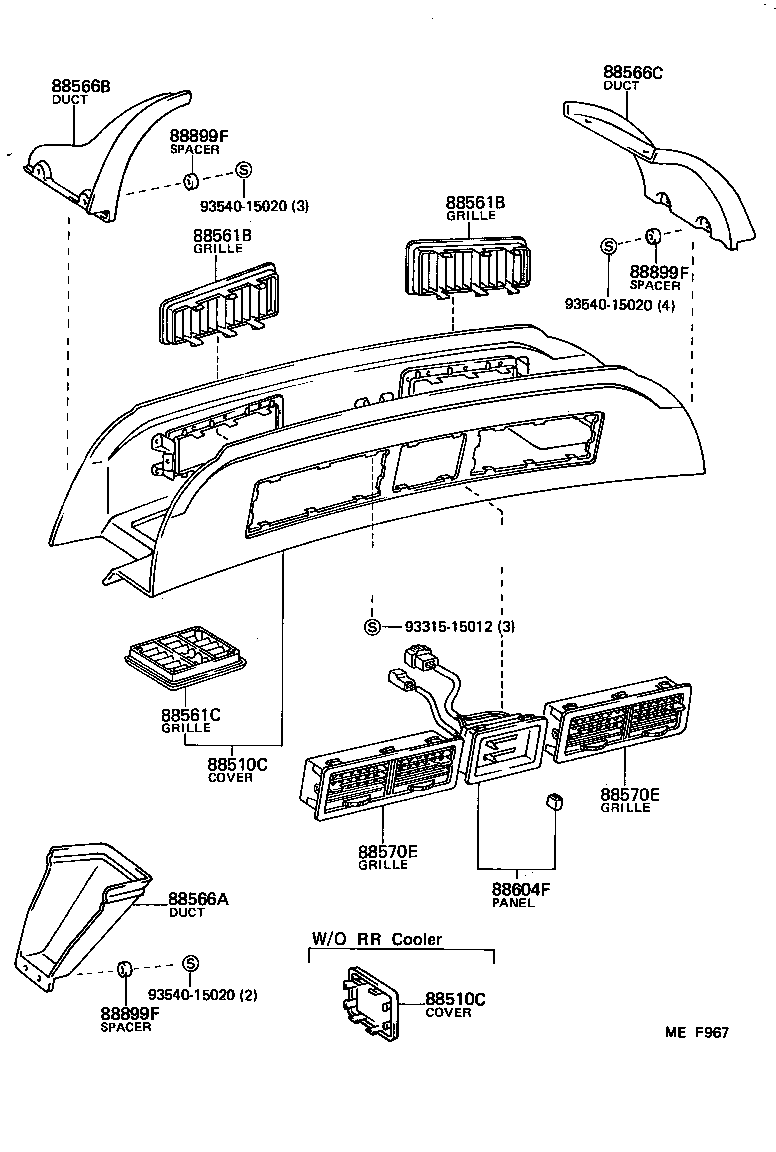

Figure MEC724D MEC724D 1982-12 → — Figure MEC725A MEC725A 1982-12 → — Figure MEC723H MEC723H 1982-12 → — Figure MEC738F MEC738F 1982-12 → — Figure MEC739C MEC739C 1982-12 → — Figure MED320C MED320C 1982-12 → — Figure MEF967 MEF967 1985-08 → — Figure MEE432 MEE432 1984-01 → — Figure MEE432 MEE432 1985-08 → —

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55913A Plate, Heater Control Lever Guide
55915 Lever, Cooler Control
55937 Knob, Heater Control Lever
55937A Knob, Cooler Control Lever
55939 Ornament, Heater Control
55944 Plate, Heater Control Support
87195 Cover, Hole
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87214D Duct, Air, Rear NO.3
87215 Duct, Air, Side NO.1 LH
87219 Bracket, Front Air Duct
87284 Resistor Sub-assy, Variable
88510C Cover Assy, Cooler Unit
88561B Grille, Cooler Air Inlet
88561C Grille, Cooler Air Inlet
88566A Duct, Cooler Air, NO.1
88566B Duct, Cooler Air, NO.2
88566C Duct, Cooler Air, NO.3
88570E Grille Assy, Air Outlet
88571A Grille, Air Outlet
88571B Grille, Air Outlet
88604F Panel Sub-assy, Cooler Control
88899F Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
