Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

34 part groups · 10 illustrations

Illustrations

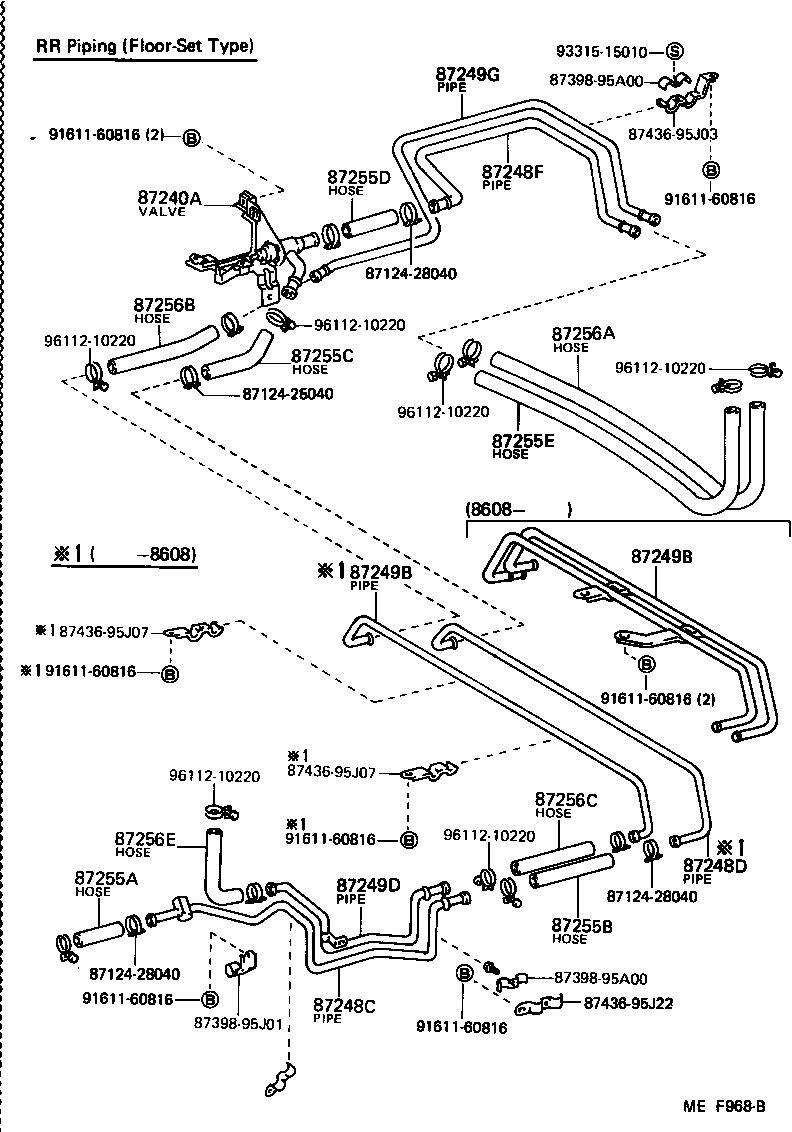

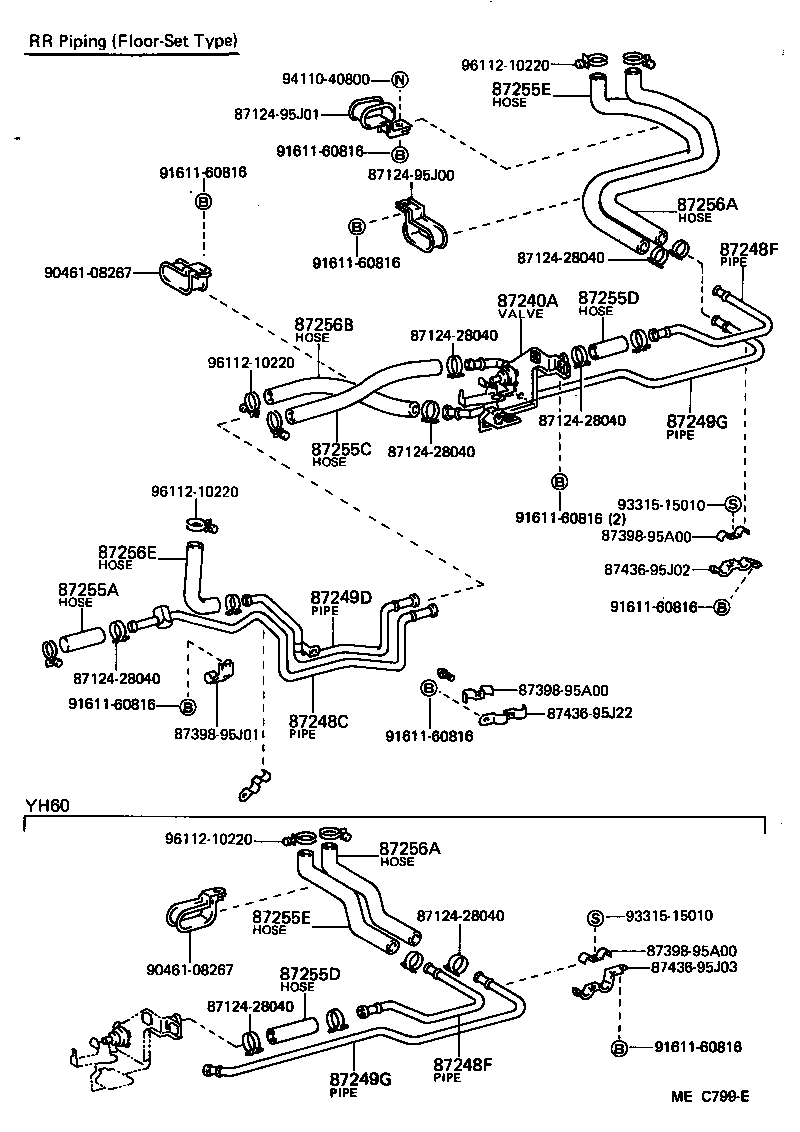

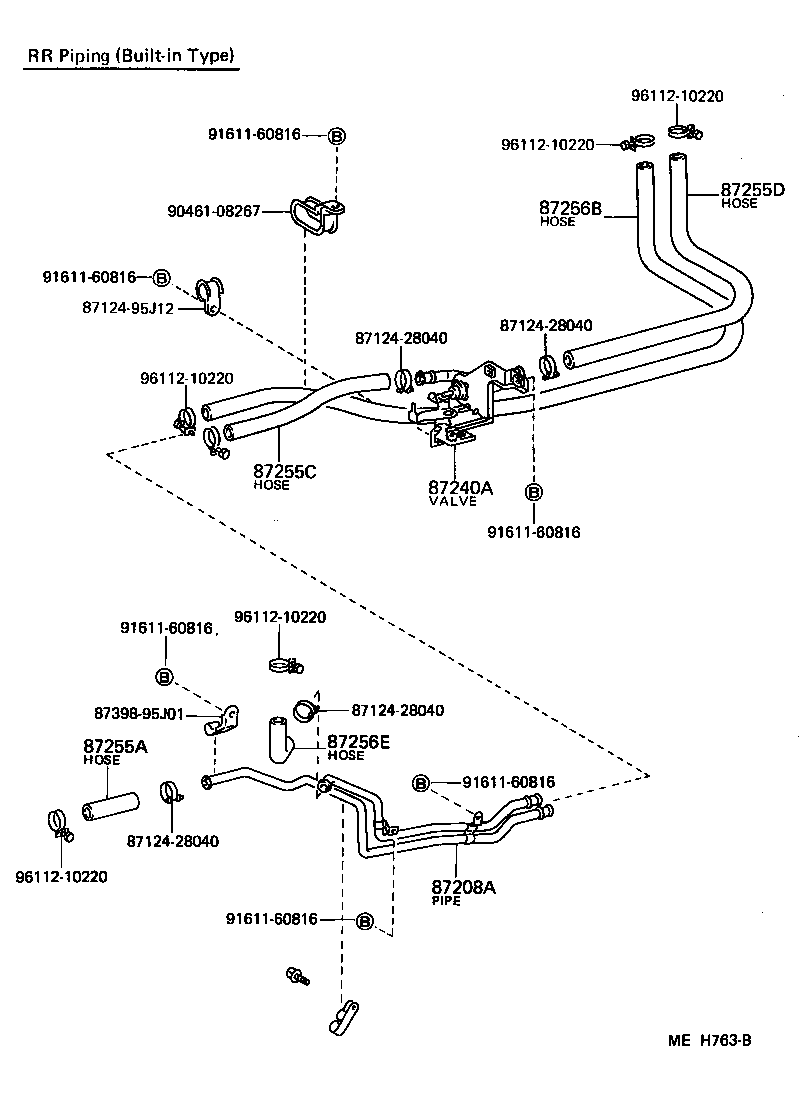

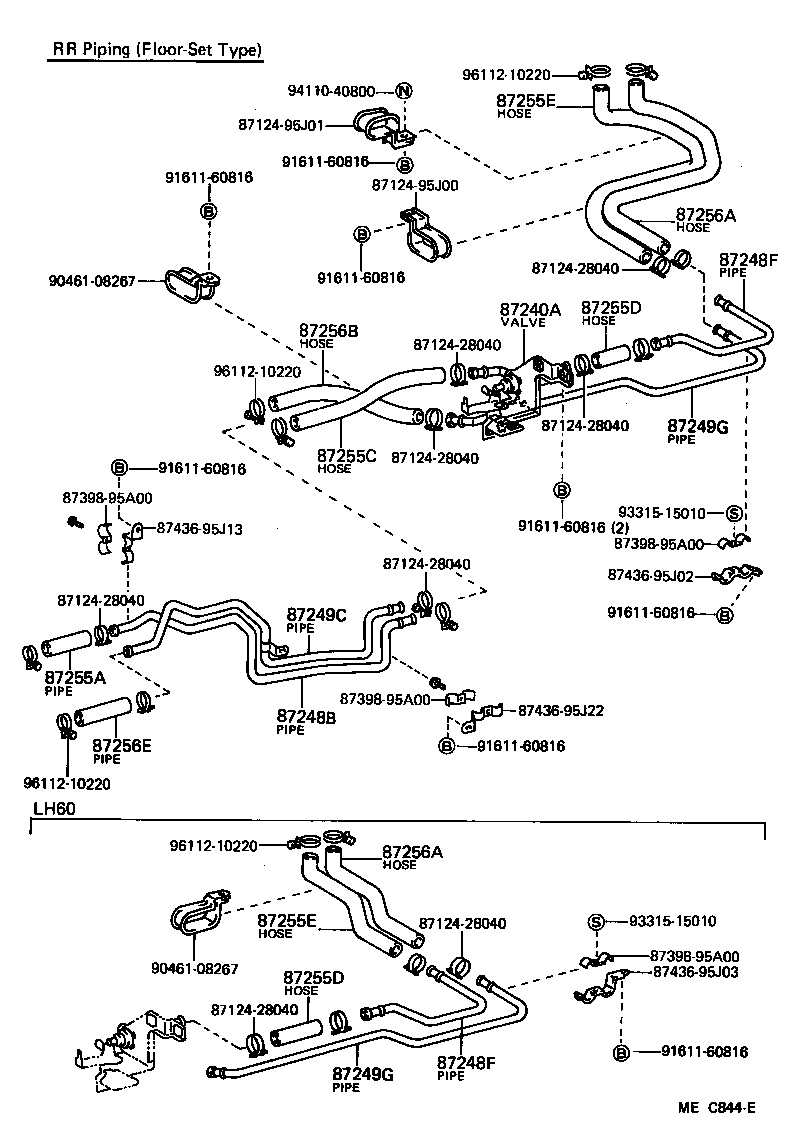

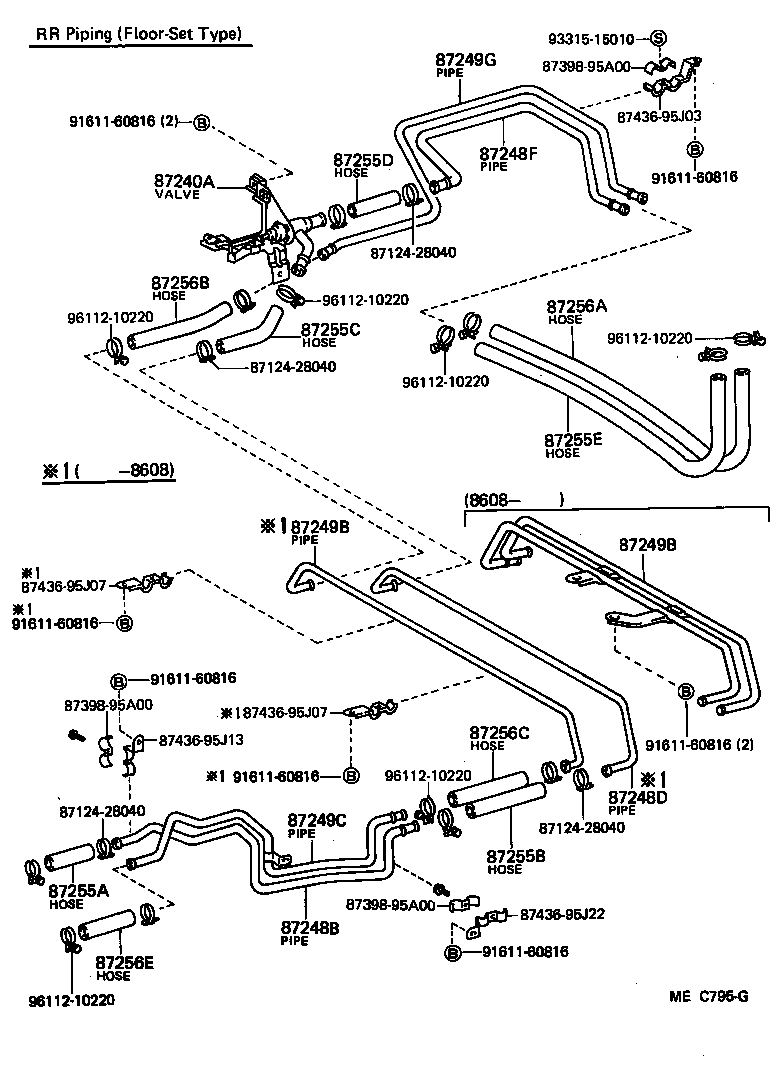

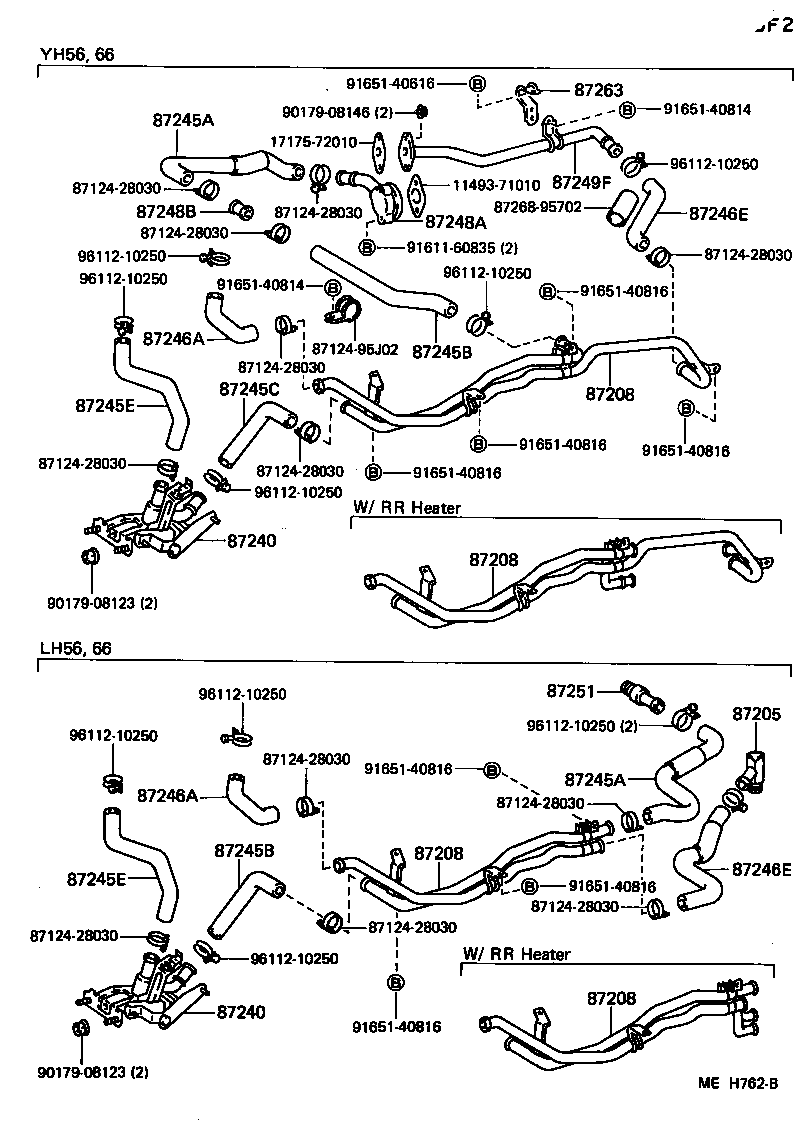

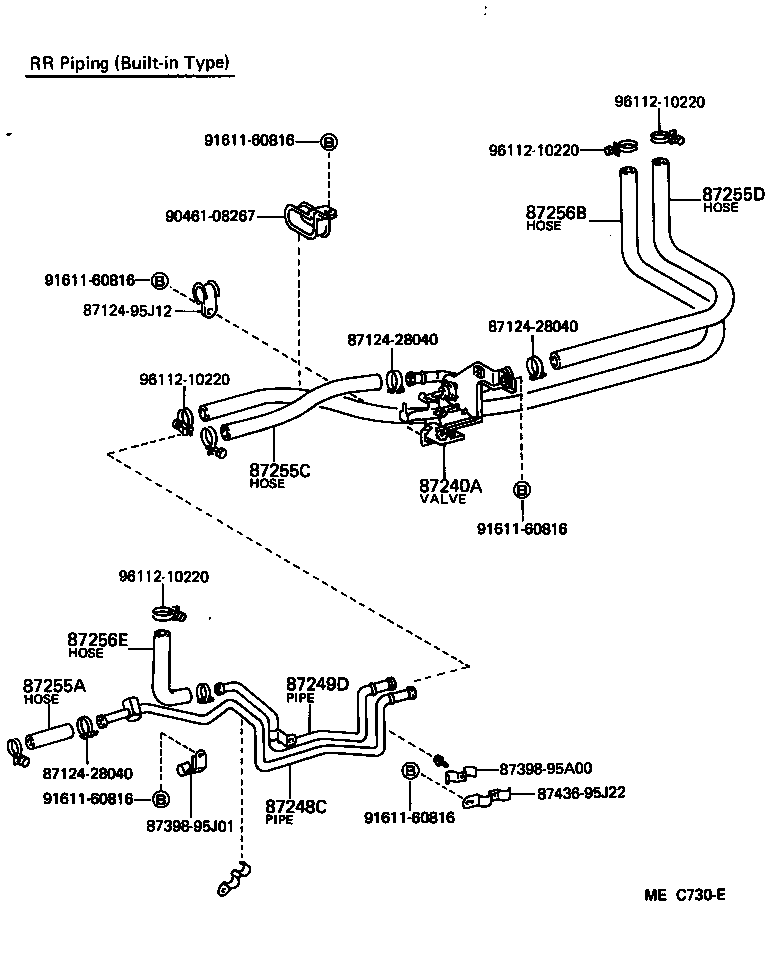

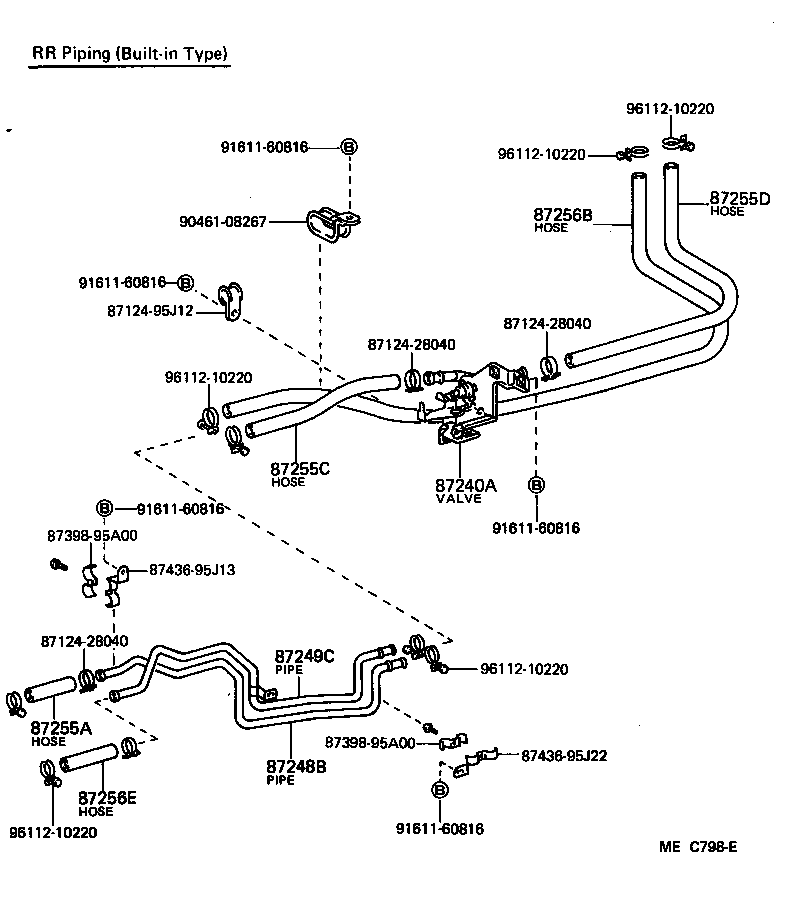

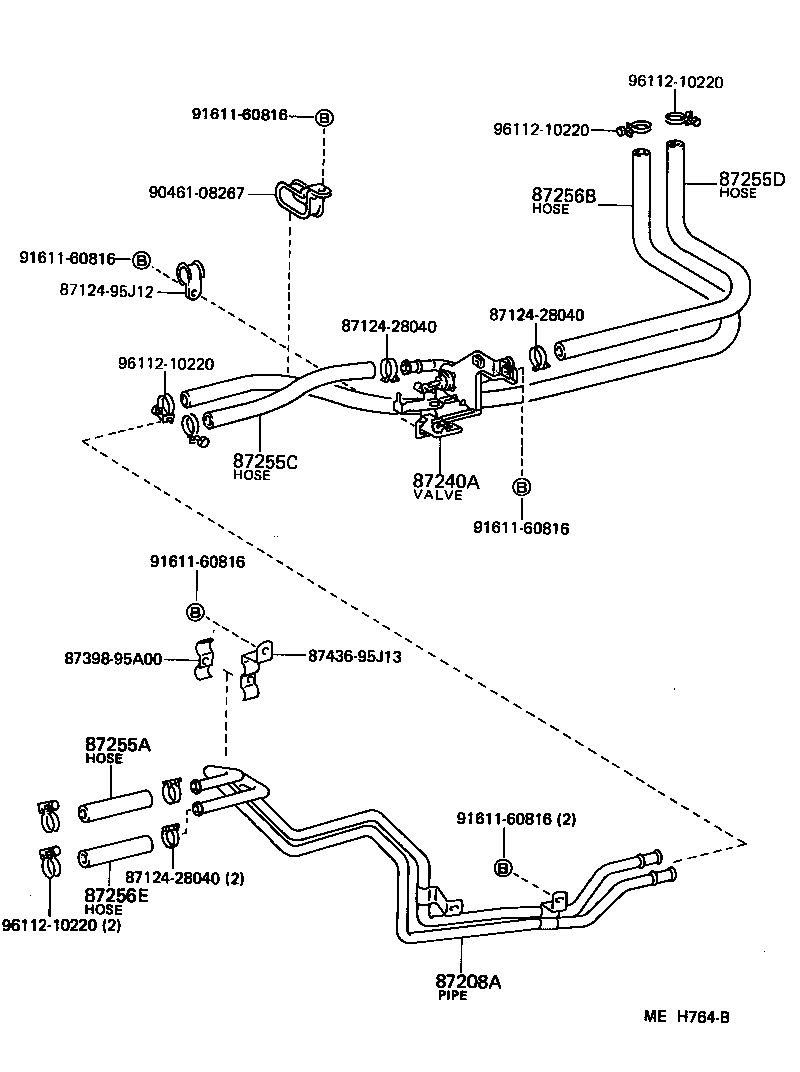

Figure MEC729H MEC729H 1982-12 → — Figure MEH762B MEH762B 1986-08 → — Figure MEC730E MEC730E 1982-12 → — Figure MEH763B MEH763B 1986-12 → — Figure MEC798E MEC798E 1982-12 → — Figure MEH764B MEH764B 1986-08 → — Figure MEF968B MEF968B 1982-12 → — Figure MEC795G MEC795G 1982-12 → — Figure MEC799E MEC799E 1982-12 → — Figure MEC844E MEC844E 1982-12 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
