Toyota Hiace Van,Commuter

1982-12 → 1988-07 · chassis YH5#,6#,7#,LH5#,6#,7# · catalogue 711220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

63 part groups · 15 illustrations

Illustrations

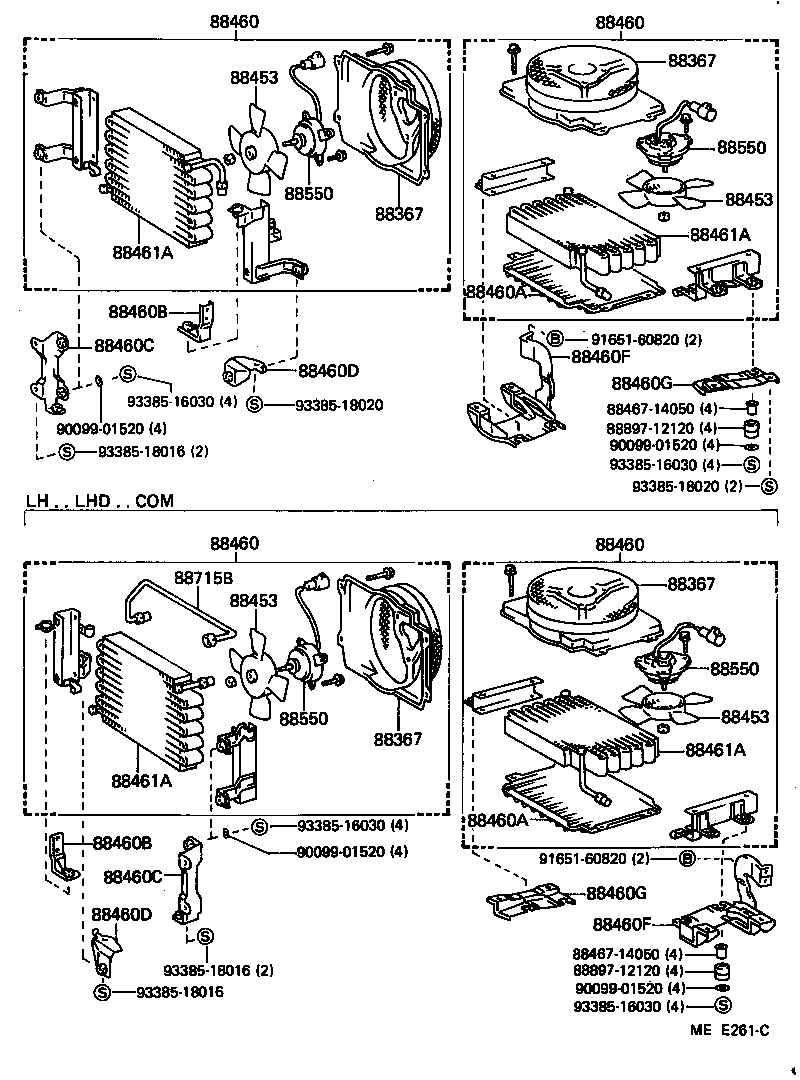

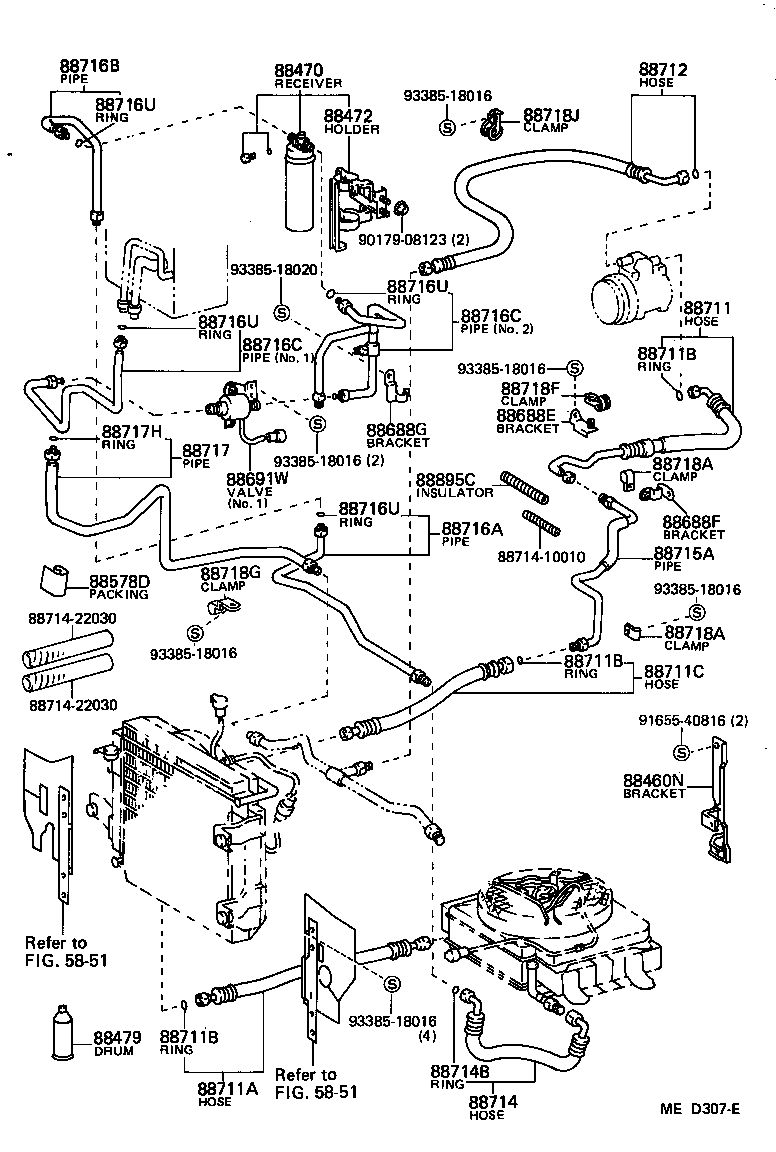

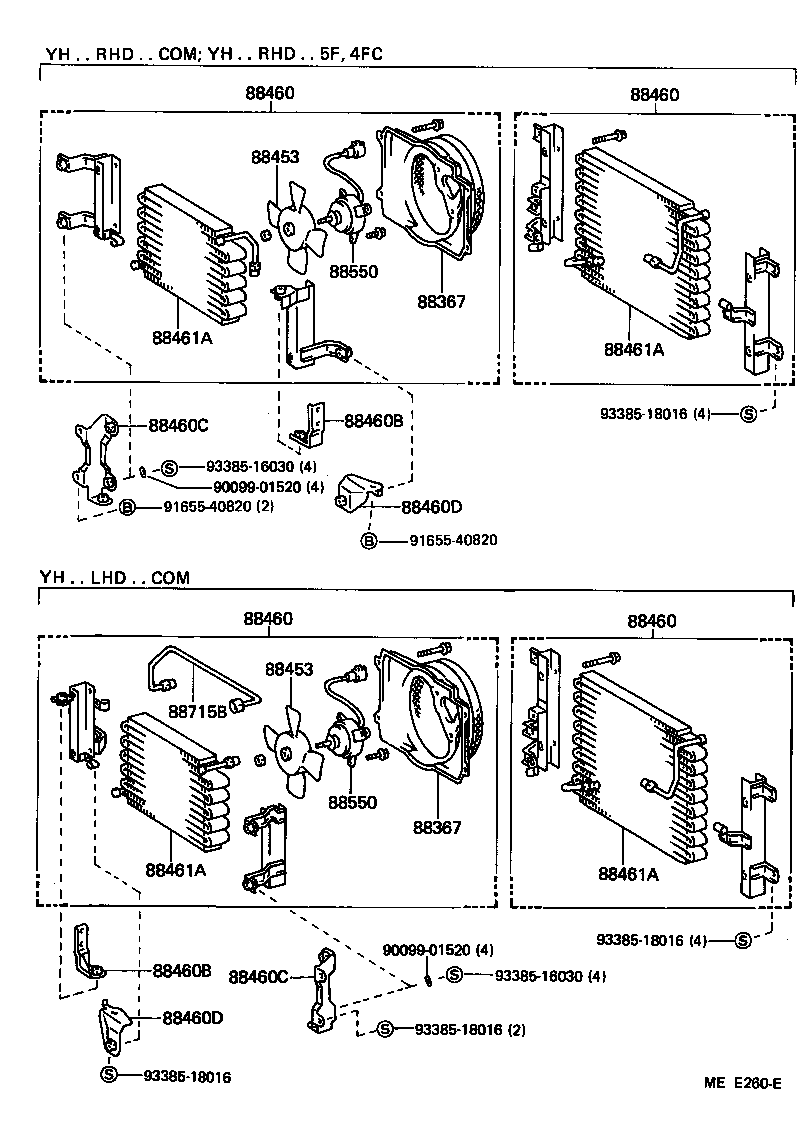

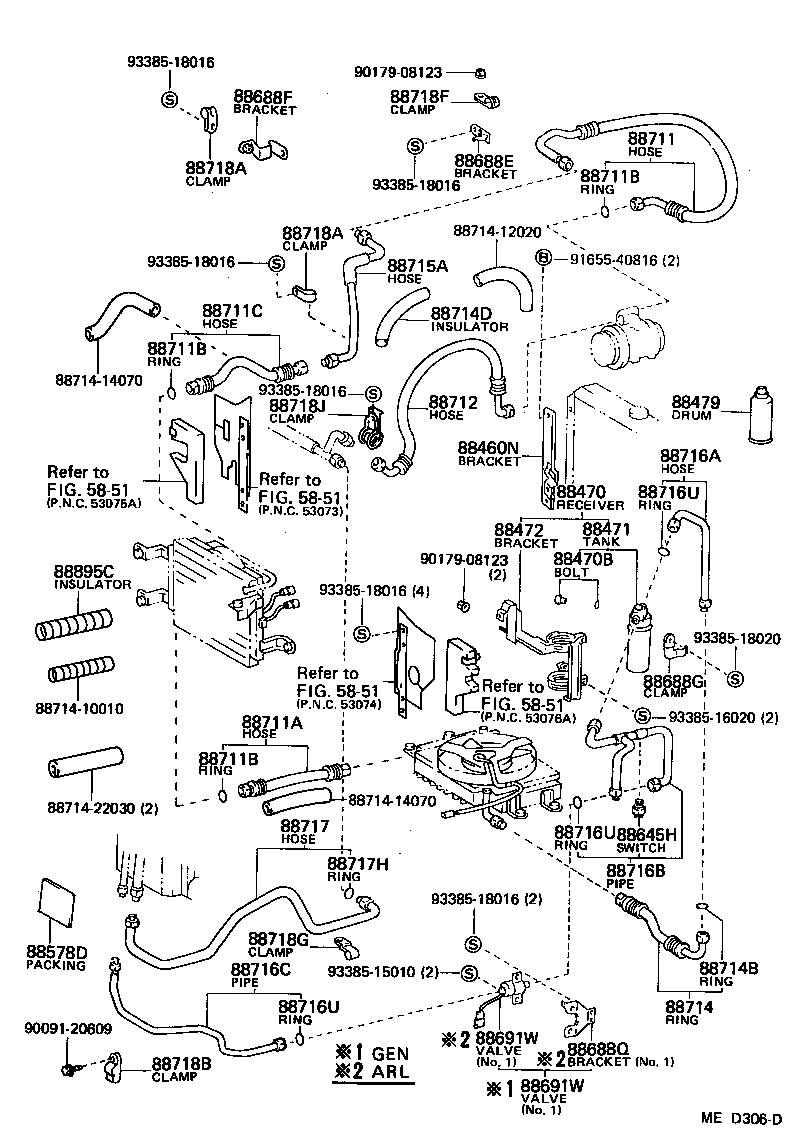

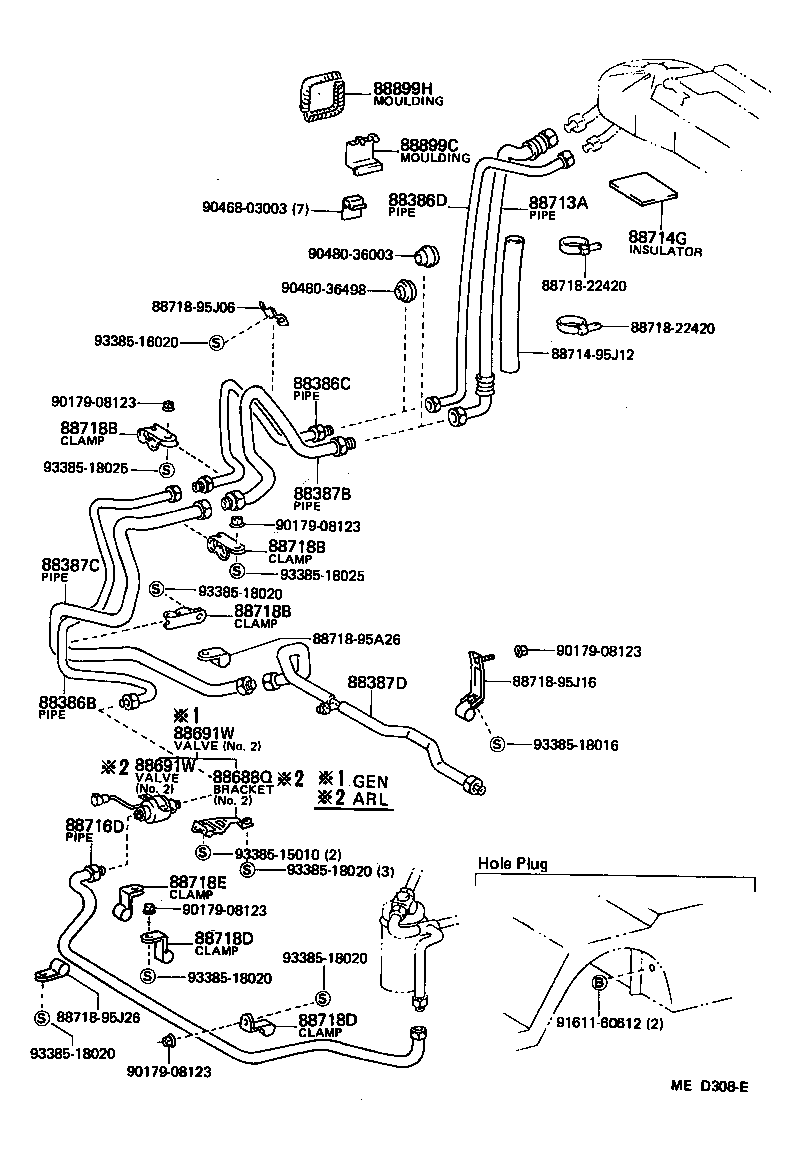

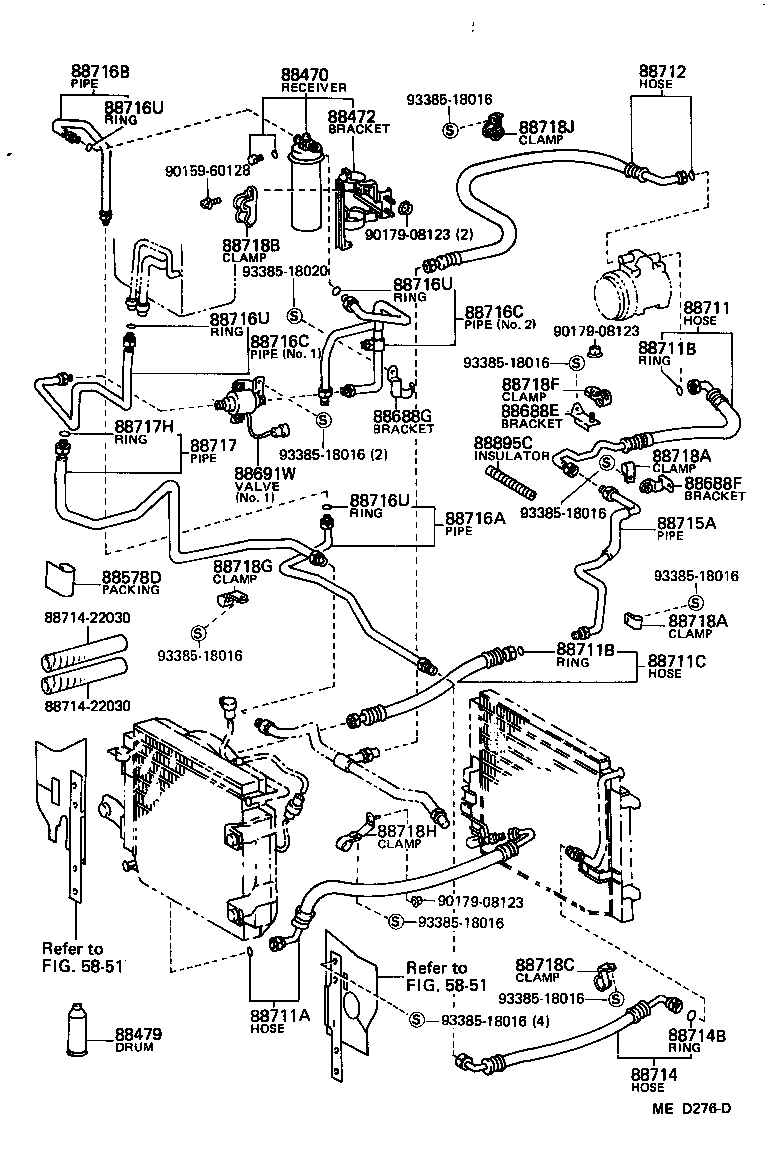

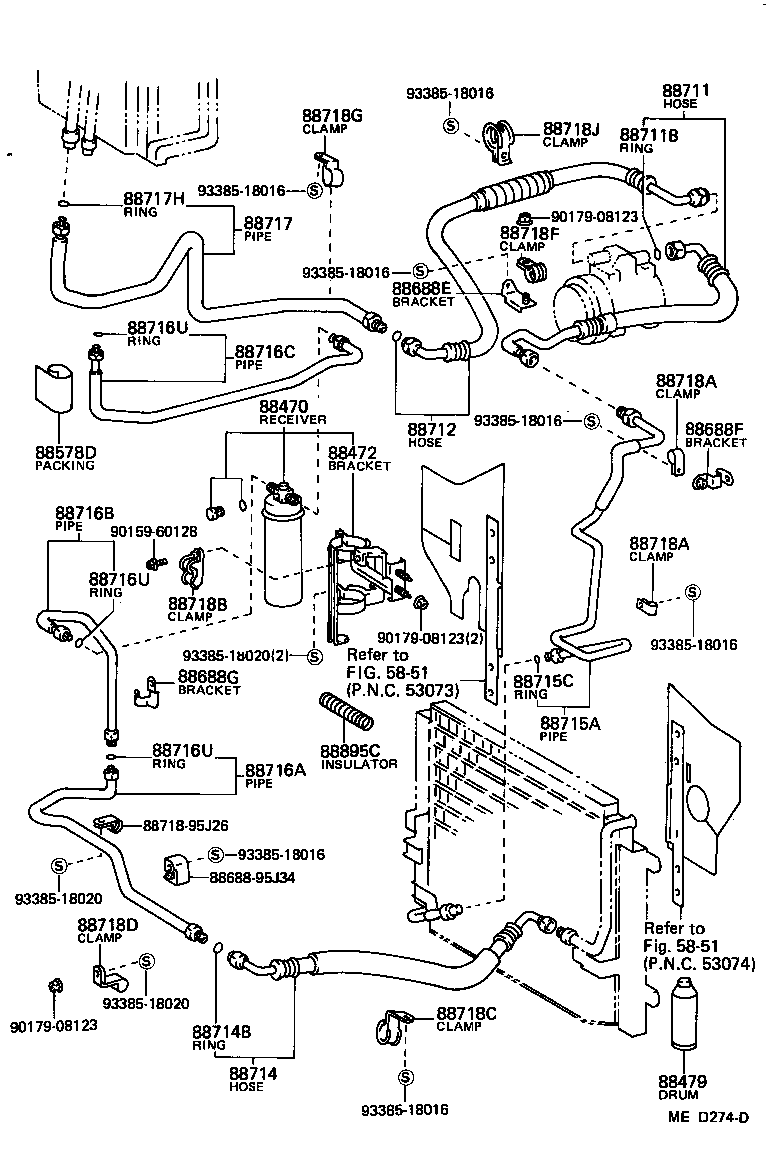

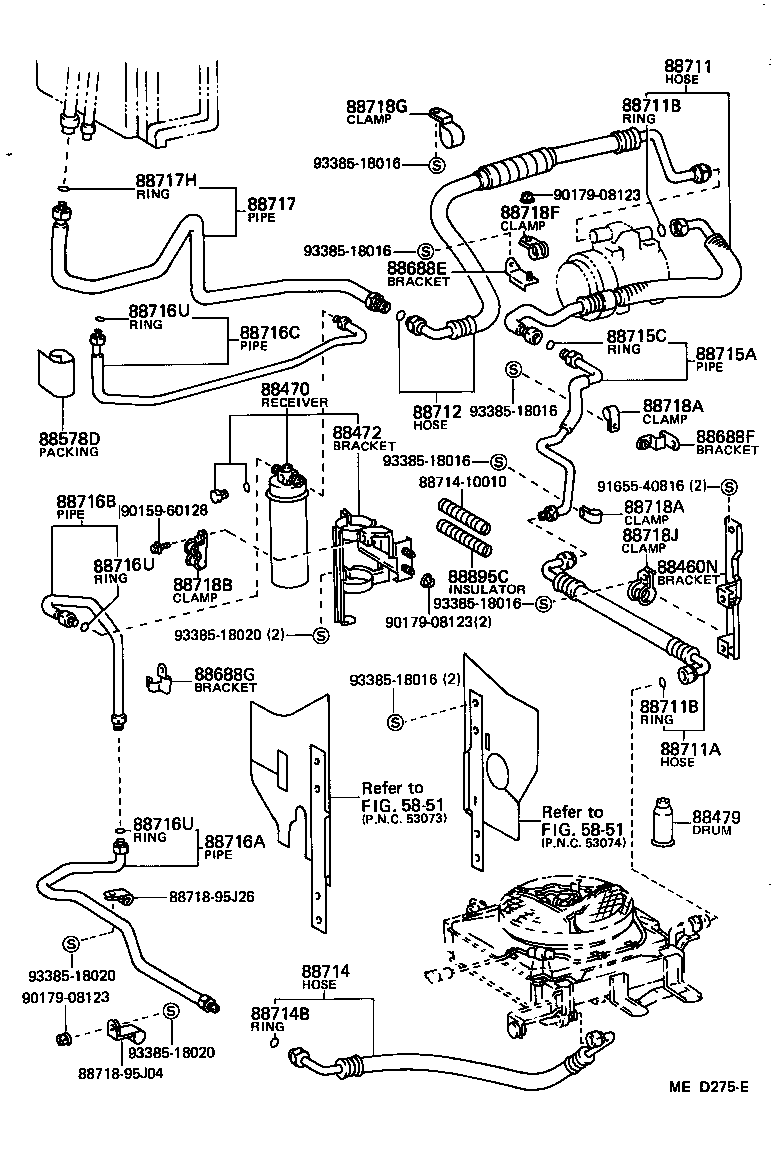

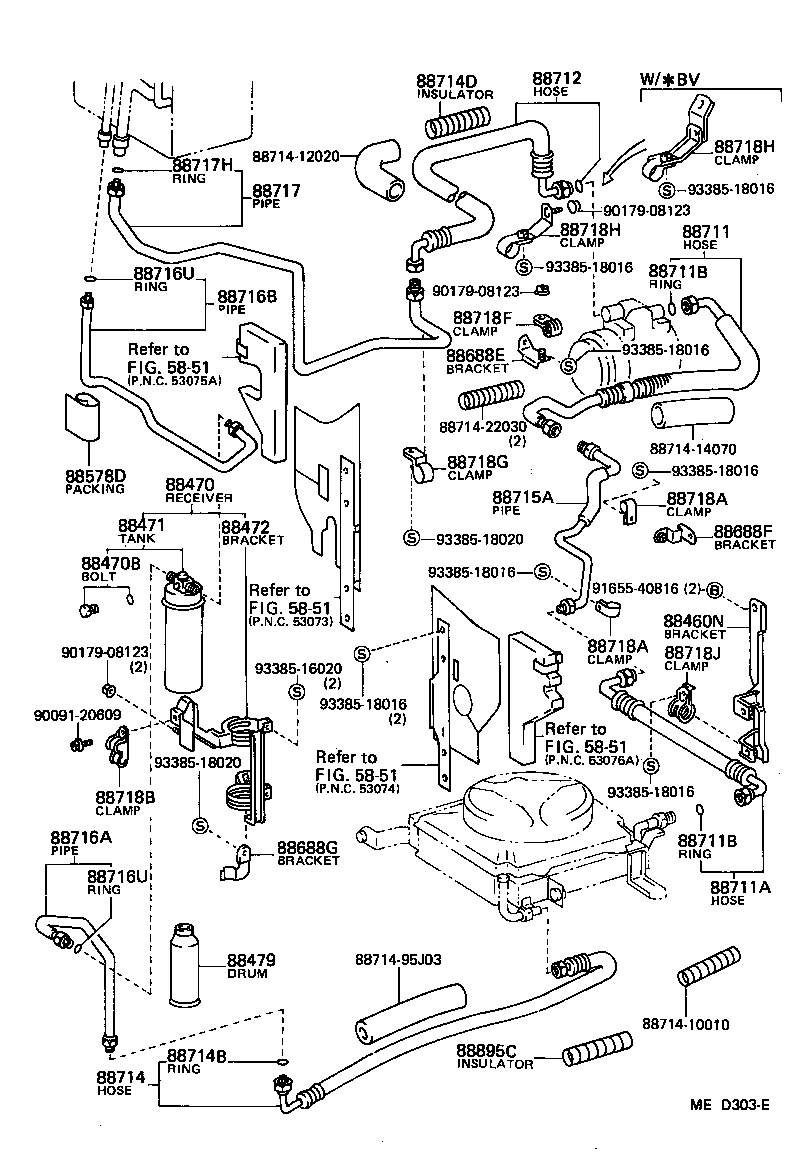

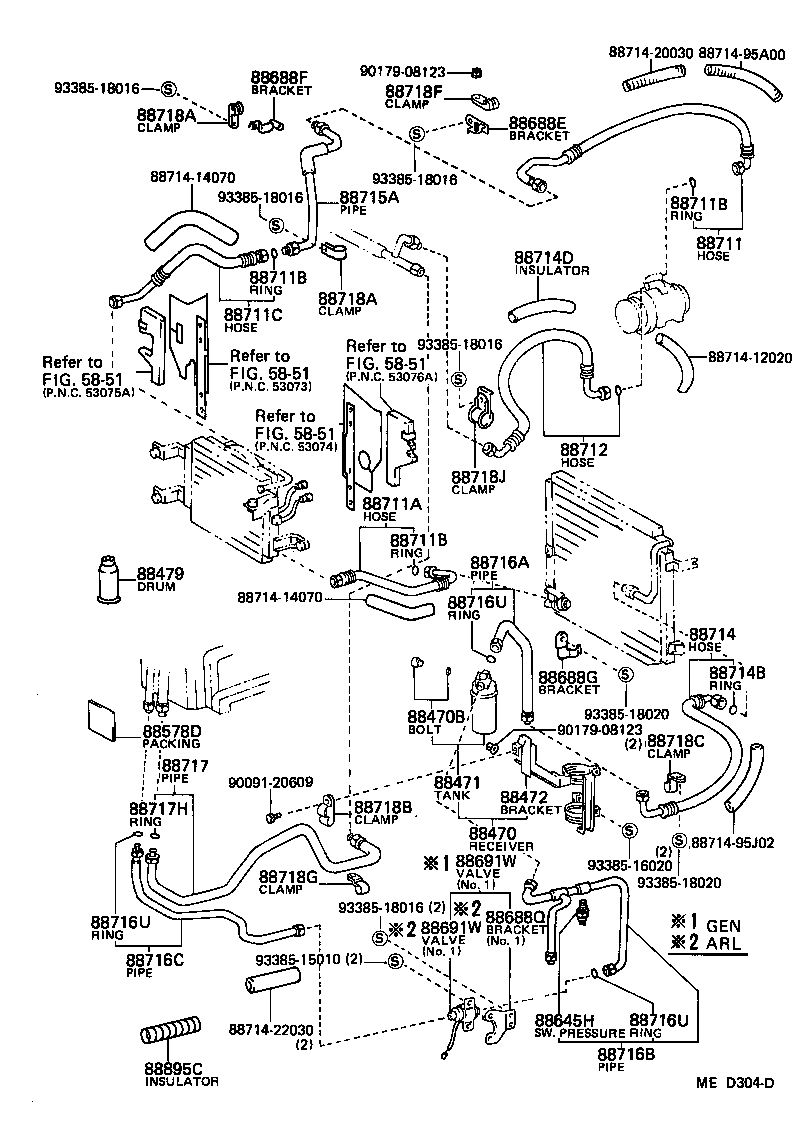

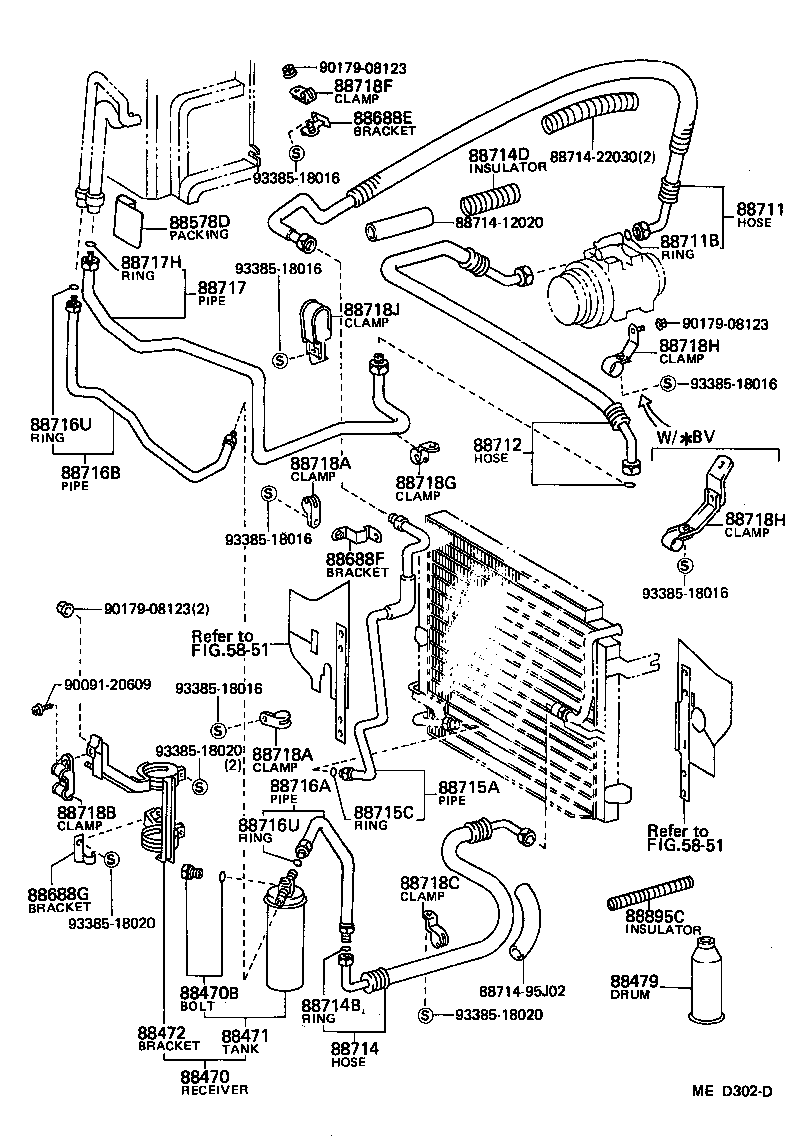

Figure MEE259D MEE259D 1982-12 → — Figure MEE260E MEE260E 1982-12 → — Figure MEE261C MEE261C 1982-12 → — Figure MED302D MED302D 1982-12 → — Figure MED274D MED274D 1982-12 → — Figure MED303E MED303E 1982-12 → — Figure MED303E MED303E 1984-01 → — Figure MED275E MED275E 1982-12 → — Figure MED304D MED304D 1982-12 → — Figure MED304D MED304D 1985-08 → — Figure MED276D MED276D 1982-12 → — Figure MED306D MED306D 1982-12 → — Figure MED307E MED307E 1982-12 → — Figure MED308E MED308E 1982-12 → — Figure MED308E MED308E 1985-08 → —

Part groups

PNCDescription
88367 Shroud, Cooler Blower Fan
88386B Pipe, Rear Cooler Refrigerant Liquid, B
88386C Pipe, Rear Cooler Refrigerant Liquid, C
88386D Pipe, Rear Cooler Refrigerant Liquid, D
88387B Pipe, Rear Cooler Refrigerant Suction, B
88387C Pipe, Rear Cooler Refrigerant Suction, C
88387D Pipe, Rear Cooler Refrigerant Suction, D
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460A Cover, Cooler Condenser
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88460G Bracket, Cooler Condenser, NO.5
88460N Bracket, Cooler Condenser, NO.8
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88688G Bracket, Cooler Refrigerant Pipe
88688Q Bracket (FOR MAGNET VALVE)
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88711C Hose, Cooler Refrigerant Discharge, NO.3
88712 Hose, Cooler Refrigerant Suction, NO.1
88713A Hose, Cooler Refrigerant Suction, NO.3
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714B Ring, O(FOR COOLER REFRIGERANT LIQUID HOSE)
88714D Insulator, Cooler Refrigerant Hose, NO.2
88714G Insulator, Cooler Refrigerant Pipe, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715C Ring, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H Clamp, NO.3(FOR COOLER REFRIGERANT HOSE)
88718J Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
88895C Insulator, Hose
88899C Cover, Cooler Refrigerant Pipe, NO.2
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
