Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

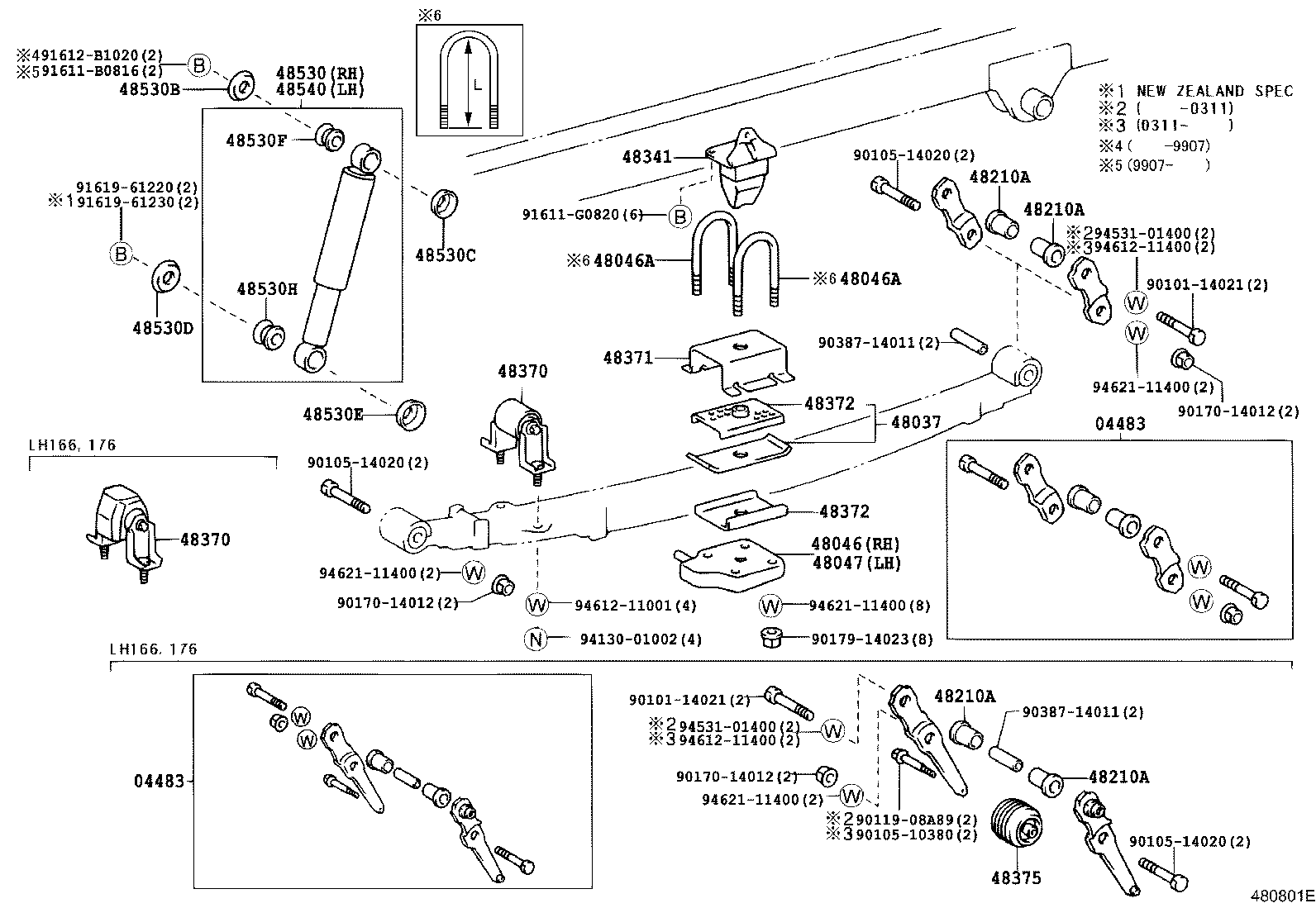

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04483 — Shackle Kit, Rear Spring | ||||
| 04483-26100 |
Shackle Kit, Rear Spring
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) SRF;RZH103 +18 | — | |
| 04483-26120 |
Shackle Kit, Rear Spring
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 04483-26100 |
Shackle Kit, Rear Spring
1999-07 → 2005-10
ended
|
RZH112 5D;RZH112 03S;LH10#,11#,125,162,164,172,174,184,RZH10#,113,114,115,125 | — | |
| 04483-26100 |
Shackle Kit, Rear Spring
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 04483-26120 |
Shackle Kit, Rear Spring
1999-07 → 2003-11
ended
|
LH166,176 | — | |
| 04483-26160 note |
Shackle Kit, Rear Spring
2003-11 → 2004-08
ended
|
LH166,176 | — | |
| 04489-26010 note |
Shackle Kit, Rear Spring
2003-11 → 2004-08
ended
|
LH166,176 | — | |
| 48037 — Spacer Sub-assy, Rear Spring | ||||
| 48037-26030 |
Spacer Sub-assy, Rear Spring
1989-08 → 1994-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48046 — Seat Sub-assy, Spring U Bolt, RH | ||||
| 48046-26100 |
Seat Sub-assy, Spring U Bolt, RH
1989-08 → 1994-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48046-26101 |
Seat Sub-assy, Spring U Bolt, RH
1994-08 → 1996-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48046-26120 |
Seat Sub-assy, Spring U Bolt, RH
1996-08 → —
|
RZH102,112 13 STD SRF;RZH103 +17 | — | |
| 48046-26120 |
Seat Sub-assy, Spring U Bolt, RH
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 48046-26120 |
Seat Sub-assy, Spring U Bolt, RH
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48046A — Bolt, U(FOR REAR SPRING) | ||||
| 90117-14059 note |
Bolt, U(FOR REAR SPRING)
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90117-14029 note |
Bolt, U(FOR REAR SPRING)
2001-08 → 2005-01
ended
|
LH172 RHD SRF 4D +6 | — | |
| 90117-14059 note |
Bolt, U(FOR REAR SPRING)
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90117-14059 note |
Bolt, U(FOR REAR SPRING)
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48047 — Seat Sub-assy, Spring U Bolt, LH | ||||
| 48046-26100 |
Seat Sub-assy, Spring U Bolt, LH
1989-08 → 1994-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48046-26101 |
Seat Sub-assy, Spring U Bolt, LH
1994-08 → 1996-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48046-26120 |
Seat Sub-assy, Spring U Bolt, LH
1996-08 → —
|
RZH102,112 13 STD SRF;RZH103 +17 | — | |
| 48046-26120 |
Seat Sub-assy, Spring U Bolt, LH
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 48046-26120 |
Seat Sub-assy, Spring U Bolt, LH
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48210A — Bush(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18008 |
Bush(FOR REAR SPRING SHACKLE UPPER)
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90385-18008 |
Bush(FOR REAR SPRING SHACKLE UPPER)
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90385-18008 |
Bush(FOR REAR SPRING SHACKLE UPPER)
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48341 — Bumper, Rear Spring | ||||
| 48341-26110 |
Bumper, Rear Spring
1996-11 → 1999-07
ended
|
RZH135,153 | — | |
| 48341-26140 |
Bumper, Rear Spring
1989-08 → 1999-07
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 48341-26150 |
Bumper, Rear Spring
1989-08 → 2002-08
ended
|
LH172 S,10S;LH172 4D 5S) +21 | — | |
| 48341-26150 |
Bumper, Rear Spring
2002-08 → —
|
RZH103 03S GEN | — | |
| 48341-26170 |
Bumper, Rear Spring
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 48341-26110 |
Bumper, Rear Spring
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 48341-26140 |
Bumper, Rear Spring
1999-07 → 2002-08
ended
|
LH103,113,125,162,172,184,RZH103,113,125 ARL | — | |
| 48341-26150 |
Bumper, Rear Spring
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 48341-26150 |
Bumper, Rear Spring
1999-07 → —
|
RZH112 EN 5D;RZH112 03S;LH10#,11#,162,164,172,174,184,RZH10#,113,114,115 +1 | — | |
| 48341-26150 |
Bumper, Rear Spring
2002-08 → —
|
LH162,172,184,RZH103,113,125 ARL | — | |
| 48341-26170 |
Bumper, Rear Spring
1999-07 → 2004-08
ended
|
LH166,176 | — | |
| 48370 — Damper Assy, Leaf Spring Dynamic | ||||
| 48370-26010 |
Damper Assy, Leaf Spring Dynamic
1995-08 → 1999-07
ended
|
LH113 ARL | — | |
| 48370-26010 |
Damper Assy, Leaf Spring Dynamic
1989-08 → 1993-08
ended
|
LH103,113,RZH103,113 ARL | — | |
| 48370-26061 |
Damper Assy, Leaf Spring Dynamic
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 48370-26010 |
Damper Assy, Leaf Spring Dynamic
1999-07 → 2000-08
ended
|
LH113 ARL | — | |
| 48370-26010 |
Damper Assy, Leaf Spring Dynamic
1999-07 → 2002-08
ended
|
LH172 4FC | — | |
| 48370-26010 |
Damper Assy, Leaf Spring Dynamic
1999-07 → 2005-01
ended
|
LH172 5F ARL | — | |
| 48370-26061 |
Damper Assy, Leaf Spring Dynamic
1999-07 → 2004-08
ended
|
LH166,176 | — | |
| 48371 — Retainer, Rear Spring Pad | ||||
| 48371-26110 |
Retainer, Rear Spring Pad
1989-08 → 1994-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48372 — Pad, Rear Spring | ||||
| 48372-26030 |
Pad, Rear Spring
1989-08 → 1994-08
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 48375 — Damper, Leaf Spring Dynamic | ||||
| 48375-26030 |
Damper, Leaf Spring Dynamic
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 48375-26030 |
Damper, Leaf Spring Dynamic
1999-07 → 2003-11
ended
|
LH166,176 | — | |
| 48375-26050 |
Damper, Leaf Spring Dynamic
2003-11 → 2004-08
ended
|
LH166,176 | — | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48531-80398 |
Absorber Assy, Shock, Rear RH
1989-08 → 1996-07
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 48531-80399 |
Absorber Assy, Shock, Rear RH
1993-08 → 1995-08
ended
|
RZH113 LHD;LH10#,11#,125,RZH102,104,105,112,114,115 CIS,GCC,GEN | — | |
| 48531-80399 |
Absorber Assy, Shock, Rear RH
1995-08 → 1996-07
ended
|
LH10#,11#,125,RZH10#,11# CIS,GCC,GEN | — | |
| 48531-80399 |
Absorber Assy, Shock, Rear RH
1989-08 → 1993-08
ended
|
LH10#,11#,RZH10#,11# GEN | — | |
| 48531-80432 note |
Absorber Assy, Shock, Rear RH
1993-08 → 1994-08
ended
|
LH103,RZH103,113 06S GEN | — | |
| 48531-80432 note |
Absorber Assy, Shock, Rear RH
1994-08 → 1996-07
ended
|
LH103,113,RZH103,113 06S GEN | — | |
| 48531-80544 note |
Absorber Assy, Shock, Rear RH
1996-07 → 1999-07
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 48531-80545 note |
Absorber Assy, Shock, Rear RH
1996-07 → —
|
LH172 I;LH172 #,11#,125,184,RZH103,104,105,113,114,115 BR,DSL) +22 | — | |
| 48531-80547 note |
Absorber Assy, Shock, Rear RH
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 48531-80572 |
Absorber Assy, Shock, Rear RH
1996-11 → 1998-08
ended
|
RZH135 | — | |
| 48531-80574 |
Absorber Assy, Shock, Rear RH
1996-11 → 1998-06
ended
|
RZH153 | — | |
| 48531-80667 note |
Absorber Assy, Shock, Rear RH
1998-06 → 1998-08
ended
|
RZH153 | — | |
| 48531-80667 note |
Absorber Assy, Shock, Rear RH
1998-08 → 1999-07
ended
|
RZH135,153 | — | |
| 48531-80544 note |
Absorber Assy, Shock, Rear RH
1999-07 → 2005-01
ended
|
LH103,113,125,162,172,184,RZH103,113,125 ARL | — | |
| 48531-80544 note |
Absorber Assy, Shock, Rear RH
2001-08 → 2005-01
ended
|
LH172 RHD SRF 4D +6 | — | |
| 48531-80545 note |
Absorber Assy, Shock, Rear RH
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 48531-80545 note |
Absorber Assy, Shock, Rear RH
1999-07 → 2005-10
ended
|
RZH112 EN 5D;RZH112 03S;LH10#,11#,162,164,172,174,184,RZH10#,113,114,115 +1 | — | |
| 48531-80547 note |
Absorber Assy, Shock, Rear RH
1999-07 → 2004-08
ended
|
LH166,176 | — | |
| 48531-80667 note |
Absorber Assy, Shock, Rear RH
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 48530B — Washer, Rear Shock Absorber Cushion, NO.1 | ||||
| 90948-02125 |
Washer, Rear Shock Absorber Cushion, NO.1
1996-11 → 1997-04
ended
|
RZH135,153 | — | |
| 90948-02169 |
Washer, Rear Shock Absorber Cushion, NO.1
1997-04 → 1999-07
ended
|
RZH135,153 | — | |
| 90948-03012 |
Washer, Rear Shock Absorber Cushion, NO.1
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90948-02169 |
Washer, Rear Shock Absorber Cushion, NO.1
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 90948-03012 |
Washer, Rear Shock Absorber Cushion, NO.1
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90948-03012 |
Washer, Rear Shock Absorber Cushion, NO.1
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48530C — Washer, Rear Shock Absorber Cushion, NO.2 | ||||
| 90948-02077 |
Washer, Rear Shock Absorber Cushion, NO.2
1996-11 → 1999-07
ended
|
RZH135,153 | — | |
| 90948-03004 |
Washer, Rear Shock Absorber Cushion, NO.2
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90948-02077 |
Washer, Rear Shock Absorber Cushion, NO.2
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 90948-03004 |
Washer, Rear Shock Absorber Cushion, NO.2
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90948-03004 |
Washer, Rear Shock Absorber Cushion, NO.2
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48530D — Washer, Rear Shock Absorber Cushion, NO.3 | ||||
| 90560-12054 note |
Washer, Rear Shock Absorber Cushion, NO.3
1994-08 → 1998-08
ended
|
LH103,113,RZH103,113 06S GEN (CBR,DSL) | — | |
| 90560-12054 note |
Washer, Rear Shock Absorber Cushion, NO.3
1998-08 → 1999-07
ended
|
LH103,113,125,RZH103,113,125 RHD SG STD | — | |
| 90560-12054 note |
Washer, Rear Shock Absorber Cushion, NO.3
1991-02 → 1994-08
ended
|
LH103,RZH102,103,113 RHD 06S GEN | — | |
| 90948-02076 note |
Washer, Rear Shock Absorber Cushion, NO.3
1996-11 → 1999-07
ended
|
RZH135,153 | — | |
| 90948-02165 note |
Washer, Rear Shock Absorber Cushion, NO.3
1996-11 → 1999-07
ended
|
RZH135,153 | — | |
| 90948-03015 |
Washer, Rear Shock Absorber Cushion, NO.3
1991-02 → 1995-08
ended
|
RZH113 104,105,112,114,115,125 EFI;RZH113 ARL,GCC;RZH102 +3 | — | |
| 90948-03015 |
Washer, Rear Shock Absorber Cushion, NO.3
1989-08 → 1991-02
ended
|
LH10#,11#,125,RZH10#,11#,125 | — | |
| 90948-03015 |
Washer, Rear Shock Absorber Cushion, NO.3
1995-08 → —
|
RZH102,112 13 STD SRF;RZH103 +17 | — | |
| 90560-12054 note |
Washer, Rear Shock Absorber Cushion, NO.3
1999-07 → 2005-01
ended
|
LH172 5D 06S;LH103,113,125,162,184,RZH103,113,125 RHD +2 | — | |
| 90560-12054 note |
Washer, Rear Shock Absorber Cushion, NO.3
2000-08 → 2005-01
ended
|
LH172 4D 06S STD +1 | — | |
| 90948-02076 note |
Washer, Rear Shock Absorber Cushion, NO.3
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 90948-02165 note |
Washer, Rear Shock Absorber Cushion, NO.3
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 90948-03015 |
Washer, Rear Shock Absorber Cushion, NO.3
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90948-03015 |
Washer, Rear Shock Absorber Cushion, NO.3
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48530E — Washer, Rear Shock Absorber Cushion, NO.4 | ||||
| 90948-02125 |
Washer, Rear Shock Absorber Cushion, NO.4
1996-11 → 1997-04
ended
|
RZH135,153 | — | |
| 90948-02169 |
Washer, Rear Shock Absorber Cushion, NO.4
1997-04 → 1999-07
ended
|
RZH135,153 | — | |
| 90948-03011 |
Washer, Rear Shock Absorber Cushion, NO.4
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90948-02169 |
Washer, Rear Shock Absorber Cushion, NO.4
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
| 90948-03011 |
Washer, Rear Shock Absorber Cushion, NO.4
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 90948-03011 |
Washer, Rear Shock Absorber Cushion, NO.4
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 48530F — Retainer, Shock Absorber Cushion(FOR REAR) | ||||
| 90385-16009 |
Retainer, Shock Absorber Cushion(FOR REAR)
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90385-16009 |
Retainer, Shock Absorber Cushion(FOR REAR)
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90385-16009 |
Retainer, Shock Absorber Cushion(FOR REAR)
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48530H — Bush, Rear Shock Absorber | ||||
| 90385-19006 |
Bush, Rear Shock Absorber
1989-08 → —
|
RZH102,112 2,174,184 6S,09S) 15S +19 | — | |
| 90385-19006 |
Bush, Rear Shock Absorber
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 90385-19006 |
Bush, Rear Shock Absorber
1999-07 → —
|
RZH112 5D;RZH112 03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 | — | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48531-80398 |
Absorber Assy, Shock, Rear LH
1989-08 → 1996-07
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 48531-80399 |
Absorber Assy, Shock, Rear LH
1995-08 → 1996-07
ended
|
LH10#,11#,125,RZH10#,11# CIS,GCC,GEN | — | |
| 48531-80399 |
Absorber Assy, Shock, Rear LH
1989-08 → 1993-08
ended
|
LH10#,11#,RZH10#,11# GEN | — | |
| 48531-80399 |
Absorber Assy, Shock, Rear LH
1993-08 → 1995-08
ended
|
RZH113 LHD;LH10#,11#,125,RZH102,104,105,112,114,115 CIS,GCC,GEN | — | |
| 48531-80432 note |
Absorber Assy, Shock, Rear LH
1993-08 → 1994-08
ended
|
LH103,RZH103,113 06S GEN | — | |
| 48531-80432 note |
Absorber Assy, Shock, Rear LH
1994-08 → 1996-07
ended
|
LH103,113,RZH103,113 06S GEN | — | |
| 48531-80544 note |
Absorber Assy, Shock, Rear LH
1996-07 → 1999-07
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 48531-80545 note |
Absorber Assy, Shock, Rear LH
1996-07 → —
|
LH172 I;LH172 #,11#,125,184,RZH103,104,105,113,114,115 BR,DSL) +22 | — | |
| 48531-80547 note |
Absorber Assy, Shock, Rear LH
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 48531-80572 |
Absorber Assy, Shock, Rear LH
1996-11 → 1998-08
ended
|
RZH135 | — | |
| 48531-80574 |
Absorber Assy, Shock, Rear LH
1996-11 → 1998-06
ended
|
RZH153 | — | |
| 48531-80667 note |
Absorber Assy, Shock, Rear LH
1998-06 → 1998-08
ended
|
RZH153 | — | |
| 48531-80667 note |
Absorber Assy, Shock, Rear LH
1998-08 → 1999-07
ended
|
RZH135,153 | — | |
| 48531-80544 note |
Absorber Assy, Shock, Rear LH
1999-07 → 2005-01
ended
|
LH103,113,125,162,172,184,RZH103,113,125 ARL | — | |
| 48531-80544 note |
Absorber Assy, Shock, Rear LH
2001-08 → 2005-01
ended
|
LH172 RHD SRF 4D +6 | — | |
| 48531-80545 note |
Absorber Assy, Shock, Rear LH
1999-07 → 2002-08
ended
|
RZH112 4D 06S | — | |
| 48531-80545 note |
Absorber Assy, Shock, Rear LH
1999-07 → 2005-10
ended
|
RZH112 EN 5D;RZH112 03S;LH10#,11#,162,164,172,174,184,RZH10#,113,114,115 +1 | — | |
| 48531-80547 note |
Absorber Assy, Shock, Rear LH
1999-07 → 2004-08
ended
|
LH166,176 | — | |
| 48531-80667 note |
Absorber Assy, Shock, Rear LH
1999-07 → 2005-01
ended
|
LH154,RZH135,15# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
