Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

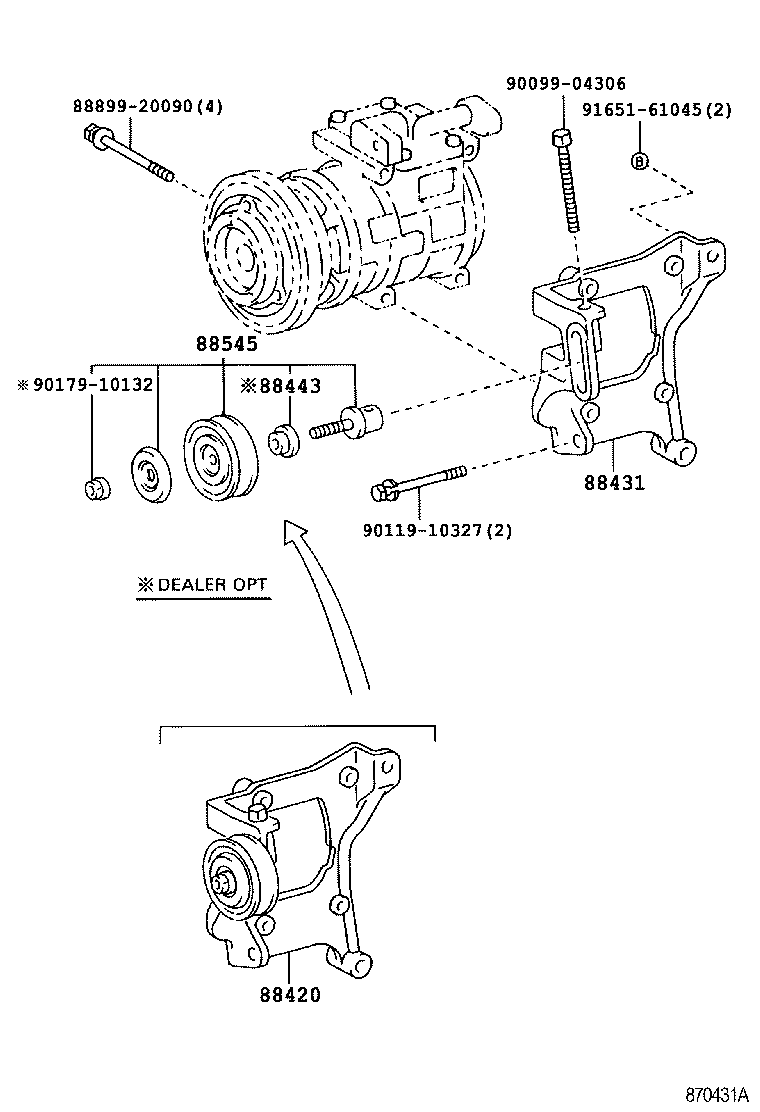

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88420 — Pulley Assy, Idle, W/Bracket | ||||
| 88420-26190 |
Pulley Assy, Idle, W/Bracket
1993-08 → 2001-08
ended
|
RZH102,104,112,114;RZH105,115 (GCC,GEN) STD CBR;RZH113 +8 | — | |
| 88420-26190 |
Pulley Assy, Idle, W/Bracket
2001-08 → —
|
RZH103 03S GEN | — | |
| 88420-26200 note |
Pulley Assy, Idle, W/Bracket
1993-08 → 2000-08
ended
|
LH174 ,GCC,GEN GL;LH172 RHD +4 | — | |
| 88420-26210 note |
Pulley Assy, Idle, W/Bracket
1993-08 → 1998-08
ended
|
LH113 STD (GCC,GEN);LH10#,112,114,115 CIS,GCC,GEN | — | |
| 88420-26350 note |
Pulley Assy, Idle, W/Bracket
1998-08 → 2000-08
ended
|
LH174 GL;LH172 RHD STD;LH10#,11# +1 | — | |
| 88420-26360 note |
Pulley Assy, Idle, W/Bracket
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 88420-26190 |
Pulley Assy, Idle, W/Bracket
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88420-26190 |
Pulley Assy, Idle, W/Bracket
1999-07 → —
|
RZH112 5D;RZH112 03S;RZH10#,113,114,115,155 CIS,GCC,GEN | — | |
| 88420-26200 note |
Pulley Assy, Idle, W/Bracket
1999-07 → —
|
LH172 06S;LH172 03S STD +2 | — | |
| 88420-26350 note |
Pulley Assy, Idle, W/Bracket
1999-07 → —
|
LH172 06S;LH172 03S STD +2 | — | |
| 88420-26360 note |
Pulley Assy, Idle, W/Bracket
1999-07 → 2004-08
ended
|
LH166,176 | — | |
| 88431 — Bracket, Compressor Mounting, NO.1 | ||||
| 88431-26350 |
Bracket, Compressor Mounting, NO.1
1998-08 → 2000-08
ended
|
LH174 GL;LH172 RHD STD;LH10#,11# +1 | — | |
| 88431-26360 |
Bracket, Compressor Mounting, NO.1
1998-08 → 1999-07
ended
|
LH166,176 | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
1989-08 → 1993-08
ended
|
RZH10#,11#,125 | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
1993-08 → 1996-08
ended
|
RZH103,113,125 ARL | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
1996-08 → 1998-08
ended
|
RZH103 DX;RZH113 ARL;RZH103 4D +2 | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
2003-08 → —
|
RZH103 03S GEN | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
1998-08 → 2001-08
ended
|
RZH113 03,104,112,114,125 LHD;RZH103,105,115 03S,06S,10S,12S,14S,15S +6 | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
2001-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88431-95J01 |
Bracket, Compressor Mounting, NO.1
1993-08 → 1999-07
ended
|
LH103,113,125 ARL | — | |
| 88431-95J01 |
Bracket, Compressor Mounting, NO.1
1989-08 → 1993-08
ended
|
LH10#,11#,125 | — | |
| 88431-26350 |
Bracket, Compressor Mounting, NO.1
1999-07 → 2006-02
ended
|
LH172 06S;LH172 03S STD +2 | — | |
| 88431-26360 |
Bracket, Compressor Mounting, NO.1
1999-07 → 2004-08
ended
|
LH166,176 | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88431-95J00 |
Bracket, Compressor Mounting, NO.1
1999-07 → 2006-02
ended
|
RZH112 5D;RZH112 03S;RZH10#,113,114,115,125,155 | — | |
| 88431-95J01 |
Bracket, Compressor Mounting, NO.1
1999-07 → 2005-01
ended
|
LH103,113,125 ARL;LH162,172,184 5F ARL | — | |
| 88443 — Collar, Idle Pulley | ||||
| 88443-36010 |
Collar, Idle Pulley
1996-08 → 1998-08
ended
|
RZH103 DX;RZH113 ARL;RZH103 4D +2 | — | |
| 88443-36010 |
Collar, Idle Pulley
2003-08 → —
|
RZH103 03S GEN | — | |
| 88443-36010 |
Collar, Idle Pulley
2001-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88443-36010 |
Collar, Idle Pulley
1999-07 → 2001-08
ended
|
RZH102,103 03S GEN | — | |
| 88443-36010 |
Collar, Idle Pulley
1993-08 → 1996-08
ended
|
RZH103,113,125 ARL | — | |
| 88443-36010 |
Collar, Idle Pulley
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 RHD | — | |
| 88443-36010 |
Collar, Idle Pulley
1998-08 → 1999-07
ended
|
RZH10#,11# | — | |
| 88443-36010 |
Collar, Idle Pulley
1999-07 → 2000-08
ended
|
RZH10#,11#,125 | — | |
| 88443-36010 |
Collar, Idle Pulley
2000-08 → 2001-08
ended
|
RZH10#,11#,125,155 | — | |
| 88443-36010 |
Collar, Idle Pulley
2001-08 → 2003-08
ended
|
RZH112 5D;RZH112 03S;RZH10#,113,114,115,125,155 | — | |
| 88443-36010 |
Collar, Idle Pulley
2003-08 → —
|
RZH125;RZH10#,11#,155 CIS,GCC,GEN | — | |
| 88545 — Pulley Assy, Idle | ||||
| 88440-26070 note |
Pulley Assy, Idle
1993-08 → 1998-08
ended
|
LH103,113,125 ARL | — | |
| 88440-26070 note |
Pulley Assy, Idle
1998-08 → 2000-08
ended
|
LH174 GL;LH172 RHD STD;LH10#,11#,125,166,176 | — | |
| 88440-26070 note |
Pulley Assy, Idle
1989-08 → 1993-08
ended
|
LH10#,11#,125 | — | |
| 88440-26090 note |
Pulley Assy, Idle
1989-08 → 1993-08
ended
|
LH10#,11#,125 | — | |
| 88440-26090 note |
Pulley Assy, Idle
1993-08 → 1998-08
ended
|
LH103,113,125 ARL | — | |
| 88440-26090 note |
Pulley Assy, Idle
1998-08 → 2000-08
ended
|
LH174 GL;LH172 RHD STD;LH10#,11#,125,166,176 | — | |
| 88440-26100 note |
Pulley Assy, Idle
1989-08 → 1993-08
ended
|
RZH114 HRF 4F;RZH10#,11# SRF +1 | — | |
| 88440-26100 |
Pulley Assy, Idle
1991-08 → 1993-08
ended
|
RZH114 HRF | — | |
| 88440-26100 |
Pulley Assy, Idle
1993-08 → 1996-08
ended
|
RZH103,113,125 ARL | — | |
| 88440-26100 |
Pulley Assy, Idle
1996-08 → 1998-08
ended
|
RZH103 DX;RZH113 ARL;RZH103 4D +2 | — | |
| 88440-26100 |
Pulley Assy, Idle
1998-08 → 1999-07
ended
|
RZH10#,11# | — | |
| 88440-26100 |
Pulley Assy, Idle
1999-07 → 2001-08
ended
|
RZH102,103 03S GEN | — | |
| 88440-26100 |
Pulley Assy, Idle
2001-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88440-26100 |
Pulley Assy, Idle
2003-08 → —
|
RZH103 03S GEN | — | |
| 88440-95J00 note |
Pulley Assy, Idle
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 RHD | — | |
| 88440-26070 note |
Pulley Assy, Idle
1999-07 → 2006-02
ended
|
LH162 ,166,174,176 GEN;LH172 06S;LH162,184 +5 | — | |
| 88440-26090 note |
Pulley Assy, Idle
1999-07 → 2006-02
ended
|
LH162 ,166,174,176 GEN;LH172 06S;LH162,184 +5 | — | |
| 88440-26100 |
Pulley Assy, Idle
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88440-26100 |
Pulley Assy, Idle
1999-07 → 2006-02
ended
|
RZH112 5D;RZH112 03S;RZH10#,113,114,115,125,155 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
