Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

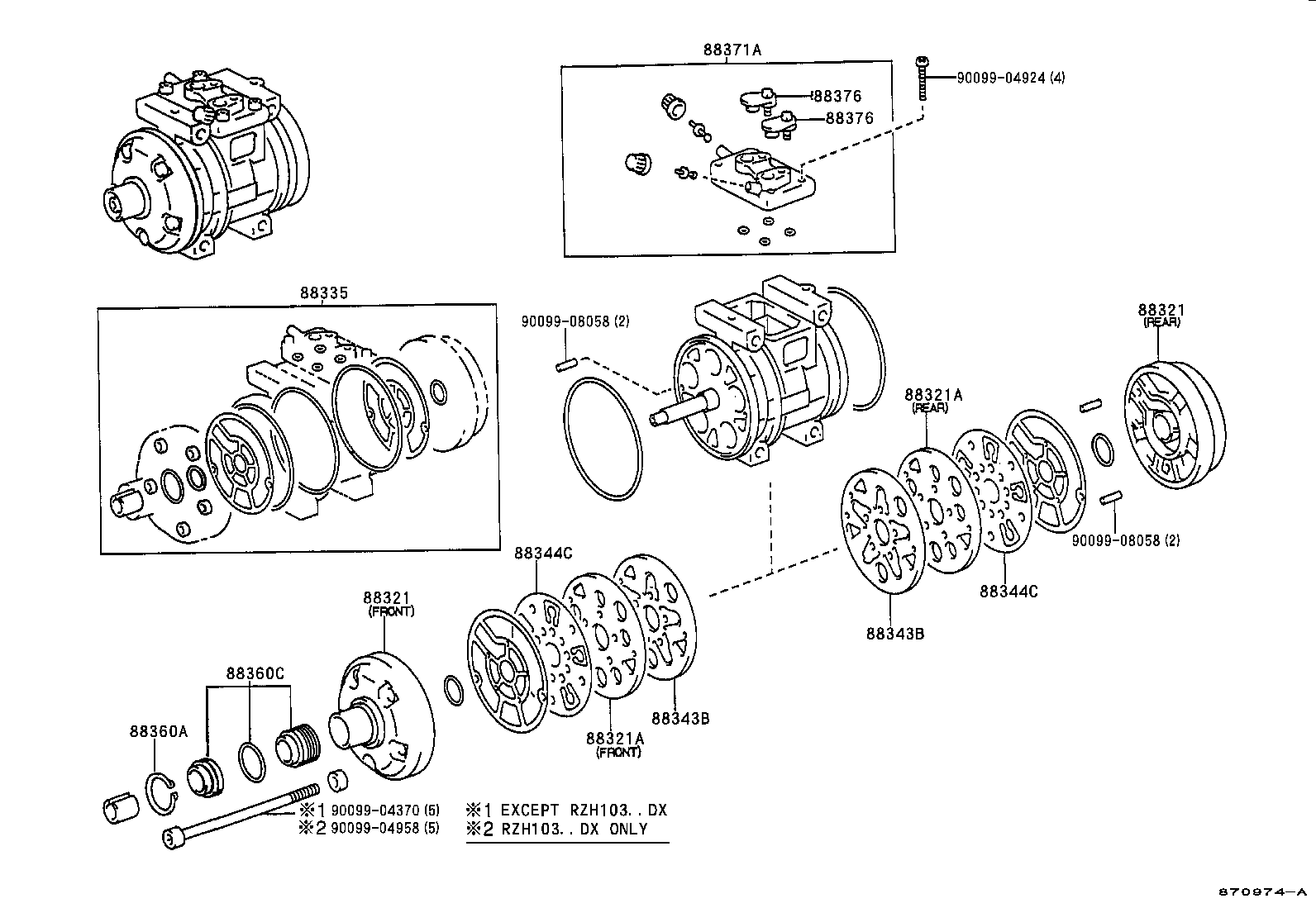

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88321 — Head, Cooler Compressor Cylinder | ||||
| 88321-14021 note |
Head, Cooler Compressor Cylinder
1989-08 → 1993-08
ended
|
RZH103,125 SG ARL | — | |
| 88321-28010 note |
Head, Cooler Compressor Cylinder
1989-08 → 1993-08
ended
|
RZH102,103,112,113 STD | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1995-08 → 1998-08
ended
|
RZH103 SGL | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1993-08 → 2001-08
ended
|
RZH113 .RHD 4D SRF +10 | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
2003-08 → —
|
RZH103 03S GEN | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1993-08 → 1995-08
ended
|
LH125 ARL;LH104,105,112,114,115,RZH125 09S,12S,14S,15S | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1995-08 → 1997-03
ended
|
LH102,RZH103,105,114 GL,SGL | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1997-03 → 1998-08
ended
|
LH113 06S;LH102,RZH103,105,114 DX,GL,SGL | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1995-08 → 1999-07
ended
|
RZH115;RZH105,114 ,RZH102 STD;LH125,RZH104,114,125 DSL,EFI +1 | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1998-08 → 1999-07
ended
|
RZH102,114 (10S,15S) GL;LH172,RZH103,105 4D +2 | — | |
| 88322-14020 note |
Head, Cooler Compressor Cylinder
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
2003-08 → —
|
RZH103 03S GEN | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1993-08 → 2001-08
ended
|
RZH115 S,09S) S,06S,14S) DSL) +16 | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2006-02
ended
|
RZH103 S GEN;LH112,162 GEN;LH172 +12 | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2002-08
ended
|
LH162,172 5F ARL | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2005-01
ended
|
LH112 DEFI;LH172 4D;LH172 4D +15 | — | |
| 88321-2B010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2006-02
ended
|
RZH105 .10S,12S;LH104,105,115,125,166,176,RZH104,112 LHD SG +7 | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2005-08
ended
|
RZH114 (GL,SGL);LH172,RZH115 RF;LH174,RZH113,125 LHD +12 | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2002-08
ended
|
LH184 5F ARL | — | |
| 88321-32010 note |
Head, Cooler Compressor Cylinder
1999-07 → 2001-08
ended
|
LH172 06S STD | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,166,174,176,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88322-32040 note |
Head, Cooler Compressor Cylinder
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88321A — Plate Sub-assy, Valve | ||||
| 88305-14020 note |
Plate Sub-assy, Valve
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 | — | |
| 88306-14020 note |
Plate Sub-assy, Valve
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
2003-08 → —
|
RZH103 03S GEN | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
1993-08 → 2001-08
ended
|
RZH115 S,09S) S,06S,14S) DSL) +16 | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
2003-08 → —
|
RZH103 03S GEN | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
1993-08 → 2001-08
ended
|
RZH115 S,09S) S,06S,14S) DSL) +16 | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,174,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88341-22010 note |
Plate Sub-assy, Valve
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88342-22010 note |
Plate Sub-assy, Valve
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,174,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88335 — Gasket Kit, Overhaul | ||||
| 88335-14010 |
Gasket Kit, Overhaul
1989-08 → 1993-08
ended
|
LH103 ARL;LH113,RZH102,103,112,113;LH102,103,112,RZH125 SG | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1993-08 → 2001-08
ended
|
RZH115 S,09S) S,06S,14S) DSL) +16 | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
2003-08 → —
|
RZH103 03S GEN | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,166,174,176,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88335-2B030 |
Gasket Kit, Overhaul
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88343B — Reed, Suction Valve | ||||
| 88343-14020 |
Reed, Suction Valve
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88343-14020 |
Reed, Suction Valve
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 | — | |
| 88343-14020 |
Reed, Suction Valve
1993-08 → 1995-08
ended
|
LH125 ARL;LH10#,11#,RZH10#,11#,125 | — | |
| 88343-14020 |
Reed, Suction Valve
1995-08 → 1996-08
ended
|
LH10#,11#,RZH10#,11# CIS,GCC,GEN | — | |
| 88343-14020 |
Reed, Suction Valve
1995-08 → 1996-08
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 88343-14020 |
Reed, Suction Valve
1996-08 → 2001-08
ended
|
RZH115 N;LH113,125,RZH103 14,125;LH174,RZH103,105,113 CBR;RZH113 +14 | — | |
| 88343-14020 |
Reed, Suction Valve
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88343-14020 |
Reed, Suction Valve
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88343-14020 |
Reed, Suction Valve
2003-08 → —
|
RZH103 03S GEN | — | |
| 88343-14020 |
Reed, Suction Valve
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,174,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88343-14020 |
Reed, Suction Valve
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88343-14020 |
Reed, Suction Valve
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88343-14020 |
Reed, Suction Valve
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88344C — Reed, Discharge Valve | ||||
| 88344-22010 |
Reed, Discharge Valve
1989-08 → 1993-08
ended
|
RZH103,125 SG ARL | — | |
| 88344-22010 |
Reed, Discharge Valve
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88344-22010 |
Reed, Discharge Valve
1993-08 → 2001-08
ended
|
RZH115 S,09S) S,06S,14S) DSL) +16 | — | |
| 88344-22010 |
Reed, Discharge Valve
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88344-22010 |
Reed, Discharge Valve
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88344-22010 |
Reed, Discharge Valve
2003-08 → —
|
RZH103 03S GEN | — | |
| 88344-30020 |
Reed, Discharge Valve
1989-08 → 1993-08
ended
|
RZH102,103,112,113 STD | — | |
| 88344-22010 |
Reed, Discharge Valve
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88344-22010 |
Reed, Discharge Valve
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88344-22010 |
Reed, Discharge Valve
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88344-22010 |
Reed, Discharge Valve
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,174,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88360A — Ring, Compressor Seal Plate Snap | ||||
| 90096-90022 |
Ring, Compressor Seal Plate Snap
2003-08 → —
|
RZH103 03S GEN | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1993-08 → 2001-08
ended
|
RZH115 S,09S) S,06S,14S) DSL) +16 | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1989-08 → 1993-08
ended
|
LH103 ARL;LH113,RZH102,103,112,113;LH102,103,112,RZH125 SG | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 90096-90022 |
Ring, Compressor Seal Plate Snap
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,174,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88360C — Seal Assy, Shaft | ||||
| 88360-14030 |
Seal Assy, Shaft
1989-08 → 1993-08
ended
|
LH103 ARL;LH113,RZH102,103,112,113;LH102,103,112,RZH125 SG | — | |
| 88360-2B010 |
Seal Assy, Shaft
1993-08 → 1994-12
ended
|
LH125 ARL;LH10#,11#,RZH10#,11#,125 | — | |
| 88360-2B020 |
Seal Assy, Shaft
1994-12 → 1995-08
ended
|
LH125 ARL;LH10#,11#,RZH10#,11#,125 | — | |
| 88360-2B020 |
Seal Assy, Shaft
1995-08 → 1996-08
ended
|
LH103,113,125,RZH103,113,125 ARL | — | |
| 88360-2B020 |
Seal Assy, Shaft
1996-08 → 2001-08
ended
|
RZH115 N;LH113,125,RZH103 14,125;LH174,RZH103,105,113 CBR;RZH113 +14 | — | |
| 88360-2B020 |
Seal Assy, Shaft
2001-08 → 2002-08
ended
|
RZH103 03S GEN | — | |
| 88360-2B020 |
Seal Assy, Shaft
2002-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88360-2B020 |
Seal Assy, Shaft
2003-08 → —
|
RZH103 03S GEN | — | |
| 88360-2B020 |
Seal Assy, Shaft
1999-07 → 2006-02
ended
|
LH172 LH10#,11#,125,154,164,174,RZH102,104,105,114,115,125,155 06S;RZH112 5D;LH162,RZH103,113 +4 | — | |
| 88360-2B020 |
Seal Assy, Shaft
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88360-2B020 |
Seal Assy, Shaft
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88360-2B020 |
Seal Assy, Shaft
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88371A — Valve, Suction | ||||
| 88371-26180 |
Valve, Suction
1989-08 → 1993-08
ended
|
LH113;LH103 ARL;LH102,103,112 06S | — | |
| 88371-26200 |
Valve, Suction
1993-08 → 2000-08
ended
|
LH174 GL;LH172 RHD STD;LH10#,112,114,115;LH113,125 +2 | — | |
| 88371-26210 |
Valve, Suction
1993-08 → 2001-08
ended
|
RZH103 BR;RZH113 RHD 4D +6 | — | |
| 88371-26210 |
Valve, Suction
2001-08 → 2003-08
ended
|
RZH103 03S GEN | — | |
| 88371-26210 |
Valve, Suction
2003-08 → —
|
RZH103 03S GEN | — | |
| 88371-95J00 |
Valve, Suction
1989-08 → 1993-08
ended
|
RZH102,103,112,113,125 | — | |
| 88371-26200 |
Valve, Suction
1999-07 → 2002-08
ended
|
LH162,172,184 5F ARL | — | |
| 88371-26200 |
Valve, Suction
1999-07 → 2006-02
ended
|
LH162 GEN;LH172 06S;LH10#,11#,125,154,164,174;LH172 03S +2 | — | |
| 88371-26210 |
Valve, Suction
1999-07 → 2001-08
ended
|
RZH112 4D 06S | — | |
| 88371-26210 |
Valve, Suction
1999-07 → 2003-08
ended
|
RZH103,113 ARL | — | |
| 88371-26210 |
Valve, Suction
1999-07 → 2006-02
ended
|
RZH112 5D;RZH112,125 03S,14S;RZH10#,113,114,115,155 CIS,GCC,GEN | — | |
| 88376 — Cap, Blind | ||||
| 88376-22010 note |
Cap, Blind
1989-08 → 1993-08
ended
|
LH103 ARL;LH113,RZH102,103,112,113;LH102,103,112,RZH125 SG | — | |
| 88376-22020 note |
Cap, Blind
1989-08 → 1993-08
ended
|
LH103 ARL;LH113,RZH102,103,112,113;LH102,103,112,RZH125 SG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
