Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

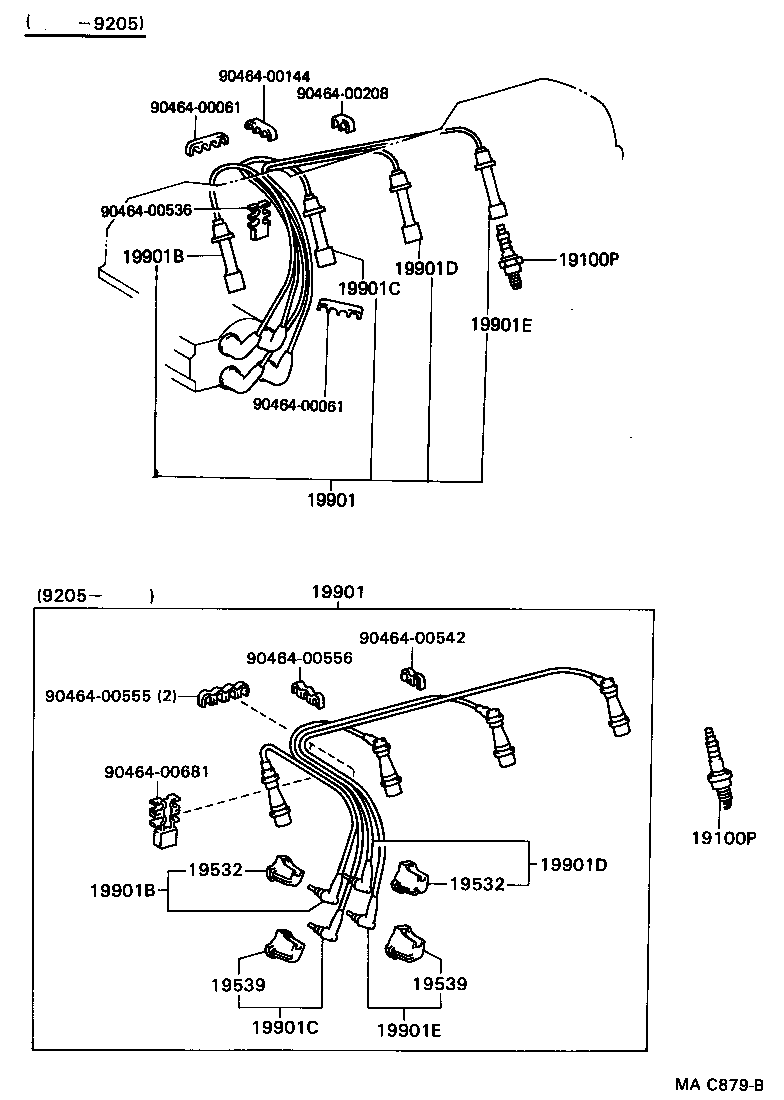

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01059 note |
Plug, Spark
1989-08 → 2000-08
ended
|
2RZ RZH115 STD;1RZ RZH114 +4 | — | |
| 90919-01064 note |
Plug, Spark
1989-08 → 1995-08
ended
|
1RZ D RZH104,112,114 CIS;1RZ +7 | — | |
| 90919-01064 note |
Plug, Spark
1996-08 → 1997-04
ended
|
1RZ RHD RZH104 CIS;1RZ +6 | — | |
| 90919-01064 note |
Plug, Spark
1997-04 → 1997-12
ended
|
1RZ ZH102,104,112 RZH104 RHD +10 | — | |
| 90919-01064 note |
Plug, Spark
1997-12 → 1998-08
ended
|
1RZ 2RZ RZH104 RZH103,104,105,114 +13 | — | |
| 90919-01064 note |
Plug, Spark
1998-08 → 1999-07
ended
|
1RZ #,115 RZH114 (03S,09S,10S,12S,15S) +10 | — | |
| 90919-01064 note |
Plug, Spark
1999-07 → 2000-08
ended
|
1RZ RZH102 03S | — | |
| 90919-01102 note |
Plug, Spark
1995-08 → 1996-08
ended
|
1RZ RZH104,112,114 SG;1RZ RZH102,112 +2 | — | |
| 90919-01102 note |
Plug, Spark
1998-08 → 1999-07
ended
|
1RZ #,115 RZH114 (03S,09S,10S,12S,15S) +10 | — | |
| 90919-01115 note |
Plug, Spark
1994-05 → —
|
2RZE 4D RZH105,115 (03S,06S,09S) +6 | — | |
| 90919-01059 note |
Plug, Spark
1999-07 → 2001-08
ended
|
1RZ RZH102 GL;1RZ RZH112 +2 | — | |
| 90919-01059 note |
Plug, Spark
1999-07 → —
|
1RZ ,115 RZH114 03S,06S,12S,15S +7 | — | |
| 90919-01064 note |
Plug, Spark
1999-07 → 2002-08
ended
|
1RZ RZH112 06S;1RZ RZH104,112,114 +4 | — | |
| 90919-01064 note |
Plug, Spark
1999-07 → —
|
1RZ RZH104,114 GL;1RZ RZH102 +4 | — | |
| 90919-01102 note |
Plug, Spark
1999-07 → 2002-08
ended
|
1RZ RZH112 06S;1RZ RZH104,112,114 +4 | — | |
| 90919-01102 note |
Plug, Spark
1999-07 → —
|
1RZ RZH104,114 GL;1RZ RZH102 +4 | — | |
| 90919-01115 note |
Plug, Spark
1999-07 → 2005-08
ended
|
2RZE RZH103,105,113,115,125,135,15# | — | |
| 90919-01116 note |
Plug, Spark
1999-07 → 2005-08
ended
|
2RZE RZH103,105,113,115,125,135,15# | — | |
| 19532 — Holder, Resistive Code, NO.2 | ||||
| 19532-46010 |
Holder, Resistive Code, NO.2
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 19532-46010 |
Holder, Resistive Code, NO.2
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 19532-46010 |
Holder, Resistive Code, NO.2
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 19532-46010 |
Holder, Resistive Code, NO.2
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
| 19539 — Holder, Resistive Code, NO.4 | ||||
| 19539-74020 |
Holder, Resistive Code, NO.4
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 19539-74020 |
Holder, Resistive Code, NO.4
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 19539-74020 |
Holder, Resistive Code, NO.4
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 19539-74020 |
Holder, Resistive Code, NO.4
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
| 19901 — Cord Set, Coil & Spark, W/Resistive | ||||
| 90919-21475 |
Cord Set, Coil & Spark, W/Resistive
1989-08 → 1993-08
ended
|
1RZ RZH102 4D;1RZ RZH104,112,114;1RZ +6 | — | |
| 90919-22272 |
Cord Set, Coil & Spark, W/Resistive
1989-08 → 1992-05
ended
|
2RZ RZH103,113,125 | — | |
| 90919-22273 note |
Cord Set, Coil & Spark, W/Resistive
1989-08 → 1992-05
ended
|
1RZ RZH102,104,112,114 RHD | — | |
| 90919-22358 note |
Cord Set, Coil & Spark, W/Resistive
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 90919-22371 |
Cord Set, Coil & Spark, W/Resistive
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 90919-22371 |
Cord Set, Coil & Spark, W/Resistive
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
| 90919-22371 |
Cord Set, Coil & Spark, W/Resistive
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 19901B — Cord, Spark Plug Resistive, NO.1 | ||||
| 90919-15014 |
Cord, Spark Plug Resistive, NO.1
1989-08 → 1992-05
ended
|
2RZ RZH103,113,125 | — | |
| 90919-15018 note |
Cord, Spark Plug Resistive, NO.1
1989-08 → 1992-05
ended
|
1RZ RZH102,104,112,114 RHD | — | |
| 90919-15022 |
Cord, Spark Plug Resistive, NO.1
1989-08 → 1993-08
ended
|
1RZ RZH102 4D;1RZ RZH104,112,114;1RZ +6 | — | |
| 90919-15356 note |
Cord, Spark Plug Resistive, NO.1
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 90919-15412 |
Cord, Spark Plug Resistive, NO.1
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 90919-15412 |
Cord, Spark Plug Resistive, NO.1
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 90919-15412 |
Cord, Spark Plug Resistive, NO.1
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
| 19901C — Cord, Spark Plug Resistive, NO.2 | ||||
| 90919-15015 |
Cord, Spark Plug Resistive, NO.2
1989-08 → 1992-05
ended
|
2RZ RZH103,113,125 | — | |
| 90919-15019 note |
Cord, Spark Plug Resistive, NO.2
1989-08 → 1992-05
ended
|
1RZ RZH102,104,112,114 RHD | — | |
| 90919-15023 |
Cord, Spark Plug Resistive, NO.2
1989-08 → 1993-08
ended
|
1RZ RZH102 4D;1RZ RZH104,112,114;1RZ +6 | — | |
| 90919-15357 note |
Cord, Spark Plug Resistive, NO.2
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 90919-15413 |
Cord, Spark Plug Resistive, NO.2
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 90919-15413 |
Cord, Spark Plug Resistive, NO.2
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
| 90919-15413 |
Cord, Spark Plug Resistive, NO.2
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 19901D — Cord, Spark Plug Resistive, NO.3 | ||||
| 90919-15016 |
Cord, Spark Plug Resistive, NO.3
1989-08 → 1992-05
ended
|
2RZ RZH103,113,125 | — | |
| 90919-15020 note |
Cord, Spark Plug Resistive, NO.3
1989-08 → 1992-05
ended
|
1RZ RZH102,104,112,114 RHD | — | |
| 90919-15024 |
Cord, Spark Plug Resistive, NO.3
1989-08 → 1993-08
ended
|
1RZ RZH102 4D;1RZ RZH104,112,114;1RZ +6 | — | |
| 90919-15358 note |
Cord, Spark Plug Resistive, NO.3
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 90919-15414 |
Cord, Spark Plug Resistive, NO.3
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 90919-15414 |
Cord, Spark Plug Resistive, NO.3
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 90919-15414 |
Cord, Spark Plug Resistive, NO.3
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
| 19901E — Cord, Spark Plug Resistive, NO.4 | ||||
| 90919-15017 |
Cord, Spark Plug Resistive, NO.4
1989-08 → 1992-05
ended
|
2RZ RZH103,113,125 | — | |
| 90919-15021 note |
Cord, Spark Plug Resistive, NO.4
1989-08 → 1992-05
ended
|
1RZ RZH102,104,112,114 RHD | — | |
| 90919-15025 |
Cord, Spark Plug Resistive, NO.4
1989-08 → 1993-08
ended
|
1RZ RZH102 4D;1RZ RZH104,112,114;1RZ +6 | — | |
| 90919-15359 note |
Cord, Spark Plug Resistive, NO.4
1992-05 → 1993-08
ended
|
1RZ,2RZ RZH10#,11#,125 RHD | — | |
| 90919-15415 |
Cord, Spark Plug Resistive, NO.4
1993-08 → —
|
2RZ .4D S RZH115;2RZE +10 | — | |
| 90919-15415 |
Cord, Spark Plug Resistive, NO.4
1999-07 → 2002-08
ended
|
1RZ RZH112 4D 06S | — | |
| 90919-15415 |
Cord, Spark Plug Resistive, NO.4
1999-07 → —
|
1RZ RZH112 5D;1RZ RZH112 +2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
