Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

23 part groups · 4 illustrations

Illustrations

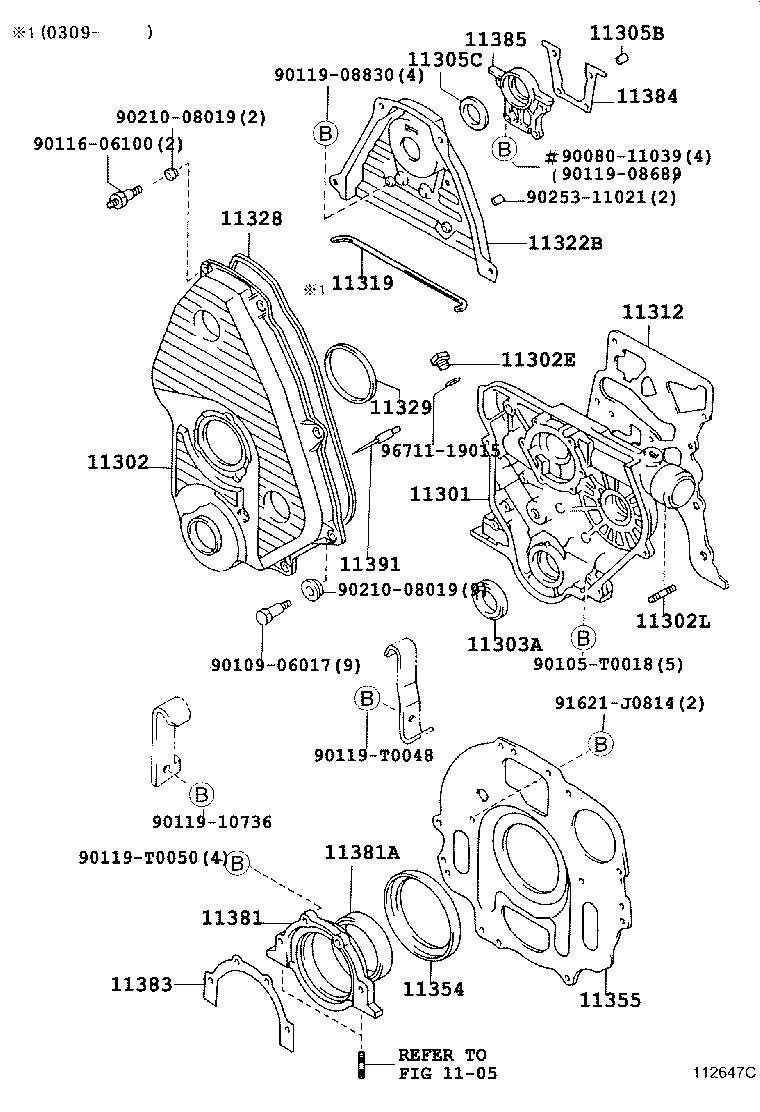

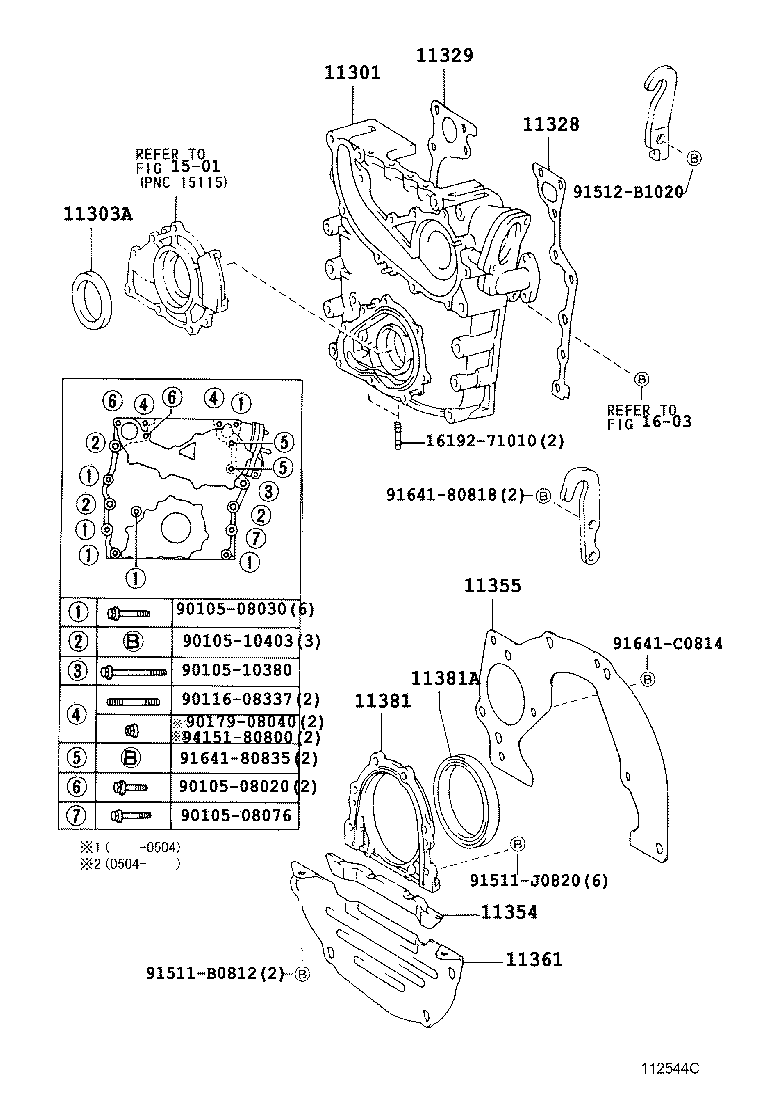

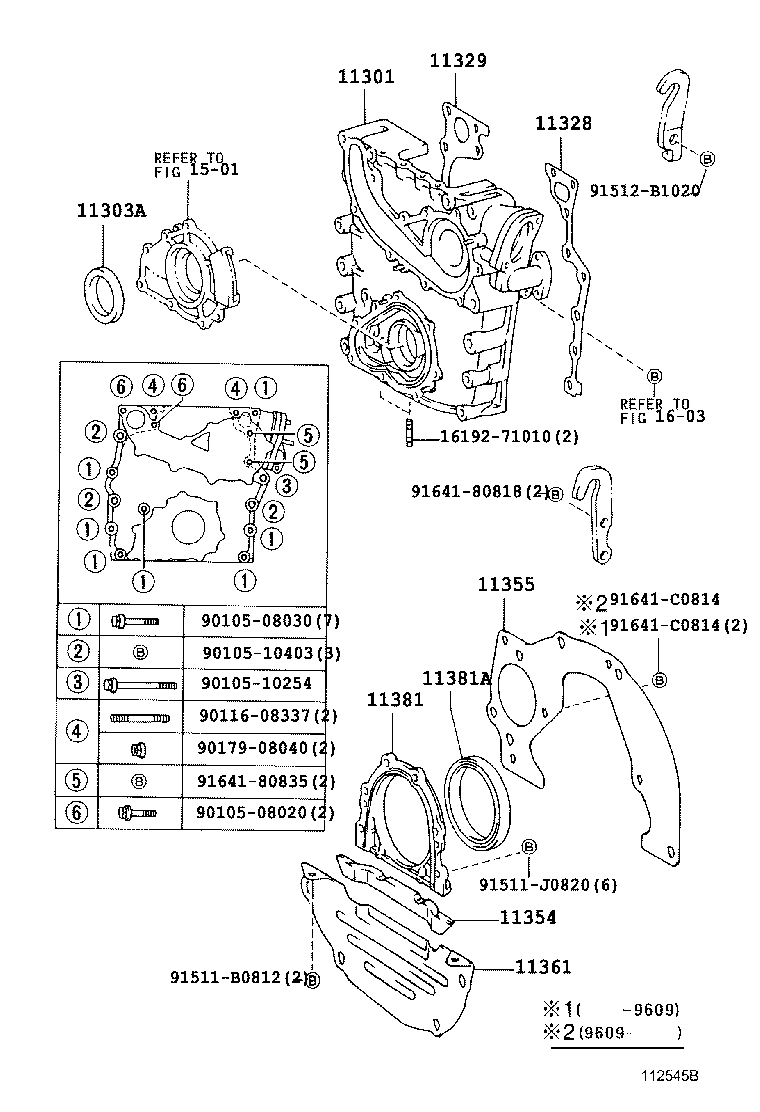

Figure 111183L 111183L 1989-08 → — Figure 112647C 112647C 2002-10 → — Figure 112545B 112545B 1989-08 → 1997-04 Figure 112544D 112544D 1997-04 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11302 Cover Sub-assy, Timing Chain OR Belt
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302L Bolt, Stud(FOR INJECTION PUMP)
11303A Seal, Oil(FOR CRANKSHAFT FRONT)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11305C Seal, Oil(FOR CAMSHAFT)
11312 Gasket, Front End Plate
11319 Gasket, Timing Belt Cover, NO.3
11322B Cover, Timing Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
