Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

8 part groups · 2 illustrations

Illustrations

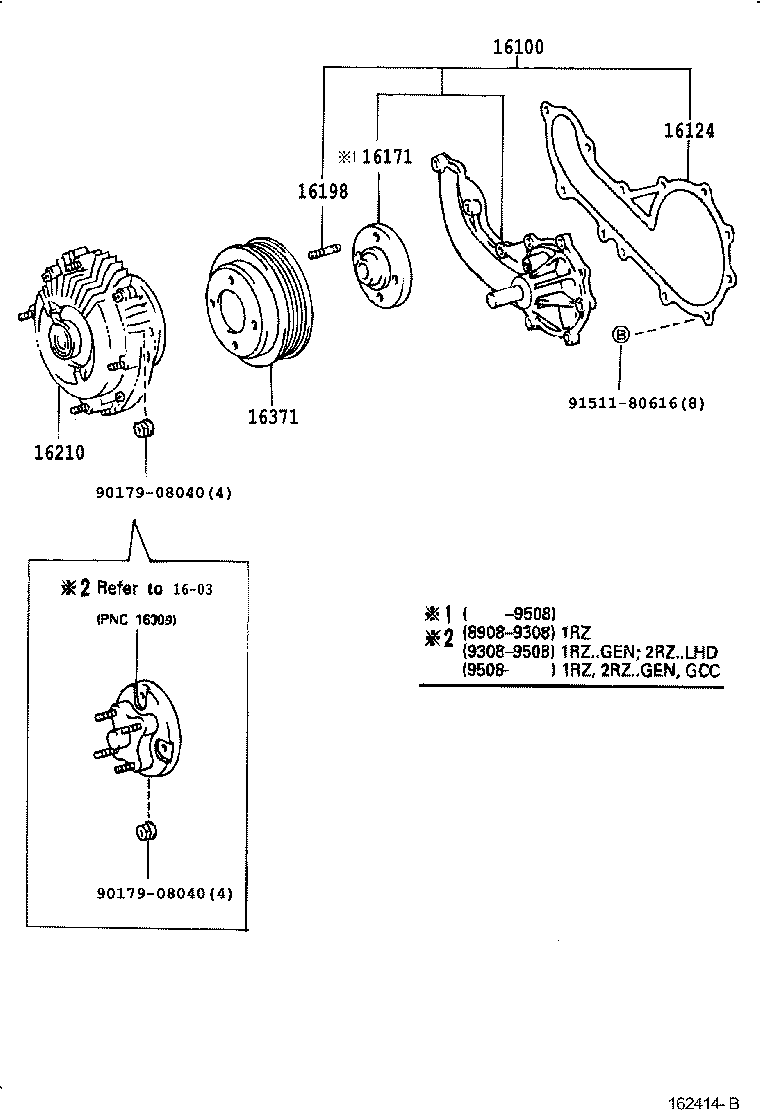

Figure 160489F 160489F 1989-08 → — Figure 162414B 162414B 1989-08 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16124 Gasket, Water Pump Cover
16171 Seat, Water Pump Pulley
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16210 Coupling Assy, Fluid
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
