Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 3 illustrations

Illustrations

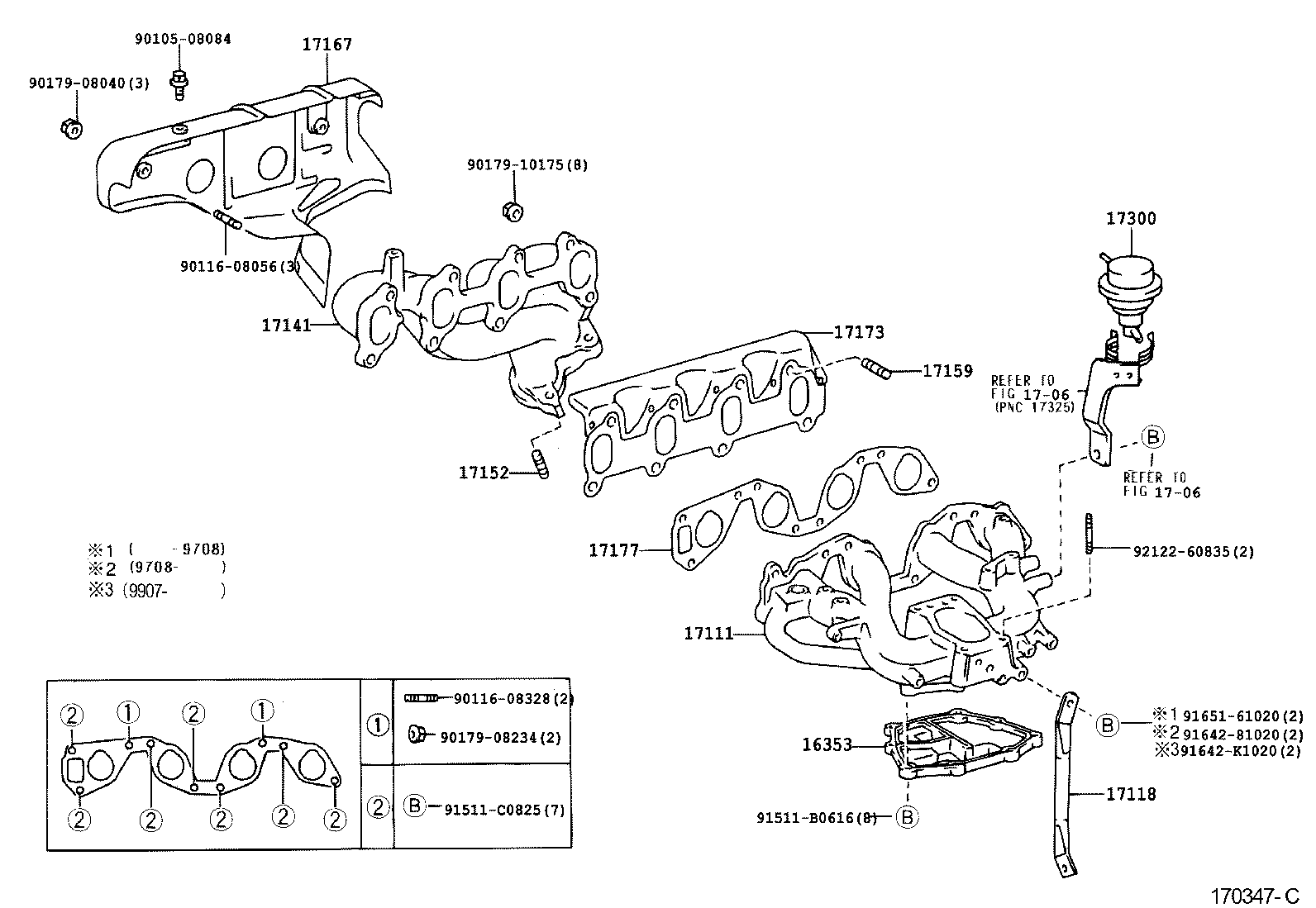

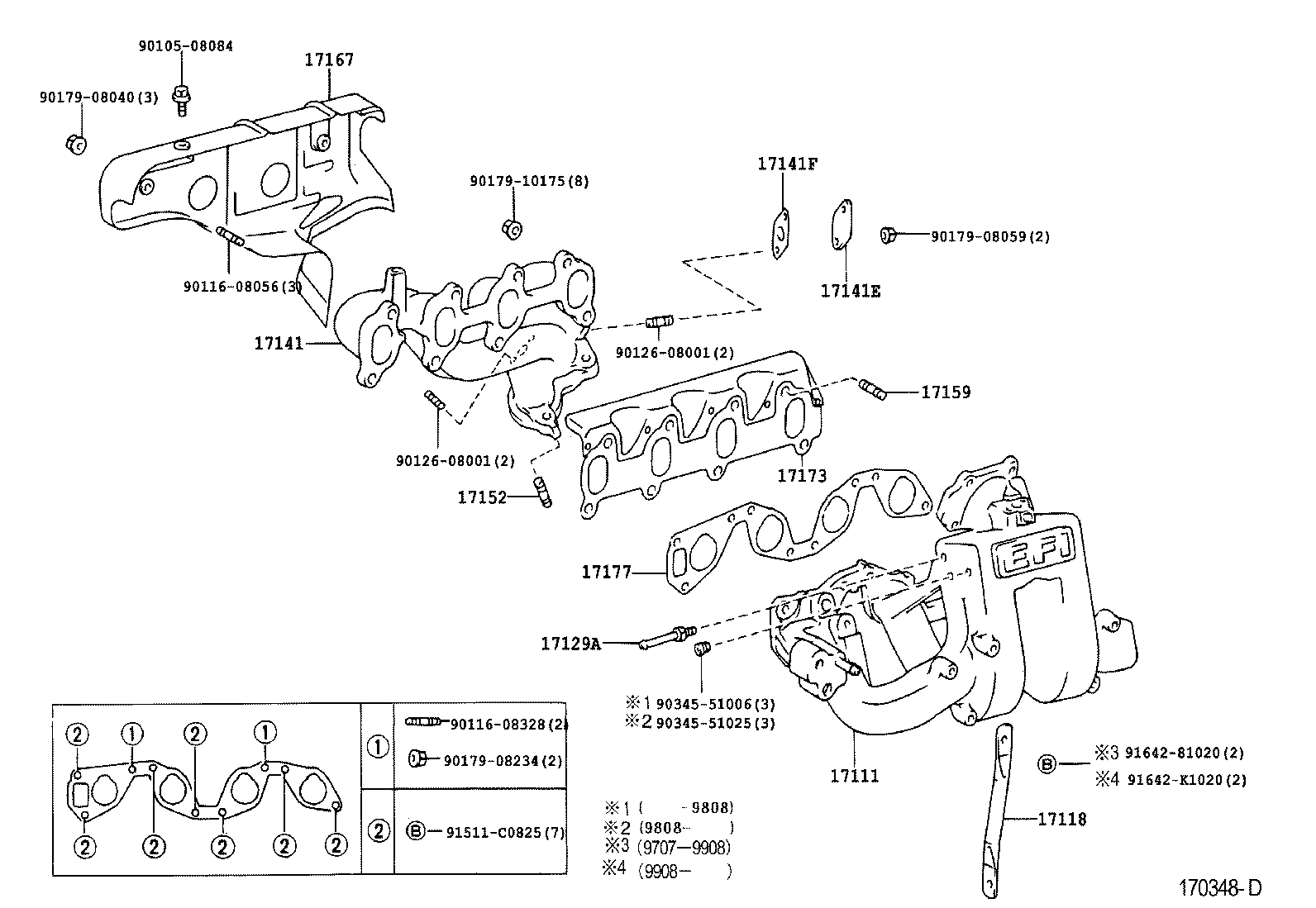

Figure 172352E 172352E 1989-08 → — Figure 170347C 170347C 1989-08 → — Figure 170348D 170348D 1989-08 → —

Part groups

PNCDescription
16353 Flange, Water By-pass
17111 Manifold, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17129A Union, NO.1
17141 Manifold, Exhaust
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17300 Valve Assy, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
