Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

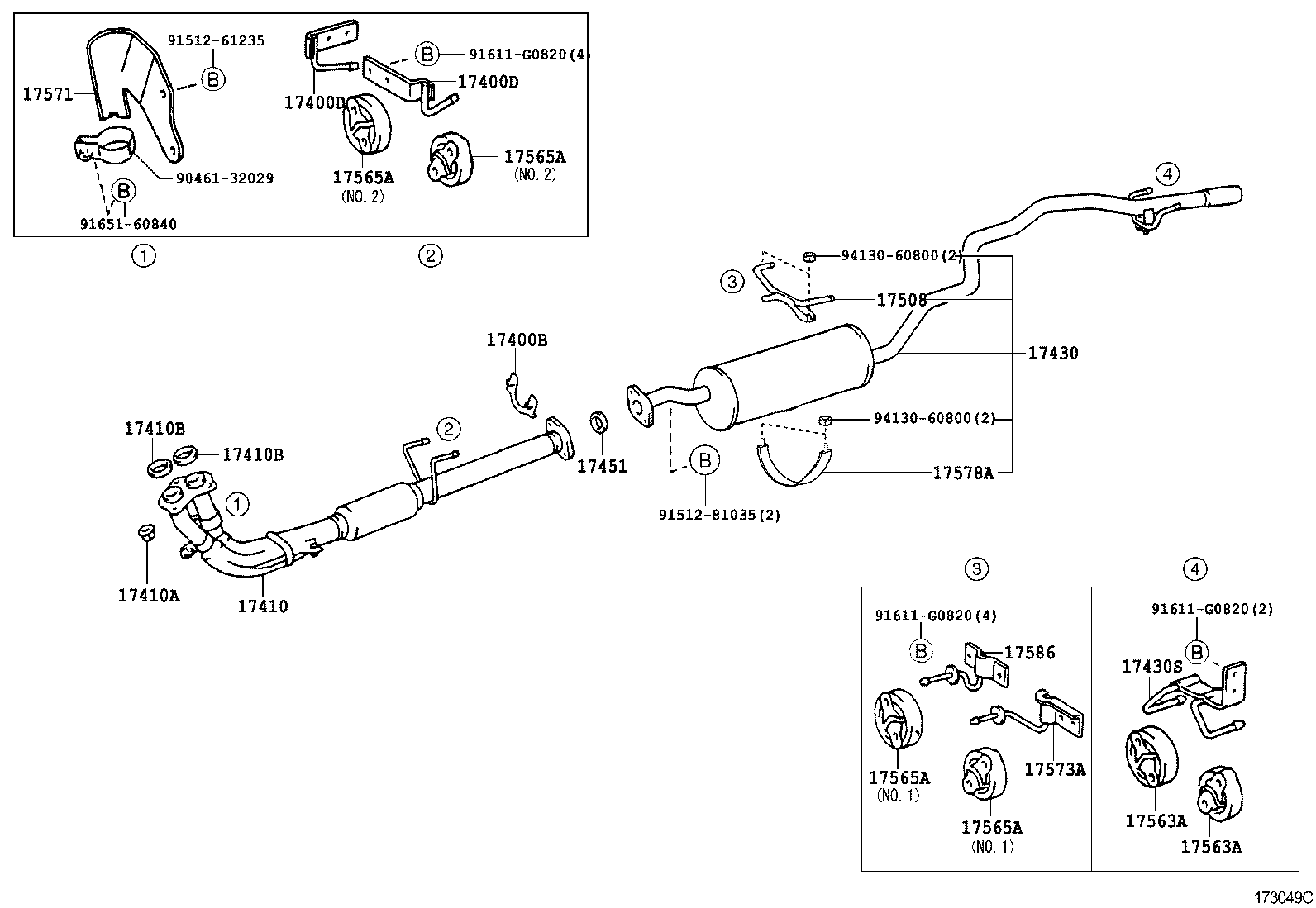

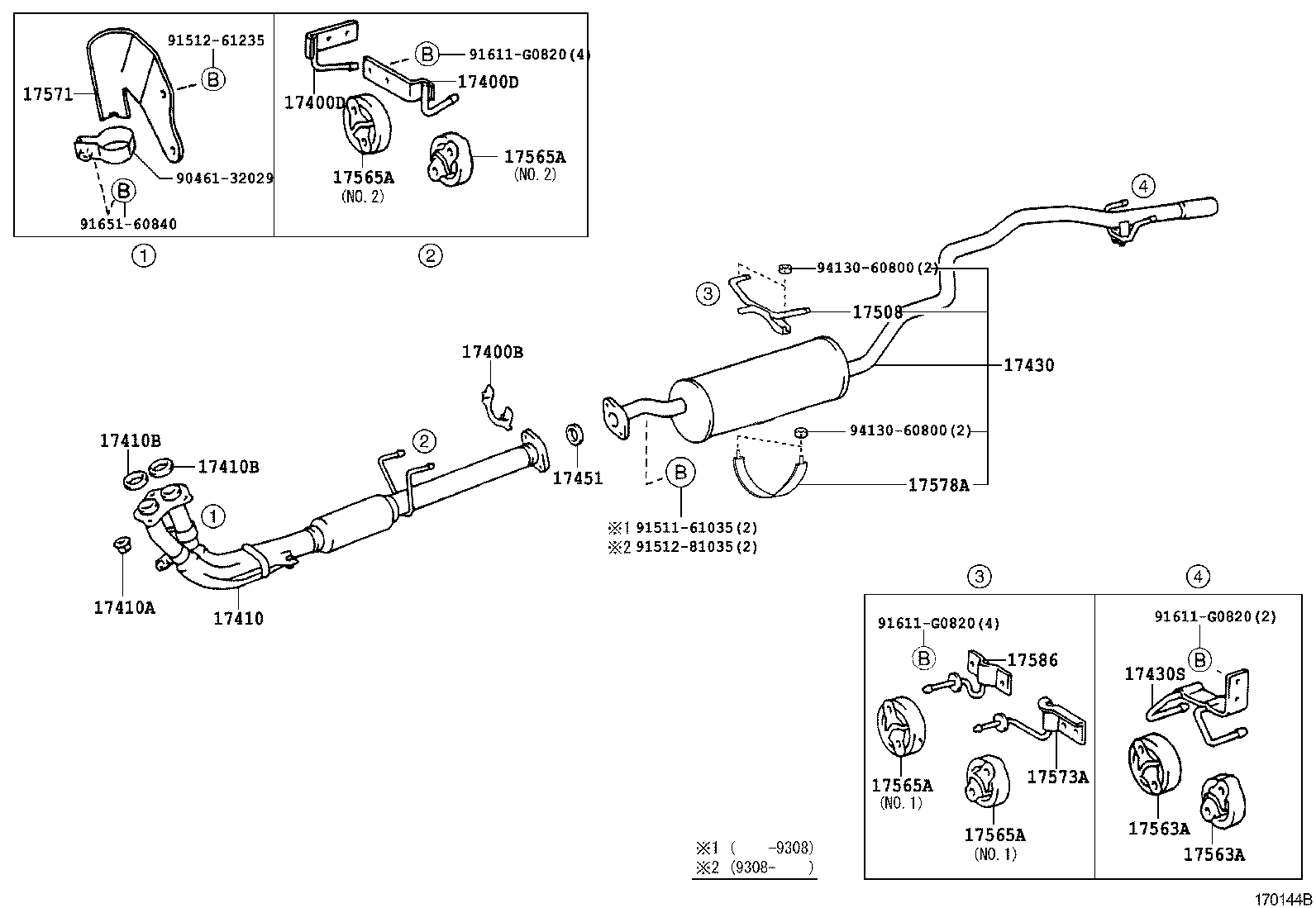

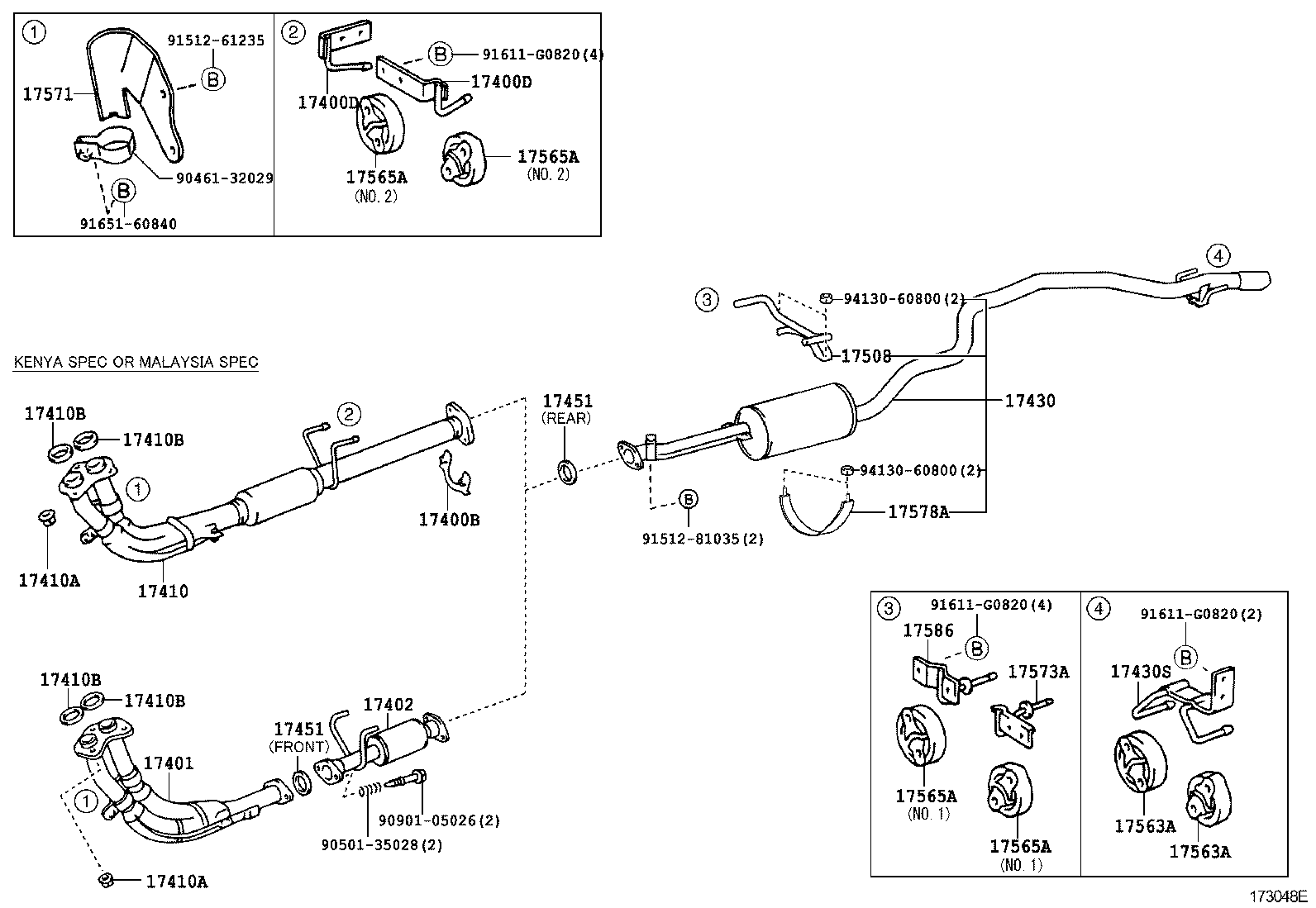

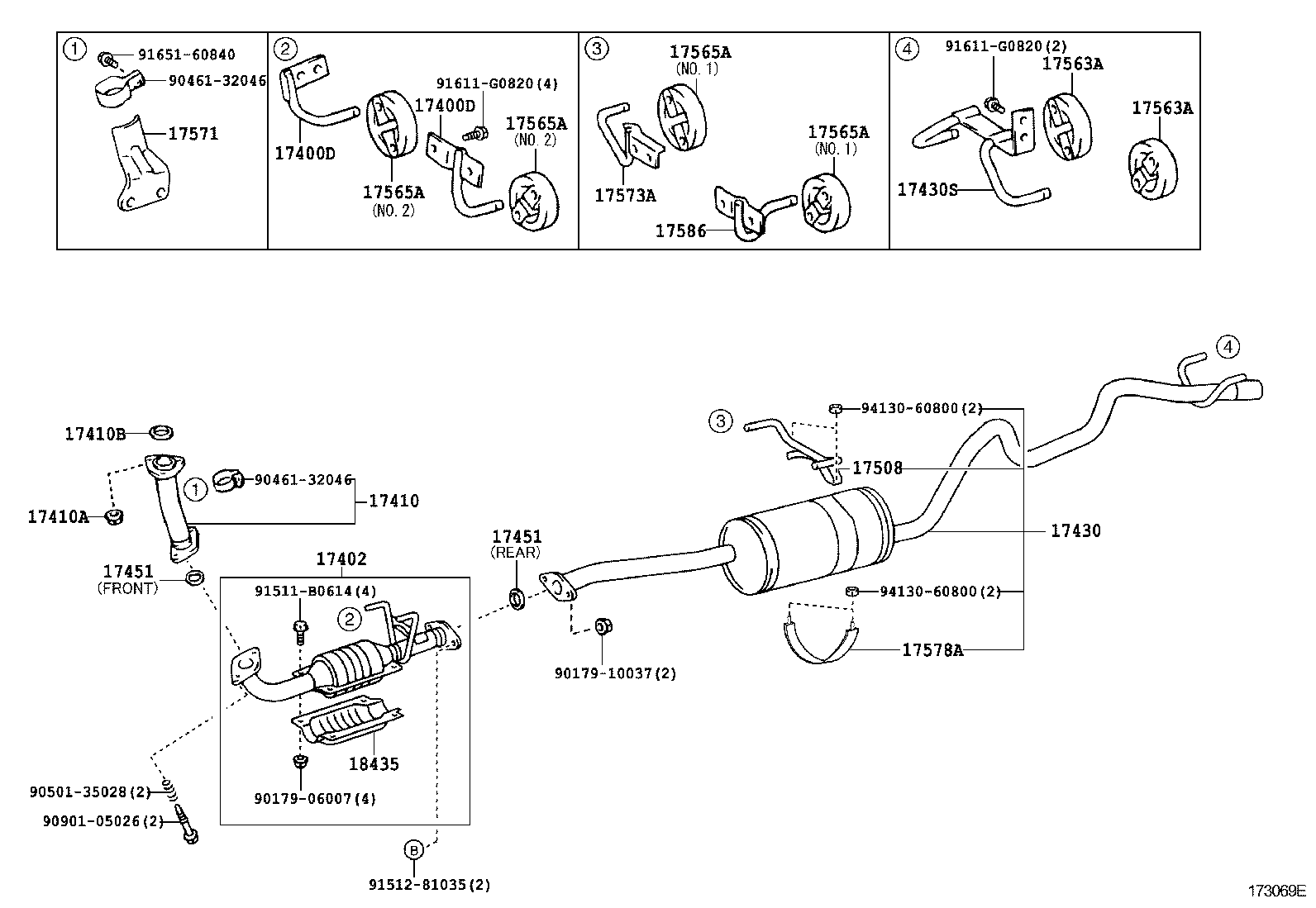

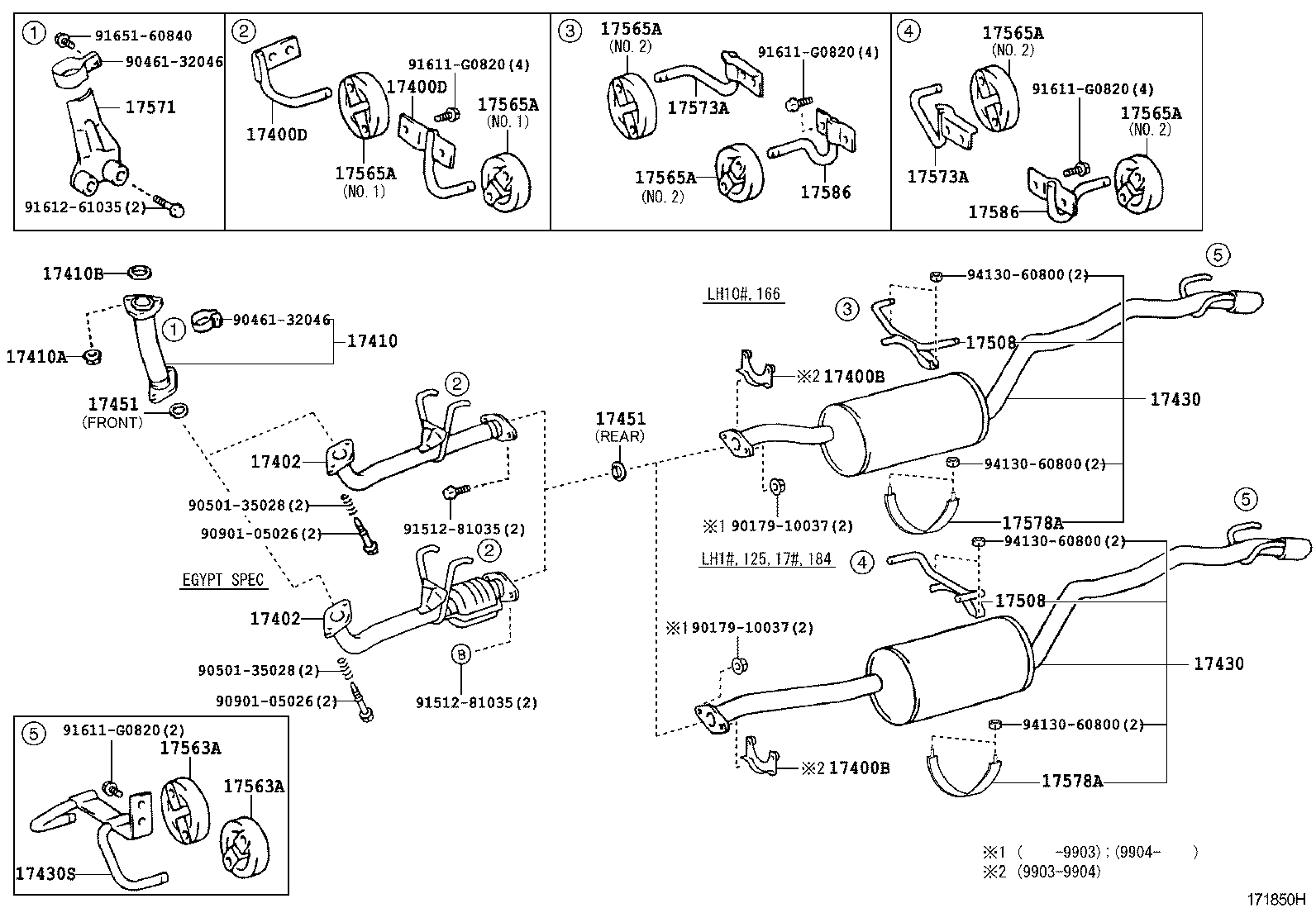

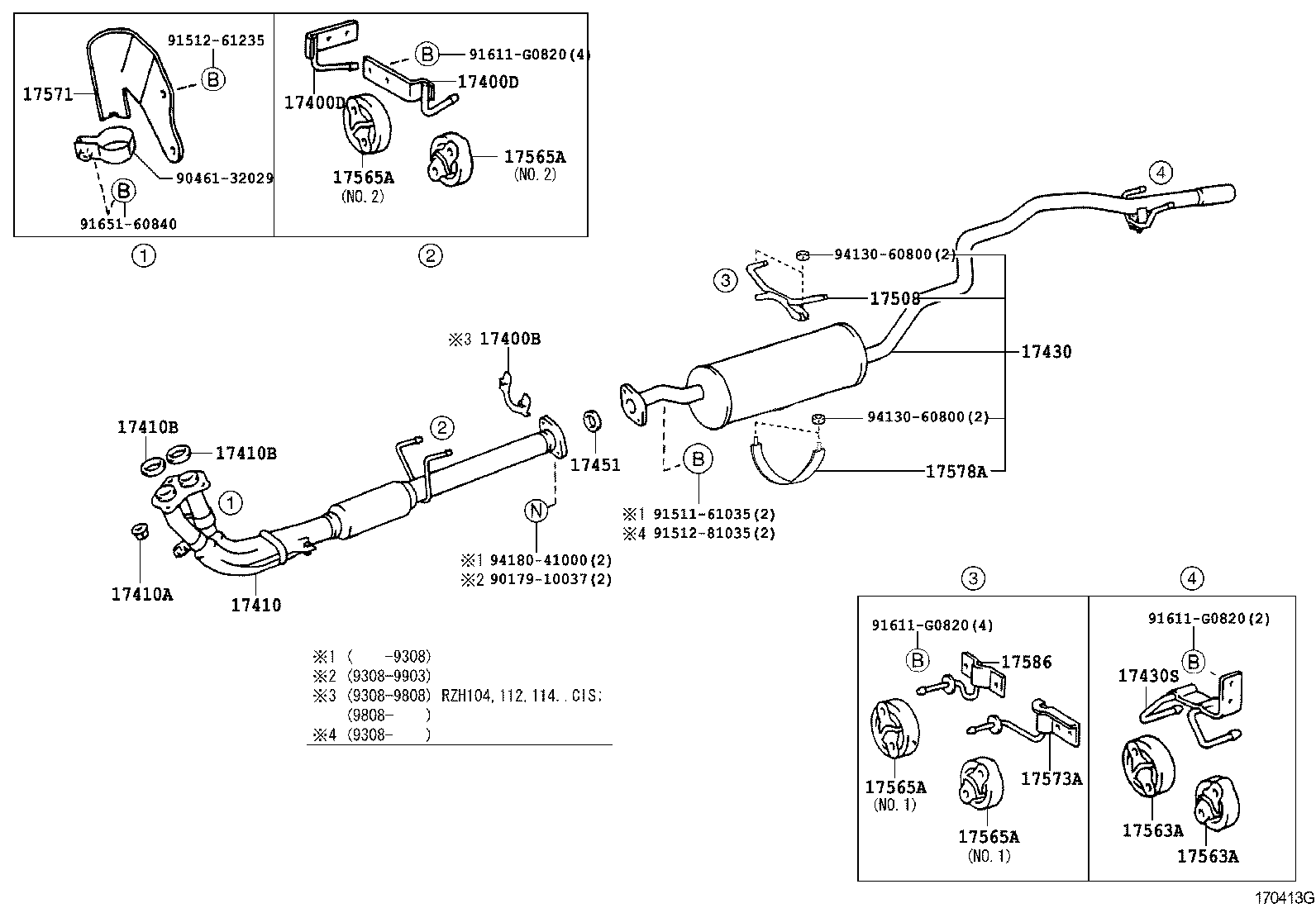

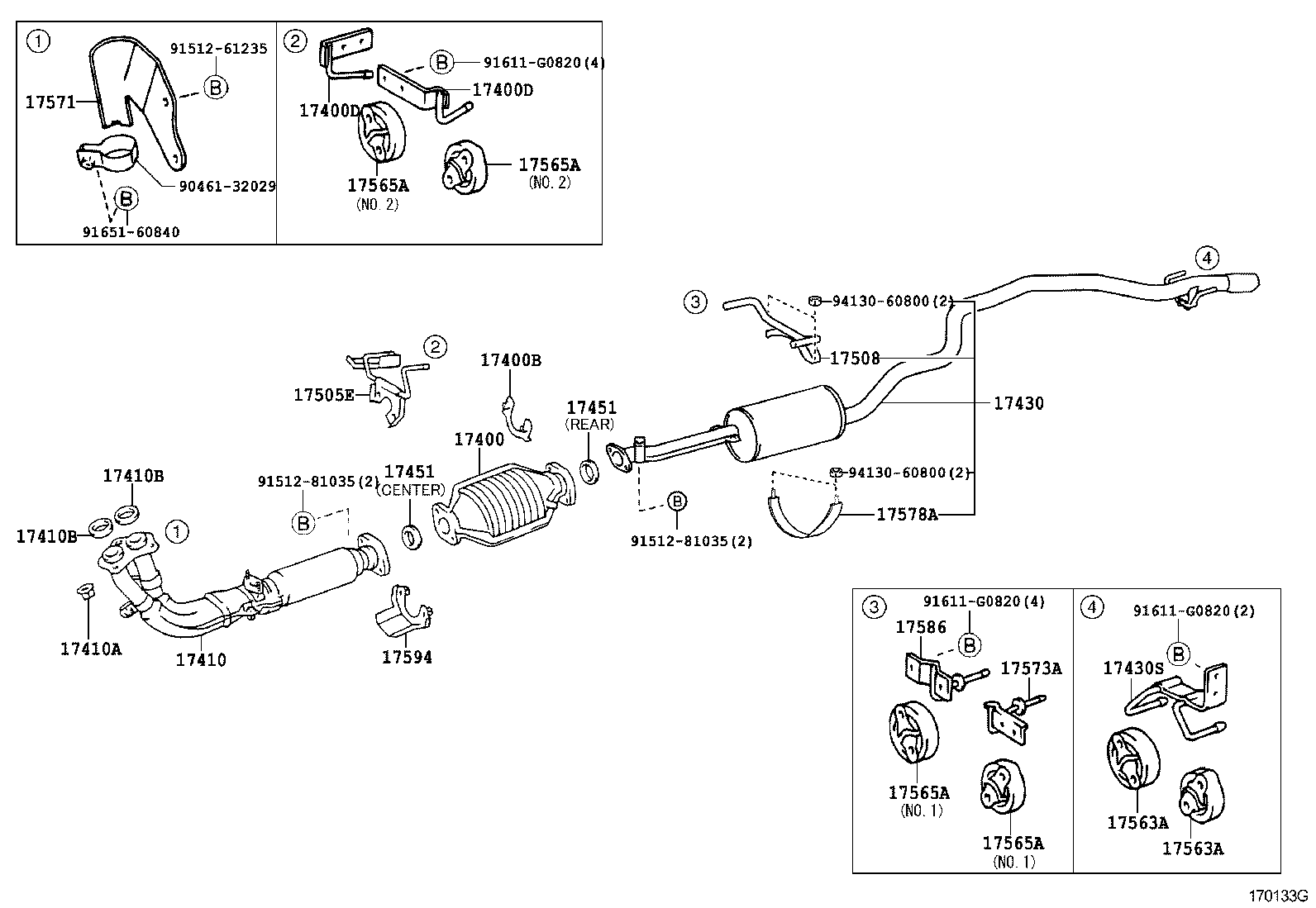

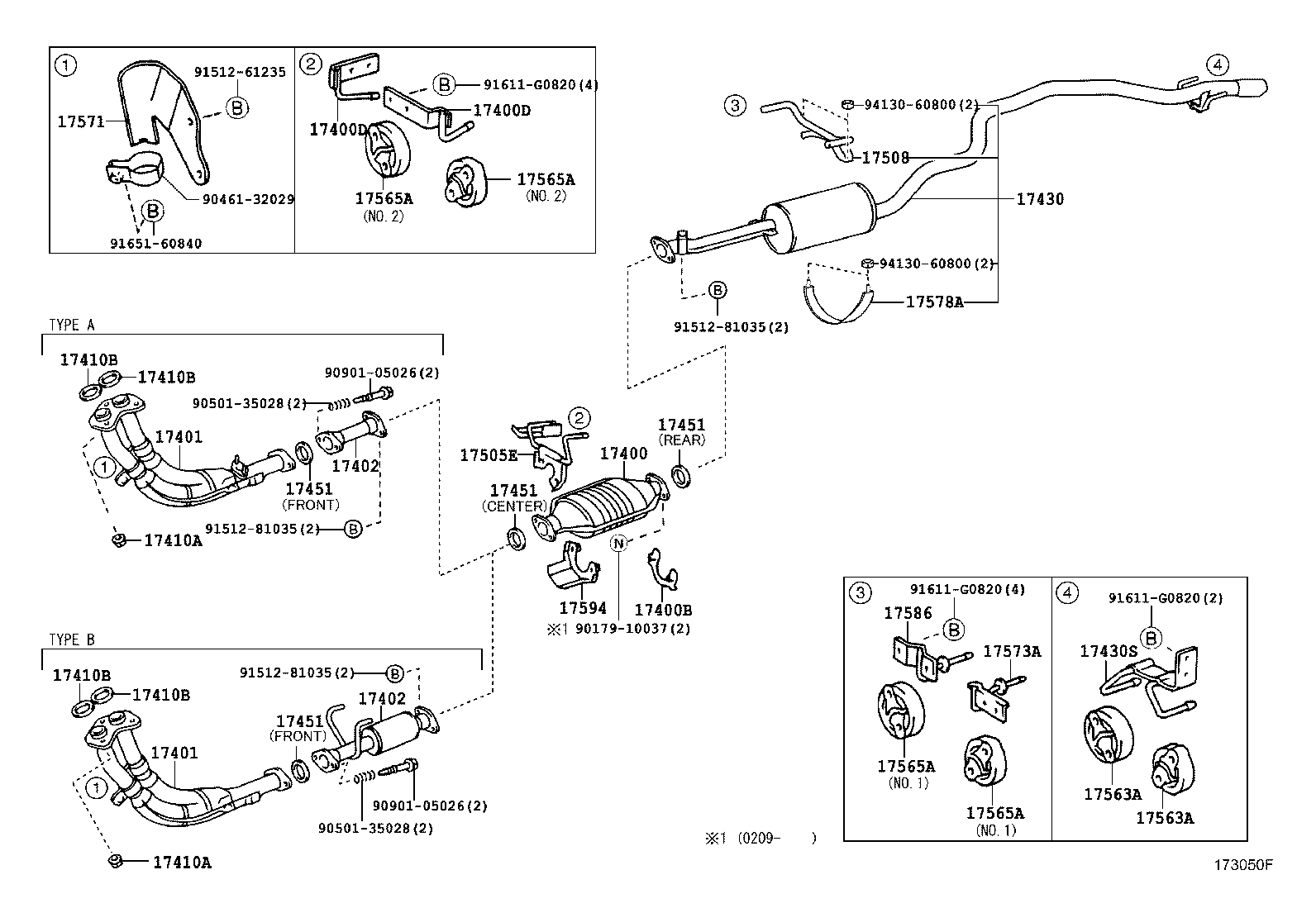

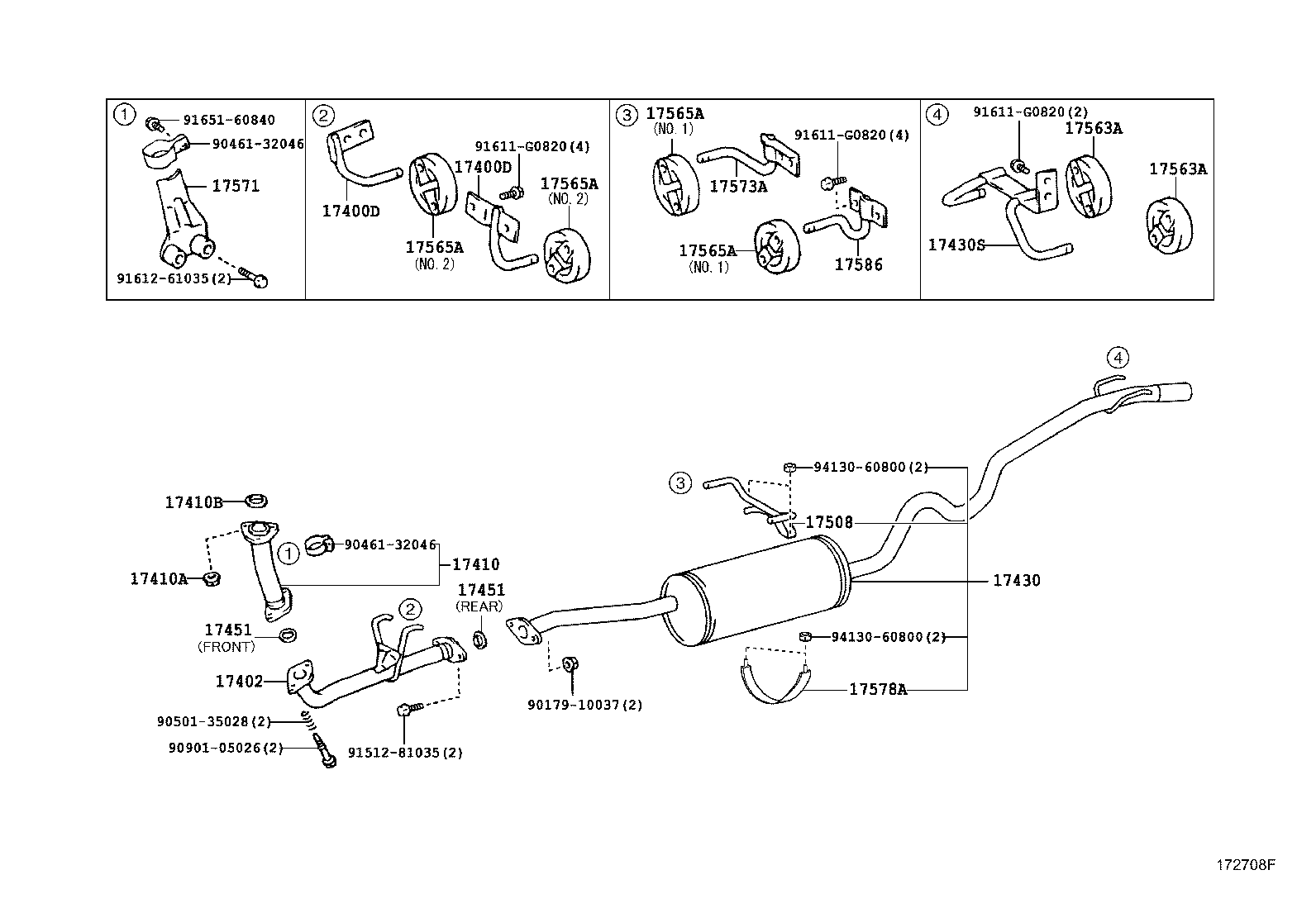

Exhaust Pipe
22 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17400B | Retainer, Exhaust Pipe |
| 17400D | Bracket, Catalytic Converter Support |
| 17401 | Pipe Sub-assy, Exhaust, Front |
| 17402 | Pipe Sub-assy, Exhaust, Front NO.2 |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430S | Bracket, Exhaust Tailpipe (FOR REAR) |
| 17451 | Gasket, Exhaust Pipe |
| 17505E | Support Sub-assy, Catalytic Converter |
| 17508 | Support Sub-assy, Exhaust Pipe, NO.3 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17578A | Clamp, Muffler |
| 17581A | Damper, Exhaust Pipe |
| 17586 | Bracket, Heat Insulator, NO.1 |
| 17594 | Protector, Exhaust Pipe, NO.2 |
| 18435 | Protector, Catalytic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
