Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

27 part groups · 12 illustrations

Illustrations

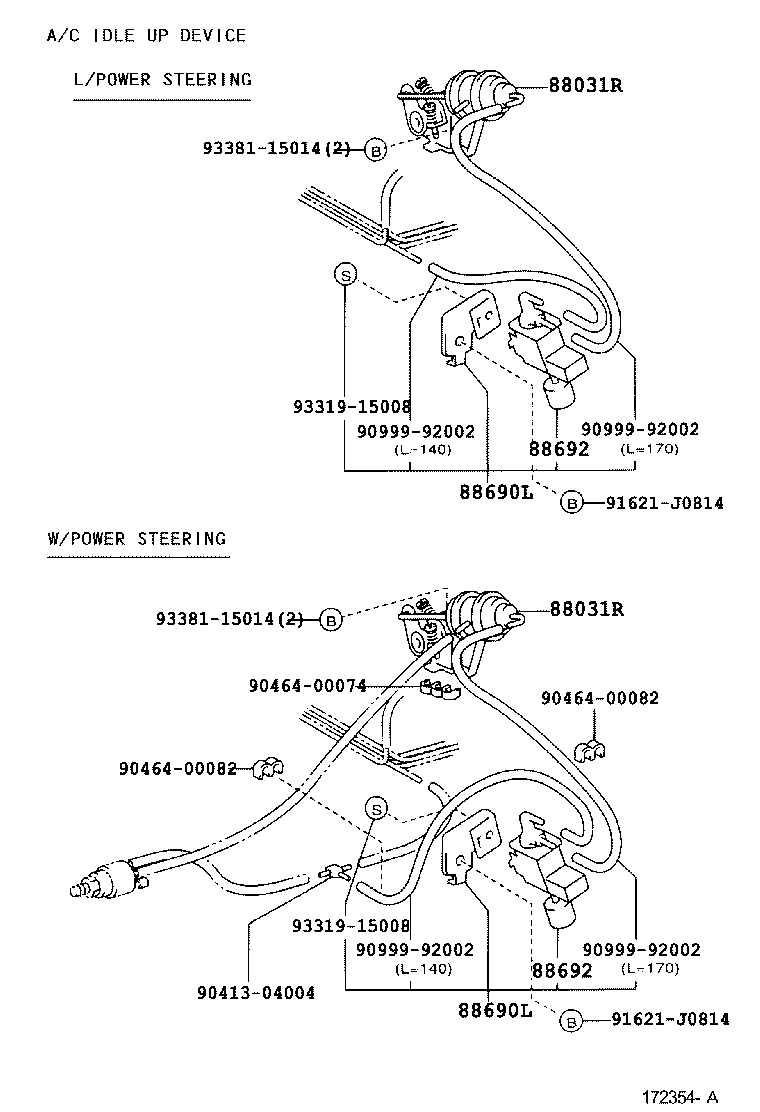

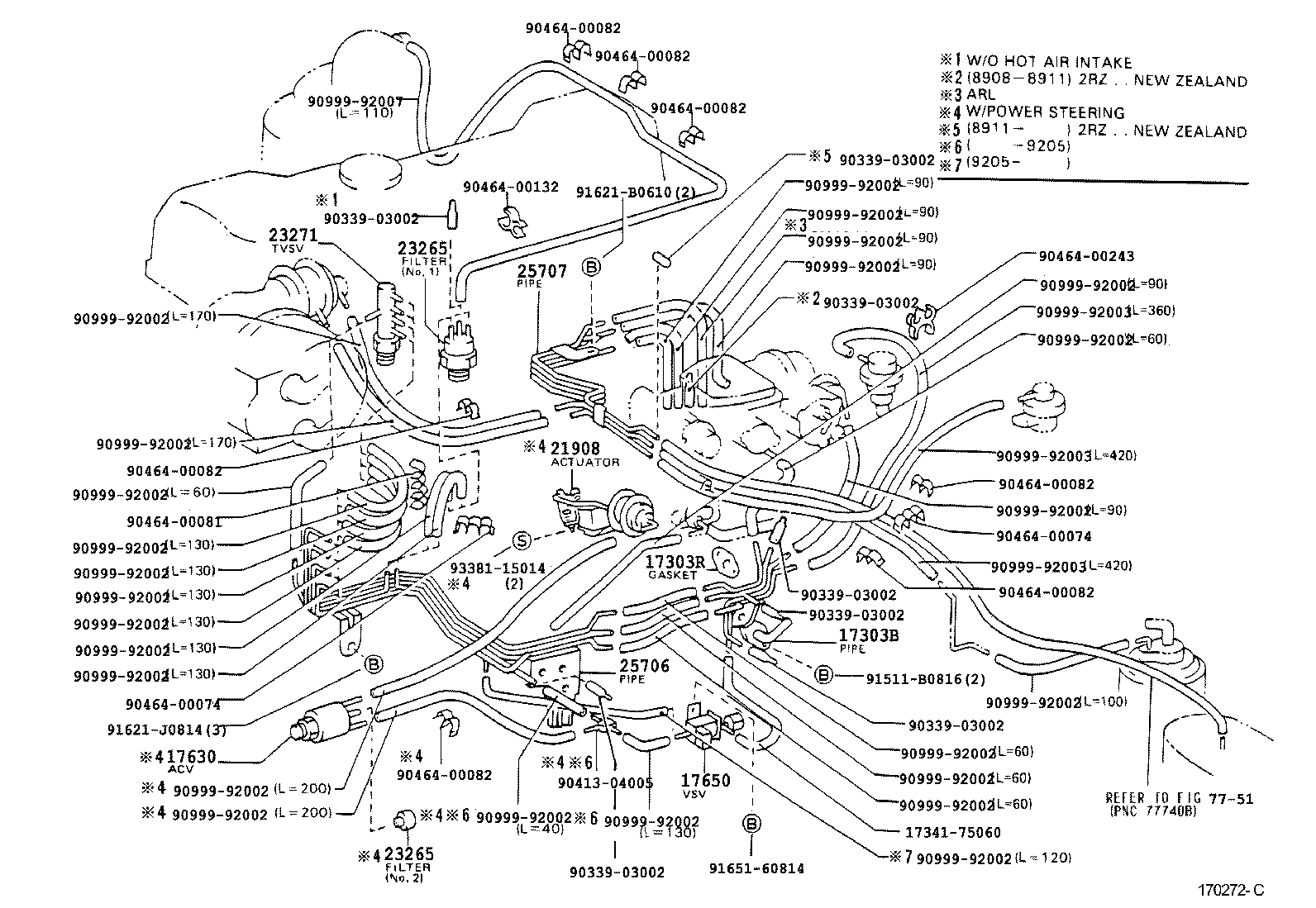

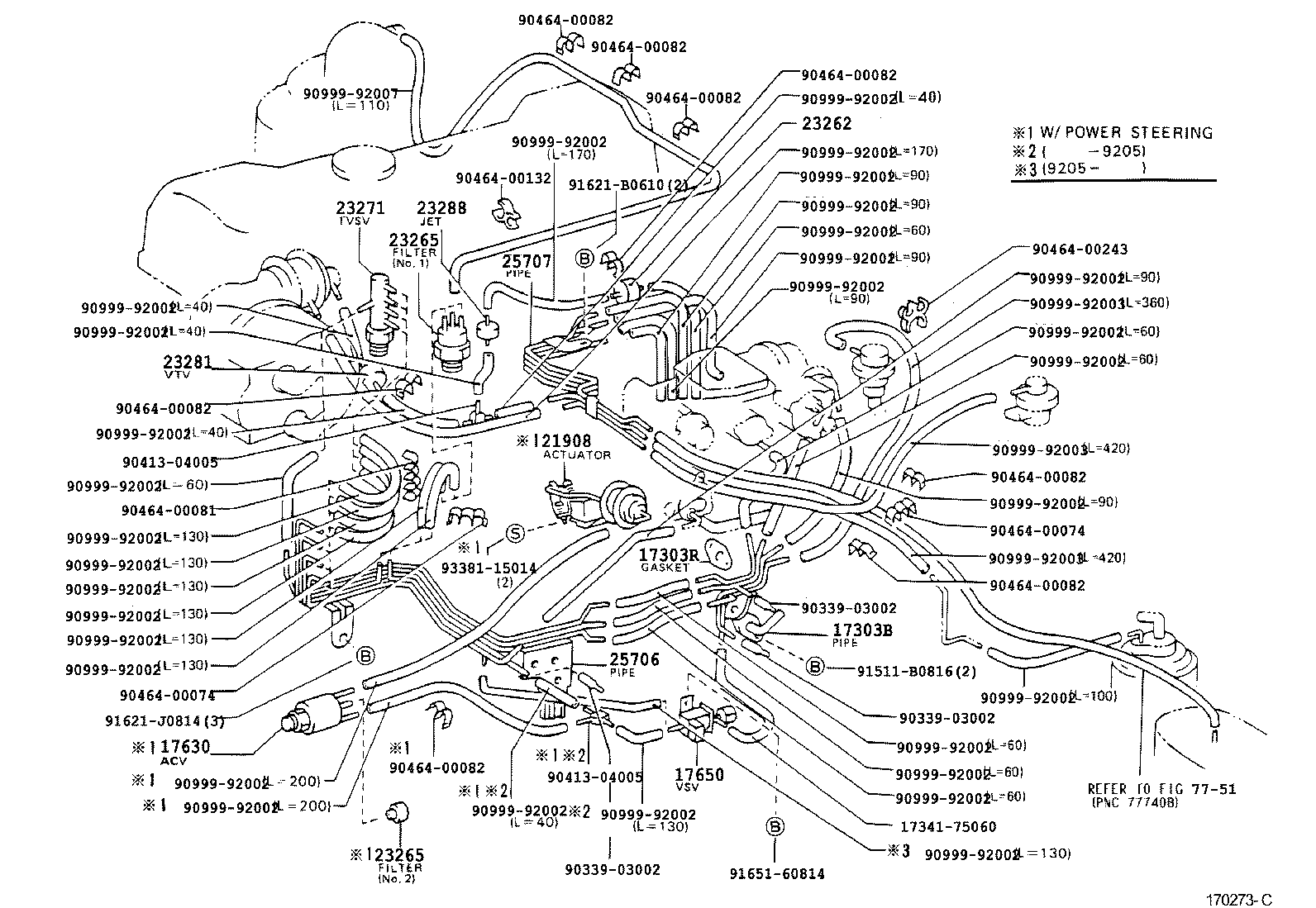

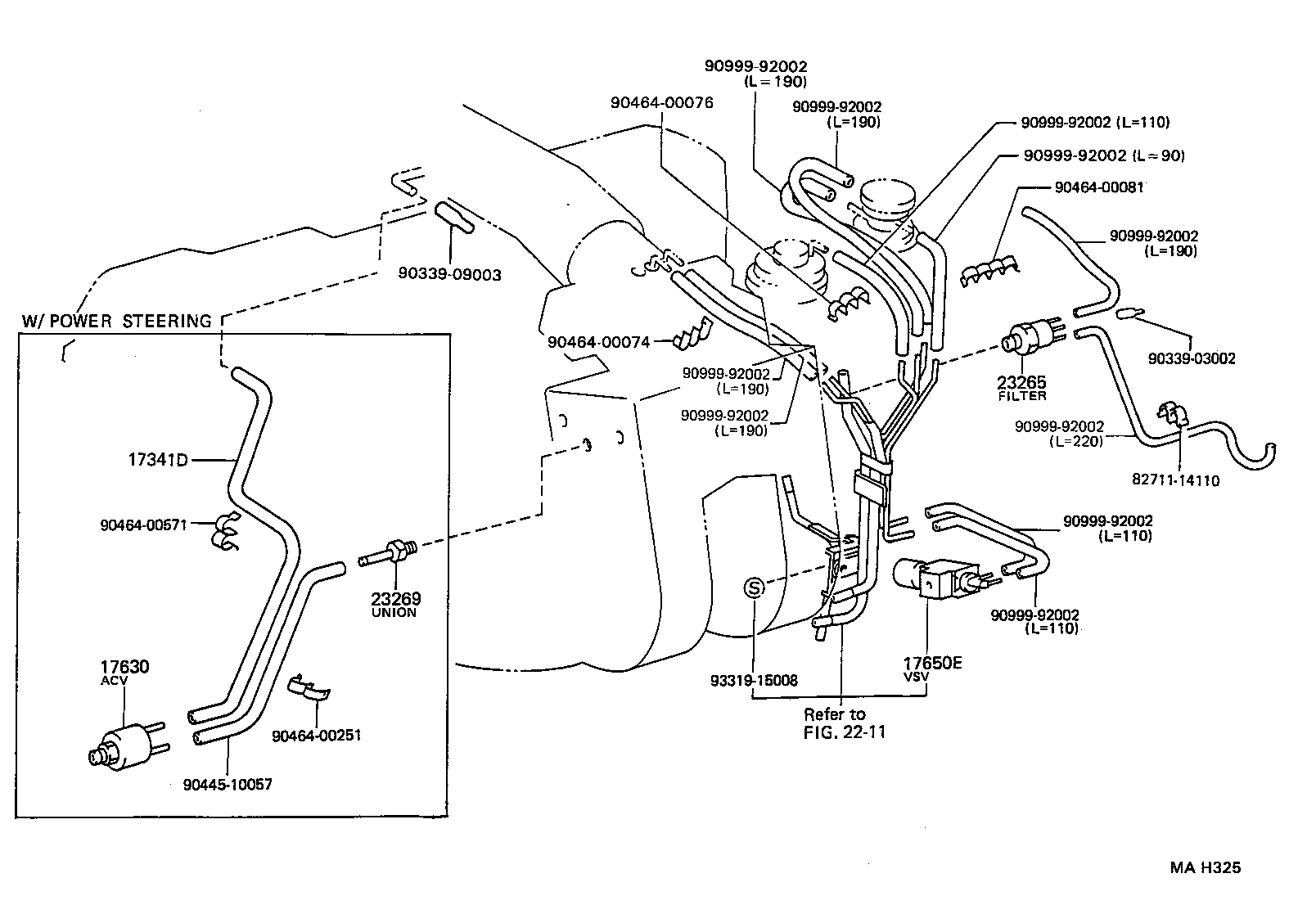

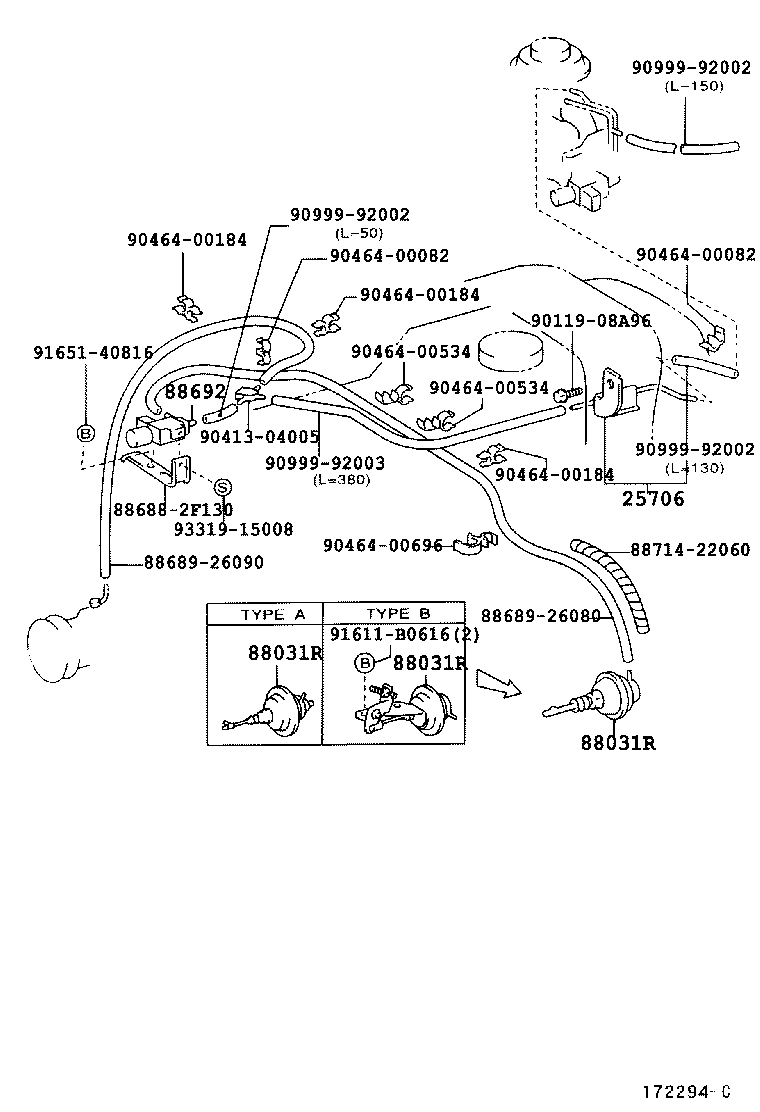

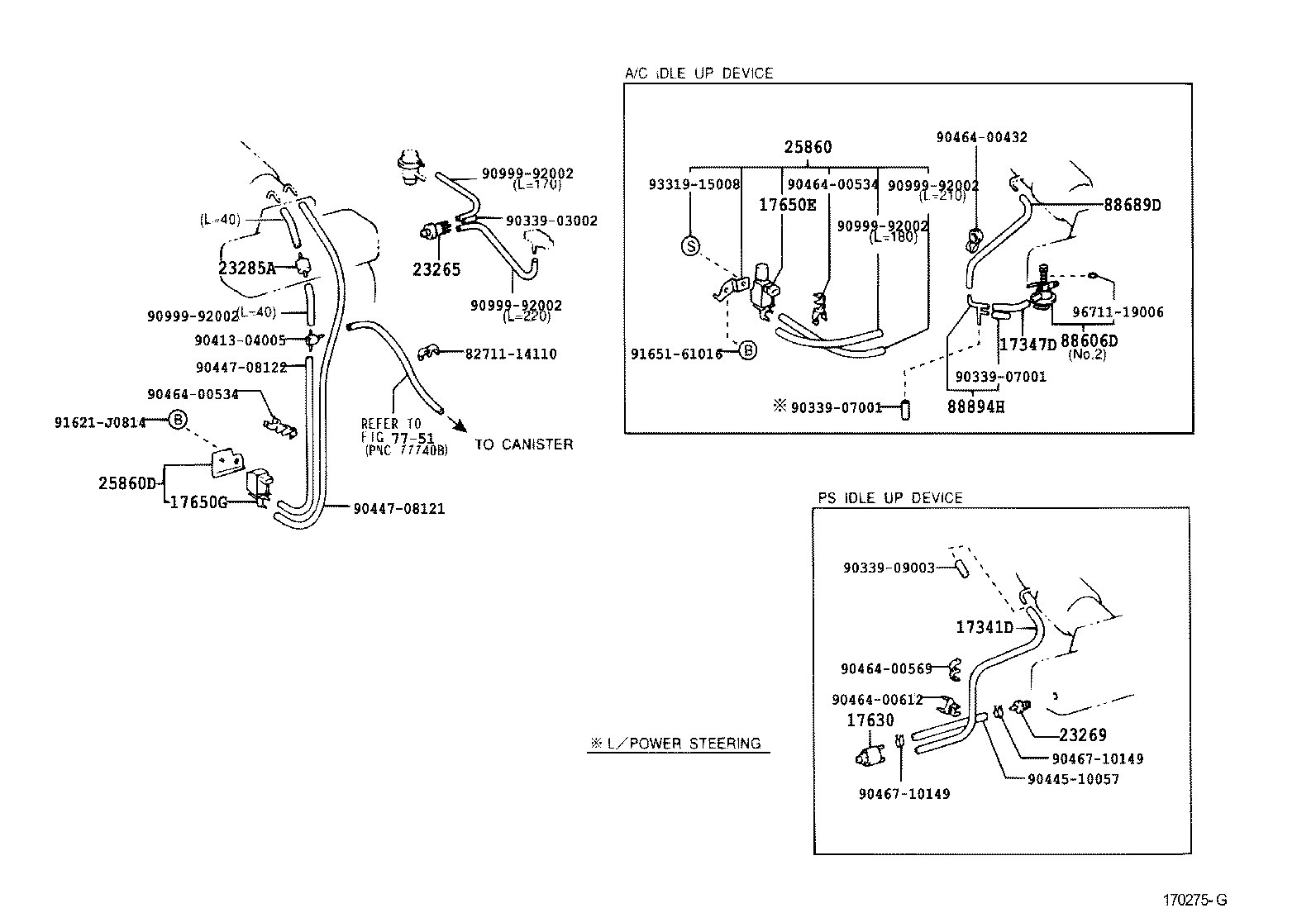

Figure 170021 170021 1989-08 → — Figure 171833D 171833D 1998-08 → — Figure 172299A 172299A 1999-07 → — Figure 172294C 172294C 1999-07 → — Figure 172721 172721 2000-08 → — Figure 173063 173063 2001-08 → — Figure 173064A 173064A 2001-08 → — Figure 170272C 170272C 1989-08 → — Figure 170273C 170273C 1989-08 → — Figure 172354A 172354A 1993-08 → — Figure MAH325 MAH325 1994-05 → 1995-08 Figure 170275G 170275G 1995-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303R Gasket(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17347D Hose, Air, NO.7
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
21908 Actuator Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
88031R Actuator Set, Idle-up
88606D Diaphragm Sub-assy
88689D Hose, Cooler Vacuum NO.2
88690L Valve Assy, Magnet
88692 Valve, Magnet(FOR IDLE UP DEVICE)
88894H Joint, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
