Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

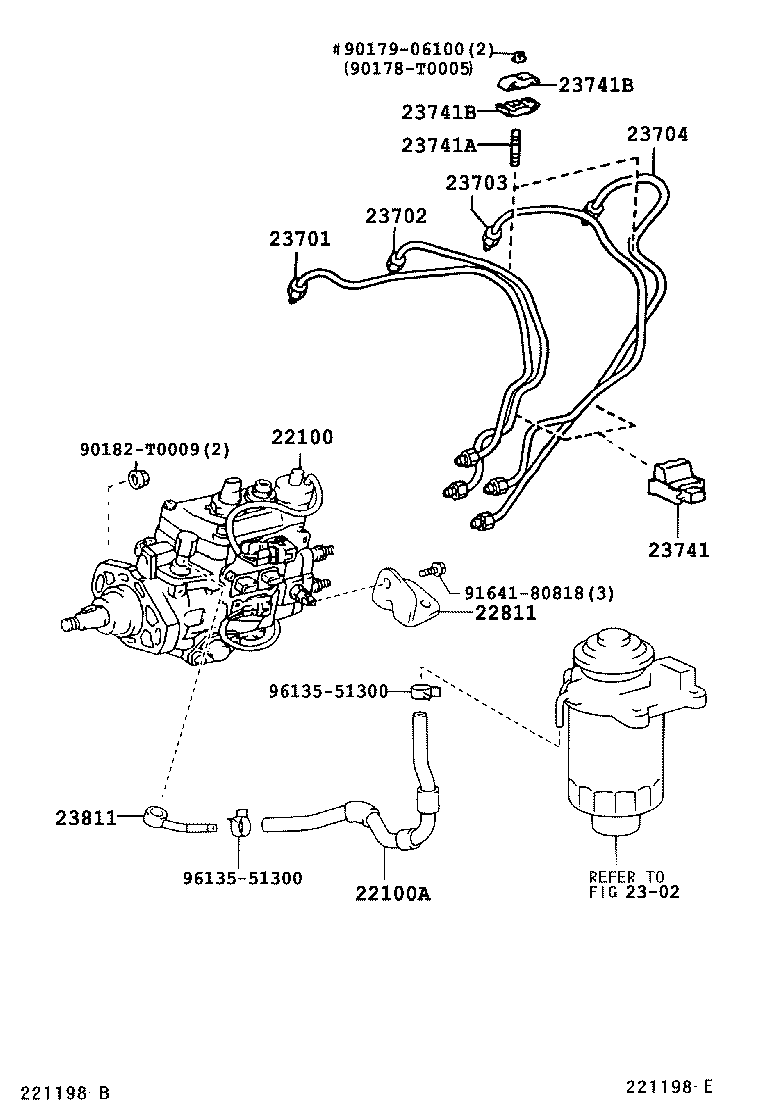

Injection Pump Assembly
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22100 | Pump Assy, Injection OR Supply |
| 22100A | Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER) |
| 22811 | Stay, Injection Pump, NO.1 |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23703 | Pipe Sub-assy, Injection, NO.3 |
| 23704 | Pipe Sub-assy, Injection, NO.4 |
| 23741 | Clamp, Injection Pipe, NO.1 |
| 23741A | Bolt, Stud(FOR INJECTION PIPE CLAMP) |
| 23741B | Clamp, Injection Pipe |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23811 | Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
