Injection Pump Body

121 part groups · 27 illustrations

Illustrations

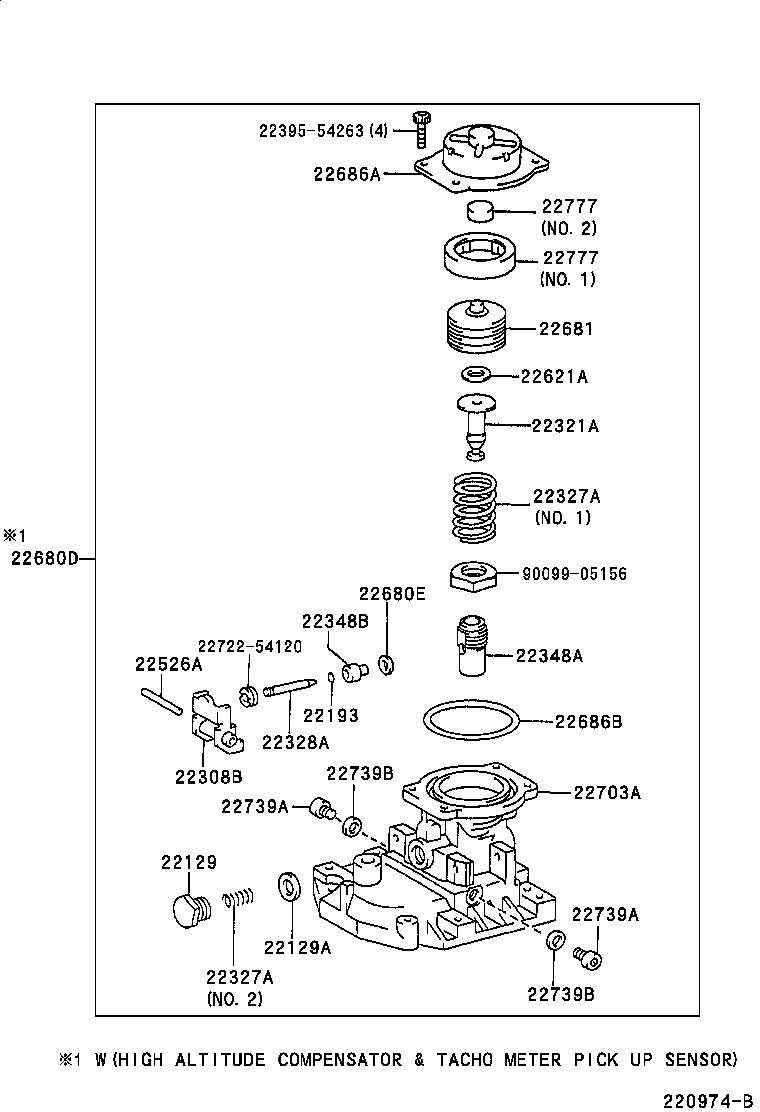

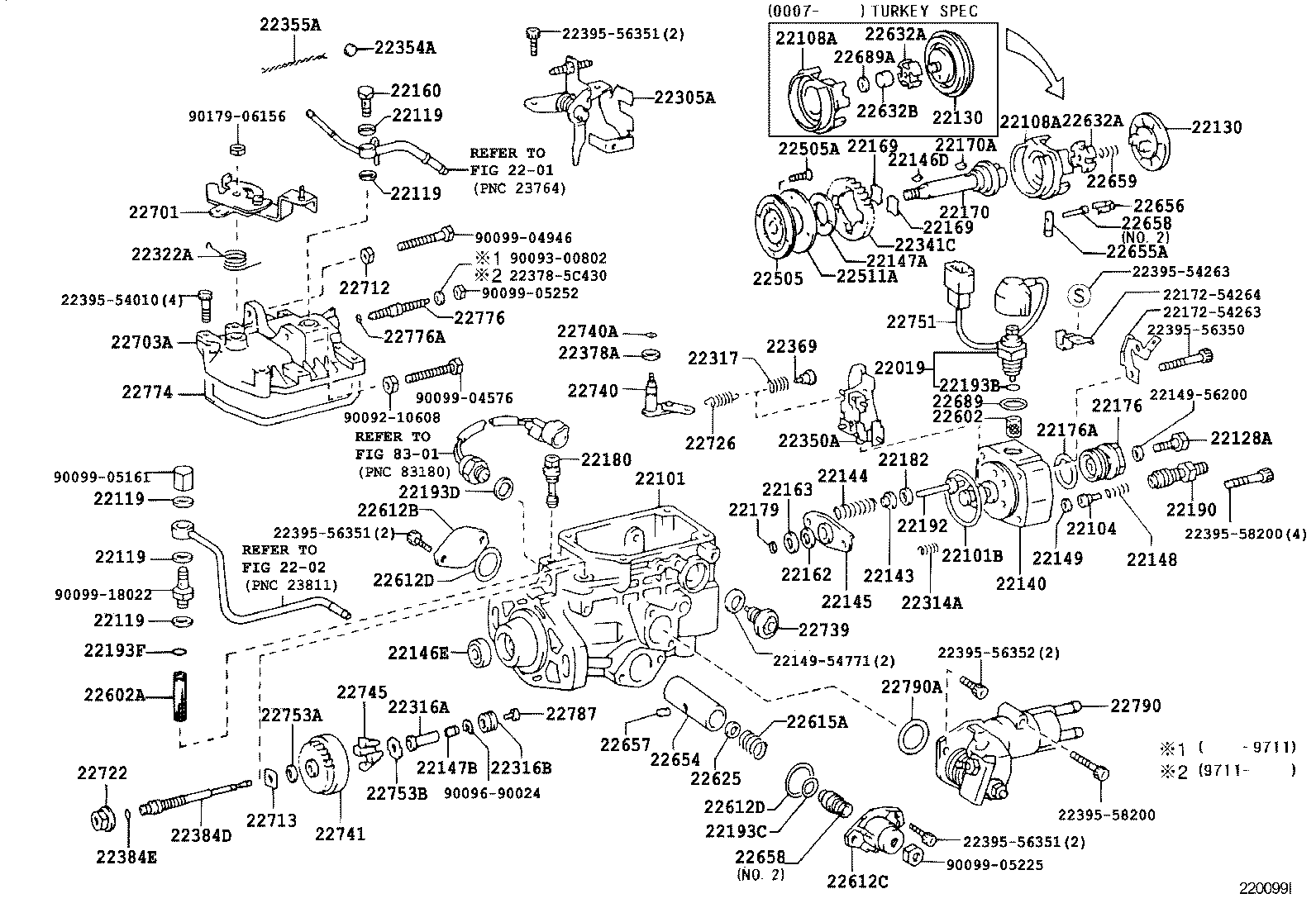

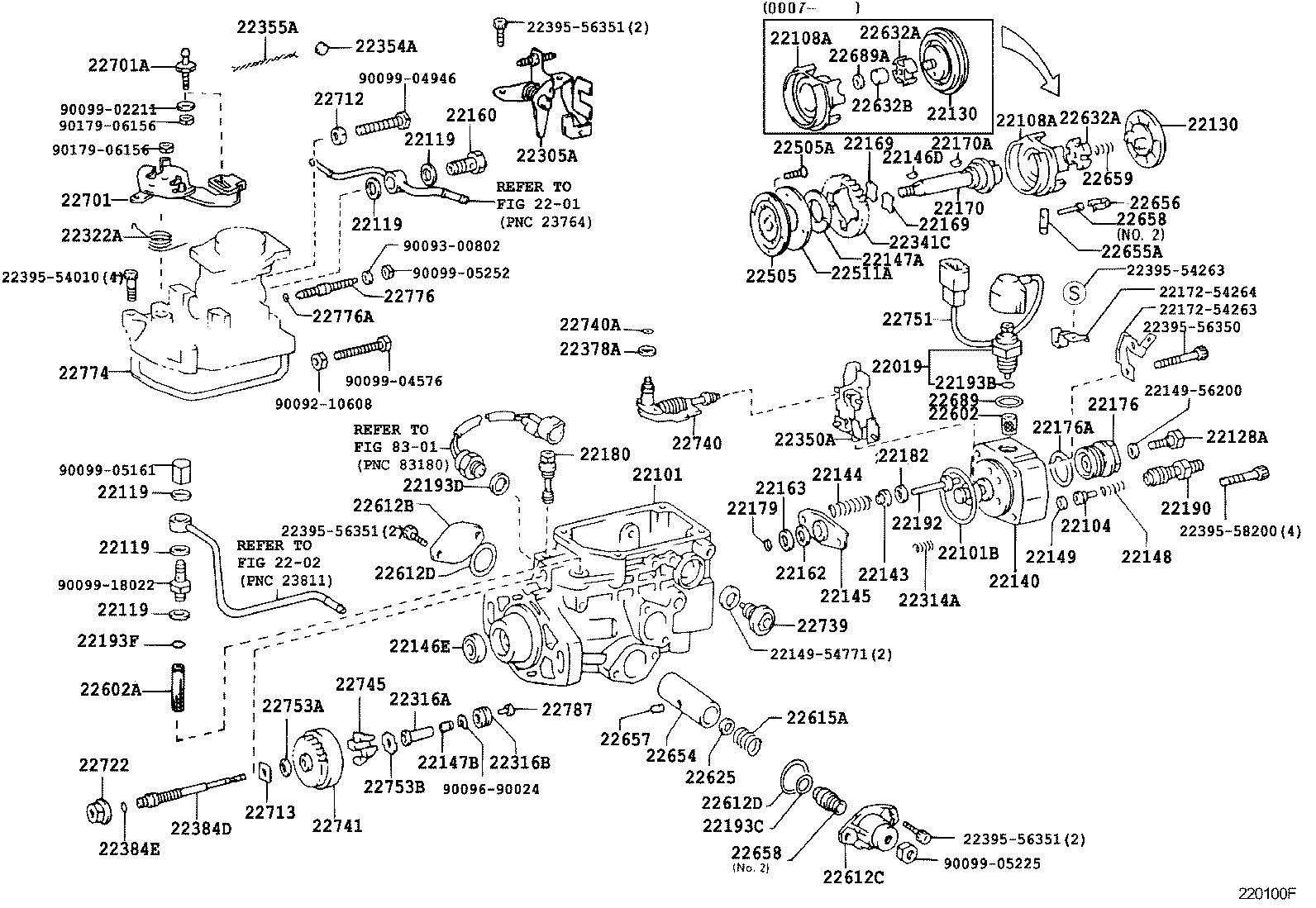

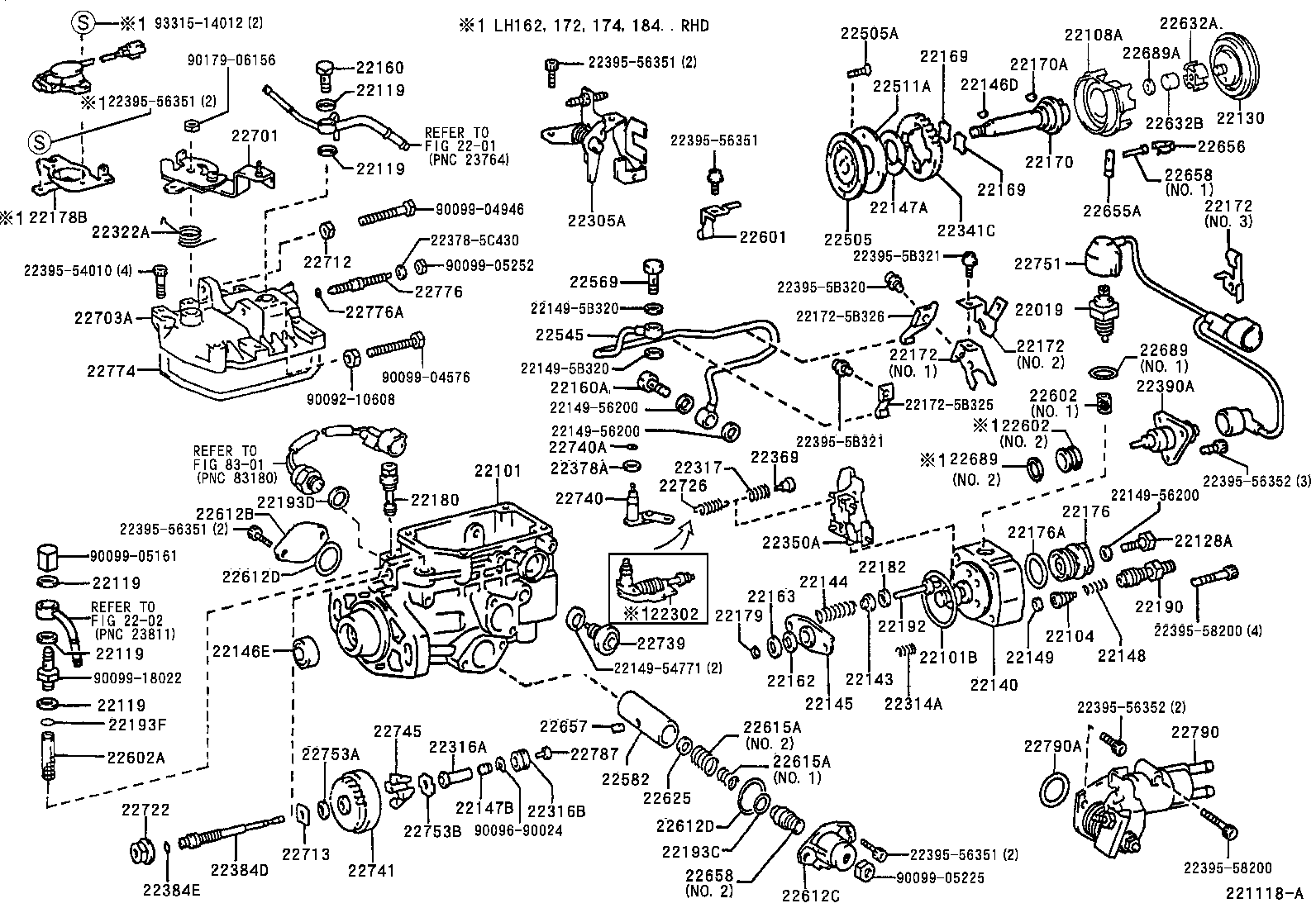

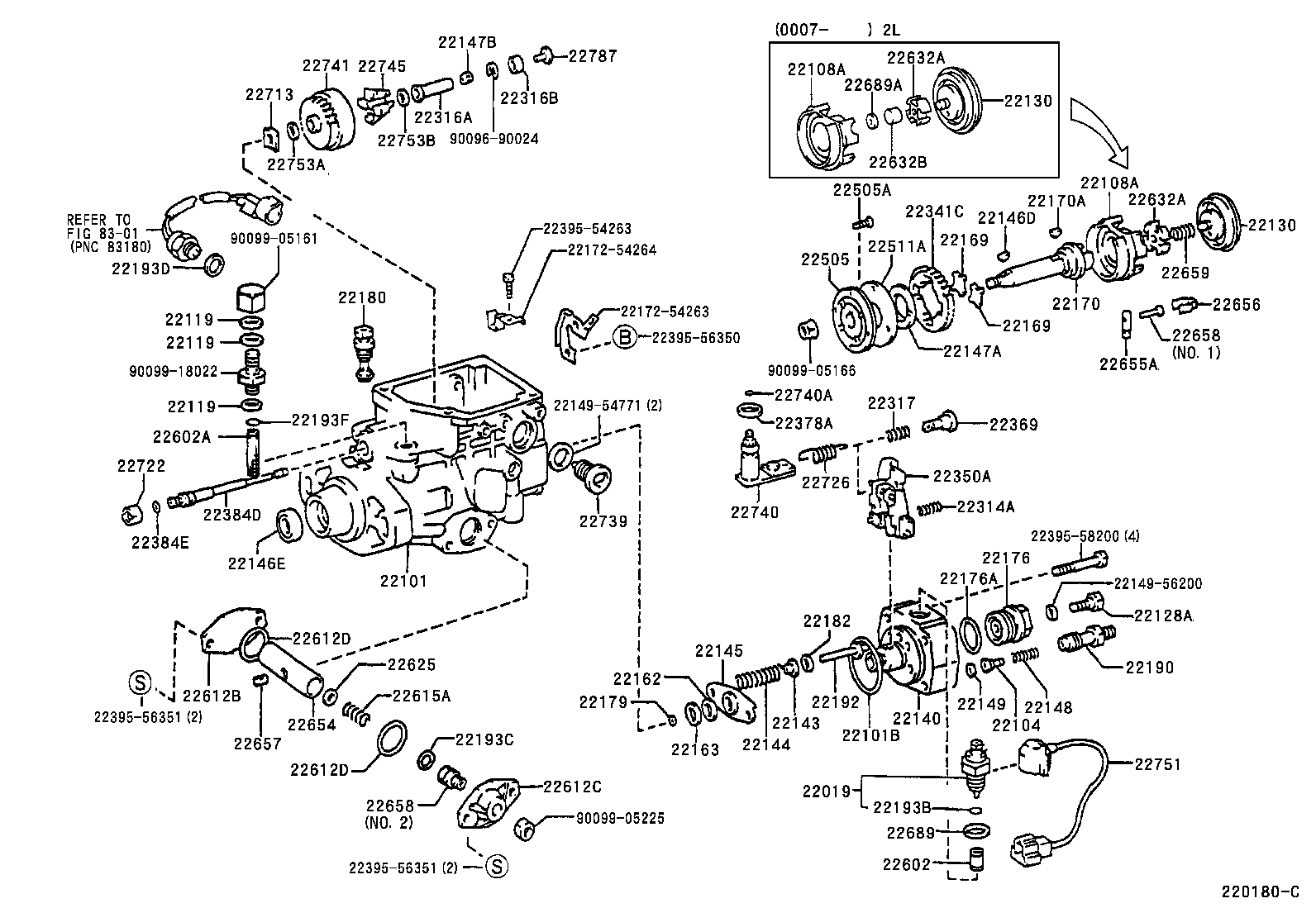

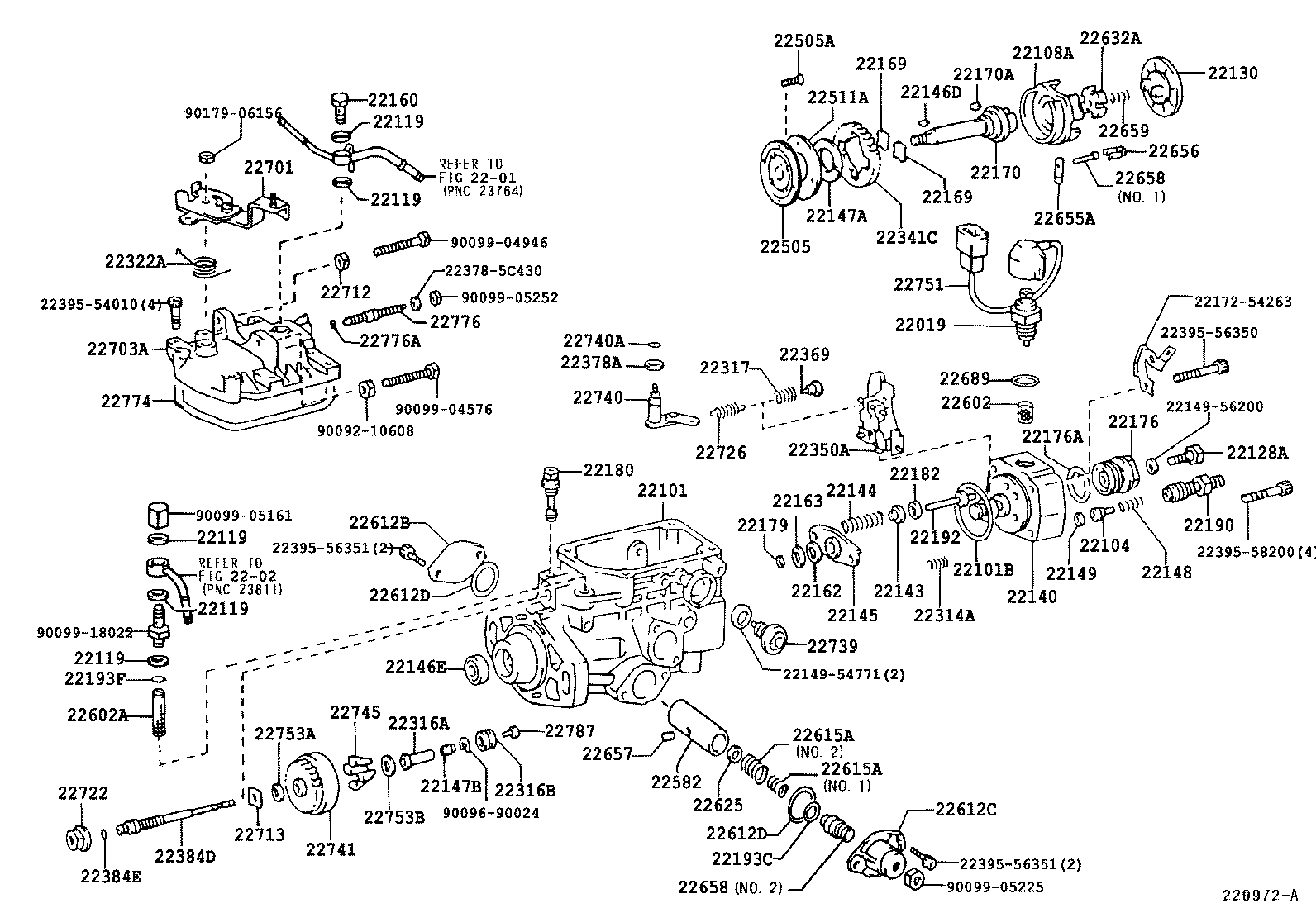

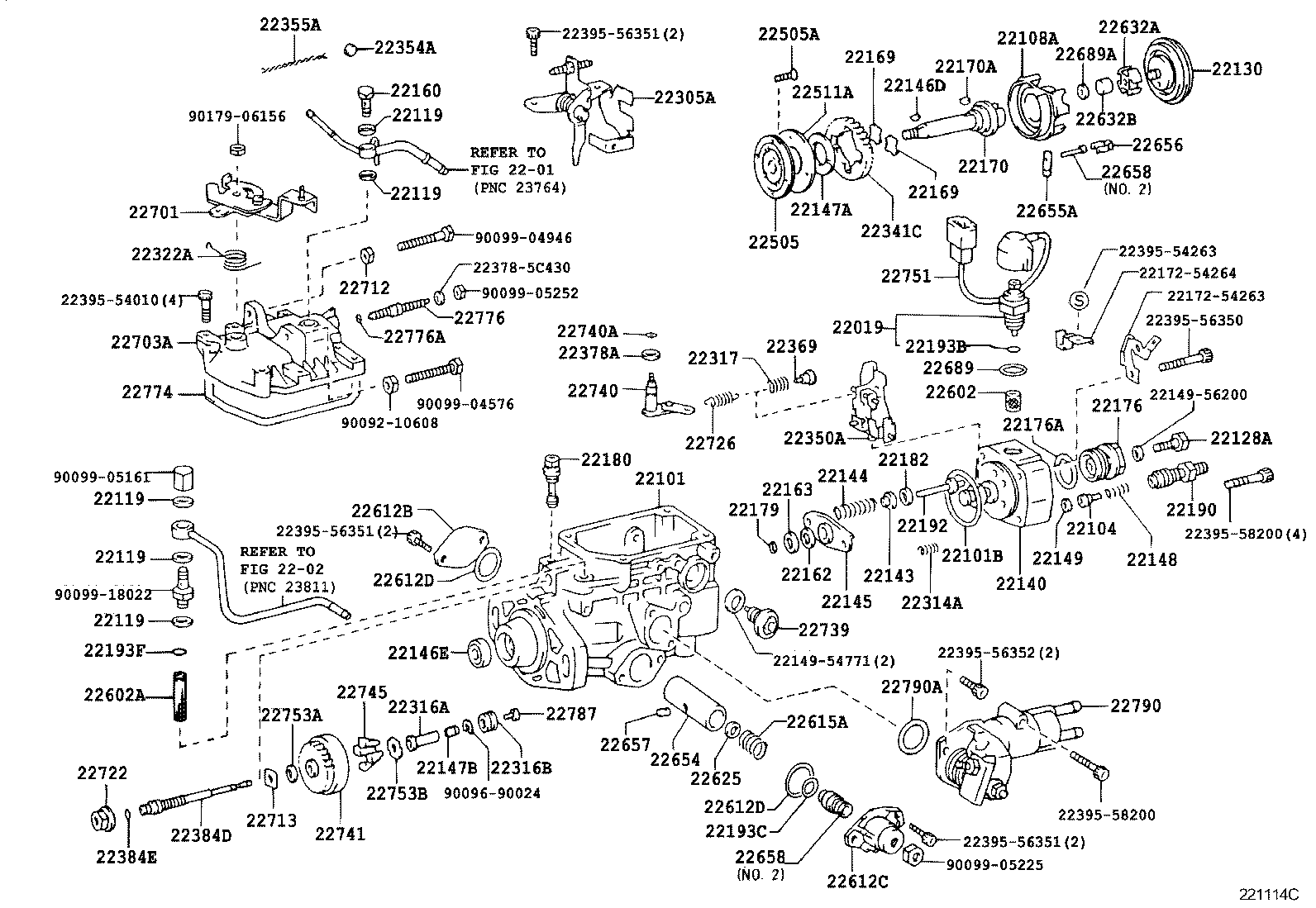

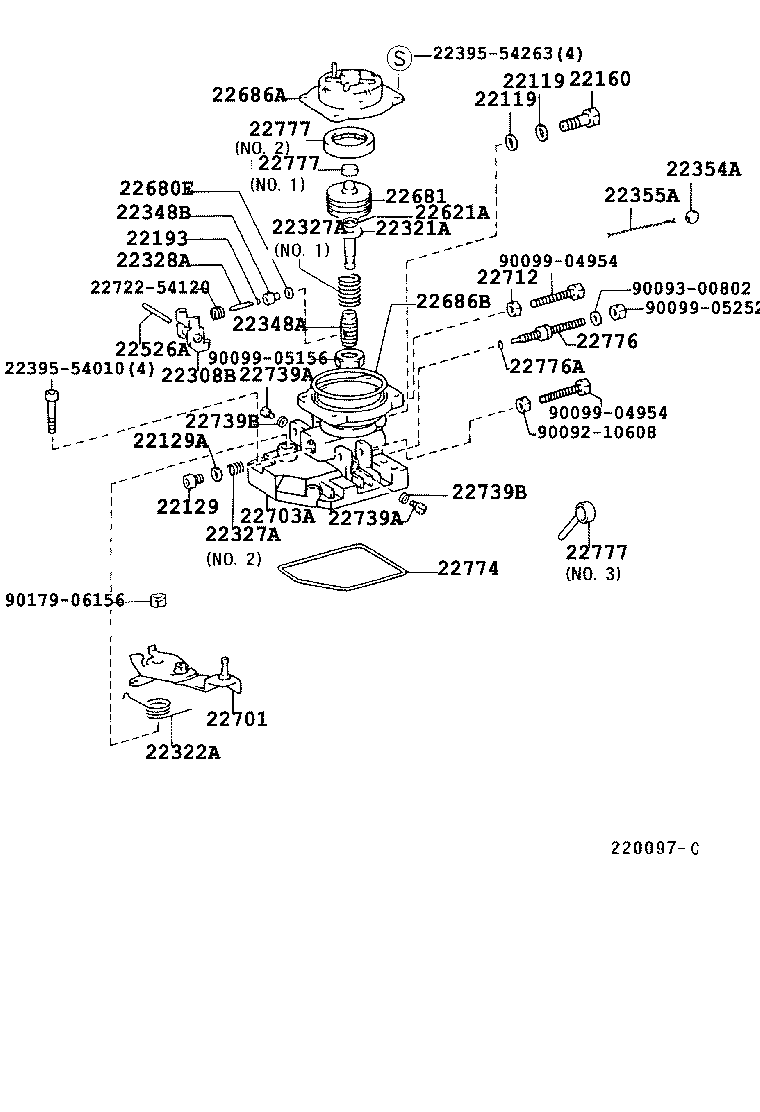

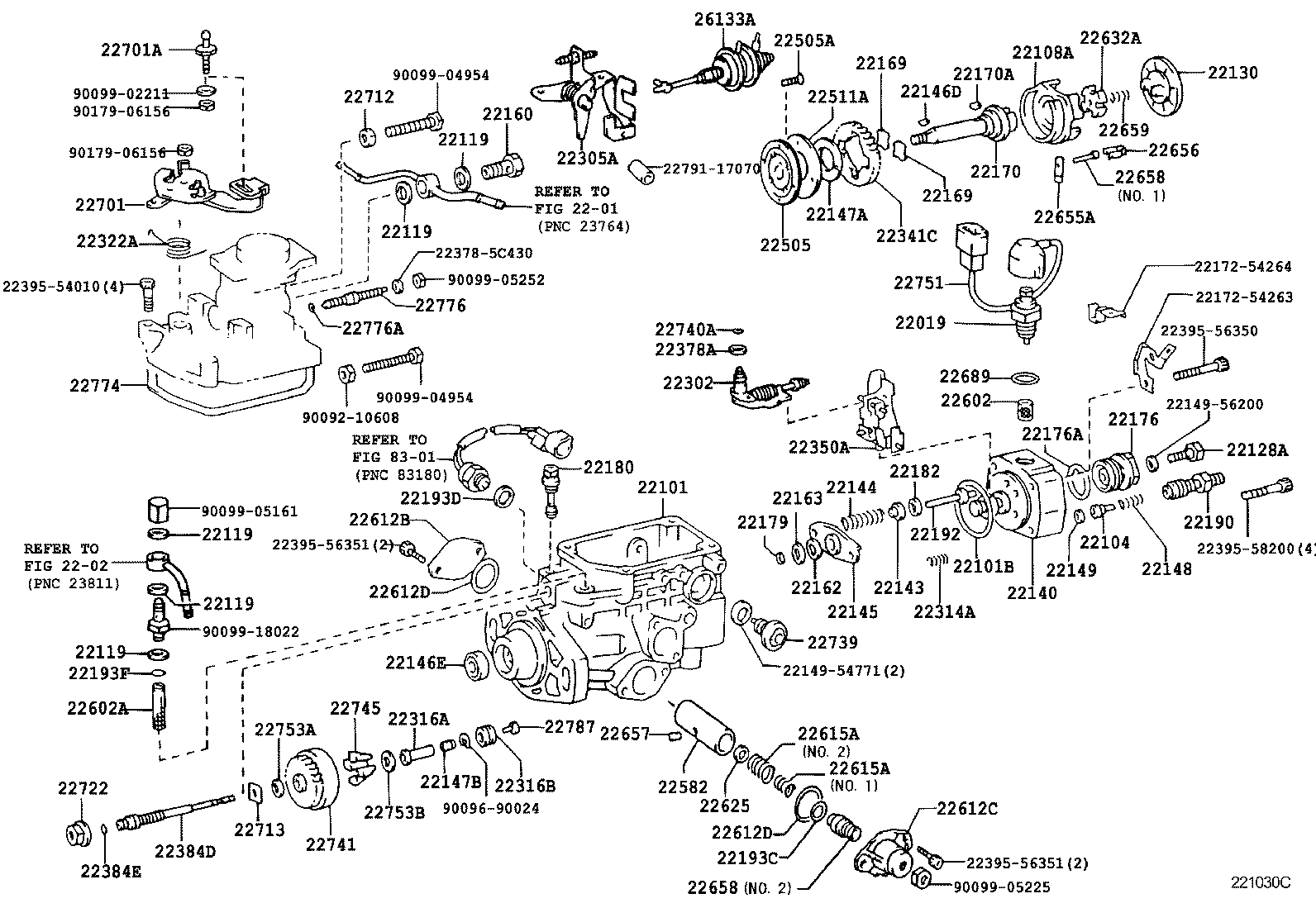

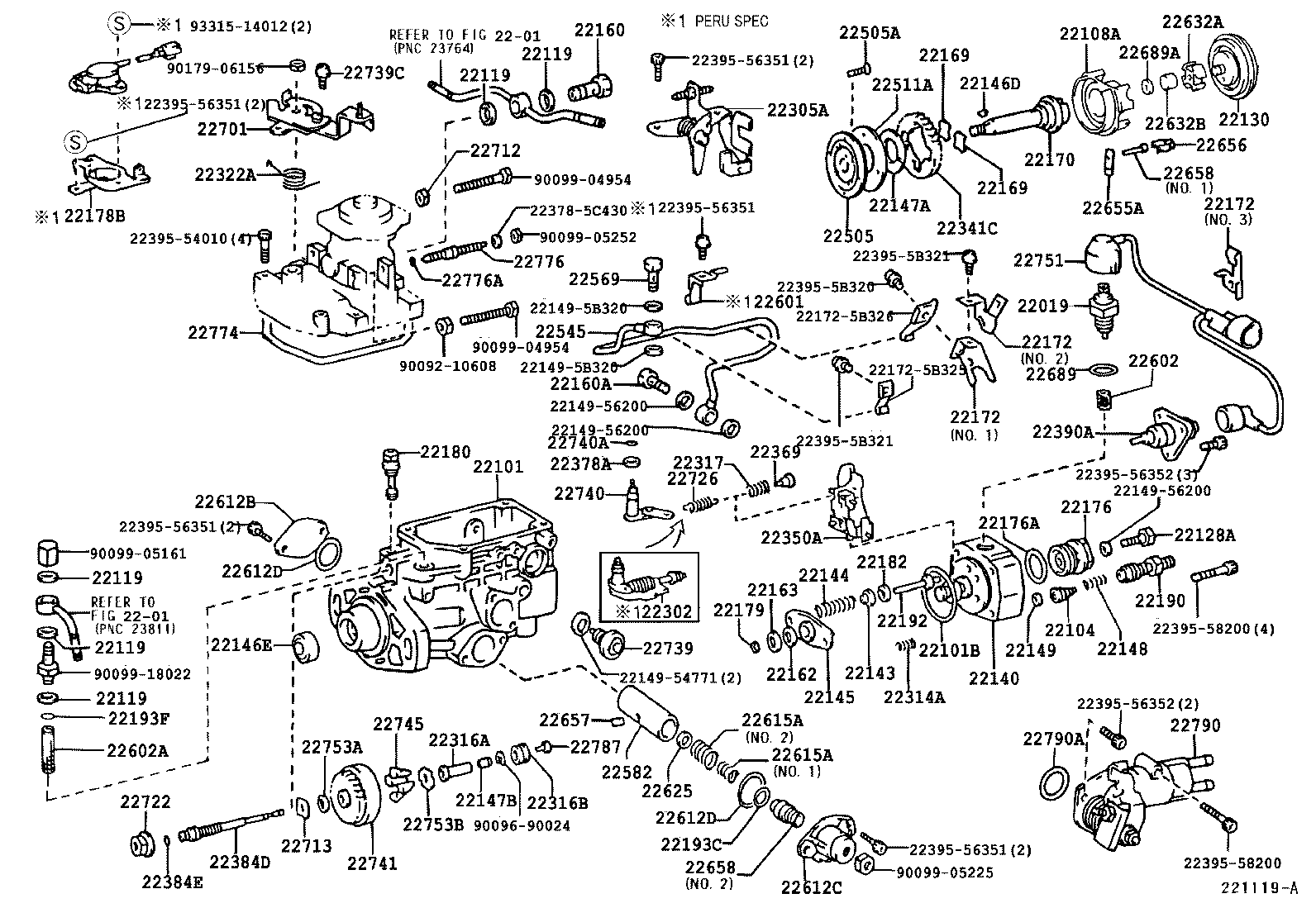

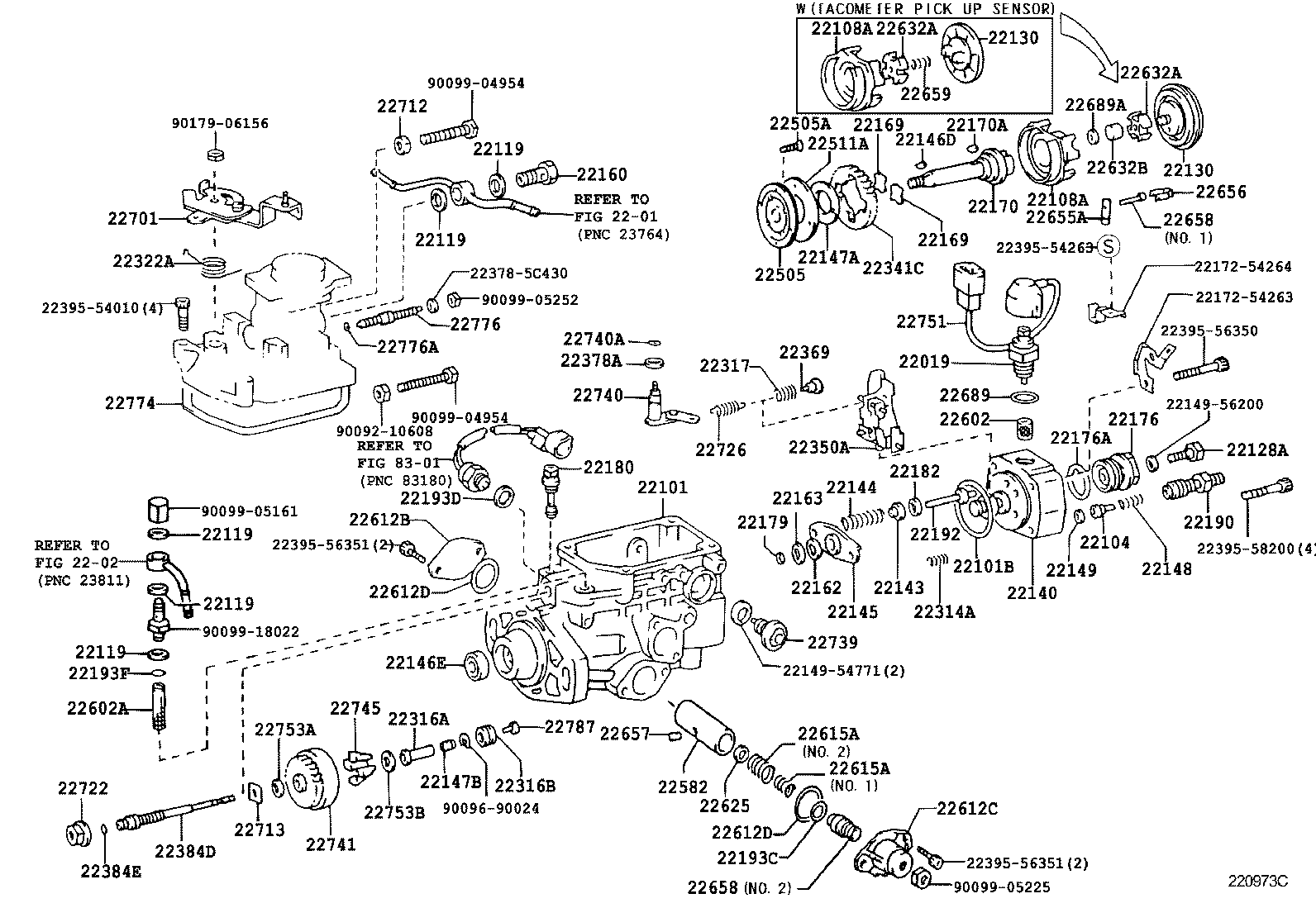

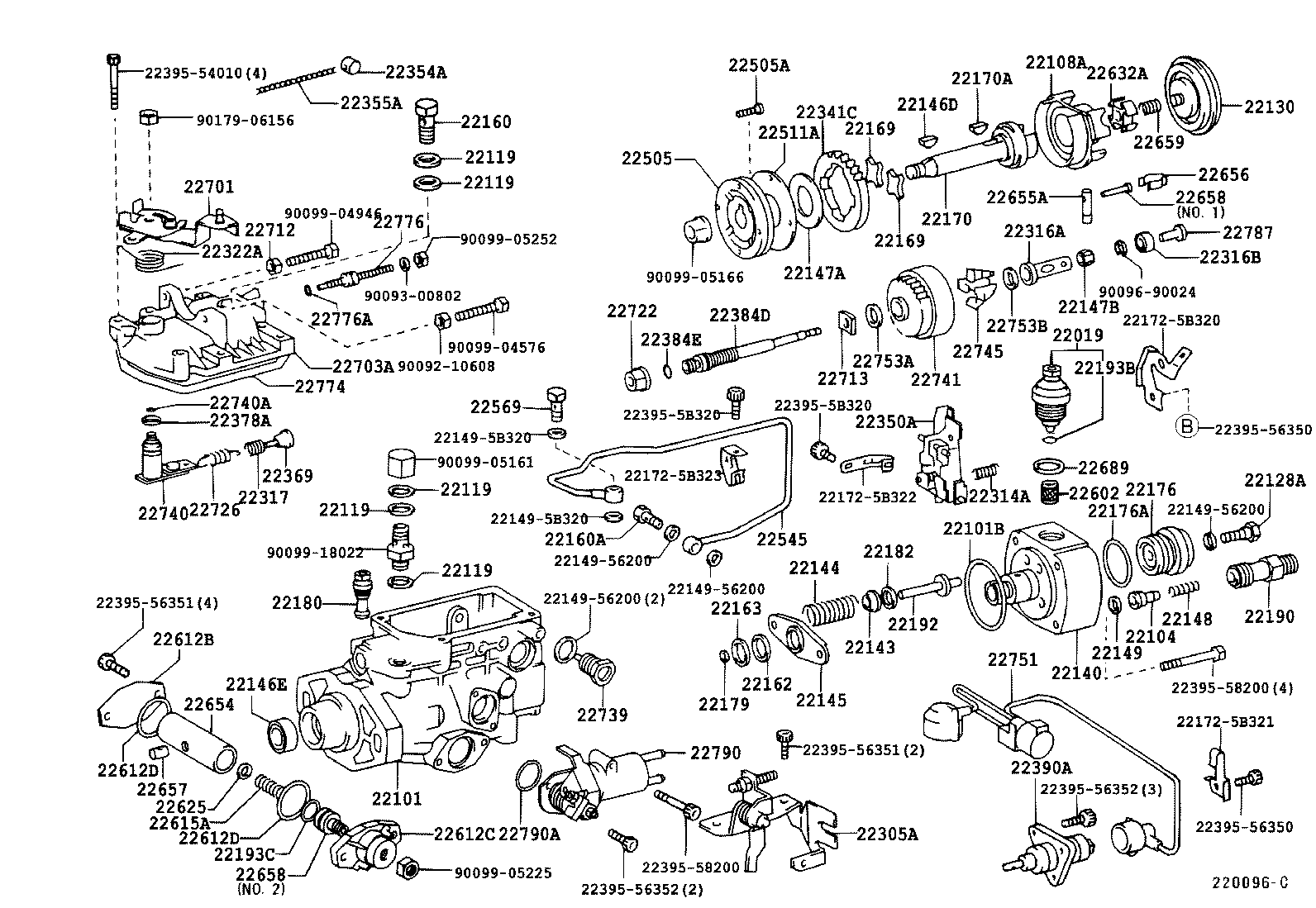

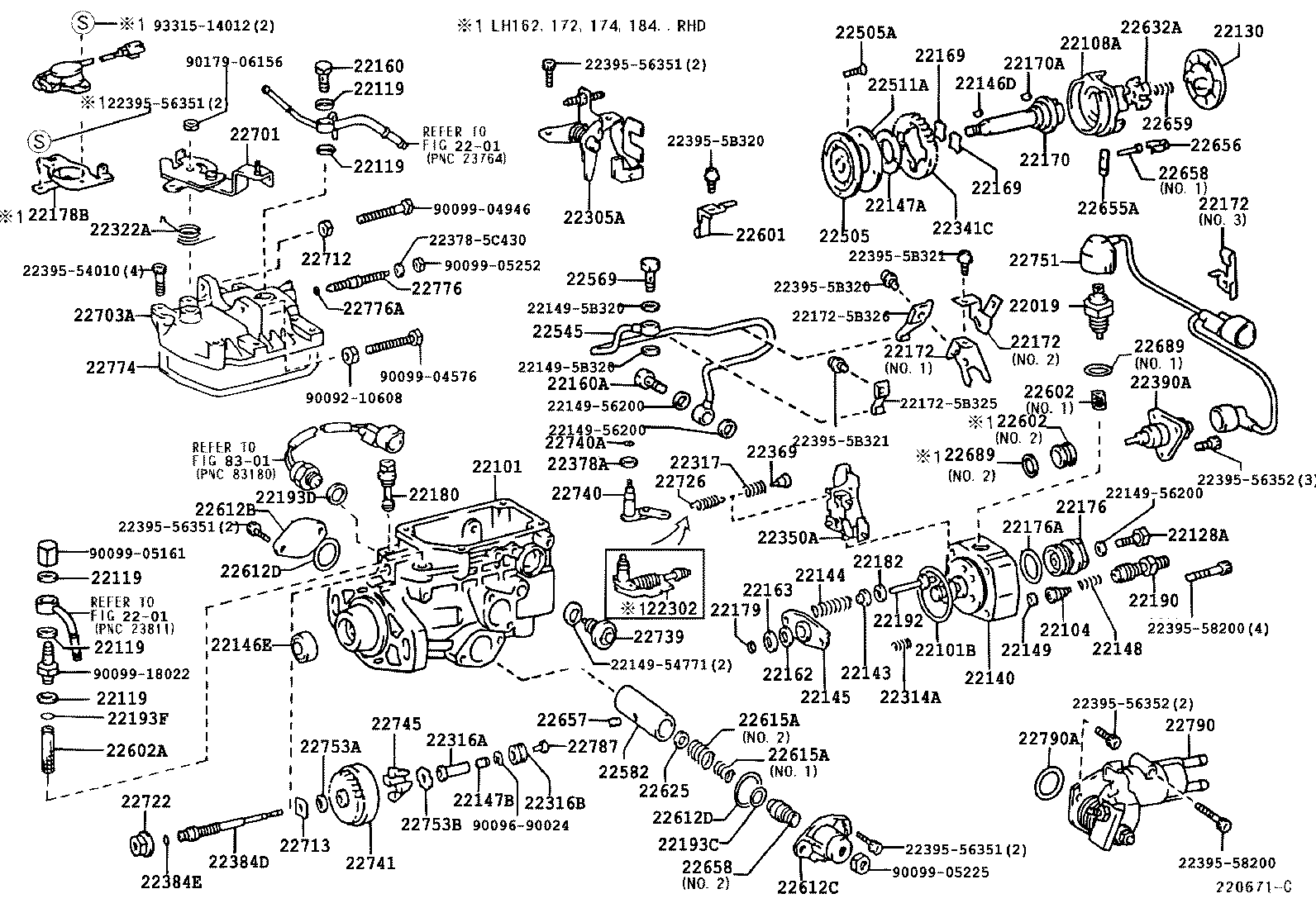

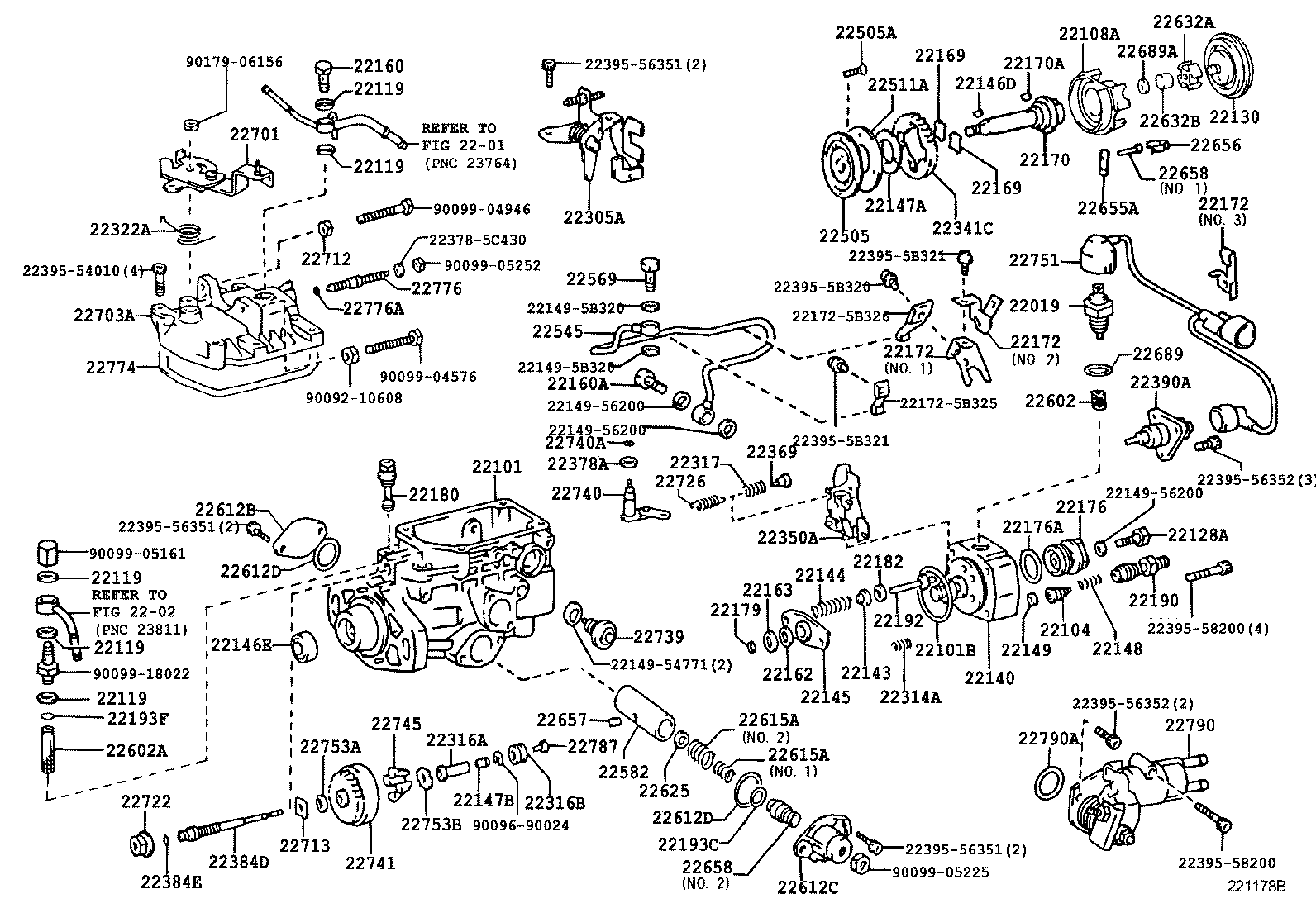

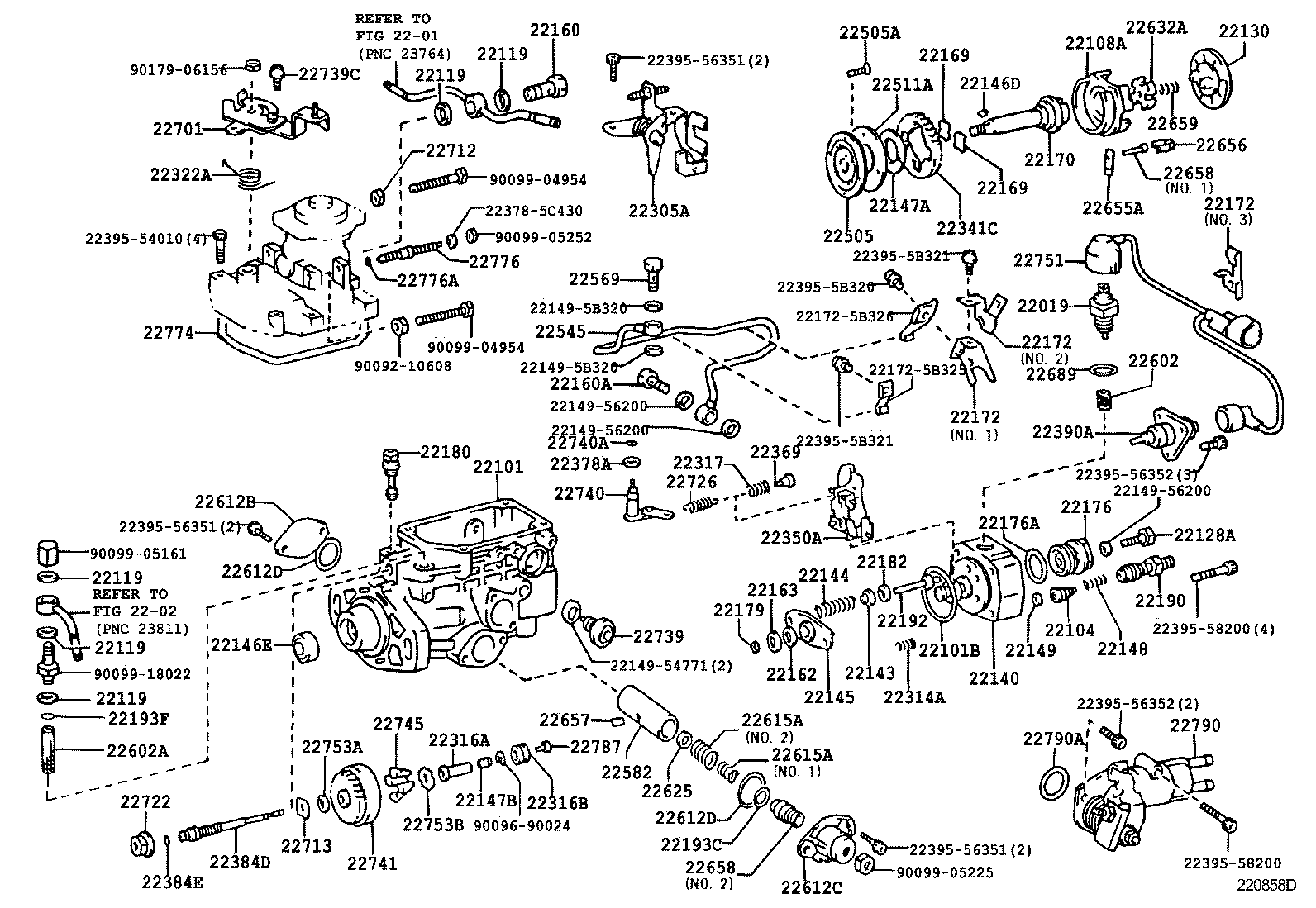

Figure 220101B 220101B 1989-08 → 1995-08 Figure 220096C 220096C 1993-08 → 1994-11 Figure 220099I 220099I 1994-11 → 1995-08 Figure 220099I 220099I 1995-08 → 2000-08 Figure 220671C 220671C 1998-08 → 2000-07 Figure 220671C 220671C 1999-07 → 2000-07 Figure 221118A 221118A 2000-07 → — Figure 221118A 221118A 2000-07 → — Figure 221118A 221118A 2002-08 → — Figure 221114C 221114C 2000-08 → — Figure 220972A 220972A 2000-08 → 2001-08 Figure 220972A 220972A 2000-08 → — Figure 220972A 220972A 2001-08 → — Figure 221178B 221178B 2001-08 → — Figure 221178B 221178B 2002-10 → — Figure 221178B 221178B 2002-11 → — Figure 221199 221199 2001-08 → — Figure 220180C 220180C 1989-08 → — Figure 220100F 220100F 1989-08 → 2000-08 Figure 220858D 220858D 1999-09 → 2000-07 Figure 221119A 221119A 2000-07 → — Figure 220973C 220973C 2000-08 → — Figure 221030C 221030C 2000-08 → — Figure 220097C 220097C 1989-08 → — Figure 221117 221117 1989-08 → 2000-08 Figure 220674A 220674A 1999-09 → — Figure 220974B 220974B 2000-08 → —

Part groups

PNCDescription
22019 Solenoid Assy, Fuel Cut
22101 Housing Sub-assy, Injection Pump
22101B Ring, O(FOR INJECTION PUMP HOUSING)
22104 Valve Sub-assy, Injection Pump Delivery
22108A Ring Sub-assy, Roller
22119 Washer, Air Bleeder Nipple
22128A Bolt, Distributive Head
22129 Plug, Screw
22129A Washer, Air Bleeder Nipple(FOR SCREW PLUG)
22130 Camplate Sub-assy, Face
22140 Head Sub-assy, Distributive Pump
22143 Seat, Spring Upper
22144 Spring, Pump Plunger
22145 Seat, Spring, Lower
22146D Key(FOR DRIVE GEAR)
22146E Seal(FOR DRIVE SHAFT)
22147A Washer, Drive Shaft
22147B Ring, Governor Sleeve
22148 Spring, Delivery Valve
22149 Gasket, Delivery Valve
22160 Screw Sub-assy, Overflow
22160A Screw Sub-assy, Over Flow, NO.2
22162 Plate, Plunger Upper
22163 Plate, Plunger Lower
22169 Joint, Rubber
22170 Shaft Sub-assy, Drive
22170A Key(FOR DRIVE SHAFT)
22172 Clip, Connector Support, Solenoid
22176 Plug, Distributive Head
22176A Ring, O(FOR DISTRIBUTIVE HEAD PLUG)
22178B Bracket(FOR INJECTION PUMP ASSY)
22179 Shim, Plunger Adjusting
22180 Valve Sub-assy, Regulator
22182 Plate, Tappet Adjusting Shim
22190 Valve Sub-assy, Snubber
22192 Guide Sub-assy, Plunger Spring
22193 Ring, O(FOR LEVER CONNECTING PIN)
22193B Ring, O(FOR FUEL CUT SOLENOID)
22193C Ring, O(FOR TIMER COVER STOPPER)
22193D Ring, O(FOR REVOLUTION DETECTOR)
22193F Ring, O(FOR FUEL INJECTION PUMP FILTER)
22302 Shaft Sub-assy, Speed Control
22305A Idle-up Sub-assy
22308B Lever Sub-assy, Control
22314A Spring, Lever Support
22316A Sleeve, Governor
22316B Bearing, Ball(FOR GOVERNOR SLEEVE)
22317 Spring, Governor Domper
22321A Rod, Push
22322A Spring, Return
22327A Spring(FOR BELLOWS)
22328A Pin, Lever Connecting
22341C Gear, Governor Drive
22348A Bushing, Guide
22348B Bushing, Guide(FOR LEVER CONNECTING PIN)
22350A Governor Assy, Torque Control
22354A Seal, Rod
22355A Wire, Governor Housing Seal
22369 Seat, Governor Spring
22378A Washer, Governor Thrust
22384D Shaft, Governor
22384E Ring, O(FOR GOVERNOR MAIN SHAFT)
22390A Solenoid Assy, Fuel Cut
22505 Pump Sub-assy, Fuel Feed
22505A Screw(FOR FUEL FEED PUMP)
22511A Cover, Feed Pump
22526A Pin, Lever Support
22545 Nipple, Swivel(FOR INJECTION PUMP INLET)
22569 Screw, Overflow
22582 Piston Assy, Timer
22601 Bracket Sub-assy, Idle UP
22602 Filter Sub-assy, Fuel Injection Pump
22602A Filter Sub-assy, Fuel Injection Pump, NO.2
22612B Cover, Timer
22612C Cover, Timer
22612D Ring, O(FOR TIMER COVER)
22615A Spring, Timer Outer
22621A Washer, Timer Adjusting
22625 Washer, Timer Sensor Adjusting
22632A Coupling, Injection Pump
22632B Spacer, Injection Pump Coupling
22654 Piston, Timer
22655A Pin, Timer Slide
22656 Clip, Timer
22657 Clip, Timer
22658 Stopper, Timer
22659 Spring, Coupling
22680D Bellows Assy, Pneumatic
22680E Washer, Copper Plate
22681 Bellows Sub-assy, Pneumatic
22686A Cover, Pneumatic Bellows
22686B Ring, O(FOR BELLOWS COVER)
22689 Washer(FOR SWIVEL NIPPLE)
22689A Spacer, Injection Pump Coupling
22701 Lever Sub-assy, Adjusting
22701A Joint, Ball(FOR ADJUSTING LEVER)
22703A Cover Sub-assy, Governor
22712 Nut, Rock
22713 Washer, Governor Gear Adjusting
22722 Nut, Governor Shaft Rock
22726 Spring, Speed Control
22739 Bolt, Governor Link Support
22739A Bolt, Governor Link Support NO.2
22739B Washer(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22739C Bolt, Governor Link Support NO.3
22740 Shaft Sub-assy, Governor Adjusting
22740A Ring, O(FOR GOVERNOR ADJUSTING SHAFT)
22741 Holder Sub-assy, Flyweight
22745 Flyweight, Distributive Pump
22751 Wire Sub-assy, Fuel Cut Solenoid
22753A Washer, Flyweight, NO.1
22753B Washer, Flyweight, NO.2
22774 Gasket, Governor Cover
22776 Screw, Smoke Set Adjusting
22776A Ring, O(FOR SMOKE SET SCREW)
22777 Cap, Rubber(FOR BELLOWS)
22787 Plug, Governor Sleeve
22790 Cover Sub-assy, Timer
22790A Ring, O(FOR TIMER COVER)
23010 Valve Assy, Timing Control
26133A Actuator Set, Idle-up
