Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

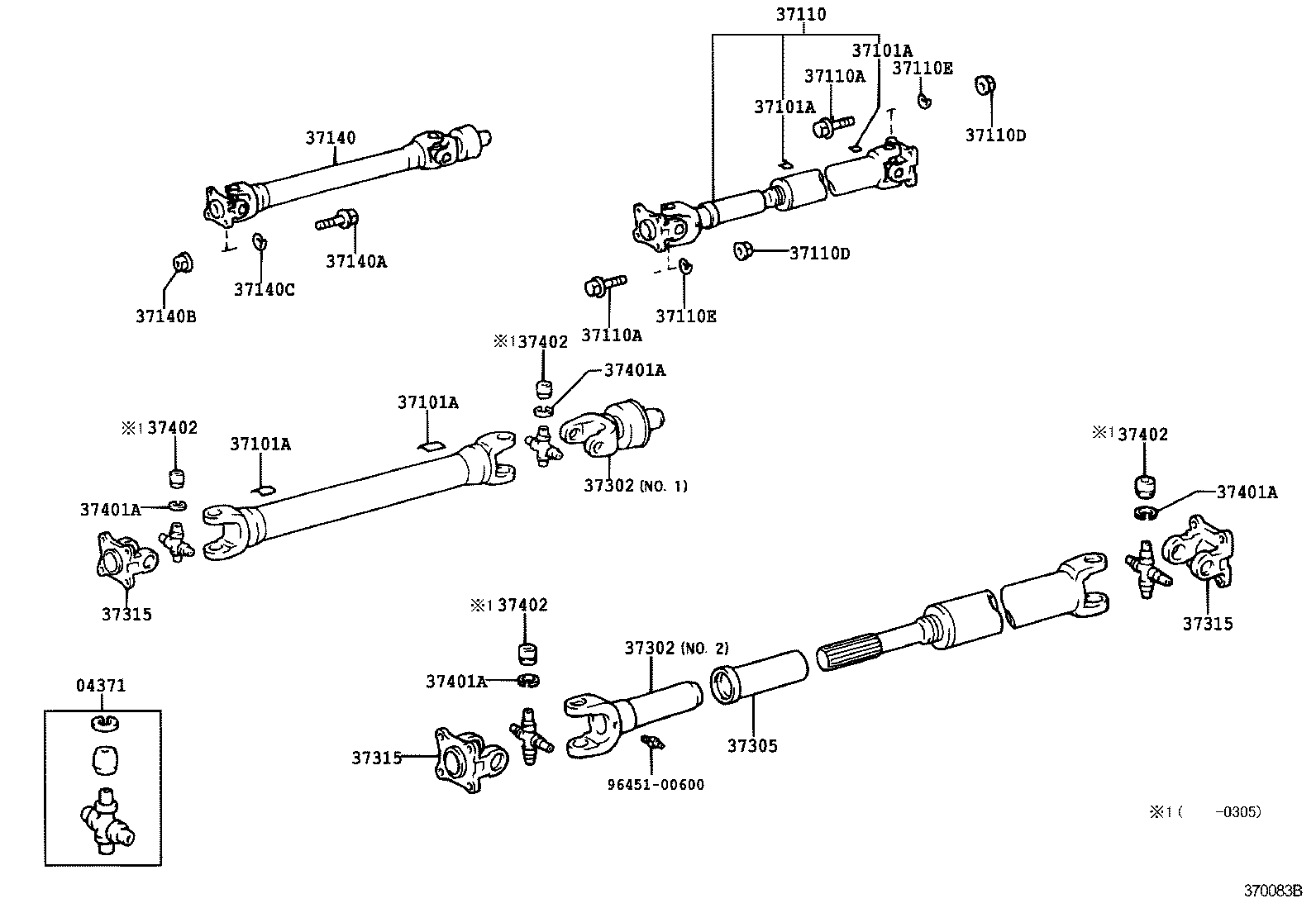

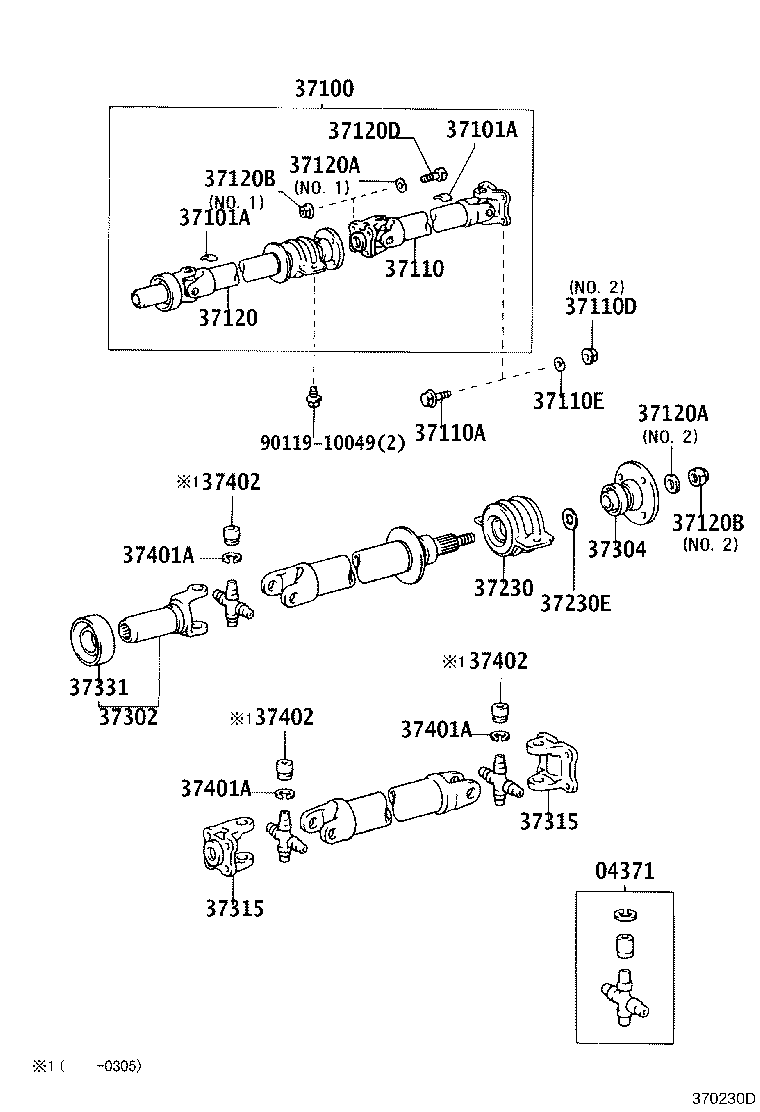

Propeller Shaft & Universal Joint
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04371 | Spider Kit, Universal Joint(FOR PROPELLER SHAFT) |
| 37100 | Shaft Assy, Propeller W/Center Bearing |
| 37101A | Piece, Balance, NO.1 (FOR PROPELLER SHAFT) |
| 37110 | Shaft Assy, Propeller |
| 37110A | Bolt (FOR PROPELLER SHAFT) |
| 37110D | Nut (FOR PROPELLER SHAFT) |
| 37110E | Washer (FOR PROPELLER SHAFT) |
| 37120 | Shaft Assy, Propeller Intermediate |
| 37120A | Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET) |
| 37120B | Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING) |
| 37120D | Bolt (FOR CENTER PROPELLER SHAFT) |
| 37140 | Shaft Assy, Propeller, Front |
| 37140A | Bolt (F0R FRONT PROPELLER SHAFT) |
| 37140B | Nut (F0R FRONT PROPELLER SHAFT) |
| 37140C | Washer (F0R FRONT PROPELLER SHAFT) |
| 37230 | Bearing Assy, Center Support, NO.1 |
| 37230E | Washer, NO.1 (FOR CENTER SUPPORT BEARING) |
| 37302 | Yoke Sub-assy, Universal Joint Sleeve |
| 37304 | Flange Sub-assy, Universal Joint |
| 37305 | Cover Sub-assy, Sliding Shaft Dust |
| 37315 | Yoke, Universal Joint Flange |
| 37331 | Cover, Sliding Shaft Dust |
| 37401A | Ring, Hole Snap (FOR SPIDER BEARING) |
| 37402 | Bearing Sub-assy, Universal Joint Spider |
| 37434 | Seal, Universal Joint Spider Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
