Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe
Discontinued model
Data version 2006-10

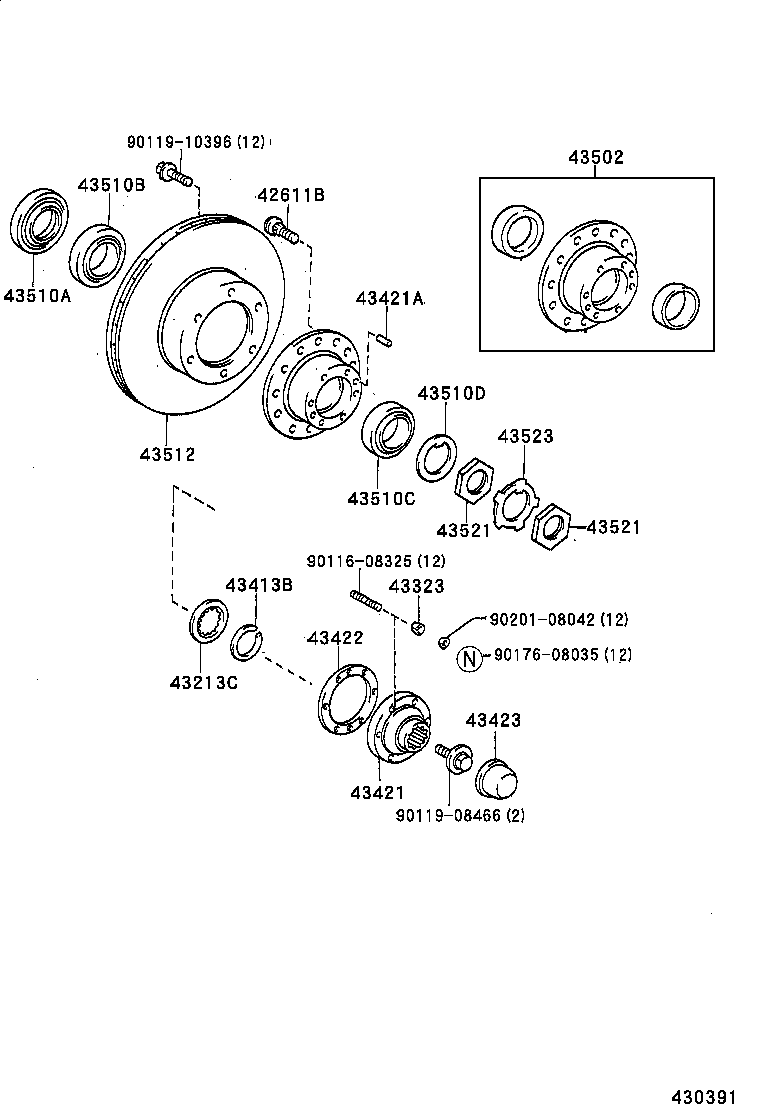

Front Axle Hub
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42611B | Bolt, Hub (FOR FRONT AXLE) |
| 43213C | Spacer (FOR DRIVE SHAFT) |
| 43323 | Washer, Cone (FOR FRONT AXLE SHAFT) |
| 43413B | Ring, Drive Shaft Snap |
| 43421 | Flange, Front Axle Outer Shaft |
| 43421A | Pin, Straight (FOR FRONT AXLE OUTER SHAFT FLANGE) |
| 43422 | Gasket, Front Axle Outer Shaft Flange |
| 43423 | Cap, Front Axle Outer Shaft Flange |
| 43501A | Piece, Balance (FOR FRONT BRAKE DRUM) |
| 43501B | Bolt, Set (FOR FRONT BRAKE DRUM SETTING) |
| 43502 | Hub Sub-assy, Front Axle |
| 43510 | Hub And Brake Drum Assy, Front Axle, RH |
| 43510A | Seal, Oil (FOR FRONT AXLE HUB) |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43510D | Washer, Claw (FOR STEERING KNUCKLE WASHER) |
| 43510E | Nut (FOR STEERING KNUCKLE) |
| 43512 | Disc, Front |
| 43512B | Drum, Brake |
| 43514 | Cap, Front Hub Grease |
| 43520 | Hub And Brake Drum Assy, Front Axle, LH |
| 43521 | Nut, Front Wheel Adjusting |
| 43523 | Washer, Front Wheel Adjusting Lock |
| 43525 | Cap, Front Wheel Adjusting Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
