Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · Europe

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 6 illustrations

Illustrations

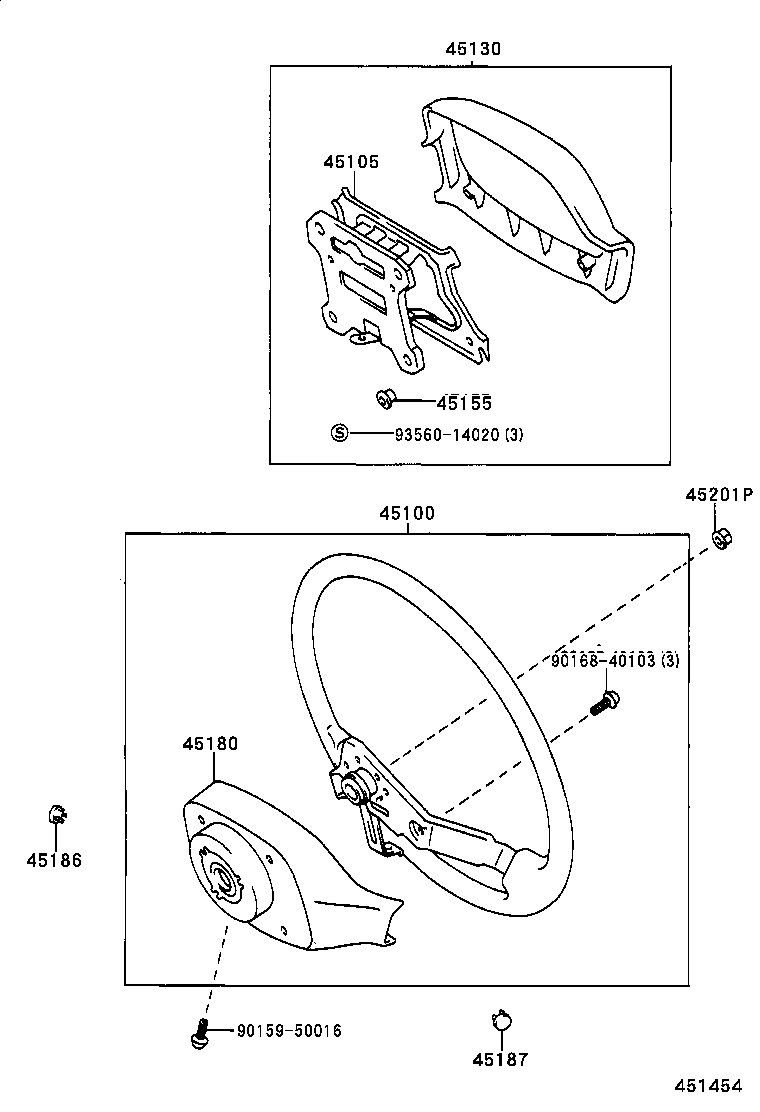

Figure 450937 450937 1989-08 → — Figure 451456 451456 1998-08 → — Figure MCJ089C MCJ089C 1989-08 → 1998-08 Figure MCU181 MCU181 1993-08 → 1998-08 Figure 451454 451454 1998-08 → — Figure 451455 451455 1998-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45142 Seat, Horn Button Contact, NO.1
45142F Spring(FOR HORN BUTTON CONTACT SEAT)
45143 Seat, Horn Button Contact, NO.2
45155 Spacer, Horn Button Contact Plate
45180 Cover Sub-assy, Steering Wheel
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
