Brake Tube & Clamp

63 part groups · 15 illustrations

Illustrations

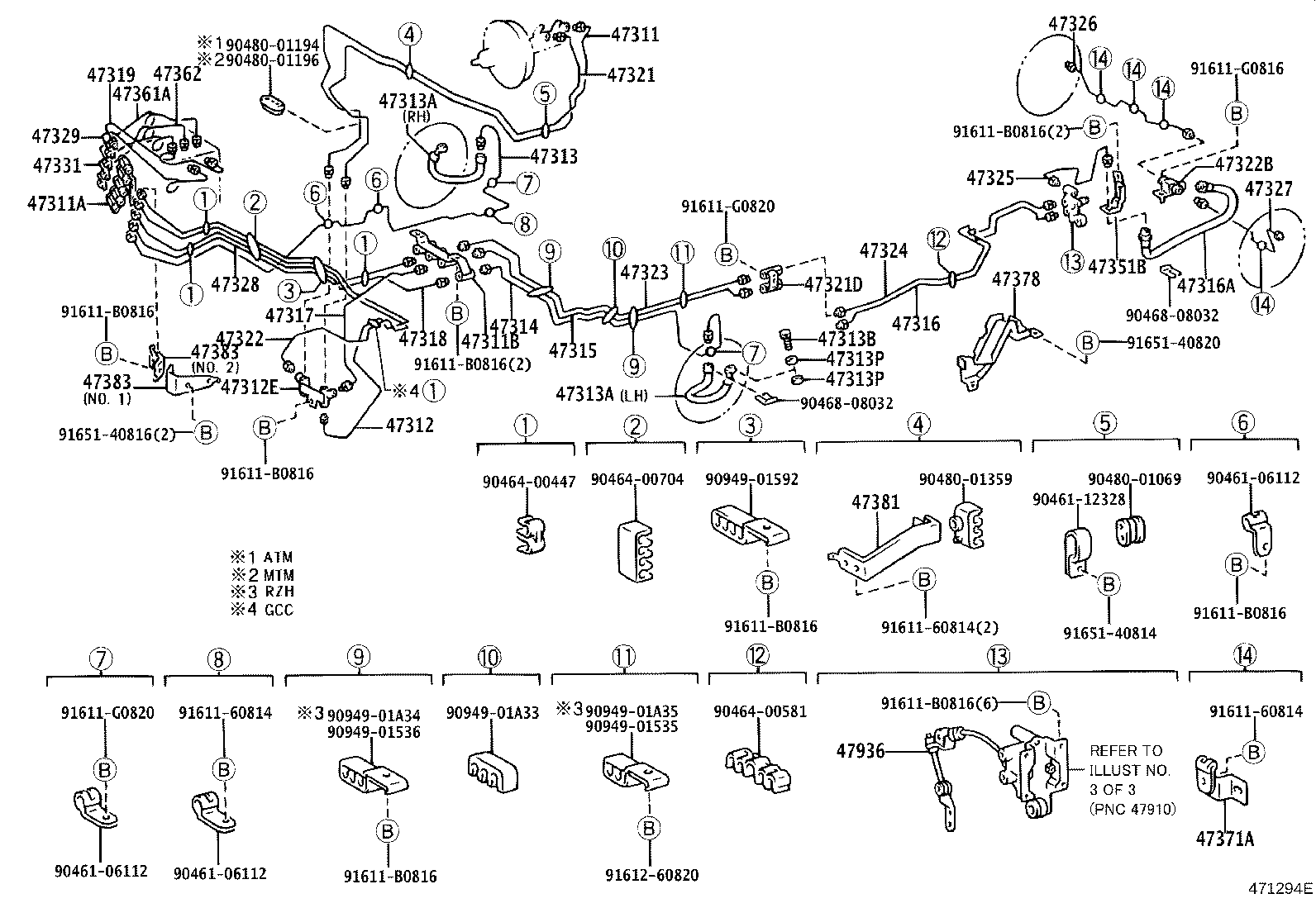

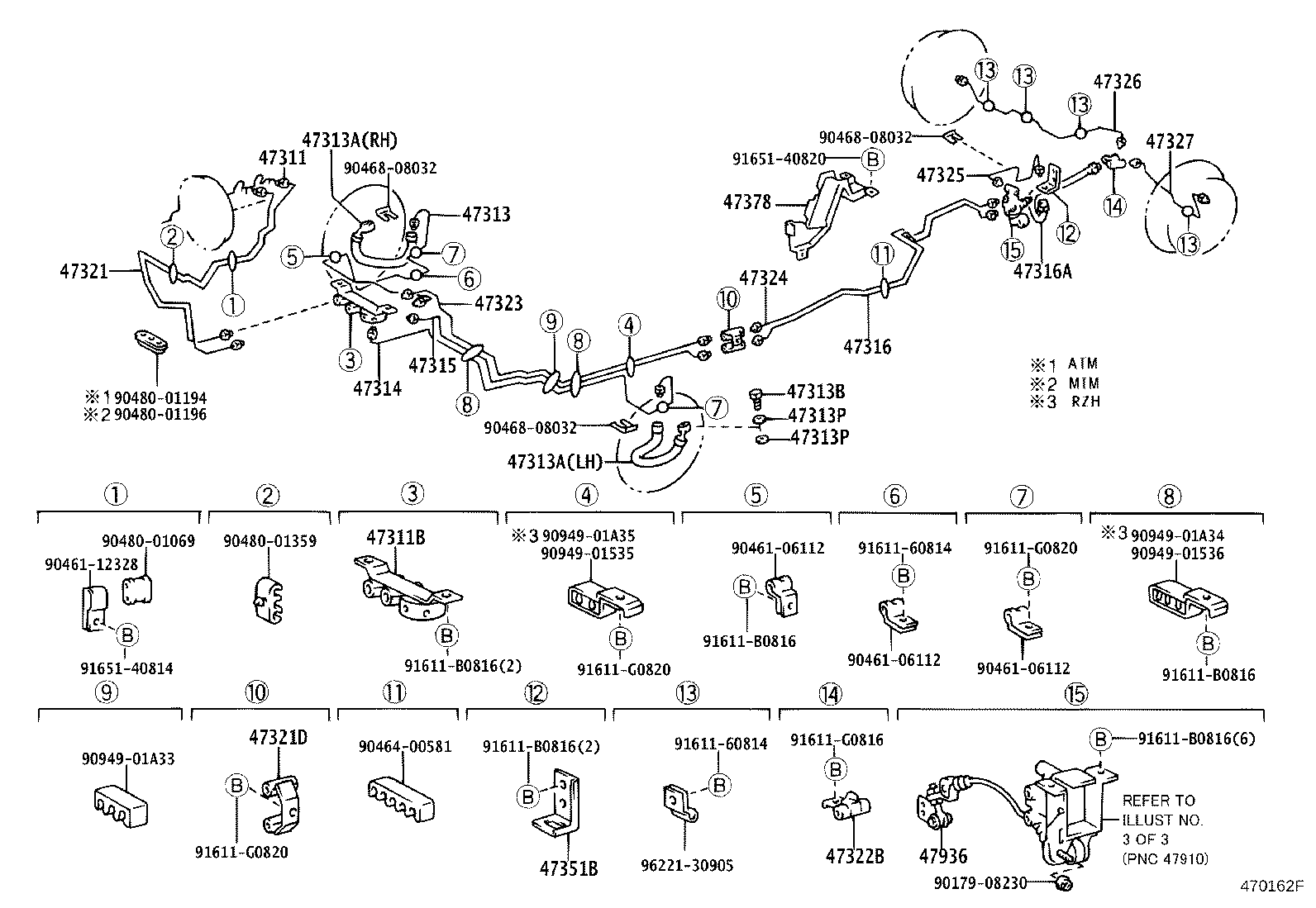

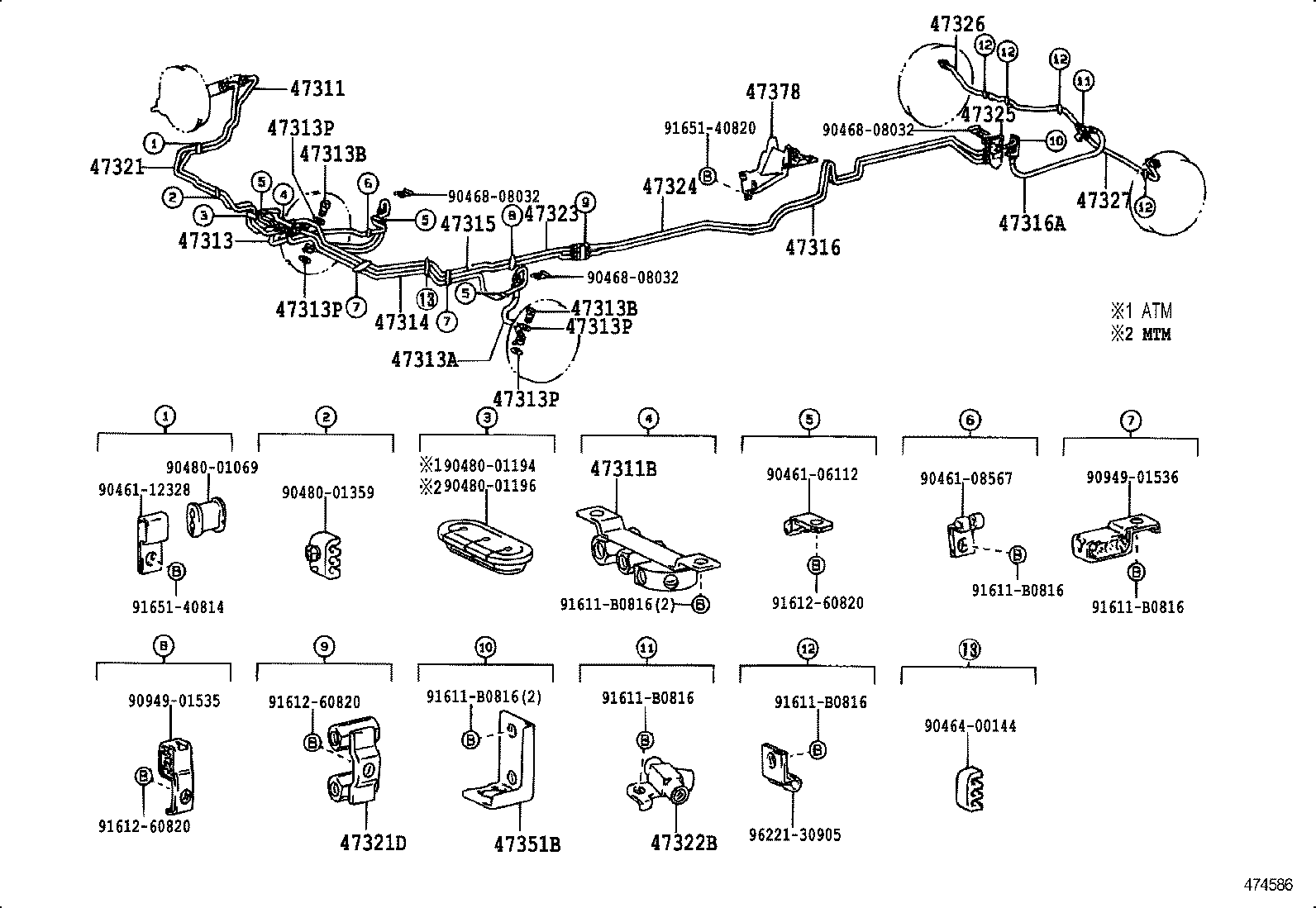

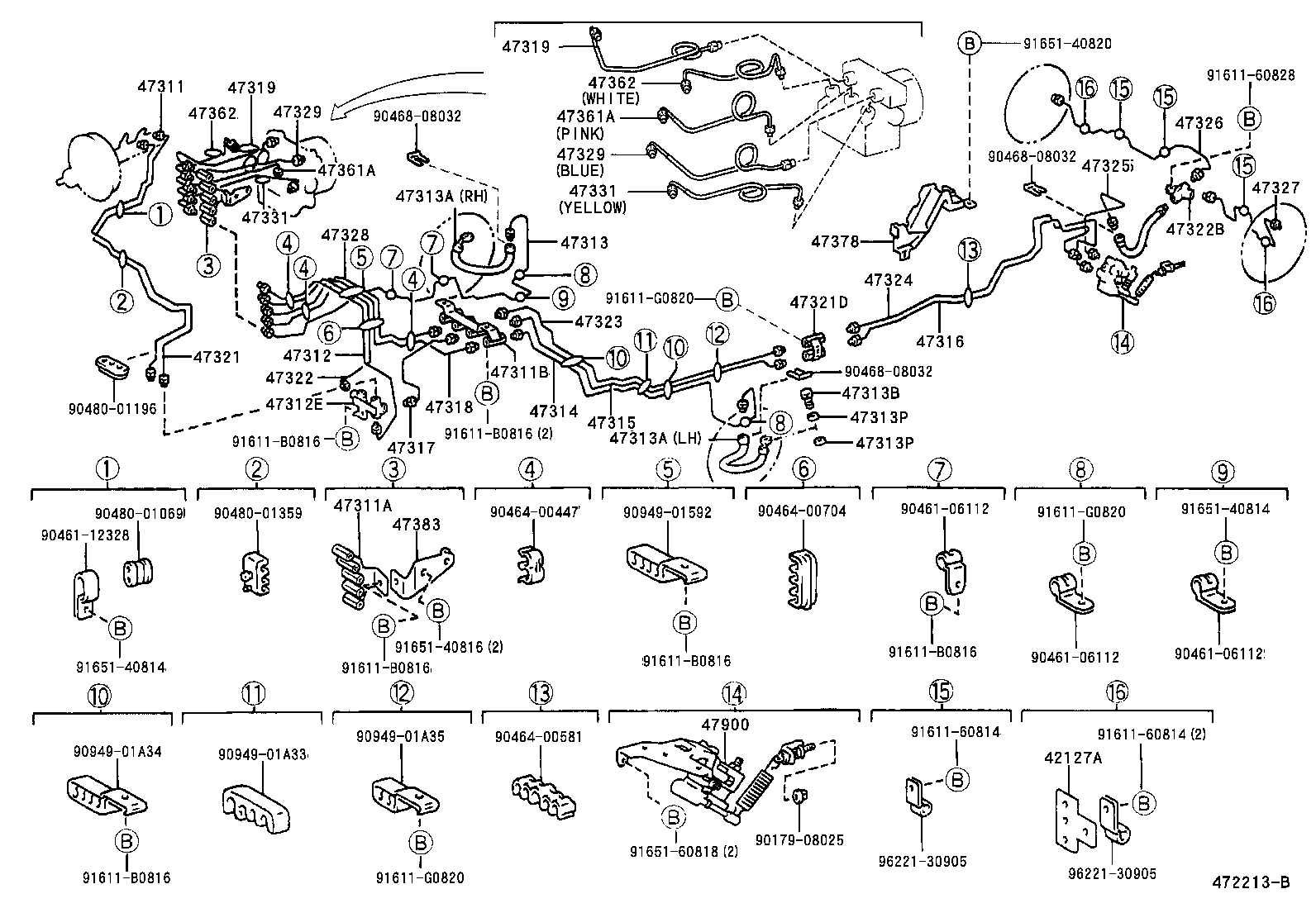

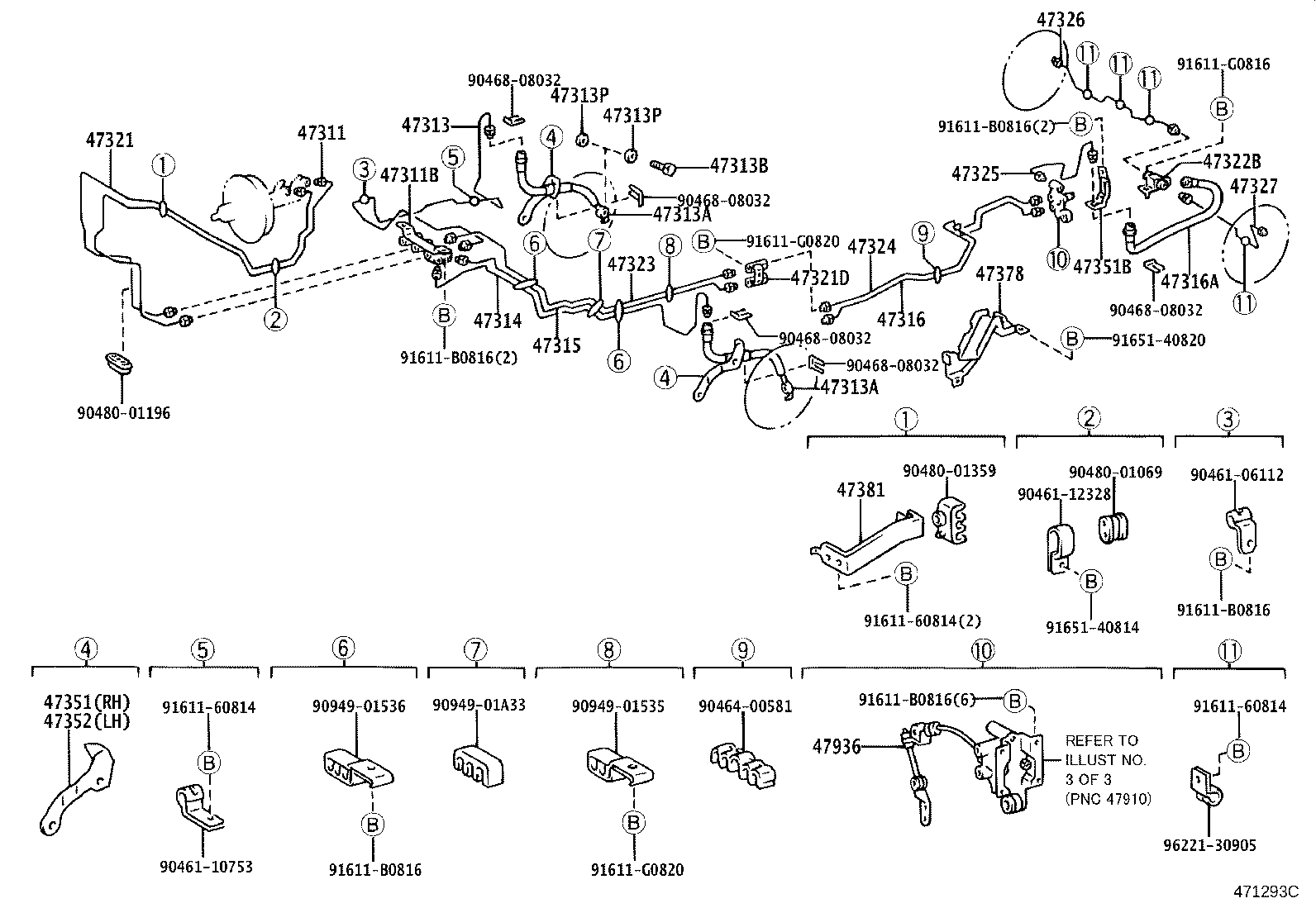

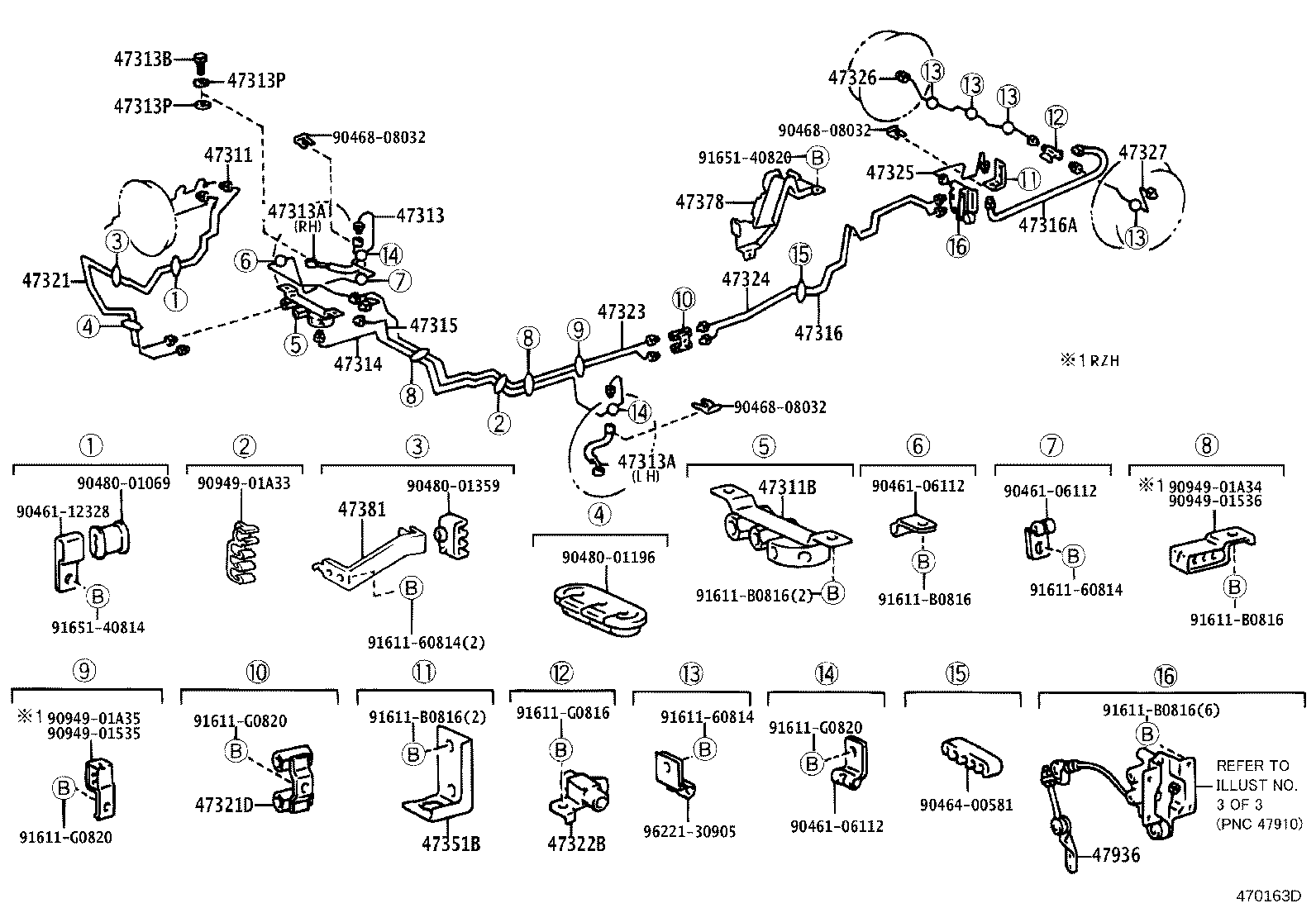

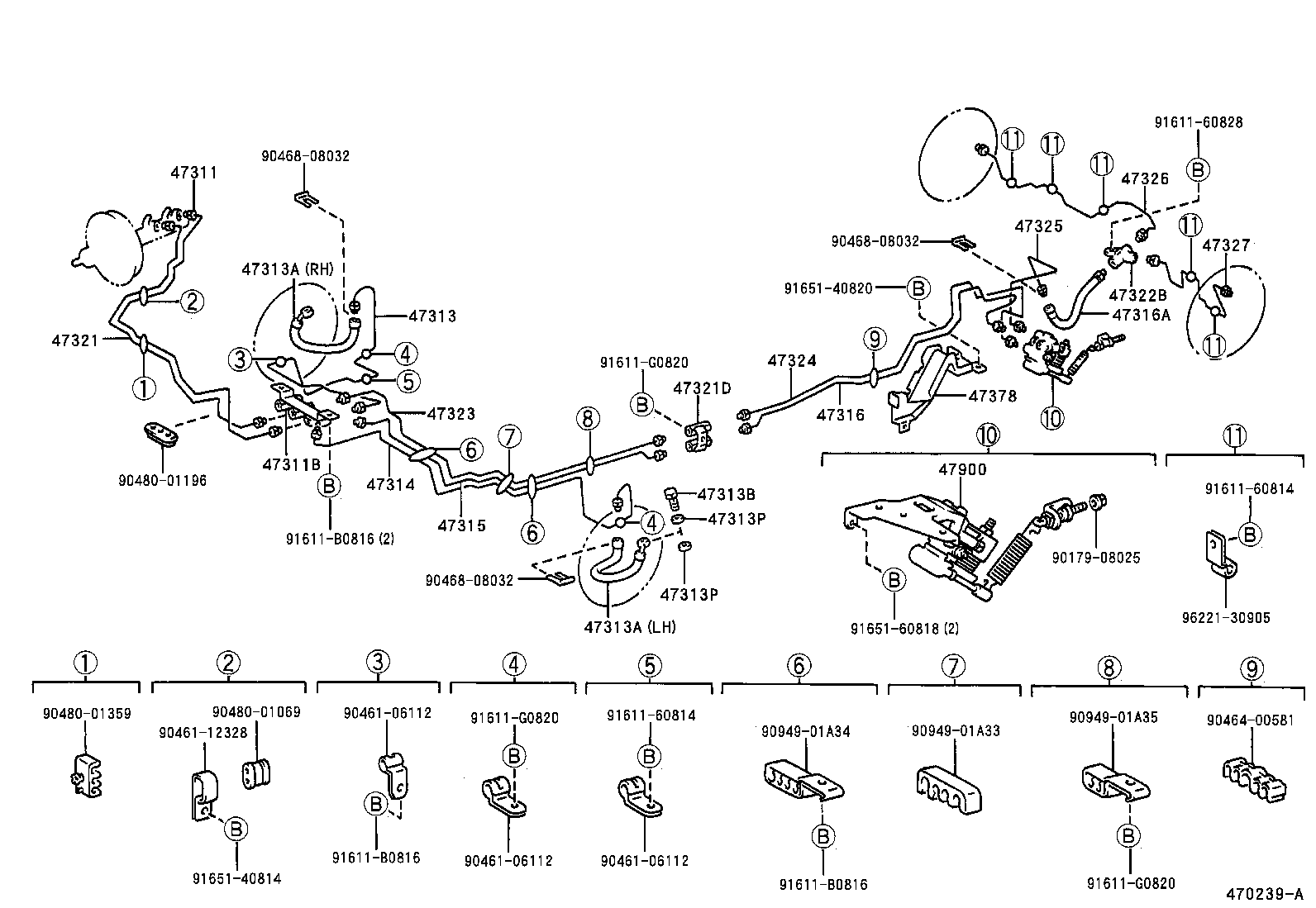

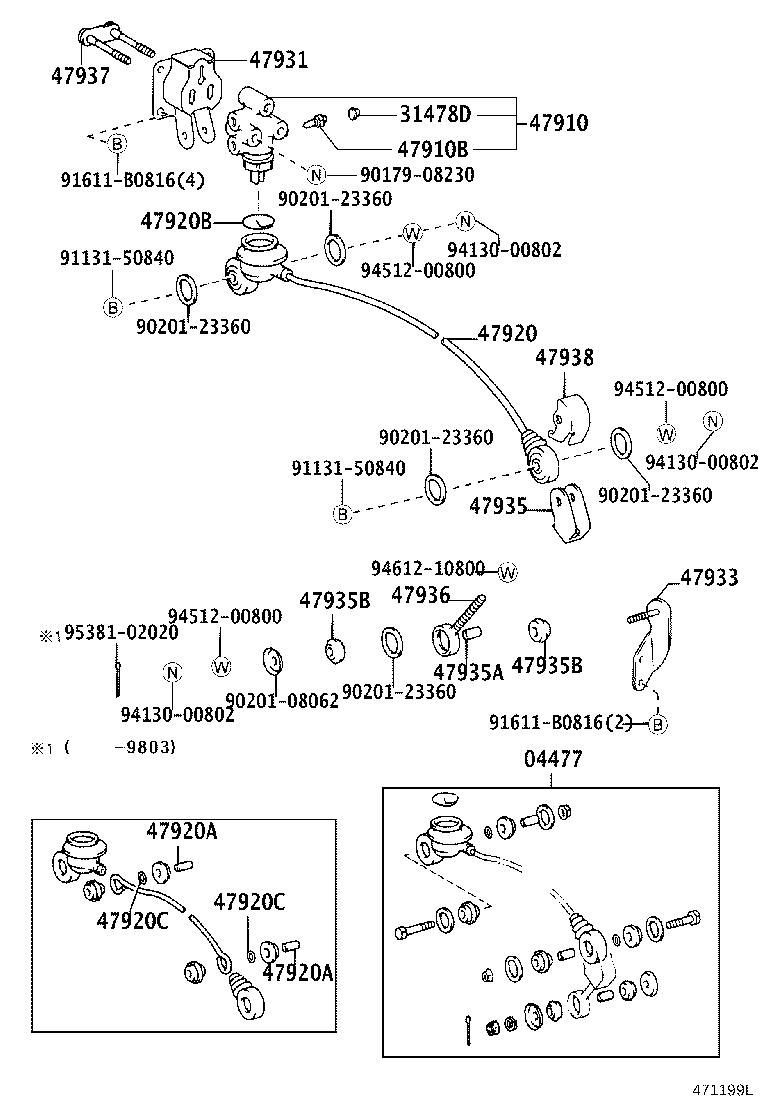

Figure 474585 474585 1989-08 → 1993-08 Figure 474586 474586 1989-08 → 1993-08 Figure 470162F 470162F 1993-08 → — Figure 470163D 470163D 1993-08 → — Figure 471293C 471293C 1998-08 → — Figure 471294E 471294E 1998-08 → — Figure 471294E 471294E 2001-08 → — Figure 472213B 472213B 2000-08 → — Figure 472213B 472213B 2002-08 → — Figure 470146 470146 1998-08 → — Figure 470146 470146 2000-08 → — Figure 470146 470146 2001-08 → — Figure 470146 470146 2002-08 → — Figure 471199L 471199L 1989-08 → — Figure 470239A 470239A 1996-11 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
31478D Cap, Bleeder Plug(FOR LSPV)
42127A Attachment, Brake Tube Clamp, NO.1
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44591 Bracket, Brake Actuator, NO.1
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47341B Tube, Wheel Cylinder, Front RH NO.1
47342 Tube, Wheel Cylinder, Front RH NO.2
47343A Tube, Wheel Cylinder, Front LH NO.1
47344 Tube, Wheel Cylinder, Front LH NO.2
47351 Bracket, Flexible Hose(FOR FRONT RH)
47351B Bracket, Flexible Hose, NO.1
47352 Bracket, Flexible Hose(FOR FRONT LH)
47361A Tube, Front Brake, NO.10
47362 Tube, Front Brake, NO.11
47371A Clamp, Brake Tube, NO.1
47378 Protector, Brake Tube
47381 Bracket, Brake Tube Clamp NO.1
47383 Bracket, Connector
47900 Valve Assy, Load Sensing W/Spring
47910 Valve Assy, Load Sensing Proportioning
47910B Plug, Bleeder
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
47938 Insulator, Load Sensing Spring Shackle Haet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
